The 2022 Ford upfitter switches feature six relay-powered circuits routed under the hood. AUX 1 (Brown/Green) and AUX 2 (Violet/Orange) are rated at 25A. AUX 3 (Blue/Green) and AUX 4 (Gray/Orange) handle 20A. AUX 5 (Brown/Yellow) and AUX 6 (Green/Blue) supply 40A. Pass-through wires connect under the passenger side glove compartment to engine bay leads.
📌 Key Takeaways
- AUX 1 & 2 are 25A fused circuits, AUX 3 & 4 are 20A, and AUX 5 & 6 are high-draw 40A circuits routed to underhood relays.
- Factory wire color code configuration: Brown/Green (AUX 1), Violet/Orange (AUX 2), Blue/Green (AUX 3), Gray/Orange (AUX 4), Brown/Yellow (AUX 5), Green/Blue (AUX 6).
- Four un-terminated pass-through wires are located behind the passenger glove box and exit near the engine bay battery junction box.
- The most common failure point is exceeding circuit amperage ratings or relying on an improper chassis ground wire connection.
- DIY-friendly for standard lighting and accessory triggers, but loads exceeding 40A require adding an external continuous-duty relay.
Integration of high-draw accessories—such as LED light bars, auxiliary winch controls, onboard air compressors, and emergency strobe systems—into a 2022 Ford Super Duty (F-250, F-350, F-450, F-550) or Ford Transit requires exact adherence to OEM electrical architecture. The factory 66S Upfitter Switch package routes overhead console switches directly to a engine compartment relay box equipped with high-current fuses. Correctly interfacing with this system without throwing fault codes or overloading circuits depends on utilizing an accurate 2022 ford upfitter switches wiring diagram. This technical manual outlines wire color code protocols, pin assignment positions, pass-through wire routing, and voltage drop mitigation strategies for professional automotive technicians and equipment riggers.
Recommended Best Deal Products
According to OEM service specifications, the 2022 Ford upfitter relay panel is situated on the engine compartment firewall (passenger side on Super Duty models). Unlike aftermarket switch pods, Ford’s factory package includes isolated relay circuits pre-wired into the vehicle’s high-current Battery Junction Box (BJB). Always verify terminal pin assignment codes using a digital multimeter prior to making permanent crimp splices.

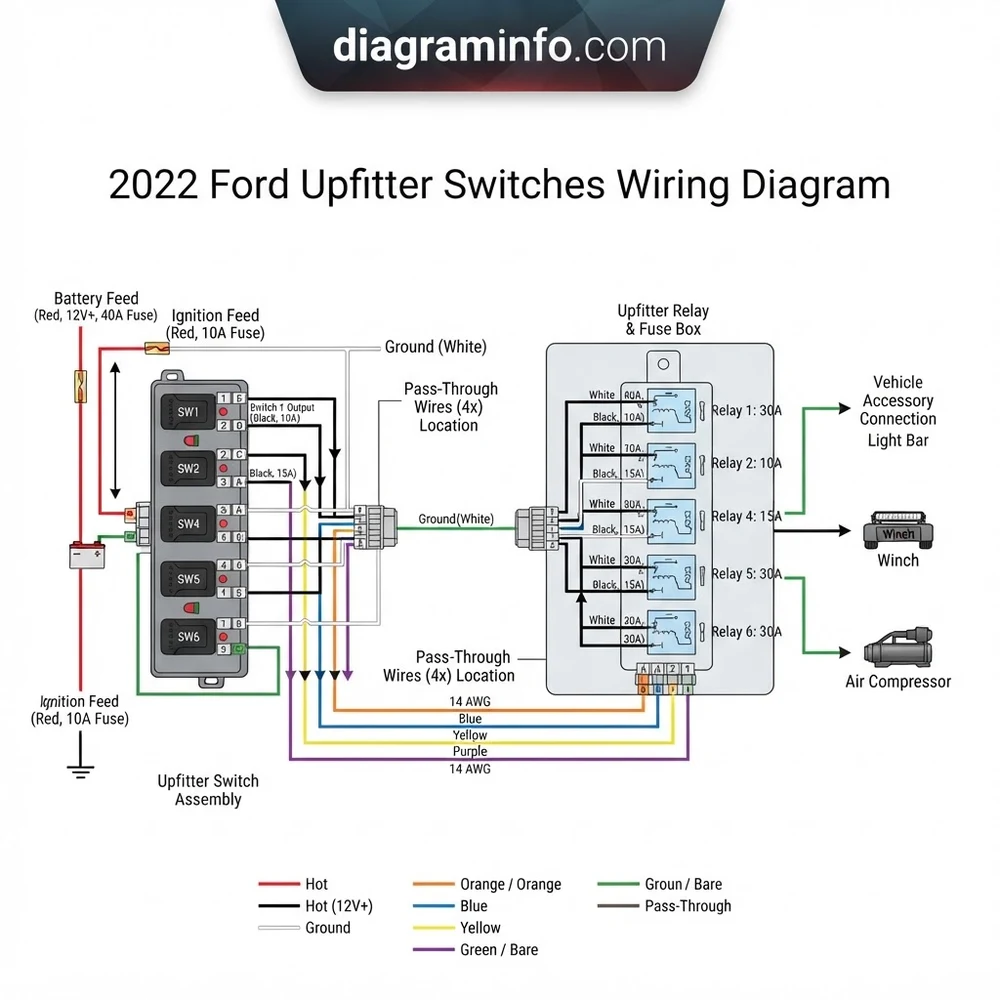

2022 Ford Upfitter Switches Wiring Diagram Architecture and Relay Logic
The core electrical architecture behind the 2022 Ford upfitter switch system is divided into two operational halves: low-current trigger circuits inside the cab overhead console and high-current switched outputs in the engine bay. The console switches send a low-amperage 12V signal to trigger corresponding relays located inside the Underhood Relay Box. This configuration isolates interior control switches from high amp loads, eliminating the need to run thick, high-amperage hot wire feeds directly through the dashboard.
Each switch in the six-position overhead console corresponds to a dedicated relay and fuse inside the auxiliary junction box. Circuits AUX 1 through AUX 4 operate on solid-state or traditional mini-relays, while AUX 5 and AUX 6 employ high-capacity 40-amp Maxi-relays to handle heavy inductive loads. Power is supplied to the switch bank via keyed ignition voltage by default (Hot in Run/Start), but the relay control logic can be reconfigured at the engine bay terminal block to supply unswitched battery voltage (Hot at All Times) for continuous equipment power. If your build incorporates secondary power generation, consult our comprehensive guide on dual battery isolator wiring diagrams for proper charge isolation.
2022 Ford Upfitter Switches Wire Color Code and Pin Assignment Matrix
The following reference table outlines the OEM wire color code standards, fuse ratings, wire gauge specifications, and circuit output assignments for the 2022 Ford upfitter system. Circuit outputs terminate in blunt-cut pigtails located near the engine compartment relay housing.
| Switch / Circuit | Wire Color Code | Pin / Terminal | Fuse Rating | Wire Gauge | Max Load / Output Type |
|---|---|---|---|---|---|
| AUX 1 | Yellow / Green stripe | Pin 1 (Relay Box Harness) | 25 Amp | 12 AWG | 25A Switched Hot Wire |
| AUX 2 | Violet / Orange stripe | Pin 2 (Relay Box Harness) | 25 Amp | 12 AWG | 25A Switched Hot Wire |
| AUX 3 | Blue / Green stripe | Pin 3 (Relay Box Harness) | 10 Amp | 16 AWG | 10A Low-Current Control |
| AUX 4 | Gray / Orange stripe | Pin 4 (Relay Box Harness) | 10 Amp | 16 AWG | 10A Low-Current Control |
| AUX 5 | Brown / Blue stripe | Pin 5 (Relay Box Harness) | 40 Amp | 10 AWG | 40A High-Draw Supply |
| AUX 6 | Gray / Blue stripe | Pin 6 (Relay Box Harness) | 40 Amp | 10 AWG | 40A High-Draw Supply |
| Pass-Through 1 | Blue / White stripe | Firewall Harness Point A | Unfused | 14 AWG | In-Cab to Engine Bay Pass |
| Pass-Through 2 | White / Orange stripe | Firewall Harness Point B | Unfused | 14 AWG | In-Cab to Engine Bay Pass |
| Pass-Through 3 | Nutmeg (Brown) | Firewall Harness Point C | Unfused | 14 AWG | In-Cab to Engine Bay Pass |
| Pass-Through 4 | Gray / Red stripe | Firewall Harness Point D | Unfused | 14 AWG | In-Cab to Engine Bay Pass |
Recommended Best Deal Products
Factory wire gauge sizing dictates ampacity constraints. AUX 1 and AUX 2 utilize 12 AWG cross-linked polyethylene (XLPE) wire, supporting a continuous current draw up to 25 amps at 12V DC. AUX 5 and AUX 6 use heavy-duty 10 AWG wire rated for 40 amps. Always match your downstream wiring extension gauge to or above the factory circuit gauge to prevent thermal degradation.
Locating Engine Bay Pass-Through Wires and Terminal Block Harnesses
A frequent challenge when interfacing with the 2022 Ford upfitter switches wiring diagram is establishing connection paths between cab-mounted equipment and the underhood relay terminal block. Ford provides four blunt-cut “pass-through” wires built directly into the main cab dash harness, eliminating the need to drill holes through the firewall rubber boot.
Inside the cabin, the pass-through pigtails are taped to the main wiring harness located behind the passenger side kick panel or tucked directly behind the glove box assembly. Under the hood, these same four wires emerge from the main firewall harness seal, positioned between the brake master cylinder and the engine compartment relay box. These pass-through conductors contain no source voltage or fuse protection on their own; they act purely as isolated extension lines to route signals or switched hot wire feeds directly back into the interior cab console.
When connecting accessories inside the cab—such as dash-mounted radar detectors, interior lighting controllers, or CB radios—you splice the interior switch load wire into one end of a pass-through wire, then connect the engine compartment end of that same pass-through wire directly to the corresponding AUX output lead at the engine bay relay terminal block.
Step-by-Step Harness Routing Guide for 2022 Ford Upfitter Switches
Executing an OEM-grade wiring installation using the 2022 Ford upfitter switches wiring diagram requires methodical circuit selection, wire prep, terminal crimping, and load validation. Follow this precise connection sequence:
- Isolate Electrical System Voltage: Turn off the ignition switch, remove the key fob from proximity, and disconnect the negative battery ground wire terminal from all installed batteries using a 10mm socket to prevent short circuits during splicing.
- Access Underhood AUX Output Harness: Locate the auxiliary upfitter relay box mounted on the passenger-side rear firewall. Unclip the protective wiring harness sleeve to expose the sealed blunt-cut output wires (AUX 1 through AUX 6).
- Calculate Load Amperage and Match Circuit: Identify the operating current draw of your aftermarket accessory. Connect equipment drawing up to 10A to AUX 3 or AUX 4 (16 AWG). Connect 11A–25A equipment to AUX 1 or AUX 2 (12 AWG). Connect heavy loads up to 40A (e.g., winches or high-output light bars) exclusively to AUX 5 or AUX 6 (10 AWG).
- Prep and Strip Wire Leads: Strip approximately 3/8 inch (10mm) of insulation off the designated AUX hot wire output pigtail and your load supply wire using a precision wire stripper. Ensure wire strands remain intact without nicking.
- Crimp with Heat-Shrink Connectors: Slide a dual-wall adhesive-lined heat-shrink butt connector onto the terminal end. Crimp the junction securely using a ratcheting crimp tool. Apply heat evenly using a heat gun until the internal adhesive flows, forming a waterproof environment seal around the terminal block joint.
- Establish Chassis Ground Return: Direct current systems require a complete return path. Connect the negative return lead from your load device directly to a factory chassis ground lug or ground wire point using an appropriately sized ring terminal. Do not attempt to return load current back through the upfitter relay panel; it contains no neutral wire return block for load consumption.
- Verify Ignition Switch Logic (Optional): If constant battery voltage is required when the engine is off, relocate the fuse position inside the underhood relay box cover following the OEM fuse layout chart to convert selected switches from ignition-switched to battery-hot mode.
- Reconnect Power and Test System Voltage: Reattach the primary negative battery ground wire. Turn the ignition key to Run, flip the targeted upfitter toggle switch, and measure output voltage at the load terminal using a digital multimeter. Confirm stable supply voltage near 13.8V to 14.2V with the engine running.
Do not exceed the maximum rated amperage per circuit. Tapping a 35-amp compressor into the AUX 3 (10A) circuit will result in immediate blown mini-fuses and risks melting the 16 AWG internal relay lead. For loads exceeding 40A continuous draw, use an upfitter switch wire strictly as a low-current trigger signal for a dedicated high-amperage external solenoid.
Common 2022 Ford Upfitter Switches Wiring Diagram Errors and Voltage Drops
Improper installation methods can lead to nuisance fuse failure, electromagnetic interference (EMI) on CAN-bus lines, or excessive voltage drop across long wire runs. Understanding system constraints reduces troubleshooting downtime.
1. Grounding Load Equipment to Non-Conductive Surfaces
A dominant failure mode in auxiliary electrical additions is an inadequate return path. Technicians often ground accessories to aluminum body panels coated with non-conductive primer or paint. A high-resistance ground wire path restricts current, causing accessory malfunction or voltage drop under load. Always strip paint down to bare metal on structural chassis members, use star washers, and apply dielectric grease to prevent galvanic corrosion on Ford’s aluminum body structure.
2. Misinterpreting Pass-Through Wires as Powered Hot Wires
A common mistake when referencing the 2022 Ford upfitter switches wiring diagram is connecting load equipment directly to the pass-through wire pigtails expecting 12V power. Pass-through lines are unpowered metal conductors terminating at both sides of the firewall. They do not supply system voltage until one end is explicitly spliced into an active AUX output wire at the engine compartment terminal block.
3. Splicing High-Draw Loads Without Gauge Scaling
Extending an AUX 5 or AUX 6 (40A) circuit over a long distance (such as routing power to a rear utility bed winch or trailer connector) using standard 14 AWG primary wire introduces high internal wire resistance. Over a 15-foot length, 40 amps passing through 14 AWG results in severe voltage drop, overheating the wire insulation. For long rear-vehicle harness runs, upscale the wire gauge from 10 AWG to 8 AWG or 6 AWG. For comprehensive wiring schematics on rear-bed charging and trailer control feeds, see our guide on 7-pin trailer wiring schematics and ground layouts.
4. Interfacing Inductive Motors Without Flyback Protection
Large DC electric motors (e.g., fluid pumps, hydraulic pumps, or heavy winches) generate significant inductive voltage spikes (flyback voltage) when switched off. Connecting high-inductance equipment directly to AUX switch outputs without a clamping diode or secondary isolation relay can damage the internal contacts of the underhood upfitter relay module over time.
Technical Questions on 2022 Ford Upfitter Switches Wiring Solved
What wire gauge is used for AUX 5 and AUX 6 high-amperage switches?
AUX 5 and AUX 6 utilize heavy-duty 10 AWG cross-linked polyethylene insulated wire from the factory underhood relay panel output. These two circuits are protected by 40-amp cartridge fuses in the upfitter junction box, making them suitable for high-draw appliances such as heavy-duty lighting arrays, high-output air compressors, or small hydraulic pumps.
How do you configure 2022 Ford upfitter switches for constant hot battery voltage?
By default, all six upfitter switches operate only when the ignition switch is in the RUN or ACC position. To convert switches (such as AUX 5 or AUX 6) to constant battery hot wire power, open the underhood upfitter relay box and locate the fuse placement configuration. Shift the specific circuit’s supply fuse jumper from position A (ignition key dependent) to position B (unswitched battery direct), following the diagram embossed inside the relay box cover.
Where are the factory pass-through wires located on a 2022 Super Duty?
The four factory pass-through wires are located in two distinct places. Inside the cab, the blunt-cut pigtails are taped to the main wiring harness behind the passenger-side kick panel and lower dash glove box area. Under the hood, the opposite ends of these four wires emerge from the firewall wiring grommet on the passenger side, located near the main battery junction box and heater core lines.
Can you wire a neutral wire or shared ground wire return through the upfitter terminal block?
No. The Ford upfitter switch terminal block and underhood relay box provide positive (+12V DC) output power feeds only. There is no neutral wire bus or dedicated central load ground return inside the upfitter relay box. All connected electrical accessories must have their ground wire bolted directly to an established vehicle chassis ground lug or ground bus bar connected to the negative battery terminal.
What is the maximum continuous current draw allowed per upfitter switch circuit?
To avoid thermal overload, continuous current draw (loads running longer than 3 hours continuously) should not exceed 80% of the circuit’s rated fuse capacity. For AUX 1 and AUX 2 (25A fuse), maximum continuous load is 20 amps. For AUX 3 and AUX 4 (10A fuse), maximum continuous load is 8 amps. For AUX 5 and AUX 6 (40A fuse), maximum continuous load is 32 amps. If your equipment exceeds these ratings, install a secondary automotive relay wiring harness schematic triggered by the upfitter switch.
2022 Ford Upfitter Switches Wiring Diagram: Frequently Asked Questions
What wire color is AUX 1 on 2022 ford upfitter switches wiring diagram?
On the 2022 Ford upfitter switches wiring diagram, AUX 1 is identified by a Brown/Green hot wire. AUX 2 uses Violet/Orange, AUX 3 uses Blue/Green, AUX 4 uses Gray/Orange, AUX 5 uses Brown/Yellow, and AUX 6 uses Green/Blue. Each wire feeds directly from the engine compartment power distribution box.
What do the pin numbers mean on 2022 ford upfitter switches wiring diagram?
Pin assignment configurations on the 2022 Ford upfitter switch relay block correspond to specific relay coil power inputs, load output terminals, and ground wire triggers. Pin assignments allow aftermarket accessories to draw power safely through factory-installed, fused relay positions without splicing directly into the vehicle’s primary harness.
How many wires does 2022 ford upfitter switches wiring diagram have?
The 2022 Ford upfitter switches wiring diagram details six primary hot wire outputs for AUX switches 1 through 6, plus four designated pass-through wires. This total of ten underhood wire leads allows seamless connection from the cabin switch panel to accessories in the engine bay without drilling through the firewall.
What are common wiring mistakes with 2022 ford upfitter switches wiring diagram?
Common mistakes include confusing the pass-through wires with active hot wire switch outputs, using an inadequate ground wire point, and exceeding circuit fuse limits (20A, 25A, or 40A). Always verify wire color code sequences using a multimeter before attaching high-amperage LED light bars or accessories.
Do I need a brake controller for 2022 ford upfitter switches wiring diagram?
No, upfitter switches operate independently of the electric brake controller system. Upfitter switches provide switched 12V power for auxiliary lighting, winches, or pumps. If you require trailer brake integration, Ford provides a separate dedicated brake controller harness behind the lower center dash stack, which does not tie into upfitter relays.
