The 2012 Ford F150 exhaust system diagram outlines a single or dual-inlet system running from the exhaust manifolds through dual catalytic converters, a mid-pipe resonator, and an offset muffler to a side-exit tailpipe. It highlights four O2 sensor ports (upstream and downstream per bank), rubber isolator hangers, and two-bolt flange configurations.
📌 Key Takeaways
- Exhaust manifold flange bolts require 30 lb-ft (40 Nm) torque to prevent exhaust gas leaks at the head junction.
- Dual catalytic converters feature upstream and downstream oxygen (O2) sensor ports for Bank 1 and Bank 2 monitor feedback.
- Flexible isolator rubber hangers must be inspected during service to prevent pipe sagging and frame vibration noise.
- Rusted flange studs and broken manifold bolts on 3.5L EcoBoost or 5.0L V8 engines are primary leak failure points.
- Structural pipe replacements require professional welding or exact-fit clamp assembly matching factory pipe diameters (2.5 to 3 inches).
Navigating the exhaust architecture of the ninth-generation F-Series truck requires an accurate technical reference. The 2012 ford f150 exhaust system diagram illustrates a highly modular routing scheme engineered to service four distinct engine powertrains: the 3.7L Duratec V6, 3.5L EcoBoost twin-turbo V6, 5.0L Coyote V8, and 6.2L Boss V8. While component dimensions and turbo-flange couplings differ across these engines, the fundamental underbody chassis layout maintains a unified path: dual bank collection, catalyst treatment, single-channel intermediate piping with resonator damping, main absorption/reflection muffling, and a right-rear quarter exit. Understanding this schematic layout is essential for precise diagnostic tracing, backpressure testing, and component replacement.

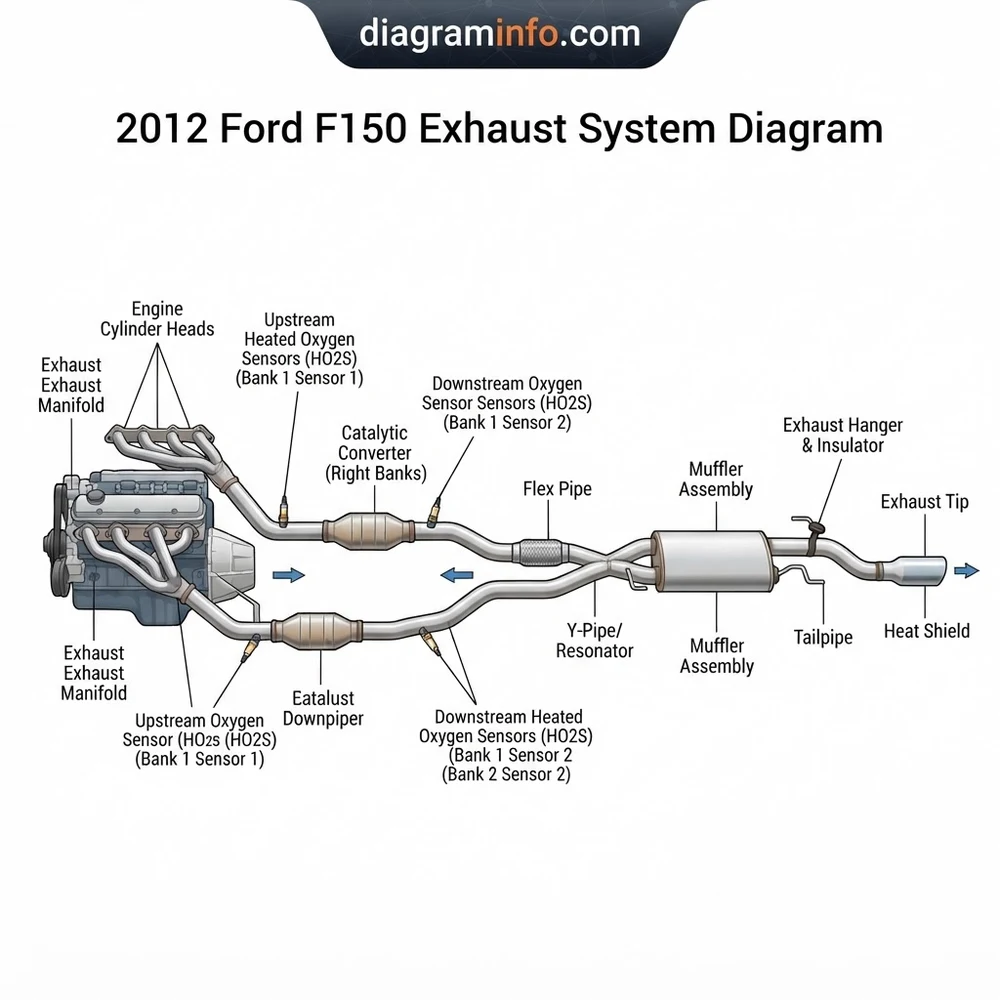

2012 Ford F150 Exhaust System Diagram: Component Layout and Blueprint
The 2012 Ford F-150 factory exhaust schematic outlines a sequential, heavy-duty assembly secured to the frame via isolated rubber hangers. Emissions control begins directly at the cylinder head flanges or turbocharger turbine outlets. Each cylinder bank feeds into an isolated catalytic converter assembly containing upstream and downstream sensor bosses before converging at a central Y-pipe assembly.
Recommended Best Deal Products
According to OEM specifications, 2012 F-150 factory exhaust systems utilize 409 stainless steel construction. Main pipe diameters measure 2.5 inches (63.5 mm) at the dual downpipes, expanding to a 3.0-inch (76.2 mm) single intermediate pipe post-Y-pipe junction on 3.5L EcoBoost, 5.0L, and 6.2L models. The 3.7L V6 utilizes a 2.5-inch neckdown throughout the intermediate section.
Primary Structural Components of the 2012 F-150 Exhaust Schematic
The primary assembly relies on three major mechanical sub-assemblies connected via spherical ball joints, two-bolt flanges, or torca band clamps:
- Downpipe and Y-Pipe Assembly: Integrates dual catalytic converters and primary flexible couplers (flex pipes) to absorb engine movement relative to the rigid chassis.
- Intermediate Pipe and Resonator: A straight-through acoustic tuning section designed to mitigate low-frequency cabin drone between 1,800 and 2,200 RPM. Wheelbase variations (126-inch to 163-inch) dictate the precise length of this intermediate extension pipe.
- Muffler and Tailpipe Assembly: A high-volume combination reflection/absorption muffler linked to a mandrell-bent 3-inch tailpipe exiting behind the passenger-side rear tire.
Sensor Locations and Wiring Configuration
According to factory electrical schematics, four heated oxygen sensors monitor the system. Upstream sensors (Bank 1 Sensor 1, Bank 2 Sensor 1) are Universal Exhaust Gas Oxygen (UEGO) wideband sensors positioned prior to the catalytic substrate. Downstream sensors (Bank 1 Sensor 2, Bank 2 Sensor 2) are standard switching Heated Exhaust Gas Oxygen (HEGO) sensors positioned directly after the main catalyst brick to verify converter efficiency. Refer to our detailed 2012 F-150 oxygen sensor wiring diagram guide for pinout specs and harness color coding.
| Component ID | OEM Part Reference | Fastener Specs | Torque Specification |
|---|---|---|---|
| Manifold Studs / Nuts | W712244-S300 / W705443-S441 | M10 x 1.25 Flange Nut | 30 lb-ft (40 Nm) |
| Y-Pipe to Extension Flange | BL3Z-5A212-A | M10 x 1.50 Bolt | 35 lb-ft (47 Nm) |
| Exhaust Band Clamps | 9L3Z-5A231-A | 3.0-inch Saddle Clamp | 35 lb-ft (47 Nm) |
| Oxygen Sensors (Up/Down) | DY-1185 / DY-1124 | M18 x 1.5 Thread | 30 lb-ft (41 Nm) |
| Hanger Bracket Bolts | W500623-S439 | M8 x 1.25 Bolt | 18 lb-ft (25 Nm) |
Understanding Engine-Specific 2012 Ford F150 Exhaust System Configurations
While the underbody routing appears uniform across the 2012 platform, critical structural differences exist depending on the installed powertrain option. Reviewing engine-specific schematics prevents incorrect component sourcing during overhaul or repair.
3.5L EcoBoost Twin-Turbo Exhaust Architecture
The 3.5L EcoBoost configuration connects directly to the twin turbocharger turbine housings using Marman-style clamp flanges or studs rather than traditional cast manifolds. Exhaust gas exits each turbocharger into dedicated downpipes containing high-flow catalytic converters. Because forced-induction systems require maximum thermal retention near the turbine discharge, downpipe wall thickness and heat shielding are increased. If working on turbo assemblies, review our Ford 3.5L EcoBoost turbocharger service manual to verify manifold-to-turbine interface torque sequences.
Recommended Best Deal Products
5.0L V8 and 6.2L V8 Naturally Aspirated Routing
The 5.0L Coyote and 6.2L Boss V8 engines use cast iron or tubular manifold headers running along the frame rails. The Y-pipe configuration features a asymmetric crossover pipe that routes the driver-side (Bank 2) path under the transmission tailhousing to merge with the passenger-side (Bank 1) collector. Clearances near the transmission crossmember are tight; when servicing, verify that the crossover pipe maintains at least 15mm clearance from the transmission pan and F-150 transfer case alignment specs to prevent thermal transfer to drivetrain fluids.
3.7L V6 Standard Configuration Differences
The 3.7L V6 engine utilizes smaller primary runner volumes to maintain adequate exhaust gas velocity for catalytic light-off. The secondary Y-pipe outlet scales down to 2.5 inches before entering a smaller-volume resonator assembly. Installing a 5.0L or 3.5L intermediate pipe on a 3.7L chassis requires stepped adapter sleeves to account for this 0.5-inch outer diameter variance.
How to Use the 2012 Ford F-150 Exhaust Schematic for Repair and Removal
Executing repairs on the 2012 F-150 exhaust layout requires following a logical, top-down disassembly process. Mechanical bond failure on high-mileage trucks frequently leads to seized fasteners or damaged hanger isolators if excessive force is applied.
Allow the exhaust system to cool completely before servicing. Oxygen sensor pigtails melt rapidly upon contacting warm catalyst shells. Disconnect sensor electrical connectors before unthreading sensors to avoid damaging internal wire ribbons.
Pre-Disassembly Flange and Fastener Surface Preparation
Soak all exhaust manifold nuts, catalytic converter flange studs, and band clamp bolts with penetrant spray prior to removal. Heat cycles cause severe oxidation on factory carbon-steel fasteners. Apply heat from an oxy-acetylene torch to frozen M10 flange nuts if break-out torque exceeds 50 lb-ft to prevent stud shear.
Isolating Downpipes, Y-Pipe, and Catalytic Converters
To drop the Y-pipe and catalytic converter assembly based on the blueprint schematic:
- Unplug the four O2 sensor harness connectors from the main engine bay and frame rail looms.
- Support the transmission crossmember with a jack if crossmember removal is required on select 4WD EcoBoost models.
- Unbolt the two-bolt rear exit flange connecting the Y-pipe to the intermediate resonator pipe.
- Remove the four manifold-to-downpipe flange nuts. Carefully slip the assembly rearward off the studs to clear the front subframe.
Installing Resonator, Muffler, and Tailpipe Alignments
When assembling new intermediate components, slip all joints together dry or with high-temp exhaust sealant before tightening clamps. Hang all rubber isolator bushings on their frame brackets to set neutral alignment. Tighten connections from front to rear: manifold flanges first, intermediate band clamps second, and tailpipe hangers last. This front-to-back sequence ensures proper expansion allowance along the longitudinal chassis line.
Spray silicone lubricant onto rubber hanger rods during removal and installation. Never use petroleum-based grease, which degrades EPDM rubber bushings and causes sag over time.
Diagnosing Issues with the 2012 Ford F150 Exhaust System Layout
Exhaust system failures on the 2012 F-150 range from mechanical leaks and audible rattles to chemical catalyst degradation triggering Diagnostic Trouble Codes (DTCs). Diagnosing these issues accurately requires matching symptoms to specific physical regions on the layout diagram.
Exhaust Manifold Stud Shear and Warping Symptoms
A common issue on both 3.5L EcoBoost and 5.0L engines is rear exhaust manifold stud breakage (typically Bank 1 or Bank 2 rear-most cylinders). Thermal stress causes the cast manifold to warp, snapping the M10 steel studs.
- Symptoms: High-pitched ticking sound on cold engine startup that diminishes as components thermally expand.
- Diagnostic Procedure: Inspect rear exhaust ports for black carbon tracking. Pass a smoke machine fluid tip through the tailpipe with the system plugged; observe smoke escaping at the cylinder head interface.
- Correction: Replace manifold, gas seals, and upgrade to stainless or hardened grade-10.9 replacement studs. Flat-plane surface ground re-machining of the manifold is necessary if warping exceeds 0.005 inches across the deck.
Catalytic Converter Efficiency Failures (DTC P0420 / P0430)
Diagnostic codes P0420 (Bank 1) and P0430 (Bank 2) indicate catalytic converter system efficiency below threshold. The Powertrain Control Module (PCM) compares switching frequency between the upstream UEGO sensor and downstream HEGO sensor.
- Diagnostic Procedure: Connect a scan tool and graph O2 sensor voltages at operating temperature (2,000 RPM steady load). Upstream sensors should oscillate rapidly or fluctuate current, while downstream sensors should hold steady at approximately 0.45 to 0.70 volts. If the downstream sensor mirror-tracks the upstream sensor waveform, the catalytic core is depleted.
- Exhaust Backpressure Testing: Remove the upstream O2 sensor and thread in a 0-10 PSI pressure gauge. Normal backpressure is under 1.0 PSI at idle and under 2.5 PSI at 2,500 RPM. Readings exceeding 3.0 PSI indicate a melted or restricted converter substrate.
Flex Pipe Cracking and Hanger Degradation Noise
The flexible braided couplers on the factory Y-pipe absorb engine torque roll. Over time, internal wire mesh breaks, resulting in a rasping exhaust leak under hard acceleration. Inspect flex joints for frayed stainless webbing or soot deposits along the braided weave. Replace damaged flex sections by welding in universal stainless flex couplings or installing a complete replacement Y-pipe assembly.
2012 Ford F150 Exhaust System Layout and Schematic FAQs
What tubing diameter is specified in the 2012 Ford F150 exhaust blueprint?
The 2012 Ford F-150 exhaust schematic specifies 2.5-inch outer diameter (OD) tubing for dual downpipes leading from the engine manifolds into the catalytic converters. On 3.5L EcoBoost, 5.0L V8, and 6.2L V8 models, the pipe expands to a single 3.0-inch OD pipe post-Y-pipe junction through the resonator, muffler, and tailpipe. The 3.7L V6 model uses 2.5-inch OD piping through the intermediate section.
Where are the upstream and downstream O2 sensors positioned on the 3.5L EcoBoost?
Upstream wideband O2 sensors are located on the turbocharger downpipes prior to the catalytic converter bricks, positioned near the engine firewall. Downstream HEGO sensors are mounted directly in the body of the catalyst pipe, downstream of the ceramic substrate before the Y-pipe merge point.
How do broken exhaust manifold studs affect downstream sensor readings?
A broken manifold stud creates an ambient air leak under low-load vacuum pulses. Outside air entering the exhaust stream introduces unmetered oxygen past the upstream sensor. The sensor reads lean, causing the PCM to over-fuel the engine. This rich condition can elevate exhaust gas temperatures and prematurely destroy the downstream catalytic converter substrate.
Can you interchange the 5.0L V8 and 3.5L EcoBoost intermediate pipe assemblies?
Yes, intermediate pipes and resonator assemblies are mechanically interchangeable between 5.0L V8 and 3.5L EcoBoost models of identical wheelbase configurations (e.g., 145-inch SuperCrew 5.5-foot bed). Both engines output to a 3-inch two-bolt flange at the rear of the Y-pipe collector, though acoustic dampening characteristics inside the factory resonator vary slightly by engine displacement.
What are the factory torque specifications for the 2012 F-150 exhaust flange clamps?
Factory Torca band clamps and two-bolt flange connections require 35 lb-ft (47 Nm) of torque. Manifold-to-downpipe flange nuts should be torqued to 30 lb-ft (40 Nm). Oxygen sensors threaded into welded bosses require 30 lb-ft (41 Nm) using an 7/8-inch (22mm) oxygen sensor socket.
Step-by-Step Guide to Understanding the 2012 Ford F150 Exhaust System Diagram
Identify – Exhaust system layout and engine configuration (3.7L, 5.0L, 6.2L, or 3.5L EcoBoost) on the diagram.
Locate – High-risk corrosion points, flange bolts, oxygen sensors, and rubber isolator hangers underneath the chassis.
Reference – Diagram schematics to determine exact O2 sensor wiring locations and upstream versus downstream positions.
Connect/Route – Replacement exhaust pipes, mufflers, and hangers along the designated frame path maintaining clear heat shield gaps.
Verify – Torque flange hardware to 30 lb-ft and check seal integrity across all exhaust pipe joint clamps.
Troubleshoot – Check for audible exhaust leaks, engine codes, or rattle noises after running the vehicle to operating temperature.
