7-Way Big Tex Trailer Parts Diagram: 2026 Pinout Guide
A standard Big Tex trailer parts diagram uses a 7-way RV blade plug layout: White (Pin 1) for ground, Blue (Pin 2) for electric brake controller, Green (Pin 3) for running lights, Black (Pin 4) for +12V auxiliary power, Red (Pin 5) for left turn signal, Brown (Pin 6) for right turn signal, and Yellow (Pin 7) for reverse lights.
📌 Key Takeaways
- Big Tex 7-way RV blade connectors follow standard US wire color coding rated for 10-14 gauge wire depending on circuit load.
- Pin 1 (White wire) serves as the primary ground and must be attached directly to the trailer frame with a 10-gauge minimum wire.
- The Blue wire dedicated to the electric brake controller requires 12-gauge wiring to safely carry up to 15 amps of braking current.
- Corrosion at the rear junction box and loose frame grounds cause over 80% of trailer lighting and electric brake failures.
- Minor light wiring repairs are safe DIY tasks, but full harness rewiring involving electric brakes should be inspected by a professional certified mechanic.
Big Tex commercial and utility trailers rely on standardized 7-way RV blade connectors and heavy-duty wiring harnesses to transmit low-voltage electrical current from the tow vehicle to the trailer brake controller, electric brake magnets, running lights, and auxiliary power circuits. Understanding the schematics of a Big Tex trailer parts diagram is essential when replacing junction boxes, diagnosing ground faults, converting legacy flat connector plugs, or servicing Dexter axle subassemblies. OEM wiring schematics adhere to standardized SAE J2863 color-coding conventions across utility, dump, gooseneck, and heavy equipment trailer models.

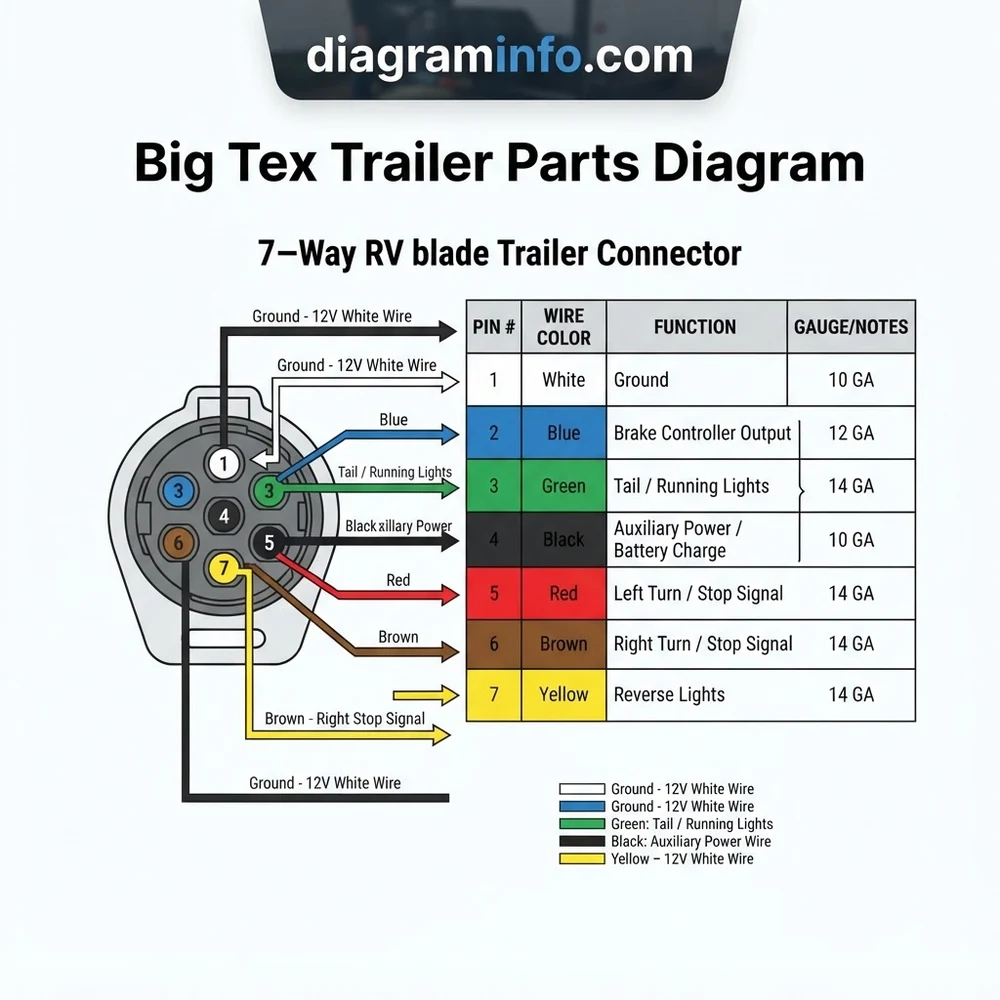

Big Tex Trailer Parts Diagram Pinout and Color Codes
According to OEM factory specifications, modern Big Tex trailers utilize a sealed 7-way molded harness terminating in a weather-resistant 7-pole RV blade plug. The 7-way junction box located on the trailer tongue acts as the central hub for distributing power to the electric brake magnets, lighting circuits, and battery maintenance systems. Below is the standard pin assignment configuration found across Big Tex single-axle, tandem-axle, and gooseneck trailers.
Recommended Best Deal Products
| Pin # | Wire Color | Function | Wire Gauge & Technical Notes |
|---|---|---|---|
| Pin 1 | White | Ground Pin | 10 AWG primary return line to tow vehicle chassis; must handle combined return current. |
| Pin 2 | Blue | Electric Brake | 12 AWG feed carrying pulsed DC output from the in-cab brake controller to wheel magnets. |
| Pin 3 | Brown | Running Lights | 14 AWG circuit supplying side markers, identification bars, and tail lamp illumination. |
| Pin 4 | Black | Auxiliary Power | 10-12 AWG continuous +12V DC supply for trickle-charging onboard dump/breakaway batteries. |
| Pin 5 | Yellow | Left Turn / Stop | 14 AWG combination circuit carrying left directional and primary braking signal light. |
| Pin 6 | Green | Right Turn / Stop | 14 AWG combination circuit carrying right directional and primary braking signal light. |
| Pin 7 | Purple | Auxiliary / Reverse | 14 AWG feed for reverse lockouts on surge brakes or backup lighting options. |
Legacy Big Tex models constructed prior to 2012 may occasionally feature standard 4-way flat connector or 5-way flat connector systems. When retrofitting a 7-way RV blade plug to an older chassis, always isolate the electric brake blue wire and install a dedicated 10-gauge ground pin lug directly to the primary structural tongue member.
Step-by-Step Wiring Installation Using the Big Tex Trailer Parts Diagram
Properly installing or replacing a 7-way main harness on a Big Tex trailer requires systematic terminal connection management within the tongue-mounted weather-proof junction box. Follow these technical installation protocols to guarantee signal integrity and prevent voltage drop across long wire runs.
Step 1: Prep and Mount the Weatherproof Junction Box
Position the standard 7-terminal weather-tight junction box on the inner frame rail of the trailer tongue, within 36 inches of the coupler. Secure the junction box casing using 1/4-inch Grade 5 stainless steel hardware. Route the main 7-conductor heavy-duty jacketed cable from the RV blade plug into the entry grommet on the front face of the junction box.
Step 2: Connect the Primary Ground Pin Circuit
Strip 3/8 inch of insulation from the 10 AWG white ground wire. Crimp a heat-shrinkable 1/4-inch ring terminal onto the conductor using a ratcheting crimper. Secure the white ground wire ring terminal to the primary ground stud inside the junction box labeled GND. Run a secondary 10 AWG ground jumper wire from this stud directly to the trailer frame member. Remove all paint and mill scale beneath the frame ground lug using a wire wheel, and apply dielectric grease to eliminate galvanic corrosion.
Step 3: Wire the Electric Brake Circuitry
Attach the 12 AWG blue signal wire coming from the RV blade connector to the designated electric brake terminal post. Connect the blue primary feed line leading back to the Dexter axle electric brake magnets onto this same terminal post. Ensure the secondary wire from the electric brake coils returns directly to the junction box ground stud or a verified main frame ground point.
Step 4: Connect Auxiliary Power and Charging Circuits
Locate the 10 AWG or 12 AWG black wire assigned to auxiliary power. Secure this conductor to the auxiliary post inside the junction box. If your Big Tex trailer is equipped with a hydraulic dump system or breakaway system, route a circuit breaker-protected line (30A auto-reset breaker recommended) from this post to the positive (+) battery terminal of the onboard 12V deep-cycle battery.
Step 5: Terminate Lighting Lines and Perform Diagnostic Testing
Connect the brown running lights wire (14 AWG) to the tail light terminal, supplying power to all perimeter clearance lights and license plate lamps. Connect the yellow wire to the left turn/brake terminal and the green wire to the right turn/brake terminal. If executing an LED running light conversion, verify polarity at each lamp fixture prior to sealing the junction box lid. Validate all circuits using a 12-volt circuit tester or digital multimeter (DMM) connected to the vehicle end plug.
Do not rely solely on the trailer coupler ball for electrical grounding. Ungrounded electrical flow through coupler balls causes severe electrical noise, flickering running lights, intermittent electric brake operation, and rapid pitting of the tow ball surface.
Structural Axle and Electric Brake Component Breakdown
The mechanical efficiency of a Big Tex trailer depends heavily on the alignment and integration between the electrical braking system and the underlying Dexter axle running gear. Understanding how electrical energy converts to mechanical friction within the drum assemblies requires evaluating the full component stack referenced in a complete Big Tex trailer parts diagram.
When current flows from the tow vehicle brake controller through the 12 AWG blue wire, it energizes the electromagnet inside the wheel hub brake assembly. The energized magnet adheres to the rotating armature face inside the cast iron brake drum. This friction pulls the magnet lever arm, expanding the primary and secondary brake shoes outward against the interior machined surface of the drum. Standard Big Tex utility trailers utilize Dexter 3,500 lb axles (10″ x 2-1/4″ brake shoes), while heavy-duty equipment and dump trailers feature 7,000 lb to 12,000 lb Dexter or Valrum axles (12″ x 2″ or 12″ x 2-1/2″ shoe configurations).
Electric Brake Magnet Resistance Standards:
• 7-inch & 10-inch Brake Assemblies: 3.8 to 4.0 Ohms (per magnet)
• 12-inch Brake Assemblies: 3.2 to 3.5 Ohms (per magnet)
• Total Parallel DC Amperage Draw (Tandem Axle, 4 Magnets): 12.0 to 15.0 Amps at 12V DC input.
Proper suspension geometry is vital to prevent wiring fatigue. Big Tex trailers use double-eye or slipper leaf spring assemblies attached to the frame via heavy-duty equalizer bars, spring hangers, and shackle bolts. Excessive suspension travel due to worn shackle bushings can pinch or shear the electric brake wires routed through the axle tube. Always consult a comprehensive Dexter axle service guide when servicing spindle bearings, seal caps, brake shoes, or replacing backing plates.
Additionally, safety compliance regulations mandate an operating emergency breakaway system. The emergency switch is wired directly across the 12V onboard battery and the blue electric brake circuit line. If the trailer detaches from the hitch, the breakaway pin pulls free, dumping full 12V battery current into the brake magnets to lock the wheels instantly. Routine testing and trailer breakaway switch kit replacement should be conducted annually to verify system actuation.
Troubleshooting Common RV Blade and Ground Pin Wiring Failures
Electrical issues on heavy-haul equipment trailers are typically driven by environmental exposure, physical strain, or poor ground paths. Diagnosing circuit degradation using a systematic approach minimizes downtime and prevents damage to sensitive towing equipment.
1. Total Illumination Failure or Intermittent Electric Brakes
The most frequent failure mode on Big Tex trailers involves high resistance or high voltage drop across the main white ground pin path. If lighting flickers when turning or electric brakes feel weak, perform a voltage drop test using a DMM:
- Set your multimeter to measure DC Volts (mV/V scale).
- Connect one probe to the negative (-) terminal of the tow vehicle battery and the second probe to the trailer ground pin in the junction box.
- Activate the running lights and brake circuits simultaneously.
- A reading greater than 0.5V DC indicates high resistance in the ground circuit, requiring ground stud cleaning, rust removal, or wire replacement.
2. Brake Controller Overload and Short Circuit Error Messages
When an in-cab brake controller displays “Short to Ground” or “Output Shorted”, the blue brake wire is making contact with the steel trailer chassis or the internal magnet coils have melted. Inspect the wire routing points where the brake wire exits the frame tube and enters the brake backing plate. Grommet failure at these pass-through points frequently causes wire insulation chafing against sharp steel edges.
3. Cross-Talk and Feedback Between Turn Signals and Running Lights
If activating the left turn signal causes all clearance lights to flash faintly, the trailer wiring is suffering from a floating ground. Because the ground pin lacks a clean return path to the tow vehicle, current flows backward through the filaments of adjacent lighting circuits to seek alternative ground paths. Re-establishing a direct metal-to-metal ground at the main tongue junction box immediately eliminates this symptom.
Big Tex Trailer Parts Diagram Frequently Asked Questions
How do I wire a 7-way RV blade plug from a 4-way flat connector on a Big Tex trailer?
To convert from a 4-way flat connector to a 7-way RV blade system, mount a 7-pole junction box on the tongue. Connect the 4-way harness wires (White = Ground, Brown = Running Lights, Yellow = Left Turn/Stop, Green = Right Turn/Stop) directly to their matching color posts in the junction box. Then run a new 12 AWG blue wire for electric brakes to the brake controller and a 10 AWG black wire for continuous +12V auxiliary power directly to your vehicle distribution system.
What wire gauge is used on Big Tex electric brake systems?
Big Tex utilizes 12 AWG stranded copper wire for the main electric brake feed running along the tongue and main frame rails. As the circuit splits at the tandem axle sub-frame, individual feeds to each backing plate magnet may drop to 14 AWG lines over short lengths (under 3 feet). Never use thinner wire gauge than 14 AWG on electric brake circuits to avoid excessive voltage drop.
Why do my electric brakes lock up when I switch on my running lights?
This condition occurs when the brown running lights circuit wire and the blue electric brake circuit wire are shorted together inside the junction box, main harness sheath, or at a pinched frame passage. Inspect all wire nut connections, terminal posts, and frame clip locations for bare wire strands bridging adjacent terminals.
Where is the main electrical junction box located on a Big Tex trailer?
On standard utility and equipment trailers (such as the Big Tex 35SA, 70CH, or 14ET series), the 7-way junction box is mounted along the driver-side (left) inner tongue frame channel near the coupler housing. On gooseneck models (such as the 22GN series), the junction box is positioned inside the protective neck channel structure or near the dual-jack housing.
Factory Torque Specifications and Maintenance Protocols
Maintaining the structural integrity of your Big Tex trailer requires strict adherence to manufacturer torque specifications during routine brake service, axle repacking, and frame maintenance. Under-torquing hardware risks joint separation under heavy payload fatigue, while over-torquing snaps studs and warps bearing surfaces.
| Component Assembly | Thread Size / Stud Diameter | Torque Specification (ft-lbs) | Service Interval Protocol |
|---|---|---|---|
| Wheel Lug Nuts (5-Lug / 6-Lug) | 1/2″ – 20 Cone Nut | 90 – 120 ft-lbs | Re-torque at 10, 25, and 50 miles after wheel installation. |
| Wheel Lug Nuts (8-Lug HD) | 5/8″ – 18 Flange Nut | 190 – 210 ft-lbs | Inspect before every long-haul commercial trip. |
| Brake Backing Plate Nuts | 7/16″ – 20 Grade 8 | 45 – 55 ft-lbs | Check annually during hub and bearing repack service. |
| Axle U-Bolt Locknuts (3.5k Axle) | 1/2″ – 20 U-Bolt | 45 – 70 ft-lbs | Inspect annually or every 12,000 miles. |
| Axle U-Bolt Locknuts (7k Axle) | 9/16″ – 18 U-Bolt | 65 – 90 ft-lbs | Inspect annually or every 12,000 miles. |
When executing maintenance using a Big Tex trailer parts diagram, always perform scheduled inspection of the electrical harness, ground pin integrity, grease seals, and brake magnet shoe thickness every 12,000 miles or 12 months. Maintaining proper wiring insulation and accurate mechanical fastener torque ensures commercial reliability, road safety, and extended component life cycle.
