Honda Odyssey Sliding Door Parts Diagram: Component Breakdown 2026
The Honda Odyssey sliding door parts diagram details the mechanical structure, including the center roller bracket, lower trolley, upper guide, latch actuator, power door motor, and cable assembly. Most door failures stem from worn center rollers or frayed control cables along the mid-body track, fastened using standard 10mm bolts and clip retainers.
📌 Key Takeaways
- The center roller bearing assembly (72560-SHJ-A21) is the primary wear item causing grinding or sagging doors.
- Power sliding door cables run along the rear quarter-panel track under 12V motor tension; disconnect the battery before servicing.
- Torque all 10mm roller bracket retaining bolts to 16 lb-ft (22 Nm) to ensure proper door alignment.
- Frayed cables or blown 30A power door fuses frequently cause total loss of automatic door motion.
- Replacing rollers and latches is DIY-friendly, but internal motor housing remounting may require professional recalibration.
Servine OEM replacement parts or performing precise mechanical repairs on a Honda Odyssey power sliding door system requires an exact understanding of its structural and electrical design. The power sliding door mechanism integrates electro-mechanical drive assemblies, triple-roller support tracks, cable tensioners, and multi-latch safety circuits. Utilizing an authentic Honda Odyssey sliding door parts diagram allows professional technicians and advanced DIY mechanics to isolate structural misalignment, pinpoint worn nylon roller bearings, and trace signal disruptions through the door control unit. This technical guide breaks down the full architectural layout, wiring schematics, hardware specifications, and diagnostic protocols across major generation models.

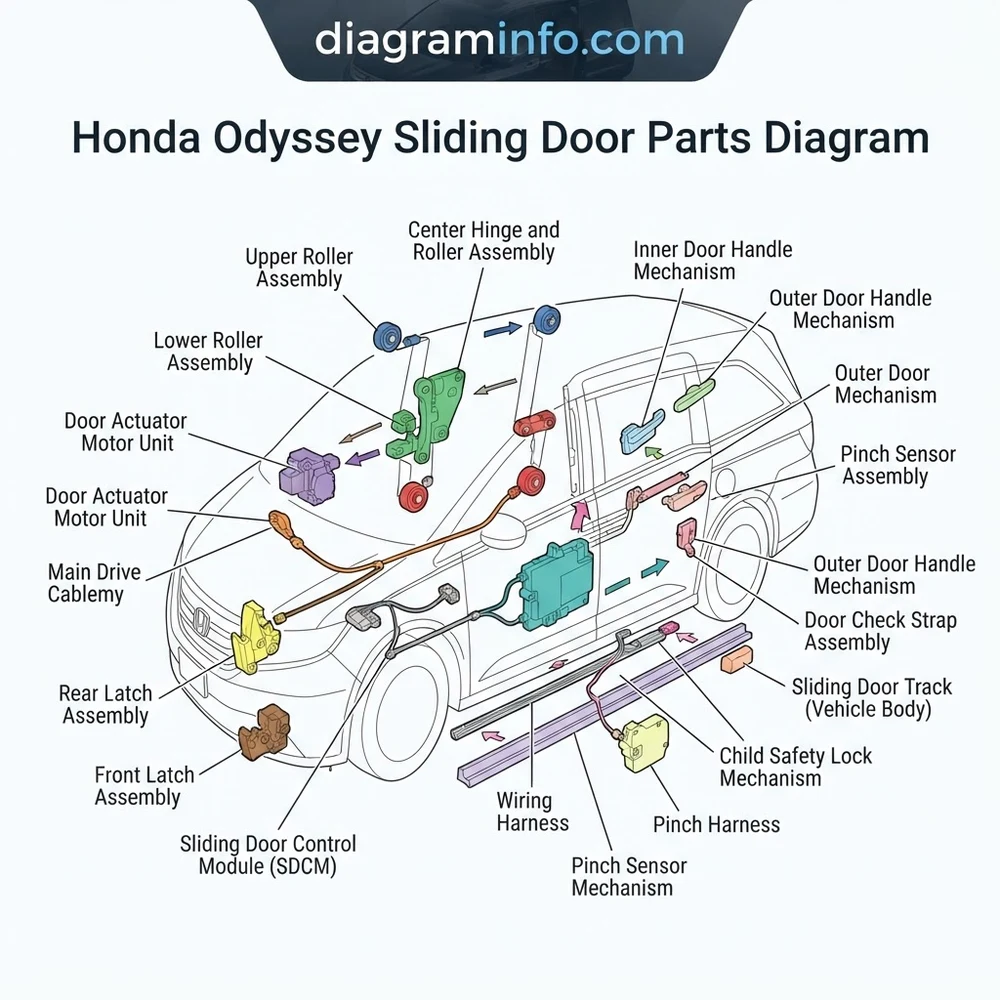

Honda Odyssey Sliding Door Parts Diagram: Component Breakdown
The structural framework of the Honda Odyssey sliding door system relies on a three-point roller track configuration paired with a localized motor control loop. Referencing a comprehensive schematic reveals how mechanical support and electrical actuation interlock across the door shell.
Recommended Best Deal Products
Upper, Middle, and Lower Roller Assembly Configuration
Mechanical support and guided movement are maintained through three distinct roller assemblies operating within separate body channels:
- Center (Middle) Roller Bracket: Mounted to the rear edge of the door panel, this assembly rides along the exterior body track beneath the rear quarter window. It bears the majority of the lateral door load and incorporates dual nylon wheels alongside a hardened steel guide pin. Common replacement part numbers include 72521-SHJ-A21 (Right) and 72561-SHJ-A21 (Left).
- Upper Roller Assembly: Located at the top front corner of the door frame, the upper bracket tracks inside the roofline channel. It stabilizes the top door section against wind shear and cabin pressure variations.
- Lower Roller Assembly: Positioned at the bottom front corner, this bracket guides the door along the floor step-well track and houses the lower hinge pivot point for mechanical alignment adjustments.
Power Sliding Door Motor and Cable Drive System Layout
The automated motion is generated by the Power Sliding Door (PSD) motor assembly, located inside the rear quarter panel behind the interior trim. The motor drives a dual-spool pulley that manages two stainless steel drive cables: a forward pull cable and a rearward pull cable. These cables travel through outer sheath conduits routed to the center track assembly, attaching directly to the center roller bracket hinge. Internal spring tensioners within the motor housing maintain dynamic cable pre-tension to prevent slack and cable jump.
Latch Assemblies, Actuators, and Lock Schematic
To ensure structural rigidity and weather sealing, the door utilizes a dual-latch architecture:
| Component Name | Diagram Location | Functional Description |
|---|---|---|
| Front Latch & Release Actuator | Front door edge (inner panel) | Secures front edge to B-pillar striker; released via cable from main actuator. |
| Rear Latch & Power Rear Lock Assembly | Rear trailing edge inside door shell | Houses primary latch, power cinching motor, and door-closed position switches. |
| B-Pillar Junction Contact Switch | B-pillar frame & door front face | Gold-plated spring pins establishing electrical pass-through when door is closed. |
The rear latch cinching motor operates independently from the main drive motor. When the door approaches within 6mm of full closure, the cinching actuator engages to pull the door firmly against the primary body seal without requiring high-speed mechanical momentum.
Reading the Honda Odyssey Sliding Door Schematic and Blueprint
Interpreting a Honda Odyssey sliding door parts diagram requires understanding both mechanical exploded views and electrical schematic overlays. System blueprints break down spatial relationships, mechanical anchor points, and signal pathways needed to systematically isolate faults.
Recommended Best Deal Products
Locating Cable Tensioners and Pulley Assemblies
In the mechanical diagram section, the cable routing schematic displays two independent cable paths originating from the drive motor drum inside the quarter panel. The front cable extends forward along the track guide beneath the quarter glass to a redirect pulley near the C-pillar. The rear cable extends directly to a tension pulley at the rear edge of the center track. When examining the diagram, ensure the cable tension spring indicators (located near the drum spool housing) show an extended length of 12mm to 15mm under static tension to confirm correct pre-load balance.
Identifying Mechanical Hinges and Track System Anchors
Track anchors are highlighted in the blueprint layout via primary fastener callouts. The center track is anchored to the quarter panel with four M6 hex flange bolts and a single alignment pin at the rear termination point. The lower track is secured directly to the floor step-well rocker panel using three Torx T30 bolts. When evaluating structural bind, reference the center roller hinge pivot pin in the exploded diagram; wear on the pivot bronze bushing shifts the entire door alignment angle downward by up to 8mm, causing door-to-body panel contact.
Tracing Electrical Connectors and Control Unit Wiring
The electrical schematic layer details the connection network between the PSD Control Unit (positioned in the rear quarter panel adjacent to the drive motor) and the door internal harness. Electrical signal routing relies on two distinct conduits:
- B-Pillar Junction Block: Transmits 12V power, door lock control logic, and latch status signals when the door is latched.
- Flexible Door Track Cable Harness: Integrated into the lower track guide, this multi-conductor flex-cable supplies continuous 5V reference and ground logic to the optical magnetic pulse encoder inside the drive motor housing during door travel.
Before disconnecting the PSD control module or unbolting the center roller bracket, disable the power sliding door main switch located on the dash left control panel, and disconnect the negative battery cable. Failure to isolate power can cause sudden automatic cable winding, leading to severe pinch injuries or snapped cable assemblies.
Troubleshooting Common Honda Odyssey Sliding Door Assembly Failures
Diagnosing functional failures on Honda Odyssey power sliding doors requires matching physical symptoms against specific components in the layout schematic. Below are standardized technical isolation steps for common mechanical and electrical fault conditions.
Diagnosing Door Binding and Center Roller Deterioration
When the sliding door judders, operates loudly, or stops mid-travel and reverses, the center roller bearing is typically compromised. Over time, the outer nylon sheath disintegrates, allowing the inner steel bearing to ride directly on the center track wall. This creates mechanical friction that exceeds the PSD motor encoder torque limit threshold, triggering auto-reverse safety protection.
Inspect the center roller through the exterior track cutout with the door open halfway. Look for flat spots on the nylon wheels, metal shavings along the track bed, or excessive vertical movement at the roller bracket pivot pin. If you notice structural issues with adjacent panels during alignment checks, refer to our comprehensive Honda body panel alignment and door latch adjustment manual for detailed tolerance specifications.
Testing Actuator Motors and Latching System Circuits
If the sliding door closes fully but continuously buzzes, or fails to unlatch when pulling the inner or outer handle, isolate the rear latch cinch/release actuator assembly. Perform the following electrical diagnostic checks at the B-pillar junction switch terminals:
- Set a digital multimeter to measure DC voltage across terminals 3 and 7 on the frame-side B-pillar junction block.
- Actuate the door handle switch; verify a transient 12V pulse sent to the release actuator motor.
- Check continuity across the rear latch closed switch terminals (terminals 1 and 4). Continuity must drop below 0.5 Ohms when the latch fully engages the striker.
- Measure resistance across the door pinch sensor strip mounted along the inner leading rubber molding. Normal unpressed resistance should exceed 1.0kΩ; pressing the strip should cause resistance to drop below 100Ω. High resistance while pressed indicates an open circuit within the touch sensor band, requiring sensor strip replacement.
For problems related to electronic body control logic overriding door commands, consult the Honda Odyssey multiplex body control module diagnostic protocol.
Resetting the Power Door Control Unit and Cables
System logic glitches, mechanical resistance trips, or manual door operation while powered can desynchronize the pulse encoders relative to door position calibration. A manual system reset restores baseline home parameters:
- Turn the main PSD dash switch to the OFF position.
- Remove Fuse #7 (7.5A) from the driver-side interior fuse box and Fuse #13 (30A) from the under-hood primary fuse block for a minimum of 60 seconds to purge memory circuits in the PSD module.
- Manually close and latch both sliding doors completely until the rear mechanical cinching switches click shut.
- Reinstall both fuses and switch the main PSD dash toggle back to ON.
- Cycle the door through one complete manual open/close pass, then actuate a full power cycle using the overhead console switch to allow the controller to map encoder pulses.
If cable replacement becomes necessary due to fraying, detailed cable spool winding steps match those outlined in our power tailgate actuator drive cable service procedure.
Honda Odyssey Sliding Door System Specifications and Torque Values
Precision torque management prevents fastener backing out caused by operational vibration while avoiding track distortion during reassembly. The specification tables below list factory OEM torque standards and wiring signal assignments according to manufacturer engineering standards.
| Fastener Description / Location | Thread Size | Torque (N·m) | Torque (lb-ft / lb-in) |
|---|---|---|---|
| Center Roller Bracket-to-Door Panel Bolts | M8 x 1.25 | 22 N·m | 16 lb-ft |
| Upper Roller Assembly Mounting Bolts | M6 x 1.0 | 9.8 N·m | 87 lb-in |
| Lower Track Support Screws | Torx T30 | 9.8 N·m | 87 lb-in |
| Rear Latching Mechanism Torx Bolts | Torx T40 | 18 N·m | 13 lb-ft |
| Drive Motor Pulley Drum Cover Screws | M5 x 0.8 | 4.5 N·m | 40 lb-in |
Main Drive Motor Operating Voltage: 11.0V DC – 14.5V DC.
Max Drive Motor Current Draw: 18.5 Amps under full load.
Pinch Sensor Normal Closed Loop Resistance: 1.2kΩ (±10%).
Center Track Clearance Standard: 2.5mm vertical movement maximum at center hinge assembly.
Honda Odyssey Sliding Door Parts Diagram Questions Answered
What Are the Most Common Part Failures on the Odyssey Sliding Door?
The primary point of mechanical degradation across all third, fourth, and fifth-generation Honda Odyssey minivans is the center sliding door roller assembly. The nylon coating surrounding the dual steel bearings disintegrates due to dirt accumulation and UV exposure inside the open side channel track. When the nylon wears down, the metal roller shaft drops, causing binding, track surface scarring, and high electrical current resistance that triggers auto-reversing action. The secondary point of failure is the rear power latch cinch actuator assembly, where internal plastic gears wear down or micro-switches suffer contact oxidation.
How Do You Manually Release a Stuck Odyssey Power Sliding Door?
If the door becomes stuck in the locked or partially opened position and electronic actuation fails, locate the main power sliding door switch on the dashboard to the left of the steering wheel and flip it to OFF. This de-energizes the magnetic clutch inside the rear quarter panel drive motor assembly, disengaging the spool drive. If the rear latch remains mechanically bound to the rear striker pin, remove the interior access plug on the rear interior door trim panel directly over the rear latch area. Insert a flathead screwdriver into the manual release lever slot and rotate it counter-clockwise to bypass the cinch motor and release the door lock catch manually.
What Torque Specifications Are Required for the Center Roller Brackets?
When installing a replacement center roller bracket assembly, clean the mounting surface threads thoroughly and apply medium-strength thread-locking compound (Blue Loctite 242) to the threads. Secure the main M8 mounting bolts to 22 N·m (16 lb-ft). If removing or realigning the exterior guide track along the rear quarter panel, torque the M6 track fasteners to 9.8 N·m (87 lb-in). Over-tightening the center track bolts will deform the stamped sheet metal track, causing roller binding.
How Do You Re-align the Rear Latch Striker Assembly?
If the rear door edge fails to sit flush with the quarter panel or requires multiple cinching attempts to pull closed, adjust the rear body-mounted striker plate. Mark the original striker position using a scribe or grease pencil. Loosen the two Torx T40 fasteners holding the striker plate to the body C-pillar by 1 to 2 turns. Shift the striker in 1mm increments horizontally or vertically until the trailing edge of the sliding door aligns flush with the rear quarter panel trim line. Tighten the Torx fasteners to 18 N·m (13 lb-ft) and test closure smoothness.
Can You Convert a Power Sliding Door System to Manual Operation?
Yes, you can permanently convert a failed power sliding door system into a manual operating configuration. Switch the dash power door toggle to OFF. To remove physical cable drag, disconnect the negative battery terminal, open the rear interior quarter panel trim, and unscrew the pulley drum cover on the drive motor unit. Unhook both the front and rear steel drive cables from the central drum pulley and snip or remove them from the track assembly. Leave the center, upper, and lower roller brackets completely intact; the door will now glide freely on its roller framework using standard manual door handles.
Step-by-Step Guide to Understanding the Honda Odyssey Sliding Door Parts Diagram
Identify – Consult the diagram to identify the specific failing component, such as the center track roller or latch actuator.
Locate – Position the sliding door mid-way open and locate the rear trim access panels and track mounting points.
Reference – Cross-reference OEM part numbers and cable routing pathways on the diagram before removing retainer clips and 10mm bolts.
Disassemble & Route – Remove damaged components, support door weight with tape, and route new cables along track channels per configuration.
Verify – Manually glide the door along the track to verify smooth alignment and proper latch engagement before re-energizing 12V power.
Troubleshoot – Test automatic power functions; if the door reverses, perform a power door reset or inspect fuse panel linkages.
