Club Car DS 36V Wiring Diagram: Complete Connection Guide 2026
The Club Car DS 36V system typically uses six 6-volt batteries in series, providing 36V. Key components include a large red positive cable to the solenoid B+, a heavy black negative cable to the motor A2, and various smaller wires for controller signals, often white/blue for control, and yellow/green for input. Verify all terminals.
📌 Key Takeaways
- The Club Car DS 36V system typically consists of six 6V lead-acid batteries wired in series.
- Identify the F&R switch’s role in directional control and its primary connections before troubleshooting motor issues.
- Always disconnect the main battery pack negative cable before any wiring work to prevent accidental shorts.
- Corroded battery terminals or loose connections are the most common causes of intermittent power or no-go conditions.
- Consult a certified technician for controller replacement or complex motor diagnostics if basic troubleshooting fails.
Navigating the electrical architecture of a Club Car DS 36V golf cart requires a meticulous understanding of its wiring diagram. This comprehensive guide provides technical professionals and experienced DIYers with the precise information needed for accurate diagnostics, repair, and modification. Focusing on terminal identification, wire color coding, and proper connection sequencing, we delve into the intricate electrical pathways that govern your vehicle’s operation, ensuring your 36 volt system functions optimally and safely. Mastery of this diagram is crucial for maintaining peak performance and addressing common electrical anomalies in your Club Car DS.
Wire Color Reference Table
Understanding the standardized wire color codes is paramount for effectively troubleshooting and maintaining your Club Car DS 36V electrical system. While some variations may exist between specific model years, the following table represents the most common assignments according to typical OEM specifications.
| Wire Color | Function | Connect To | Notes |
|---|---|---|---|
| Red (Heavy Gauge) | Main Battery Positive (+), Solenoid Input | Battery Bank Positive, Solenoid Large Terminal (input) | Primary 36V supply from battery bank. |
| Black (Heavy Gauge) | Main Battery Negative (-), Controller Input | Battery Bank Negative, Controller B- terminal | Primary negative return path. |
| Blue | Controller to Motor (A1) | Controller A1 terminal, Motor A1 terminal | Armature winding connection. |
| Yellow | Controller to Motor (A2) | Controller A2 terminal, Motor A2 terminal | Armature winding connection. |
| White | Controller to Motor (F1) | Controller F1 terminal, Motor F1 terminal | Field winding connection. |
| Green | Controller to Motor (F2) | Controller F2 terminal, Motor F2 terminal | Field winding connection. |
| Brown | Solenoid Activation (Coil Side) | Key Switch, Micro Switches, Pedal Box | Often switched positive to solenoid small terminal. |
| Orange | Solenoid Activation (Coil Side / Ground) | Controller, Ground (or switched negative via OBC) | Often switched negative to solenoid small terminal. |
| Gray | Charger Receptacle Input | OBC, Battery Negative | Charger sense wire or interlock signal. |
| Pink (or Small Red) | Controller B+ Input | Solenoid Output (large terminal) | Switched 36V positive supply to controller. |

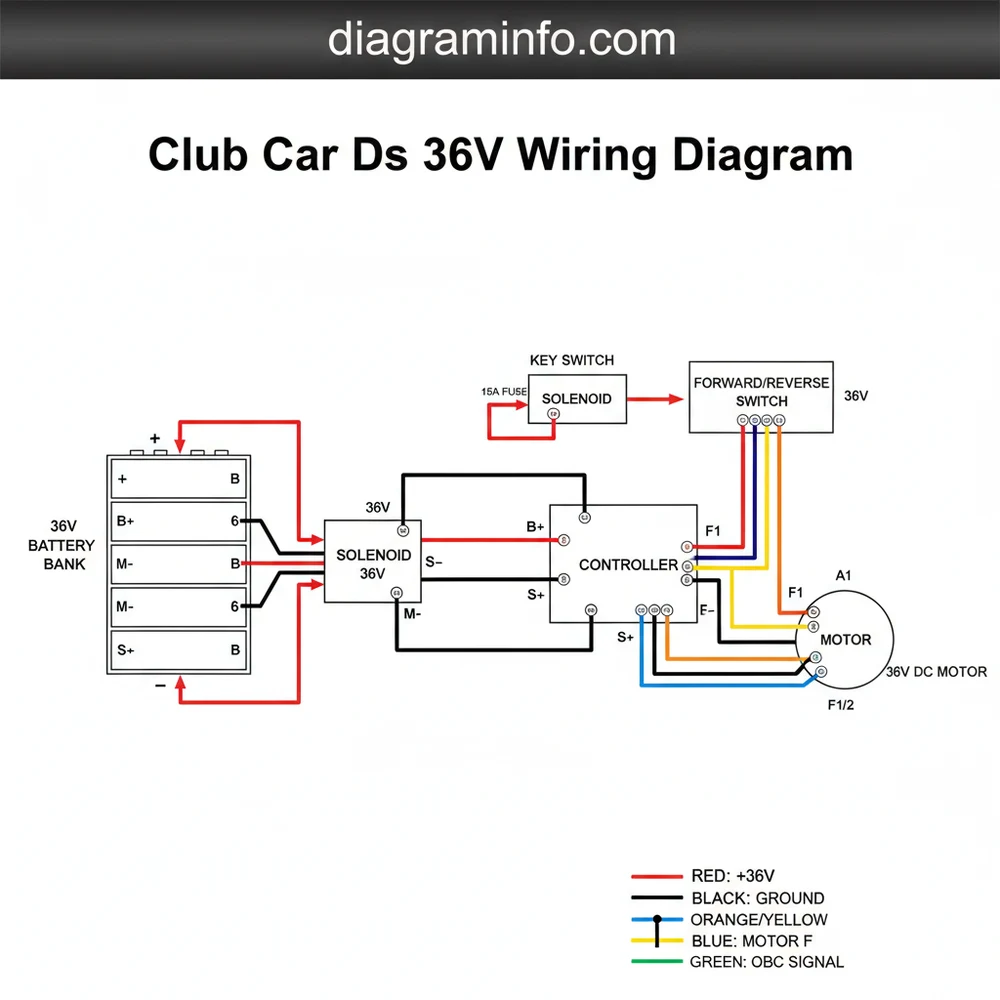

Component Connection Guide
Precise wiring of each major component is critical for the safe and reliable operation of your Club Car DS 36V. Refer to the specific connections below, cross-referencing with the diagram and your vehicle’s model year for any minor variations. Always disconnect the main battery bank prior to any electrical work.
Before commencing any wiring procedures, ensure the main battery pack is fully disconnected. Remove the main negative cable first, followed by the positive. Failure to do so can result in severe electrical shock, component damage, or fire.
Solenoid Wiring
The solenoid acts as the primary contactor, switching high current to the controller and motor based on input from the key switch and pedal microswitches. Your Club Car DS 36V typically uses a continuous-duty solenoid.
- Large Terminals:
- The first large terminal (often marked B+) receives the main positive cable (Heavy Gauge Red) directly from the positive post of the battery bank.
- The second large terminal (often marked C/Motor) routes the switched 36V positive to the controller’s B+ terminal via a smaller gauge Red or Pink wire. It also connects to the controller’s B+ terminal via the main controller input cable.
- Small Terminals (Coil Terminals):
- One small terminal (e.g., Brown wire) receives switched positive voltage (typically 36V) when the key switch is ON, the F&R switch is in position, and the pedal microswitch is engaged.
- The other small terminal (e.g., Orange wire) connects to the negative side of the circuit, which can be direct chassis ground, or more commonly, a switched ground provided by the On-Board Computer (OBC) or controller as part of the safety interlock.
Ensure all large terminal connections on the solenoid are secured with a minimum torque of 110-120 in-lbs (12.4-13.6 Nm) using a non-conductive wrench or socket to prevent short circuits.
Controller Wiring
The controller is the brain of your Club Car DS 36V, regulating power delivery to the motor based on throttle input and safety interlocks. Common terminals include B-, B+, M-, F1, and F2 (for series motors) or A1, A2, F1, F2 (for SepEx motors).
- B- Terminal: Connects to the main battery bank negative (Heavy Gauge Black wire). This is the primary negative input.
- B+ Terminal: Receives switched positive 36V from the solenoid’s output large terminal (Heavy Gauge Red wire, often paralleled with a smaller Pink wire).
- Motor Connections:
- For a Series motor (common on older DS models): M- connects to the motor’s A2 terminal. F1 and F2 connect to the motor’s field windings.
- For a SepEx motor (later DS models withregen braking): A1, A2, F1, F2 terminals on the controller correspond directly to A1 (Blue), A2 (Yellow), F1 (White), and F2 (Green) terminals on the motor.
- Small Signal Wires: These include connections for the throttle (pedal box), run/tow switch, F&R switch, and potentially other sensors. The specific pinout varies by controller model (e.g., Curtis, GE, Alltrax), so consult the controller’s dedicated manual.
On-Board Computer (OBC) and Charger Port Wiring
The OBC manages the charging cycle and provides critical safety interlocks, preventing cart operation while charging. The charger port provides the physical connection for the charger.
- Charger Port:
- Main Positive: Connects to the main battery positive.
- Main Negative: Connects to the OBC’s negative input.
- Sense Wire (Gray): This wire connects the charger port to the OBC. It signals to the OBC when the charger is connected, enabling the ‘charger interlock’ to prevent cart movement.
- OBC Connections:
- Receives the main battery negative from the charger port.
- Provides a switched negative path for the solenoid activation circuit (often the Orange wire to the solenoid’s small terminal) when the charger is disconnected and other conditions are met. This ensures the cart cannot be driven while plugged in.
For detailed troubleshooting of the OBC and charger port, refer to our Club Car OBC Diagnostics Guide. Understanding the role of the charger interlock is crucial for both safety and preventing false fault codes.
Motor Wiring
The motor converts electrical energy into mechanical energy. Club Car DS models commonly use either a Series Wound motor or a Separately Excited (SepEx) motor, each with distinct wiring configurations.
- Series Motor: Identified by A1, A2 (Armature) and F1, F2 (Field) terminals. A jumper often connects A2 to F1 internally or externally. The controller connects to A1, and M- (from controller) connects to the A2/F1 junction. The remaining field terminal (F2) connects to the controller.
- SepEx Motor: Has four distinct terminals: A1, A2, F1, F2. Each connects directly to its corresponding terminal on the controller.
- A1 (Blue wire) to controller A1.
- A2 (Yellow wire) to controller A2.
- F1 (White wire) to controller F1.
- F2 (Green wire) to controller F2.
Ensure all motor terminal connections are clean, tight, and free from corrosion. Loose connections can lead to excessive heat, arcing, and reduced motor performance.
Common Wiring Problems & Fixes
Diagnosing electrical issues in a Club Car DS 36V system requires a systematic approach. Here are common problems rooted in wiring, along with diagnostic steps and solutions.
1. No Power / Cart Dead
Diagnosis: Begin by checking the main battery bank voltage. Confirm it reads close to 36V. Next, verify the main positive and negative battery cables are securely connected. Trace the heavy gauge Red wire from the battery positive to the solenoid’s input large terminal (B+), and the heavy gauge Black wire from the battery negative to the controller’s B- terminal. Utilize a multimeter to check for 36V across the solenoid’s large input terminals when the key is ON and pedal is depressed. If no click is heard from the solenoid, test the small coil terminals for voltage (36V across them when activated).
Fix: If the battery voltage is low, recharge. If cables are loose or corroded, clean and re-secure. If the solenoid does not click and receives proper activation voltage to its small terminals, the solenoid is likely faulty and requires replacement. If the solenoid clicks but no voltage passes through its large terminals, it’s also faulty. Ensure the run/tow switch is in the RUN position.
2. Cart Moves Slowly or Has Reduced Torque
Diagnosis: This often indicates high resistance in the main power circuit. Inspect all heavy gauge cables (battery interconnects, main positive/negative, solenoid to controller, controller to motor) for signs of corrosion, fraying, or loose connections. Perform a voltage drop test across each cable while the cart is under load. A significant voltage drop (more than 0.5V) across a cable or component indicates excessive resistance. Also, check the F&R switch contacts for burning or pitting, especially on older mechanical switches.
Fix: Replace any corroded or damaged cables. Clean and tighten all terminal connections. If the F&R switch contacts are compromised, the switch requires replacement. Ensure all battery posts are clean and apply dielectric grease to prevent future corrosion. For insights into battery health affecting performance, review our Golf Cart Battery Maintenance Guide.
3. Charger Not Engaging / Not Charging
Diagnosis: First, confirm the charger itself is functional by testing its output voltage or trying it on another compatible cart. On the Club Car DS, the On-Board Computer (OBC) plays a critical role. Check the Gray sense wire connection at the charger port and the OBC. Disconnect the main battery negative for 30 seconds to “reset” the OBC. Test for continuity through the OBC’s interlock circuit that controls the solenoid’s negative activation.
Fix: If the Gray sense wire is damaged or disconnected, repair or replace it. If the OBC is not allowing charging after a reset and all connections are verified, the OBC itself may be faulty and require replacement. Ensure the charger receptacle is clean and free of debris, as poor contact can prevent charging.
4. Forward/Reverse Switch Malfunction
Diagnosis: When the forward reverse switch (or F&R switch) does not properly engage or causes intermittent power. Visually inspect the F&R switch for mechanical damage or burnt contacts. On older DS models with a large handle switch, the internal copper contacts can wear or pit. With the main battery disconnected, use a multimeter to check continuity across the appropriate terminals in both Forward and Reverse positions. For newer models with an electronic rocker switch, check for proper signal voltage being sent to the controller when the switch is toggled.
Fix: For mechanical F&R switches, often the entire switch assembly needs replacement if contacts are heavily worn. For electronic switches, check the wiring harness leading to the controller. A faulty rocker switch or a break in the signal wire will require component replacement or wiring repair.
FAQ
Q: Can I convert my Club Car DS 36V system to a 48 volt system?
A: Technically, converting a Club Car DS from a 36 volt system to a 48 volt system is possible, but it is a significant undertaking that extends far beyond simply adding more batteries. It requires replacing the controller, solenoid, potentially the motor (especially if it’s a 36V series motor), the charger, and possibly the entire wiring harness to handle the increased voltage and current demands. You must ensure all components are rated for 48V operation to prevent catastrophic failure or fire. For a comprehensive guide, refer to our article on Upgrading Your Golf Cart to 48 Volts.
Q: What is the purpose of the diode and resistor on the solenoid?
A: Many Club Car DS 36V solenoids incorporate a diode and sometimes a resistor wired across the small coil terminals. The diode (often a band on one end) is a snubber diode, protecting the controller and other sensitive electronics from voltage spikes (inductive kickback) generated when the solenoid coil de-energizes. It’s crucial for the diode to be installed correctly, with the banded end oriented towards the positive side of the coil. The resistor, if present, is a “pre-charge” resistor that helps to slowly charge the controller’s capacitors when the key is first turned on, preventing a sudden inrush of current that can prematurely wear out the solenoid’s contacts.
Q: My Club Car DS has a ‘run tow switch’. How does it affect the wiring?
A: The run tow switch is a critical safety feature that electrically isolates the controller and main power circuit from the battery bank when in the “TOW” position. This prevents accidental motor engagement during maintenance, charging, or transportation, protecting both personnel and components. In the “RUN” position, the switch completes the main circuit, allowing the controller to receive power. Wiring for this switch typically involves heavy gauge cables in series with the main positive or negative battery cable, often located near the controller or battery bank. Always place the switch in “TOW” before performing any electrical work or disconnecting batteries.
Q: How do I test the battery bank in my 36V Club Car DS?
A: To test your 36 volt battery bank, ensure all batteries are fully charged. Use a digital voltmeter to measure the voltage across each individual 6V battery; a healthy fully charged 6V battery should read approximately 6.37-6.42V. Then, measure the total voltage across the entire 36V pack; it should be around 38.2V to 38.5V. Perform a load test if possible, observing individual battery voltages under current draw. A weak battery will show a significantly lower voltage under load. Discrepancies often indicate a failing battery within the pack, necessitating replacement of the entire battery bank for optimal performance and longevity.
Step-by-Step Guide to Understanding the Club Car Ds 36V Wiring Diagram: Complete Connection Guide 2026
Identify – Identify the main power components: battery bank, solenoid, controller, and motor.
Locate – Locate the specific wiring diagram corresponding to your Club Car DS 36V model year.
Reference – Reference the diagram to understand wire color codes and component pin assignments.
Connect/Route – Connect all major battery cables first, ensuring correct series configuration and polarity.
Verify – Verify all connections are tight and clean; use a multimeter to confirm voltage at key points.
Troubleshoot – Troubleshoot any issues by systematically checking components (solenoid, controller) and circuits as per the diagram.
Frequently Asked Questions
What voltage is club car ds 36v wiring diagram?
The Club Car DS 36V system operates on a nominal 36-volt DC power supply. This is achieved by wiring six 6-volt batteries in series, resulting in a total of 36 volts across the main battery pack terminals. Always verify battery charge for accurate voltage readings.
What do the wire colors mean on club car ds 36v wiring diagram?
While specific wire colors can vary slightly by year, common connections include heavy red for positive (B+), heavy black for negative (B-), yellow/green for controller inputs, and various smaller gauge wires for switches and sensors. Always reference the specific diagram for accurate identification.
How do I troubleshoot club car ds 36v wiring diagram that won’t run?
First, check the main battery pack voltage; ensure it’s above 36V. Inspect all battery connections for corrosion or looseness. Test the solenoid for proper clicking when the pedal is pressed. Then, verify continuity through the F&R switch and motor for common faults.
What is the solenoid wiring on club car ds 36v wiring diagram?
The 36V Club Car DS solenoid typically has two large terminals (B+ in, B+ out to controller) and two small terminals. The small terminals receive 36V from the key switch and pedal switch, activating the solenoid coil to close the main circuit. Ensure proper activation voltage.
How many batteries does club car ds 36v wiring diagram have?
A Club Car DS 36V system uses a bank of six (6) 6-volt deep-cycle batteries. These batteries are connected in series (positive to negative) to produce the required 36 volts for the golf cart’s electrical system, including the motor and controller.
What gauge wire does club car ds 36v wiring diagram use?
For the main battery and motor connections on a Club Car DS 36V, typically 4-gauge (AWG) or 2-gauge (AWG) cables are used due to the high current draw. Smaller gauge wires, like 16 or 18 AWG, are common for control circuits, switches, and accessories.
