Navien Tankless Water Heater Parts Diagram: Repair 2026
A tankless water heater parts diagram maps key internal components including primary and secondary heat exchangers, water flow sensors, gas valve assemblies, ignition electrodes, and PCB controllers. It details cold inlet routing, hot outlet plumbing, condensate drain assembly lines connected to a protective P-trap, and Category IV polypropylene vent pipe terminations.
📌 Key Takeaways
- Primary heat exchangers operate at thermal transfer efficiencies above 95% on condensing models.
- Condensate drain assembly lines require an integrated acid neutralizer and dedicated P-trap to prevent corrosion.
- Gas control valves regulate incoming pressure strictly between 3.5 to 10.5 inches water column (W.C.).
- Clogged inlet water filters and mineral buildup on the flow sensor cause 70% of ignition failure codes.
- Gas supply manifold and high-voltage circuit board work require licensed professionals; fluid flushing is safe for DIY.
Navigating the internal components of an on-demand water heating unit can feel overwhelming without a clear roadmap. Whether you are replacing a faulty igniter coil, clearing a clogged flow sensor, or performing routine descaling, studying a tankless water heater parts diagram is the single most important step before pulling out your tools. Unlike traditional tank-style heaters that rely on a large standing reservoir, tankless systems pack high-efficiency gas burners or electric heating elements, complex electronics, and precise hydraulic sensors into a compact wall-mounted cabinet.
For DIY enthusiasts, an accurate schematics guide bridges the gap between diagnosing an obscure error code and successfully installing a replacement component. By mastering how these components interconnect—from the gas solenoid valves up through the heat exchanger and out through the vent pipe—you can safely execute cost-effective home repairs and prolong the lifespan of your appliance.
Recommended Best Deal Products

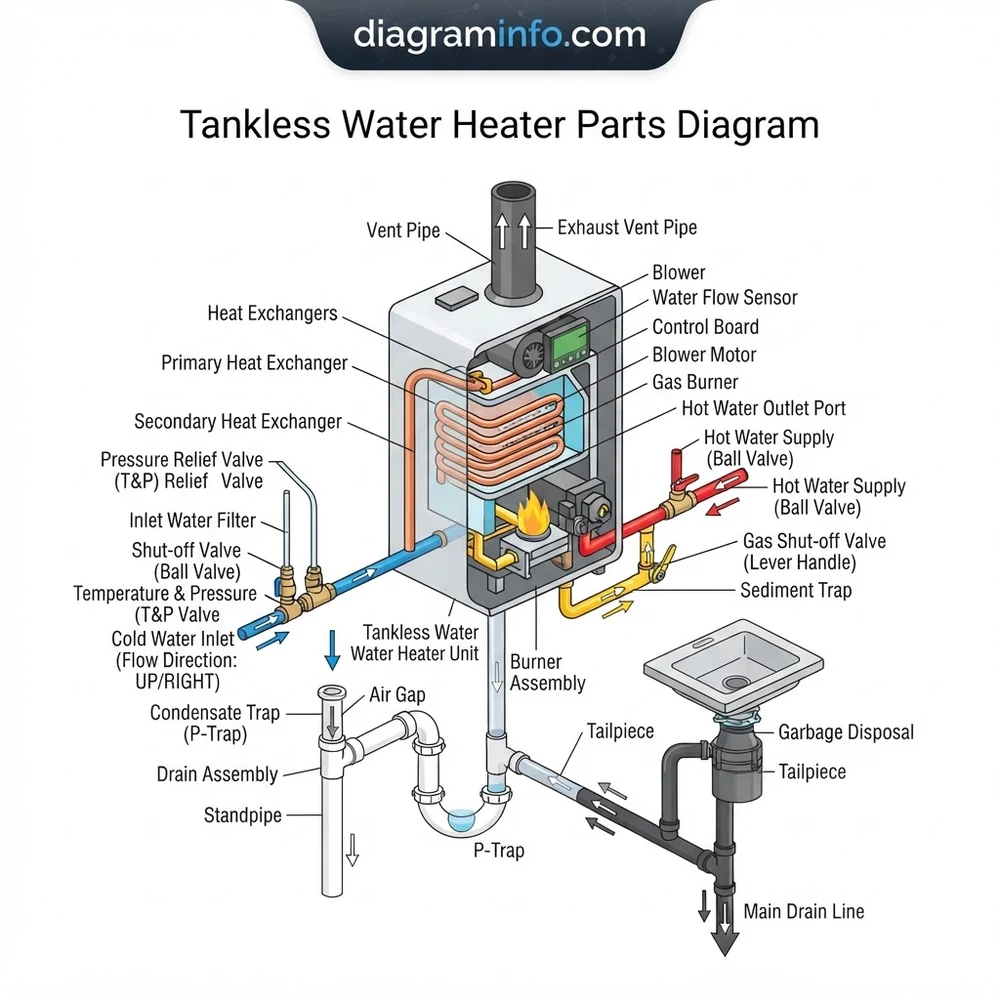

Anatomy of the Unit: Tankless Water Heater Parts Diagram Breakdown
A standard residential gas tankless water heater contains dozens of engineered parts operating in synchronized harmony. When inspecting an exploded schematics diagram, the unit is typically organized into four functional zones: the combustion system, the water path, the electrical controls, and the exhaust mechanism.
1. Combustion & Burner Assembly
Located in the lower-middle section of the cabinet, the combustion chamber houses the gas manifold and burner tray. Key components include:
- Gas Valve Assembly: Positioned at the bottom center with a 3/4-inch NPT gas inlet connection. It features two to three inline solenoid valves controlled by the circuit board to meter fuel flow precisely.
- Igniter Electrode & Flame Rod: Mounted directly inside the burner box. The igniter uses a heavy-insulated orange or silicone wire to deliver high-voltage sparks, while the flame rod uses a yellow sensor wire to detect ion current, confirming a live flame.
- Combustion Fan Blower: Located at the base of the burner, this variable-speed fan forces fresh air into the chamber and pushes exhaust gases out through the top vent pipe.
2. Heat Exchanger & Water Pathway
The water assembly spans from the bottom right cold-water inlet (color-coded blue) to the bottom left hot-water outlet (color-coded red).
- Primary Heat Exchanger: Constructed from heavy-duty commercial copper or stainless steel, mounted in the upper half of the cabinet. It absorbs heat from the burner gas to warm incoming water rapidly.
- Secondary Heat Exchanger (Condensing Units): Located above the primary unit in high-efficiency models. It extracts latent heat from exhaust fumes before they exit through the PVC exhaust line.
- Water Flow Sensor & Filter Screen: Installed right at the 3/4-inch cold water inlet. It houses a magnetic turbine that measures flow rate, triggering burner ignition when water flow reaches roughly 0.5 GPM.
- Water Adjustment Valve: A motorized valve that throttles water volume to ensure target output temperatures are met during high-demand periods.
3. Electronic Control Board (PCB)
The main printed circuit board (PCB) acts as the brain of the unit, usually mounted behind a protective plastic housing in the front-lower corner. It converts incoming 120V AC household current (black line, white neutral, green ground) down to 24V DC and 12V DC logic signals to operate internal switches, thermistors, and safety limit switches.
Always disconnect the main 120V AC power supply at the breaker or wall switch and turn off the gas shut-off valve before opening the unit cabinet. Certain internal capacitors retain voltage even after power is turned off.
How to Read a Tankless Water Heater Parts Diagram for DIY Repairs
Manufacturer schematics use standardized visual languages to represent mechanical parts and wiring pathways. Learning how to interpret these symbols saves time and prevents costly part ordering mistakes.
Understanding Callout Numbers and Parts Legends
An exploded tankless water heater parts diagram shows every component detached from the main frame, suspended along axis lines to indicate assembly order. Each part features a circled callout number (e.g., #104 for O-rings, #302 for thermistors). Match this number against the manufacturer’s parts list table at the bottom or side of the page to locate the exact OEM part number, fastener thread size, and torque specs.
Recommended Best Deal Products
Tracing Wiring Harnesses and Electrical Schematics
System diagrams include line-art wiring schematics alongside mechanical drawings. Wire paths are coded by color abbreviations:
- BLK / WHT / GRN: Main 120V AC input power feed wires.
- RED / ORG: High-voltage ignition lead running to the spark igniter.
- YEL / BLU: Low-voltage DC signals running to inlet/outlet thermistors and flame sensing rods.
- BRN / PRPL: Step-motor controls for gas solenoid valves and the water flow control servo.
Venting and Drain Assembly Integration: PVC, P-Traps, and Vent Pipes
A tankless unit does not operate in isolation; its diagram includes external connections vital to plumbing safety and building code compliance. Condensing tankless models
Exhaust Vent Pipe Connections
Non-condensing models require specialized Category IV stainless steel vent pipe to withstand high exhaust temperatures. Condensing models exhaust cooler gases, allowing the use of 2-inch or 3-inch schedule 40 PVC, CPVC, or polypropylene vent pipe. The diagram typically highlights the top flue collar where the vent pipe secures with a mechanical retaining ring or silicone gasket seal.
Condensate Drain Assembly and Secondary Plumbing
High-efficiency units feature a dedicated condensate trap inside the cabinet that drains acidic runoff. Understanding how this connects to your home’s broader plumbing diagram prevents sewer gas leaks and water damage:
- Condensate Line Routing: A 1/2-inch plastic hose exits the bottom of the heater unit. It must connect to a condensate neutralizer kit before dumping into a drain assembly.
- P-Trap Integration: The neutralized drain line should discharge into a dedicated plumbing drain line fitted with a proper P-trap or an indirect waste receptor. This prevents foul sewer gas from traveling backward into the tankless cabinet.
- Proximity to Fixtures: In utility rooms or under-sink setups near a garbage disposal or kitchen tailpiece, ensure drain lines connect downstream of any slip joint fittings or disposal branch tailpieces, maintaining a proper air gap. If venting or drainage lines share tight spaces, an Air Admittance Valve (AAV valve) may be depicted on broader plumbing schematics to maintain proper trap seals.
When disassembling water pipes or flow sensors indicated on your diagram, always replace the small EPDM rubber O-rings (typically 1/2-inch or 3/4-inch inner diameter). Apply a light coat of food-grade silicone grease to avoid pinching the seal during reassembly.
Essential DIY Tips for Tankless Water Heater Maintenance
Having a copy of your specific unit’s parts breakdown taped inside the front access door or stored digitally on your phone is invaluable during unexpected emergency breakdowns. Here are best practices when using these diagrams for routine work:
- Identify Inlet Filter Locations: Locate item numbers on the diagram for the cold-water inlet filter. Cleaning this mesh screen every 6 to 12 months removes sediment before it clogs the delicate water turbine sensor.
- Check Resistance Values: Electrical schematics often include resistance specs (measured in Ohms) for solenoid coils (typically 30–50 Ohms) and thermistors (10k Ohms at 77°F / 25°C). Use a digital multimeter across wire harness pins to verify if a part is burnt out before buying a replacement.
- Verify Fastener Locations: Grounding screws are critical for flame sensor operation. If the yellow flame rod wire grounds improperly due to a missing chassis screw, the control board will shut off gas flow within seconds of ignition.
Troubleshooting Failures with a Tankless Water Heater Parts Diagram
When your tankless heater displays a numerical error code on its digital remote, refer to your parts diagram to pinpoint the failing hardware immediately.
Ignition Failure (Error Code 11 or 12)
Symptom: The unit clicks repeatedly but fails to ignite or sustain a flame.
Diagram Lookup: Trace the burner assembly area. Locate the igniter plug, flame rod sensor wire, and gas solenoid valves.
Action: Check the yellow flame rod wire connection for corrosion. Remove the flame rod (held by a single phillips screw) and rub off carbon build-up using fine steel wool. Inspect the gas valve solenoid harnesses for loose terminal pins.
No Hot Water Flow / Low Flow (Error Code 61 or Low GPM)
Symptom: Hot water taps produce a trickle, or the heater fails to trigger ignition when a faucet opens.
Diagram Lookup: Focus on the cold water inlet assembly, specifically the flow sensor turbine and water control valve.
Action: Shut off isolation valves, unscrew the cold water filter cap, and clear debris. If flow remains unrecorded by the PCB, test the blue/black sensor wire harness with a multimeter to ensure the turbine magnetic hall-sensor is receiving 5V DC from the PCB.
Exhaust Lockout / Temperature Overheat (Error Code 14 or 90)
Symptom: System shuts down shortly after producing heat, triggering high-limit thermal switch protection.
Diagram Lookup: Inspect the primary heat exchanger shell and upper vent pipe outlet collar.
Action: Locate the bi-metal thermal fuse wrapped around the heat exchanger. Verify that the vent pipe connection (PVC or stainless steel) is free from bird nests or debris blockages restricting draft air flow.
Step-by-Step Guide to Understanding the Tankless Water Heater Parts Diagram
Identify – Turn off incoming electrical power at the breaker panel and isolate both gas shutoff and main water supply valves.
Locate – Remove front panel mounting screws to open the cabinet and locate components corresponding to the visual parts schematic.
Reference – Match the physical parts—such as the ignition plug, flame rod, or flow sensor—with labeled diagram callouts.
Connect/Route – Verify correct wiring harness terminal placements, exhaust vent pipe seatings, and condensate drain assembly hose clamps.
Verify – Re-establish water and gas connections, open isolation valves, check for fuel or water leaks, and power on the system.
Troubleshoot – Compare error code displays against circuit diagram test points to isolate faulty sensors or stuck solenoid valves.
Tankless Water Heater Parts Diagram: Frequently Asked Questions
What does the tankless water heater parts diagram show?
The diagram displays internal layout schematics including primary heat exchangers, burner assemblies, gas solenoid valves, flow control sensors, igniters, thermal fuses, circuit boards, and exhaust vent pipe connections. It also outlines external plumbing interfaces like cold water inlets, hot water outlets, tailpiece fittings, and condensate drain lines.
How do I read the tankless water heater parts diagram?
Start by locating the main utility connection points at the base: gas inlet, cold water supply, hot water delivery, and condensate drain. Follow internal wiring and water flow arrows upstream through the flow sensor, heat exchanger coils, and out the top vent pipe termination to trace system operation correctly.
What are the main components in tankless water heater parts diagram?
Core components comprise the primary and secondary heat exchangers, modulated gas valve assembly, ceramic igniter electrodes, water adjustment valve, flow turbine sensor, exhaust blower fan, control board (PCB), and high-limit safety switches, along with external components like vent pipe ducting and condensate drain assembly.
What are common problems with tankless water heater parts diagram?
Common issues illustrated include scale accumulation inside heat exchanger tubes, obstructed air intake or vent pipe ducting, failed water flow sensors, scaled cold water inlet strainers, leaking condensate drain assembly connections, and faulty gas solenoid valves failing to open under call-for-heat requests.
Can I use tankless water heater parts diagram for DIY repair?
Yes, homeowners can use the diagram to safely perform routine maintenance like cleaning inlet filters, flushing heat exchanger scale using isolation valves, inspecting vent pipe joints, or clearing condensate P-trap lines. However, gas train line repairs and PCB wiring work require certified plumbing and HVAC technicians.
What tools do I need for tankless water heater parts diagram?
Basic maintenance requires a digital multimeter for continuity testing, pipe wrenches, a screwdriver set, a 1/4-horsepower submersible pump with washing machine hoses for vinegar flushing, bucket, and Teflon tape for threaded tailpiece and drain assembly fittings under adjacent fixtures like sink disposals or drains.
