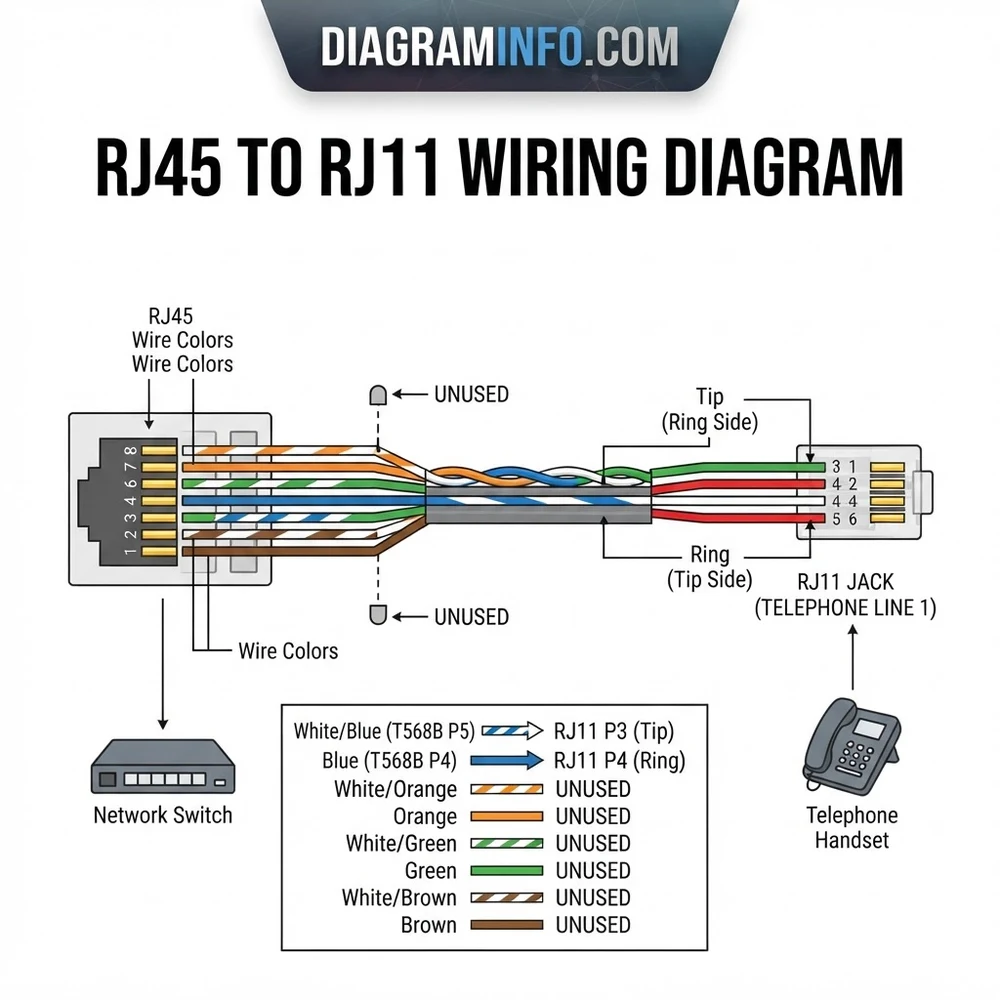

RJ45 to RJ11 Wiring Diagram: Connection Mapping 2026
To connect RJ45 to RJ11, map RJ45 center pins 4 (Blue) and 5 (White/Blue) to RJ11 center pins 3 and 4 (Green/Red) for Line 1. For Line 2, map RJ45 pins 3 (White/Orange) and 6 (Orange) to RJ11 pins 2 and 5 (Black/Yellow) using standard T568B pin assignment.
📌 Key Takeaways
- RJ45 uses an 8-position 8-conductor (8P8C) plug, whereas RJ11 uses a 6-position 4-conductor (6P4C) plug centered inside the port.
- Line 1 primary Tip/Ring uses RJ45 pins 4 (Blue) and 5 (White/Blue) mapped to RJ11 pins 3 and 4.
- 24 AWG solid copper Cat5e or Cat6 cable is standard for structured RJ45 to RJ11 conversions.
- Inserting an RJ11 plug directly into an RJ45 jack can bend outer RJ45 pins 1 and 8 if forced incorrectly.
- Use dedicated adapter leads or re-terminated modular plugs for permanent installation rather than loose wire splicing.
Interfacing 8-position 8-contact (8P8C) RJ45 diagnostic and telematics ports with 6-position (6P4C or 6P2C) RJ11 modular communication links requires precise conductor alignment to preserve signal integrity and protect equipment hardware. In automotive diagnostic platforms, mobile telemetry units, fleet management gateways, and industrial control cabinets, converting between these modular formats demands careful attention to pin assignments. Understanding the physical and electrical structural differences between an 8-position RJ45 jack and a 6-position RJ11 plug prevents communication drops, pin deformation, logic errors, and short circuits. Utilizing a correct rj45 to rj11 wiring diagram ensures proper signal transmission across paired conductors, maintaining expected circuit polarity, grounding, and operating voltage levels across all connected equipment.
RJ45 to RJ11 Wiring Diagram Core Signal Principles
Mechanically and electrically, RJ45 and RJ11 connectors serve different transmission standards. An RJ45 connector features an 8P8C housing measuring approximately 11.68 mm in width, designed primarily for 4-pair balanced differential signaling (such as Ethernet, RS-422, or multi-channel CAN communications). Conversely, an RJ11 connector utilizes a narrower 6-position housing (typically 6P4C with 4 contacts or 6P2C with 2 contacts) measuring approximately 9.65 mm in width, historically used for voice-band telecommunications and low-speed serial telemetry.
Recommended Best Deal Products
When an RJ11 plug is inserted directly into a standard RJ45 female jack without an adapter, the outer plastic walls of the RJ11 plug align centrally, making contact with RJ45 pins 2, 3, 4, 5, 6, and 7. However, direct mechanical connection is strongly discouraged in industrial and automotive applications. The plastic body of an RJ11 plug can bend and permanently damage the outer spring pins (pins 1 and 8) inside an RJ45 jack. Furthermore, direct physical alignment does not guarantee correct signal routing.
In standard telecommunications mapping, Line 1 occupies the center pair of contacts. On an RJ45 connector, Line 1 corresponds to Pin 4 (Ring, negative) and Pin 5 (Tip, positive). On an RJ11 connector, Line 1 corresponds to Pin 3 (Ring) and Pin 4 (Tip). When mapping an RJ45 to RJ11 wiring diagram for telephone or voice-band modems, RJ45 Pin 4 maps directly to RJ11 Pin 3, and RJ45 Pin 5 maps to RJ11 Pin 4.
For specialized equipment—such as field programming cables, serial console links (RS-232 over RJ45/RJ11), and engine telematics adapters—pin assignments deviate significantly from standard voice circuits. Transmit (TX), Receive (RX), Request to Send (RTS), Clear to Send (CTS), and signal ground wire pathways must be explicitly mapped to match the target device’s transceiver layout. Incorrectly connecting power or signal lines to a grounded terminal can disrupt communication networks or trigger fault codes in equipment control modules.
RJ45 to RJ11 Wiring Diagram Wire Color Code Reference
When creating a custom interface cable or breakout box, technicians must translate between 4-pair twisted Category cabling (Cat5e/Cat6 conforming to T568B or T568A standards) and conventional 2-pair flat satin RJ11 wiring. Standard field wiring heavily favors the ANSI/TIA-568-B (T568B) color code. The table below details the wire color code mapping, pin assignment structure, and core functional roles for converting an 8P8C RJ45 connection to a 6P4C RJ11 interface.
| RJ45 Pin (8P8C) | T568B Wire Color Code | RJ11 Pin (6P4C) | Legacy RJ11 Color Code | Signal / Circuit Function | Nominal Voltage / Spec |
|---|---|---|---|---|---|
| Pin 1 | White / Orange | N/C (or Pin 1) | White (6P6C) | Unused / Custom Auxiliary Data | 0V – 5V DC Logic |
| Pin 2 | Orange | N/C (or Pin 6) | Blue (6P6C) | Unused / Custom Handshake (RTS) | ±12V RS-232 / 0V |
| Pin 3 | White / Green | Pin 1 (6P4C) | Black | Line 2 Tip (Hot Wire) / Serial RX | +5V / +12V DC Signal |
| Pin 4 | Blue | Pin 2 (6P4C) | Red | Line 1 Ring (Hot Wire) / Data (-) | -48V DC Telecom / logic high |
| Pin 5 | White / Blue | Pin 3 (6P4C) | Green | Line 1 Tip (Neutral Wire) / Data (+) | 0V Ground Reference |
| Pin 6 | Green | Pin 4 (6P4C) | Yellow | Line 2 Ring (Neutral Wire) / Serial TX | -48V DC Telecom / logic low |
| Pin 7 | White / Brown | N/C | N/A | Unused / Secondary Power | 12V – 24V DC Equipment Power |
| Pin 8 | Brown | N/C or Drain | Bare / Shield Wire | Ground Wire / Shield Chassis | 0V Common Chassis Ground |
In standard T568B cabling, Pair 1 (Blue & White/Blue) forms the center core on pins 4 and 5. This aligns directly with the center contacts (pins 2 and 3 on a 6P4C RJ11 layout, or pins 3 and 4 under 1-6 pin numbering schemes). Pair 3 (Green & White/Green) spans pins 3 and 6 on the RJ45, which maps to the outer operational terminals (pins 1 and 4 on a 6P4C RJ11). Maintaining twisted-pair integrity across these specific pin groupings minimizes electromagnetic interference (EMI) and near-end crosstalk (NEXT) in high-noise equipment environments.
Terminal Block Integration, Wire Gauge, and Operating Voltage
Industrial field conversions typically utilize DIN-rail or panel-mounted screw terminal blocks (e.g., RJ45-to-Terminal-Block breakout modules). Conductor specifications require 24 AWG solid or stranded tinned copper wire for Category cables, whereas flat modular patch cords frequently use 26 AWG or 28 AWG stranded conductors. Always verify that terminal block clamping pressure matches the conductor gauge to prevent wire shear.
When running communication wires through heavy machinery, service vehicles, or machinery control panels, directly terminating solid-core Cat5e/Cat6 wire into small RJ11 crimp plugs can cause mechanical failures due to vibration. Transitioning from an RJ45 patch cable to an screw-terminal block or spring-cage terminal block provides a robust mechanical bridge. From the terminal block, flexible 24 AWG or 26 AWG stranded lead wires can feed into the RJ11 plug or target hardware terminals.
Operating voltage specifications must be strictly observed during setup:
- Telecom Signaling Lines: Standard central office loop-start lines deliver -48V DC nominal standby voltage across Line 1 Ring (Red wire/RJ45 Pin 4) and Line 1 Tip (Green wire/RJ45 Pin 5). Ringing voltage overlays an AC signal ranging from 86V to 105V RMS at 20 Hz. Ensure all terminal block insulation and terminal spacing meet a minimum 150V DC isolation rating.
- Industrial RS-232/RS-485 Telematics: Logic high and logic low states operate between -12V DC and +12V DC for RS-232, or differential 0V to +5V DC for RS-485/CAN interfaces. Never route telecom ringing circuits through non-isolated RS-232 transceivers.
- Supply Power and Grounding: If an RJ45 cable carries 12V or 24V nominal equipment power (often on pins 7 and 8), ensure these wires do not bridge to RJ11 signal contacts. Connect the drain wire or main ground wire to a single point on the metal terminal block chassis ground to eliminate ground loops.
Selecting the appropriate wire gauge (AWG) prevents excessive voltage drop over extended cable runs. Standard 24 AWG copper wire exhibits a nominal resistance of approximately 25.7 ohms per 1000 feet (84.3 ohms/km). Thin 28 AWG ribbon cable exhibits a higher resistance of approximately 64.9 ohms per 1000 feet (212.9 ohms/km). For telemetry runs exceeding 50 feet (15 meters), use 24 AWG solid copper wire up to the final terminal block adapter.
How to Assemble an RJ45 to RJ11 Connection Step by Step
Disconnect all power sources and signal feeds before modifying diagnostic cables or terminal blocks. Live telecommunications lines carry up to 105V AC during ring cycles, which can damage sensitive digital multimeters, test gear, or serial control interfaces if shorted.
Follow this procedure to custom-wire an RJ45 cable to an RJ11 plug using a standard 4-wire (6P4C) modular pin assignment sequence.
- Prepare Cable and Strip Outer Jacket: Using a radial cable stripper, remove approximately 1.5 inches (38 mm) of the outer PVC or LSZH jacket from your Cat5e or Cat6 cable. Take care not to nick or score the thin PVC conductor insulation underneath. If using shielded cable (STP), peel back the foil shield and twist the bare ground wire into a tight lead.
- Untwist and Arrange Conductors according to standard wire color code: Separate the four twisted pairs. Untwist each pair to within 0.25 inches (6 mm) of the jacket cut point. Flatten and arrange the conductors in the standard T568B layout from left to right (Orange/White, Orange, Green/White, Blue, Blue/White, Green, Brown/White, Brown).
- Isolate and Route Required Target Conductors: Identify the four conductors required for the RJ11 6P4C connection. Per the standard rj45 to rj11 wiring diagram mapping:
- Identify RJ45 Pin 3 (White/Green) → Assign to RJ11 Pin 1 (Outer Left / Line 2 Tip).
- Identify RJ45 Pin 4 (Blue) → Assign to RJ11 Pin 2 (Inner Left / Line 1 Ring).
- Identify RJ45 Pin 5 (White/Blue) → Assign to RJ11 Pin 3 (Inner Right / Line 1 Tip).
- Identify RJ45 Pin 6 (Green) → Assign to RJ11 Pin 4 (Outer Right / Line 2 Ring).
Fold back or cut flush the unused conductors (Orange/White, Orange, Brown/White, Brown) unless they are required for chassis ground wire or auxiliary power connections on an intermediate terminal block.
- Trim Conductors for Modular Plug Housing: Align the four active wires tightly side-by-side in exact pin order (White/Green, Blue, White/Blue, Green). Using a precision flush cutter, make a straight, clean cut across all four wires, leaving roughly 0.5 inches (13 mm) of exposed wire extending from the outer jacket edge.
- Insert Conductors into RJ11 Modular Plug: Hold the transparent 6P4C RJ11 plug with the locking plastic tab facing downward and the wire entry point facing you. Carefully slide the four aligned conductors into the center four slots of the 6-position housing. Verify through the clear plastic casing that all four wires reach the very front edge of the plug body and seat directly beneath the gold-plated metallic contacts.
- Crimp the Modular Connector: Insert the prepared RJ11 plug into the 6P crimp cavity of a professional ratchet crimp tool. Squeeze the tool handles firmly through a complete cycle until the ratchet mechanism releases. The tool forces the metallic contact blades downward, piercing the conductor insulation to establish a gas-tight electrical connection while engaging the rear strain-relief latch onto the outer cable jacket.
- Perform Electrical Continuity and Voltage Checks: Using a digital multimeter (DMM) set to resistance/continuity mode, check pin-to-pin mapping between the primary RJ45 connector and the newly crimped RJ11 plug. Verify that resistance measures below 1.5 ohms per path and that no short circuits exist between adjacent pins.
Common Pin Assignment Errors, Ground Wire Failure, and Voltage Diagnostics
Improper mapping between RJ45 and RJ11 hardware frequently results in physical damage, signal loss, or intermittent transmission faults. Systematically troubleshoot common installation errors using the diagnostic methods detailed below.
1. Polarity Reversal on Primary Data Lines (Hot Wire vs Neutral Wire Swaps)
Swapping Line 1 Tip and Ring (RJ45 Pin 4 Blue and Pin 5 White/Blue) reverses loop polarity. While standard analog voice devices contain bridge rectifiers to handle reversed polarity, polarity reversals break directional telemetry links, RS-232 logic drivers, and polarity-sensitive data transceivers.
Diagnostic/Fix: Connect a DMM set to DC Voltage across RJ11 Pin 2 and Pin 3. With the system energized, verify that the hot wire (Ring) is negative relative to the neutral wire (Tip). If polarity reads positive, swap the wire connections on terminals 2 and 3.
2. Split-Pair Differential Signal Corruption
A common error involves splitting a twisted pair across non-paired terminals—for instance, mapping RJ45 Pin 3 (White/Green) and RJ45 Pin 4 (Blue) to form a single communication line. Breaking up twisted pairs eliminates differential noise rejection, resulting in severe data frame corruption over longer cable runs.
Diagnostic/Fix: Always keep paired wires together. Assign Pair 1 (Blue & White/Blue) exclusively to Line 1 data terminals, and Pair 3 (Green & White/Green) to Line 2 or secondary serial terminals.
3. Floating Shield Ground Wire and Ground Loop Current
Leaving the drain wire unconnected on shielded cables in high-EMF environments allows stray RF noise to couple onto data lines. Conversely, connecting the shield ground wire to chassis ground at both ends of the cable run can generate circulating ground loop currents if a voltage potential exists between equipment frames.
Diagnostic/Fix: Bond the cable ground wire or shield drain wire to chassis ground at one end only (preferably at the main diagnostic panel terminal block). Use a DMM in AC current mode to verify that zero loop current passes through the ground wire.
4. Physical Damage Caused by Direct Insertion
Plugging an RJ11 connector directly into a standard RJ45 port forces the outer plastic ridges of the narrow plug against pins 1 and 8 of the RJ45 jack. Over time, this bends pins 1 and 8 inward, causing permanent open circuits when a standard RJ45 cable is later re-inserted.
Diagnostic/Fix: Inspect the spring contacts inside the RJ45 port with a flashlight. If pins 1 or 8 are bent flat, use a non-conductive dental pick to gently lift them back into alignment. Always use an encapsulated RJ45-to-RJ11 adapter housing or modular breakout block rather than direct insertion.
Frequently Asked Questions About the RJ45 to RJ11 Wiring Diagram
Can I plug an RJ11 connector directly into an RJ45 jack without an adapter?
Physically, an RJ11 plug will fit into the center of an RJ45 jack, but it is not recommended for technical or field equipment. The plastic body of the smaller RJ11 connector puts mechanical pressure on pins 1 and 8 of the RJ45 jack, often bending them out of position permanently. Additionally, standard signal line positions on an RJ45 jack may not align electrically with the RJ11 pin assignments. Using a wired RJ45-to-RJ11 adapter module or terminal block ensures both mechanical alignment and proper circuit routing.
What is the difference between T568A and T568B when mapping an RJ45 to RJ11 cable?
The difference between T568A and T568B lies in the swapped positions of Pair 2 (Orange) and Pair 3 (Green). On a T568B RJ45 plug, Pin 3 is White/Green and Pin 6 is Green. On a T568A plug, Pin 3 is White/Orange and Pin 6 is Orange. Because the innermost pins (Pins 4 and 5 – Blue/White-Blue) remain identical in both standards, primary Line 1 conversions are unaffected. However, if your RJ11 adapter uses secondary lines (Pins 1 and 4 on 6P4C), you must confirm whether the source cable follows T568A or T568B to map the second line correctly.
How does wire gauge affect signal stability when converting RJ45 to RJ11?
Standard Cat5e/Cat6 ethernet cables use 24 AWG solid or stranded wire, which handles longer transmission distances with minimal voltage drop. Standard RJ11 telephone patch cables often use thinner 26 AWG or 28 AWG stranded copper conductors. When converting signals between these formats over runs longer than 30 feet (9 meters), thin 28 AWG wire introduces higher loop resistance (up to 65 ohms per 1000 feet), leading to signal attenuation and DC voltage drop on powered sensors. Keep patch cables short or run 24 AWG cabling directly to an intermediate terminal block.
How do I identify the ground wire and hot wire on a telematics adapter cable?
Use a digital multimeter (DMM) set to DC voltage with the connected equipment powered on. Measure each conductor pin relative to the common chassis ground. The hot wire carrying positive logic or supply voltage will register a positive potential (such as +5V, +12V, or -48V relative to ground). The signal neutral wire or ground wire will read near 0V DC. Once identified, label the conductors at the terminal block to prevent reverse polarity connections during servicing.
Which terminal block type is recommended for industrial RJ45 to RJ11 conversions?
A DIN-rail mounted breakout board featuring an 8P8C RJ45 jack broken out to screw or spring-cage terminal blocks is ideal for equipment applications. These modules allow technicians to terminate incoming 24 AWG solid Category cables onto secure screw posts, jumper the specific signal wires (such as RJ45 pins 3, 4, 5, and 6) to an outgoing RJ11 connector, and cleanly terminate shield ground wires without soldering or risky direct crimping.
Step-by-Step Guide to Understanding the Rj45 To Rj11 Wiring Diagram
Identify – Determine your Ethernet wiring scheme (T568A or T568B) and whether you are connecting a single phone line (2 wires) or dual line (4 wires).
Locate – Find center pins 4 and 5 on the RJ45 connector, which carry the primary voice signal (Blue and White/Blue pair in T568B).
Reference – Match the RJ45 pins 4 and 5 to center pins 3 and 4 on the RJ11 plug, maintaining proper Tip and Ring polarity according to the diagram.
Connect/Route – Strip cable jacket back 1 inch, trim unused pair conductors safely, insert active wires into RJ11 pin slots, and crimp firmly with modular crimper.
Verify – Test continuity and line voltage with a digital multimeter (approx. 48V DC idle line voltage across Tip and Ring) to confirm connection integrity.
Troubleshoot – If no dial tone is present, check for reversed Tip/Ring polarity, unseated crimp pins, or improper pin assignment placement.
