L14-30R Wiring Diagram: Complete Connection Guide 2026
The L14-30R wiring diagram illustrates connections for a 4-prong 30A 125/250V twist-lock receptacle. Typically, the green wire is ground, white is neutral, and black/red are hot (L1/L2) for phase A and B respectively. Ensure proper pin assignment and wire color code matching for safe, functional power delivery from the source.
📌 Key Takeaways
- The L14-30R is a 4-wire, 30-amp, 125/250-volt twist-lock connector, requiring specific L1 (hot), L2 (hot), neutral, and ground wire configurations.
- Proper identification of L1, L2, Neutral, and Ground terminals via their unique markings (X, Y, W, G) is critical for correct l14-30r wiring diagram interpretation.
- Always de-energize the circuit and verify with a voltage tester before any L14-30R wiring work to prevent severe shock hazards from 250V circuits.
- Incorrect wire color code matching, using an insufficient wire gauge (e.g., not 10 AWG for 30A), or loose connections are the most common L14-30R wiring mistakes.
- Consult a licensed electrician for complex installations or if unsure about handling 250V circuits, especially beyond simple plug/receptacle replacement.
Wiring an L14-30R receptacle correctly is paramount for ensuring both operational safety and optimal performance of your high-power equipment. This specialized 30-amp, 125/250-volt locking receptacle is commonly found in generator setups, RVs, and heavy-duty industrial applications, requiring precise attention to detail. For experienced mechanics, electricians, and advanced DIYers, understanding the exact l14-30r wiring diagram, including wire color code, pin assignment, and proper torque specifications, is non-negotiable. This guide provides a definitive reference, eliminating guesswork and promoting secure, compliant installations that mitigate risks such as electrical fires or equipment damage.
While general wiring principles remain consistent, always consult the specific installation instructions provided by the manufacturer of your L14-30R receptacle and associated equipment. Variations in terminal design or housing may exist, impacting the precise sequence of connection or access to the terminal block.

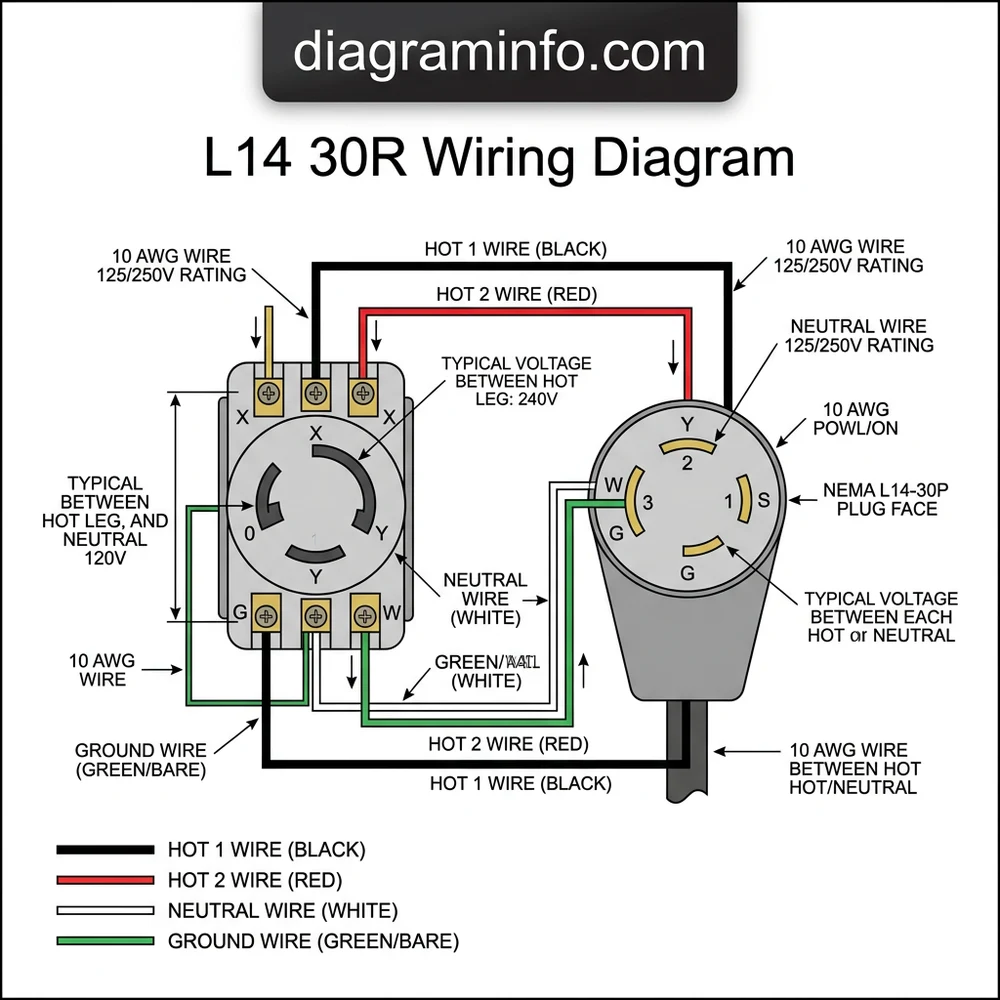

Wire Color Reference Table
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Green or Bare Copper | Ground Wire (Equipment Grounding Conductor) | Ground (G) Terminal | Connects to the ground screw, typically green. Essential for safety and fault protection. |
| White | Neutral Wire (Grounded Conductor) | Neutral (W) Terminal | Return path for 125V circuits. Connects to the silver screw. |
| Black | Hot Wire (Line 1) | Line 1 (X) Terminal | Supplies 125V phase 1. Connects to a brass/dark screw. |
| Red | Hot Wire (Line 2) | Line 2 (Y) Terminal | Supplies 125V phase 2 (180° out of phase with Line 1). Connects to a brass/dark screw. |
For a 30-amp circuit, NEC (National Electrical Code) typically requires a minimum of 10 AWG (American Wire Gauge) copper wire. However, for longer runs or specific applications, a larger gauge (e.g., 8 AWG) may be necessary to minimize voltage drop. Always consult NEC Article 310.15 for ampacity ratings based on conductor type, insulation, and ambient temperature, or consult our comprehensive guide on Electrical Cable Sizing and Ampacity Charts.
Step-by-Step Connection Guide
Adhering strictly to the l14-30r wiring diagram and local electrical codes is critical. This guide assumes you are working with a 4-conductor, 10-gauge (or heavier as needed) cable suitable for 30A, 125/250V service. Always ensure the power source is completely disconnected at the circuit breaker or main disconnect before beginning any work.
-
Safety First: De-energize the Circuit
Before any physical contact with wiring, verify that the circuit feeding the L14-30R receptacle is de-energized. This means locating the appropriate circuit breaker in your service panel (e.g., a 30-amp double-pole breaker for 250V applications) and switching it to the “OFF” position. Use a non-contact voltage tester to confirm no voltage is present at the wiring location. Tagging the breaker “DO NOT OPERATE” is a recommended safety practice.
-
Prepare the Cable and Receptacle
If installing a new receptacle, feed the 4-conductor cable (Black, Red, White, Green/Bare) into the electrical box. Remove approximately 6-8 inches of the cable’s outer jacket to expose the individual insulated conductors. Carefully strip about 1/2 to 3/4 inch of insulation from the end of each individual conductor. Ensure the receptacle is firmly secured in its mounting box before proceeding with wire terminations.
-
Connect the Ground Wire (Green or Bare)
Locate the ground screw on the L14-30R receptacle, which is typically green. Take the green or bare copper ground wire and form a clockwise loop at its stripped end. Securely connect this wire to the ground terminal screw. Torque this connection to the manufacturer’s specified value, usually found in the range of 12-16 inch-pounds, to ensure optimal continuity and safety. This forms the essential protective path in the event of a fault.
-
Connect the Neutral Wire (White)
Identify the neutral terminal (W) on the L14-30R receptacle, which usually has a silver-colored screw. Form a clockwise loop with the stripped end of the white wire and connect it to the neutral terminal. Tighten the screw to the manufacturer’s specified torque. The neutral wire provides the return path for 125V loads and is a grounded conductor.
-
Connect the Hot Wires (Black and Red)
Locate the two hot terminals, typically labeled X (Line 1) and Y (Line 2), with brass or dark-colored screws. Connect the black wire to one of these hot terminals (e.g., Line 1 ‘X’ terminal) and the red wire to the other hot terminal (e.g., Line 2 ‘Y’ terminal). The specific assignment of black to X and red to Y (or vice-versa) is often interchangeable for a 250V load, but maintaining consistency with your panel wiring is good practice. Torque both hot connections to the manufacturer’s specification. These wires provide the two 125V phases that, when combined, supply 250V for high-demand equipment, as well as individual 125V legs relative to the neutral.
-
Final Inspection and Secure the Receptacle
After all wires are securely connected and torqued, visually inspect each connection to ensure no stray strands of wire are exposed or bridging between terminals, which could cause a short circuit. Carefully fold the wires back into the electrical box, taking care not to pinch them or dislodge any connections. Mount the L14-30R receptacle cover plate. Once the cover is in place, re-energize the circuit from the breaker panel. Test the receptacle with a suitable multi-meter or a dedicated receptacle tester to confirm correct voltage readings (125V between each hot and neutral, 250V between hot and hot, 0V between neutral and ground, 125V between hot and ground).
Improper wiring of a 125/250V L14-30R receptacle can lead to severe electrical shock, equipment damage, or fire. If you are uncertain about any step, it is strongly recommended to consult a licensed electrician or qualified professional. Never work on live circuits.
Common Wiring Mistakes & Troubleshooting
Even seasoned technicians can encounter issues. Understanding common pitfalls in l14-30r wiring can save significant troubleshooting time and prevent safety hazards.
-
Reverse Polarity (Hot/Neutral Swap):
Mistake: Connecting a hot wire (Black or Red) to the neutral terminal, or the white neutral wire to a hot terminal. While a 250V-only appliance might still operate, 125V devices connected via this receptacle could have power present on their neutral conductor, which is a significant shock hazard. The equipment may also operate incorrectly or be damaged.
Consequence: Electrocution risk, equipment malfunction, potential damage to sensitive electronics.
Fix: De-energize the circuit immediately. Using your l14-30r wiring diagram as a reference, verify that the white wire is connected to the silver (neutral) screw and the black and red wires are connected to the brass/dark (hot) screws. Use a voltage tester to confirm correct polarity after re-energizing. -
Improper Grounding or No Ground Wire Connection:
Mistake: Failing to connect the green or bare copper ground wire to the receptacle’s green ground terminal, or having a loose ground connection.
Consequence: In the event of an electrical fault (e.g., a live wire touching the equipment’s metal casing), the fault current will not have a safe path back to the service panel, potentially energizing the equipment chassis. This creates an extreme shock hazard, as safety devices like circuit breakers may not trip.
Fix: Ensure the green or bare copper wire is securely attached to the dedicated ground terminal, torqued to specification. Confirm continuity between the ground pin of the L14-30R and the equipment grounding conductor back to the service panel. -
Loose Terminal Connections:
Mistake: Under-torquing or failing to adequately tighten the terminal screws on the L14-30R receptacle.
Consequence: A loose connection creates increased electrical resistance. This resistance generates heat, which can melt wire insulation, damage the receptacle, and potentially lead to an electrical fire. It also causes intermittent power delivery and voltage fluctuations.
Fix: Always use a torque screwdriver to tighten terminal screws to the manufacturer’s specified inch-pounds. Ensure the wire insulation is not caught under the screw and that all wire strands are properly captured by the terminal. Regularly inspect critical connections in high-vibration environments. -
Incorrect Wire Gauge:
Mistake: Using a wire gauge that is too small for the circuit’s amperage rating (e.g., 12 AWG for a 30A circuit).
Consequence: An undersized wire cannot safely carry the required current without overheating. This leads to voltage drop, reduced equipment performance, melted insulation, and a significant risk of fire. While the breaker might eventually trip, sustained overload before tripping can cause damage.
Fix: Always refer to the National Electrical Code (NEC) for appropriate wire gauge for the circuit’s amperage and length. For a 30A circuit, 10 AWG copper is the minimum, but consult our resource on Understanding Electrical Codes and Standards for specific local requirements and variations.
FAQ
What is an L14-30R receptacle typically used for?
The L14-30R is a 30-amp, 125/250-volt locking receptacle designed for applications requiring both 120V and 240V power simultaneously, or dedicated 240V, with a locking mechanism to prevent accidental disconnection. Common uses include connecting portable generators to transfer switches, powering RVs, industrial machinery, larger welders, and heavy-duty shop equipment that draw significant current and require a secure connection.
What type of cable should I use with an L14-30R receptacle?
For an L14-30R, you must use a 4-conductor cable that includes two hot wires, one neutral wire, and one ground wire. The wire gauge must be appropriate for a 30-amp circuit. Typically, this means 10 AWG (American Wire Gauge) copper wire as a minimum. For outdoor use or temporary power, Type SOOW, SJOOW, or similar heavy-duty flexible cords are often specified. Always ensure the cable’s insulation voltage rating matches or exceeds the circuit voltage.
What is the difference between an L14-30P and an L14-30R?
The ‘P’ in L14-30P stands for “Plug,” which is the male connector that inserts into a receptacle. The ‘R’ in L14-30R stands for “Receptacle,” which is the female socket that the plug connects to. Both are part of the NEMA L14-30 standard, meaning they are designed to connect to each other and share the same electrical configuration (30 amp, 125/250 volt, 4-wire locking).
Can I use an adapter to connect a different plug type to an L14-30R?
While adapters exist for various NEMA configurations, using them for high-amperage applications like an L14-30R requires extreme caution. Adapters can introduce points of failure, may not be rated for the full current, or can bypass essential safety features like grounding. It is always recommended to use direct connections that match the equipment’s requirements. If an adapter is absolutely necessary, ensure it is specifically rated for the application’s voltage and amperage and meets all relevant safety standards. Consult our article on Safe Practices for Electrical Adapter Usage before making such connections.
What specific voltage does an L14-30R support?
The L14-30R is designed for a 125/250-volt system. This means it provides two 125-volt hot lines (often referred to as L1 and L2, or phases A and B) that are 180 degrees out of phase, a common neutral, and an equipment ground. Equipment can draw 125 volts by connecting between either hot line and the neutral, or draw 250 volts by connecting between the two hot lines.
Frequently Asked Questions
What wire color is function on l14-30r wiring diagram?
On an L14-30R wiring diagram, standard North American wire colors are typically: Green for Ground, White for Neutral, Black for L1 (Hot), and Red for L2 (Hot). These wire color codes help identify the specific function of each conductor, ensuring proper and safe connections within the 125/250V system. Always confirm with local electrical codes.
What do the pin numbers mean on l14-30r wiring diagram?
The L14-30R typically has five distinct pins, including the ground. Pins are often labeled with letters: ‘X’ for L1 (Hot), ‘Y’ for L2 (Hot), ‘W’ for Neutral, and ‘G’ for Ground. These pin assignments standardize connections, preventing reverse polarity and ensuring connected devices receive the correct voltage from the power source.
How many wires does l14-30r wiring diagram have?
An L14-30R wiring diagram explicitly shows four wires: two hot wires (L1 and L2), one neutral wire, and one ground wire. This configuration provides both 125-volt (between hot and neutral) and 250-volt (between the two hot wires) power, making it suitable for heavy-duty applications like generators or RVs, incorporating the essential ground wire.
What are common wiring mistakes with l14-30r wiring diagram?
Common L14-30R wiring mistakes include incorrect wire color code matching to terminals (e.g., swapping hot and neutral), using an insufficient wire gauge for 30 amps, and failing to secure terminal screws tightly. Another critical error is neglecting to properly bond the ground wire, which compromises safety and could lead to equipment damage or shock.
Can I use an L14-30R for 120V-only applications?
Yes, an L14-30R can supply 120V by utilizing one hot wire (L1 or L2), the neutral wire, and the ground wire. However, for exclusive 120V applications, using a connector specifically designed for that voltage (e.g., 5-15R or 5-20R) is often recommended to minimize potential wiring confusion and maximize safety for casual users.
What gauge wire does l14-30r wiring diagram require?
For a 30-amp L14-30R circuit, the typical minimum wire gauge required is 10 AWG (American Wire Gauge) copper conductor. This gauge is essential to safely handle the 30-amp current without overheating, complying with National Electrical Code (NEC) standards and preventing fire hazards, especially for the hot and neutral wires.
