Frigidaire Gallery Dishwasher Parts Diagram: 2026 Guide
The Frigidaire Gallery dishwasher schematic details internal components across four main subsystems: wash/drain system (circulation pump, drain pump assembly), heating circuit (120V heating element, high-limit thermostat), water inlet valve layout, and upper/lower spray arm structures. Access the main control board behind the top door panel to inspect wiring configurations and harness connections.
📌 Key Takeaways
- Exploded view layouts specify component locations like the 120V heating element and dual pump configuration.
- Model number identification tag is located on the inside tub wall frame for exact diagram matching.
- Always disconnect 120V power supply and shut off water supply lines before disassembling chassis components.
- The most common mechanical failure points are worn drain pump impellers and failed water inlet valves.
- DIYers can handle spray arm and latch replacements; complex electrical control board issues may require professional repair.

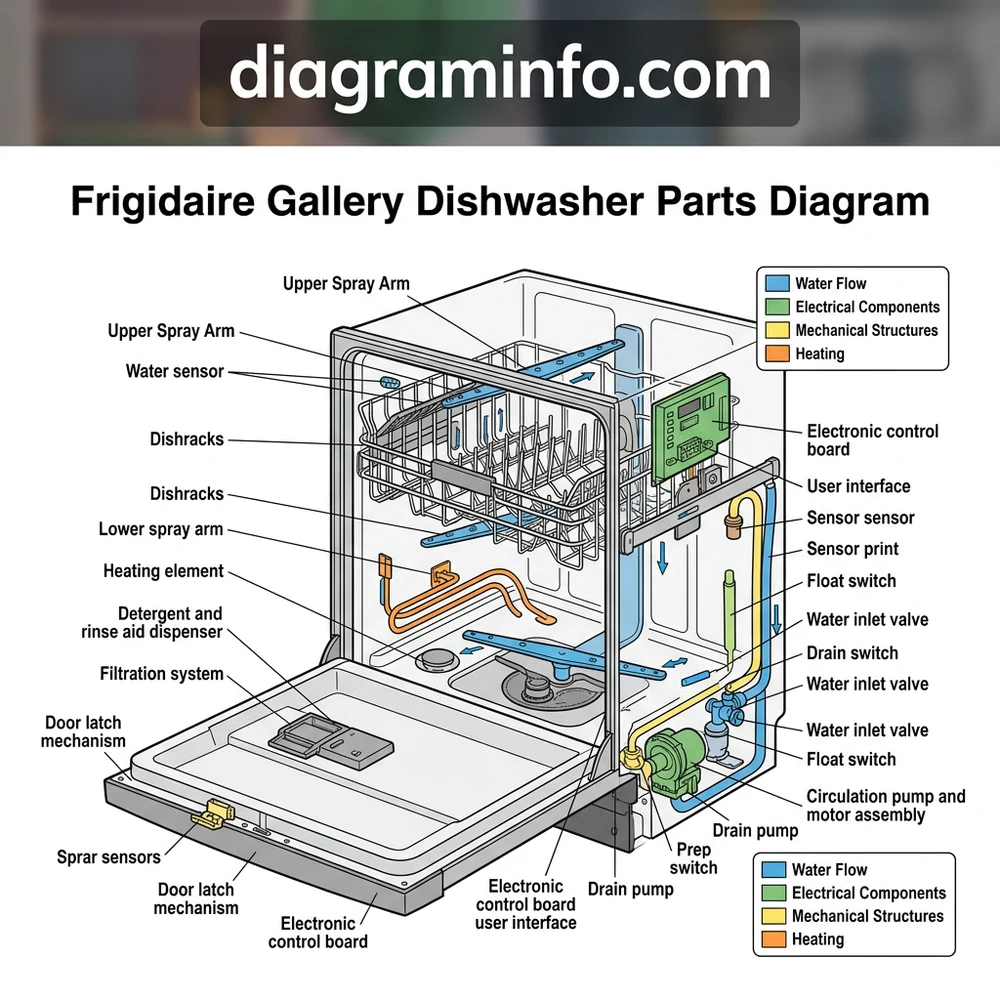

Technicians and advanced DIYers servicing Frigidaire Gallery units require an exact understanding of component relationships, electrical pathways, and hydraulic routing. Navigating a modern frigidaire gallery dishwasher parts diagram demands technical familiarity with OEM exploded views, wire harness layouts, and module interactions across various revisions (such as FGID2466, FGHD2465, and FGPB2865 series). This technical reference guide breaks down the structural blueprint of Frigidaire Gallery series dishwashers, providing exact specifications, electrical tolerances, and component mappings. By mastering the spatial representation and schematic symbols within factory technical illustrations, service professionals can rapidly isolate circuit faults, diagnose hydraulic pressure loss, and perform precision board- and sump-level repairs.
Deconstructing the Frigidaire Gallery Dishwasher Parts Diagram System
The internal architecture of the Frigidaire Gallery dishwasher is divided into four primary mechanical and electrical subsystems. Understanding how each component maps to the structural exploded view allows technicians to systematically trace energy and fluid paths through the unit.
When referencing Frigidaire Gallery service literature, part callout numbers on the exploded layout view correspond directly to the OEM base part index. Always cross-reference your specific model serial prefix (e.g., FGID2466QF0A vs. FGID2466QF4A), as pump configurations and control board pinouts vary across production years.
1. Hydraulic and Sump Assembly
Located at the base of the tub, the sump assembly serves as the central fluid manifold. On the breakdown blueprint, the sump houses the fine mesh filter, coarse filter, main circulation pump impeller, drain pump coupling, and the optical turbidity sensor (turbidity clarity system). A rubber grommet seal sets the interface between the sump body and the stainless steel or polypropylene tub floor. Ensure you review our detailed Frigidaire water inlet valve replacement guide for complete intake line plumbing specifications.
2. Motor and Pump Configuration
Modern Frigidaire Gallery models utilize either a permanent split capacitor (PSC) or a variable-speed brushless DC (BLDC) wash motor. Mounted directly beneath the sump, the wash motor drives the lower OrbitClean spray arm manifold via a vertical riser pipe. The drain pump is a separate synchronous motor rated at 120V AC, attached via a quarter-turn twist-lock mechanism directly to the side pocket of the sump.
3. Thermal and Water Distribution Circuitry
The heating loop consists of a high-wattage flow-through calrod heating element supported by ceramic tub isolators. The element operates in conjunction with an inline high-limit safety thermostat (cutout at 200°F/93°C) wired in series with the electronic control module. Water inlet volume is regulated by a solenoid-operated dual-rotor valve delivering a regulated flow rate of 0.8 to 1.0 GPM.
| Component Name | Diagram Reference No. | OEM Part # (Typical) | Electrical / Resistance Specs |
|---|---|---|---|
| Main Circulation Motor (BLDC) | Part #15 | 5304509609 | 120V, 60Hz / 11–14 Ω phase-to-phase |
| Synchronous Drain Pump | Part #28 | 5304512282 | 120V AC, 35W / 15–25 Ω winding coil |
| Calrod Heating Element | Part #11 | 154825001 | 120V, 1200W / 11–18 Ω line-to-line |
| Optical Turbidity / Temp Sensor | Part #34 | 5304517203 | 5V DC input / 10k Ω at 77°F (25°C) |
| Water Inlet Solenoid Valve | Part #145 | 154637401 | 120V AC / 1.1k–1.4k Ω coil resistance |
How to Read the Frigidaire Gallery Dishwasher Parts Diagram Schematic
Correlating physical components with a line-art schematic or exploded drawing requires a systematic approach. Follow these four diagnostic steps to accurately map structural schematics to the physical machine layout.
Frigidaire Gallery schematics use standardized wire color abbreviations: BK (Black), WH (White), BU (Blue), RD (Red), YL (Yellow), VT (Violet), BR (Brown), and GN/YL (Green/Yellow Ground). Always verify line voltage (120V AC ±10%) across L1 and Neutral before performing resistance diagnostics.
Step 1: Identify System Sub-Assemblies and Grid Coordinates
OEM factory manuals isolate the machine into exploded views: Cabinet/Door, Tub/Sump, Control Panel, and Frame/Wiring. Locate the component callout number on the grid layout, then refer to the adjacent Bill of Materials (BOM) table to retrieve the base 9-digit OEM part code.
Step 2: Trace Harness Connectivity and Pinout Maps
Cross-reference the physical wiring harness with the schematic layout located behind the lower toe-kick access panel. Follow wire paths from the Main Control Module (MCU) edge connectors—specifically the J2 (Load Motor), J4 (Heater Relay), and J7 (Sensor Bus) headers—to the physical load termination points under the tub.
Step 3: Measure Terminal Resistance and Voltage Tolerances
Isolate the targeted part by disconnecting its wire harness plug. Using a digital multimeter (DMM) set to ohms (Ω), check terminal resistance against factory specifications listed in the reference table above. A reading of infinity (OL) indicates an open winding/element; zero ohms indicates a direct internal short.
Step 4: Verify Mechanical Indexing and Alignment Symbols
Exploded structural views highlight physical alignment keys, alignment arrows, and torque requirements. When reassembling mechanical joints—such as the sump-to-tub clamp ring or circulation motor housing—align physical indexing tabs according to the blueprint layout to prevent leaks and vibration noise. Consult our Electrolux/Frigidaire error code diagnostic chart if the board triggers post-assembly diagnostic alerts.
Diagnosing Faults Using the Frigidaire Gallery Dishwasher Parts Diagram
When troubleshooting systematic failures, use the component location blueprint to isolate operational faults. Below are primary failure modes and technical resolution pathways mapped directly from the schematic layout.
Disconnect all electrical power supplies (turn off circuit breaker) and shut off the main water supply line before removing protective panels, handling harness connectors, or servicing low-voltage electronic assemblies.
1. Failure to Heat or Poor Drying Performance (Error i60 / i70)
If the wash cycle runs without heating the water, trace the high-current circuit using the electrical blueprint. Check continuity across the heating element (Part #11). If element resistance reads within the 11–18 Ω tolerance, trace wire harness VT/WH from the element to the high-limit thermostat. Test the thermostat for continuity at room temperature. If both components pass, inspect the J4 output relay on the main control board schematic for signs of terminal scorching or open-circuit board traces.
2. Drain Failure or Sump Overflow (Error i20 / i30)
When water fails to discharge, reference the sump breakdown layout. Check the synchronous drain pump (Part #28) terminal resistance (15–25 Ω). Inspect the mechanical check valve ball and rubber flap valve located inside the drain port outlet connector. A jammed check valve will prevent fluid flow despite normal electrical actuation of the pump motor.
3. Low Spray Arm Pressure / Wash Motor Failure
If wash arms fail to rotate, locate the circulation pump assembly (Part #15). Disconnect the harness and verify phase resistance on the BLDC motor terminals. Inspect the internal impeller assembly shown in the exploded sump view. Debris lodged within the chopper blade or impeller housing will stall the motor shaft, triggering over-current shutoff routines on the main control board.
Frigidaire Gallery Dishwasher Parts Diagram Technical FAQ
Where is the optical turbidity sensor located on the internal sump layout?
The optical turbidity sensor is mounted directly into the side wall of the lower sump housing beneath the main filter assembly. It is secured via a twist-and-lock plastic retainer tab and sealed with an EPDM O-ring. The sensor connects to the low-voltage sensor bus via a 4-pin micro-connector.
How do I decipher wire harness color codes on the electrical schematic?
Frigidaire schematics utilize two-letter wire color codes printed alongside conductor trace lines. For instance, “BK/WH” indicates a black wire with a white tracer stripe, while “BU” represents a solid blue wire. Solid lines denote 120V AC line-voltage circuits; dashed lines represent low-voltage (5V/12V DC) sensor networks.
What are the correct resistance readings for the calrod heating element configuration?
A functional 120V, 1200W calrod heater element exhibits a nominal resistance between 11 Ω and 18 Ω at ambient room temperature (70°F/21°C). Any reading registering infinity (open circuit) or less than 5 Ω (shorted circuit) mandates immediate replacement of the element loop.
Why does the OrbitClean lower spray arm fail to rotate according to the layout?
The OrbitClean spray arm relies on a planetary gear drive mechanism coupled to fluid pressure generated by the circulation pump. If the exploded view driver gear ring shows mechanical tooth wear, or if foreign debris blocks the lower spray manifold orifice, rotation stalls regardless of pump motor operation. Refer to our main control board schematic reference for complete motor voltage modulation data.
Step-by-Step Guide to Understanding the Frigidaire Gallery Dishwasher Parts Diagram
Identify – Locate the model and serial number tag on the right interior tub rim to select the correct diagram.
Locate – Find the specific subsystem on the layout diagram, such as the pump housing or control panel.
Reference – Match the exploded diagram item numbers with the manufacturer OEM part numbers in the legend.
Route/Connect – Trace wire harness paths or water line tube routing as illustrated in the system schematic.
Verify – Perform continuity checks using a multimeter on electrical terminals specified in the diagram.
Troubleshoot – Compare observed physical component damage or alignment issues against the factory layout specs.
