Peterbilt 379 Headlight Wiring Diagram: Pinout Guide (2026)
The Peterbilt 379 headlight wiring diagram utilizes standard 14 AWG wiring. Low beam circuit hot wire routes through line 14-GY, high beam hot wire uses line 15-BN, and ground wire connects via 10-WH directly to the cab grounding stud. Pin assignment on the H4 connector maps Pin 1 to Ground, Pin 2 to High Beam, and Pin 3 to Low Beam.
📌 Key Takeaways
- Peterbilt 379 headlights utilize 14 AWG primary wire color code standards protected by 15-amp auto-reset breakers.
- Solid white wire (10-WH) serves as the main ground wire attached directly to the front frame chassis stud.
- Standard H4 connector pin assignment maps Pin 1 to Ground, Pin 2 to High Beam hot wire, and Pin 3 to Low Beam hot wire.
- Corrosion at the firewall bulkhead harness plug is the leading cause of headlamp voltage drop.
- Upgrade to a dedicated relay harness when installing high-draw halogens to protect original dashboard switches.
Completing electrical repairs, harness overhauls, or headlight upgrades on a classic Peterbilt 379 requires an accurate understanding of factory circuit routing, fuse relay configurations, and connector pinouts. Manufactured between 1987 and 2007, the Peterbilt 379 utilizes distinct chassis wiring revisions, shifting from traditional hard-wired firewall bulkheads to multi-pin sealed connectors and updated cab power distribution modules. Utilizing a precise Peterbilt 379 headlight wiring diagram allows commercial fleet technicians and owner-operators to isolate voltage drop issues, correct floating ground connections, splice replacement forward-chassis harnesses, and safely wire high-draw LED assemblies or dual-beam conversion kits without overloading legacy switch contacts.
Peterbilt 379 Headlight Wiring Diagram Color Codes and Terminal Assignments
The forward chassis harness on the Peterbilt 379 connects the internal cab light switch and floor dimmer switch through the firewall bulkhead terminal block down to the hood pivot disconnect plugs and individual lamp pigtails. Factory wiring specifications adhere primarily to SAE J1128 standard colors with stamped circuit identification numbers every six inches along the wire run. The following reference table outlines standard factory circuit numbers, OEM wire color codes, terminal assignments, and operational functions across standard 1995 through 2007 Peterbilt 379 models.
| Circuit Number | Wire Color Code | Function / Signal Type | Pin Assignment / Destination | Conductor Gauge |
|---|---|---|---|---|
| C11-A | Light Green | LH Low Beam Switched Hot Wire | Pin B / Left Outer Sealed Beam Socket | 14 AWG GXL |
| C11-B | Light Green / Black Trace | RH Low Beam Switched Hot Wire | Pin B / Right Outer Sealed Beam Socket | 14 AWG GXL |
| C12-A | Dark Blue | LH High Beam Switched Hot Wire | Pin A / Left Inner & Outer Sockets | 14 AWG GXL |
| C12-B | Dark Blue / White Trace | RH High Beam Switched Hot Wire | Pin A / Right Inner & Outer Sockets | 14 AWG GXL |
| C10-1 | White | Chassis Common Ground Wire | Pin C / Lamp Housing to Frame Stud | 12 AWG TXL |
| C21-P | Brown | Parking Light Feed | Dual-Filament Socket Low Circuit | 16 AWG GXL |
| C27-L | Yellow | LH Front Turn Signal Feed | Fender Light Socket Major Filament | 16 AWG GXL |
| C27-R | Dark Green | RH Front Turn Signal Feed | Fender Light Socket Major Filament | 16 AWG GXL |
On pre-1995 Peterbilt 379 models, circuit numbering may differ slightly, and single-color white wires are routinely utilized for all neutral wire and chassis ground wire connections. Always verify line continuity using a digital multimeter set to resistance (ohms) prior to applying battery load.
Peterbilt 379 Headlight Harness Architecture and Pinout Identification
Understanding the routing pathways of the Peterbilt 379 headlight wiring diagram requires analyzing three main mechanical sections: the interior dash power center, the firewall bulkhead terminal block interface, and the forward hood extension harness. Battery positive voltage enters the main cab power panel via heavy-gauge battery feeds connected to 30-amp self-resetting circuit breakers or standard ATO blade fuses.
Cab Switch and Floor Dimmer Control Integration
Power flows from the primary master lighting switch directly to the foot-mounted dimmer switch located on the left floor board on early models, or to the steering column stalk switch on late-model trucks. The dimmer switch splits the incoming 12-volt hot wire feed into two discrete paths: Circuit C11 for low-beam operation and Circuit C12 for high-beam operation. Standard mechanical dimmer switches feature three primary terminal studs labeled BATT (switched power input), LOW (output to low beam circuit), and HI (output to high beam circuit).
Firewall Pass-Through Bulkhead Connector Pinout
At the engine firewall, the wiring converts from internal cab insulation to heavy-duty weather-sealed multi-pin connectors. The firewall terminal block organizes lighting circuits to prevent cross-talk and electrical interference. Standard pin locations on the primary 6-pin Deutsch forward connector include:
- Pin A (C12 High Beam): Dark Blue 14 AWG wire supplying power to both left and right high-beam assemblies.
- Pin B (C11 Low Beam): Light Green 14 AWG wire driving primary road lighting.
- Pin C (C10 Ground): Dedicated 12 AWG white ground wire leading directly to the primary chassis ground stud.
- Pin D (C21 Park): Brown 16 AWG wire supplying low-draw marker and halo lighting.
- Pin E (C27-L Turn): Yellow 16 AWG pulse wire for the left directional indicator.
- Pin F (C27-R Turn): Dark Green 16 AWG pulse wire for the right directional indicator.
How to Wire Peterbilt 379 Headlights Step by Step
Executing a harness rebuild, converting to aftermarket projection housings, or replacing damaged wiring on a Peterbilt 379 requires systematic terminal execution to guarantee optimal current flow and prevent voltage drop across the headlamp sockets.
- Isolate Electrical Power and Clean Contact Surface: Disconnect the negative battery cable bank located under the driver-side battery box. Ensure zero residual DC voltage at the interior fuse panel before cutting or stripping any portion of the forward chassis harness. Clean the main firewall ground stud down to bare metal using a wire wheel.
- Mount and Terminal Relay Sockets (Dual Relay Upgrade Step): When installing high-draw halogen or aftermarket dual-beam assemblies, install two standard 40-amp 12V DC ISO relays on the firewall terminal block bracket. Connect terminal 30 of both relays to a fused, unswitched battery hot wire using 10 AWG red wire. Terminal 85 on each relay connects directly to the chassis ground wire.
- Connect Trigger Wires to Relay Switches: Route factory circuit C11 (Light Green low beam hot wire) to Pin 86 on Relay 1. Route factory circuit C12 (Dark Blue high beam hot wire) to Pin 86 on Relay 2. These original cab wires now function purely as low-draw switch triggers, reducing stress on the OEM dash switch contacts.
- Run Output Cables to H4 / H6054 Headlight Plugs: Connect Pin 87 of Relay 1 directly to Pin B (Low Beam) of both ceramic H4 lamp connectors using 12 AWG primary wire. Connect Pin 87 of Relay 2 to Pin A (High Beam) on both ceramic H4 connectors. Secure all connections using heat-shrink solder sleeves.
- Establish Solid Ground Connections: Secure Pin C of each lamp connector to a dedicated 12 AWG white ground wire. Terminate these wires at the aluminum hood support structure and extend a main ground jumper strap across the hood pivot hinge down to the lower engine block ground bolt.
- Verify Circuit Polarity and Operating Voltage: Reconnect the battery bank. Turn on the headlamp master switch and test voltage at the socket pins using a multimeter. Ensure a steady 13.5V to 14.2V is present with the engine running. Confirm that switching from low to high beam instantly transfers potential without dropping ground continuity.
Factory Peterbilt terminal pin crimp torque: Hand-crimp using dual-indent ratcheting tools for Deutsch DT terminals. Heat shrink sleeve melt temperature: 275°F (135°C). Headlight socket terminal resistance threshold: < 0.2 Ohms across all chassis ground connections.
Peterbilt 379 Headlight Relay and Fuse Box Terminal Block Layout
The interior power distribution center on a late-model 379 contains dedicated automotive relays for headlight isolation. Utilizing dedicated relays separates the high current draw of the front lamps from the light control switch on the dash instrument panel.
Never bypass factory inline circuit breakers or replace 15A headlamp fuses with higher amperage alternatives. Running excessive amperage through stock 14 AWG switch wiring will melt insulation inside the steering column wiring loom and create a severe electrical fire hazard.
In standard factory configurations, the terminal block organizes power distribution into specific fuse channels:
- Fuse Position 4 (15A): Left Low Beam Circuit Feed (C11-A)
- Fuse Position 5 (15A): Right Low Beam Circuit Feed (C11-B)
- Fuse Position 12 (20A): High Beam Master Power Circuit (C12)
- Headlight Low Beam Relay: Standard ISO 5-pin configuration located in Relay Slot R3. Pin 30 receives constant power, Pin 87 outputs to Fuse 4/5, Pin 86 receives signal from dimmer switch, Pin 85 ties to ground wire.
- Headlight High Beam Relay: Located in Relay Slot R4. Controls dual high-beam output lines when the stalk switch is pulled forward.
Peterbilt 379 Headlight Circuit Voltage Drop and Gauge Specifications
One of the most frequent performance bottlenecks in factory Peterbilt 379 headlamp systems is excessive voltage drop along aging wiring paths. Incandescent H6054 sealed beams and high-performance H4 halogen bulbs experience exponential light loss when operating below rated system voltage.
Understanding Voltage Requirements and Wire Resistance
A standard 12-volt halogen bulb operating at 13.8V generates 100% of its rated lumen output. If terminal resistance causes voltage to drop to 10.5V at the headlight plug, light output drops by over 40%. The table below details conductor gauge limits and resistance profiles for custom wiring or repairs on Peterbilt forward chassis harnesses.
| Wire Gauge (AWG) | Insulation Type | Resistance (Ohms/1000 ft) | Max Current Draw (Continuous) | Recommended Application |
|---|---|---|---|---|
| 10 AWG | TXL High Temp Cross-Link | 1.02 Ω | 30 Amps | Main Battery Hot Wire to Relay Terminal 30 |
| 12 AWG | GXL Standard Cross-Link | 1.62 Ω | 20 Amps | Main Ground Wire (C10) Hood Pivot Run |
| 14 AWG | GXL Standard Cross-Link | 2.58 Ω | 15 Amps | Factory High/Low Beam Feed Wires (C11/C12) |
| 16 AWG | GPT Thermoplastic | 4.09 Ω | 10 Amps | Turn Signal & Marker Lamp Feeds |
Troubleshooting Common Peterbilt 379 Headlight Wiring Diagram Faults
Commercial vehicle operation exposes forward harness assemblies to constant vibration, salt spray, engine thermal cycles, and mechanical strain from opening and closing the fiberglass tilt hood. Below are the five most frequent electrical faults encountered on Peterbilt 379 headlight circuits, along with diagnostic steps and corrective measures.
1. High-Beam Indicator Half-Lit When Low Beams Are Selected
Cause: Loss of primary ground wire continuity at the headlight pigtail socket (Pin C / Circuit C10). When the primary ground wire breaks or corrodes, the low-beam current seeks an alternate path to ground by flowing backward through the high-beam filament and back through the dash indicator bulb circuit.
Fix: Perform a continuity test between Pin C of the headlight socket and the chassis frame rail. Strip back broken wire insulation, splice in a new 12 AWG white ground wire using waterproof crimp connectors, and re-anchor the lug to the ground stud on the inner fender line.
2. Low Beam Lights Flickering During Hood Movement
Cause: Stress fractures or copper strand fatigue inside the hood hinge jumper harness. Because the wiring flexes every time the hood opens, individual wire strands inside the PVC jacket snap over time without showing external insulation damage.
Fix: Flex the harness by hand while monitoring line voltage with a digital multimeter. Locate the hidden break near the hood pivot point. Cut out the degraded wire section and splice in ultra-flexible 12 AWG silicone-jacketed fine-strand copper wire across the pivot zone.
3. Melted Ceramic Sockets or Burned Pin Assignments
Cause: Excessive resistance created by loose spade terminals inside cheap plastic pigtails or retrofitting higher wattage (80W/100W) halogen bulbs onto factory 14 AWG wiring without installing a secondary relay harness.
Fix: Cut off damaged plastic connectors. Install high-temperature ceramic 3-pin H4 sockets. If running high-wattage bulbs, rewire the system using a dedicated dual-relay kit powered directly by the alternator output post.
4. Reverse Polarity Issues After LED Module Retrofits
Cause: Factory Peterbilt 379 sealed beam sockets sometimes feature reversed hot and neutral wire terminal locations compared to modern non-polar LED headlights. While traditional incandescent bulbs ignite regardless of polarity, solid-state LED chips will fail to illuminate if hot wire and ground wire pins are inverted.
Fix: Depin the headlight connector using a terminal extraction tool. Swap the position of the C11/C12 hot wire pin with the C10 ground wire pin according to the pinout supplied with your specific LED headlight module.
Peterbilt 379 Headlight Wiring Diagram Frequently Asked Questions
What wire color code does Peterbilt use for headlight ground wires on a 379?
Peterbilt universally uses solid white insulation for chassis ground wire runs (Circuit C10) across the 379 model lifespan. On dual-headlight or quad-sealed-beam configurations, each lamp socket features a white jumper wire terminating at an eyelet fastened to the hood structural brace or a dedicated firewall ground block.
How do I bypass the stock headlight switch using a dual-relay wiring harness on a 379?
To bypass internal switch resistance, disconnect the OEM low (C11) and high (C12) beam wires at the forward engine bulkhead. Re-route these two factory wires to trigger the coil inputs (Pin 86) of two separate 40A heavy-duty automotive relays. Run fresh 12 AWG wire from the relay output pins (Pin 87) straight to your headlights, using a fused 10 AWG main power wire connected directly to the positive battery stud.
Why do my low beams shut off when activating high beams on a late-model Peterbilt 379?
Factory Peterbilt dual-beam halogen systems rely on a single filament lighting strategy per housing to prevent thermal buildup inside the lens. When the dimmer switch activates Circuit C12 (High Beam), it mechanically or electronically opens Circuit C11 (Low Beam). If both beams turn off entirely, your dimmer switch is failing internally or the high-beam relay coil has open resistance.
What is the maximum acceptable voltage drop across a Peterbilt 379 headlight circuit?
According to standard commercial electrical specs, total voltage drop between the main battery terminals and the lamp socket terminals should never exceed 0.5 volts DC under full operating load. A voltage reading below 12.0 volts at the socket with the engine idling (13.8V alternator output) indicates high terminal resistance, corroded bulkhead connectors, or insufficient wire gauge size.
How do I wire daytime running lights (DRL) into a non-DRL 379 factory harness?
To add DRL functionality, install an ignition-switched DRL control module into the interior cab fuse block. Connect the module trigger wire to an switch-on ignition fuse (Circuit 15). Connect the module output wire to the factory C11 low-beam feed wire at the firewall bulkhead using a 10-amp blocking diode. The diode prevents back-feeding power from the DRL module back into the main cab switch panel.

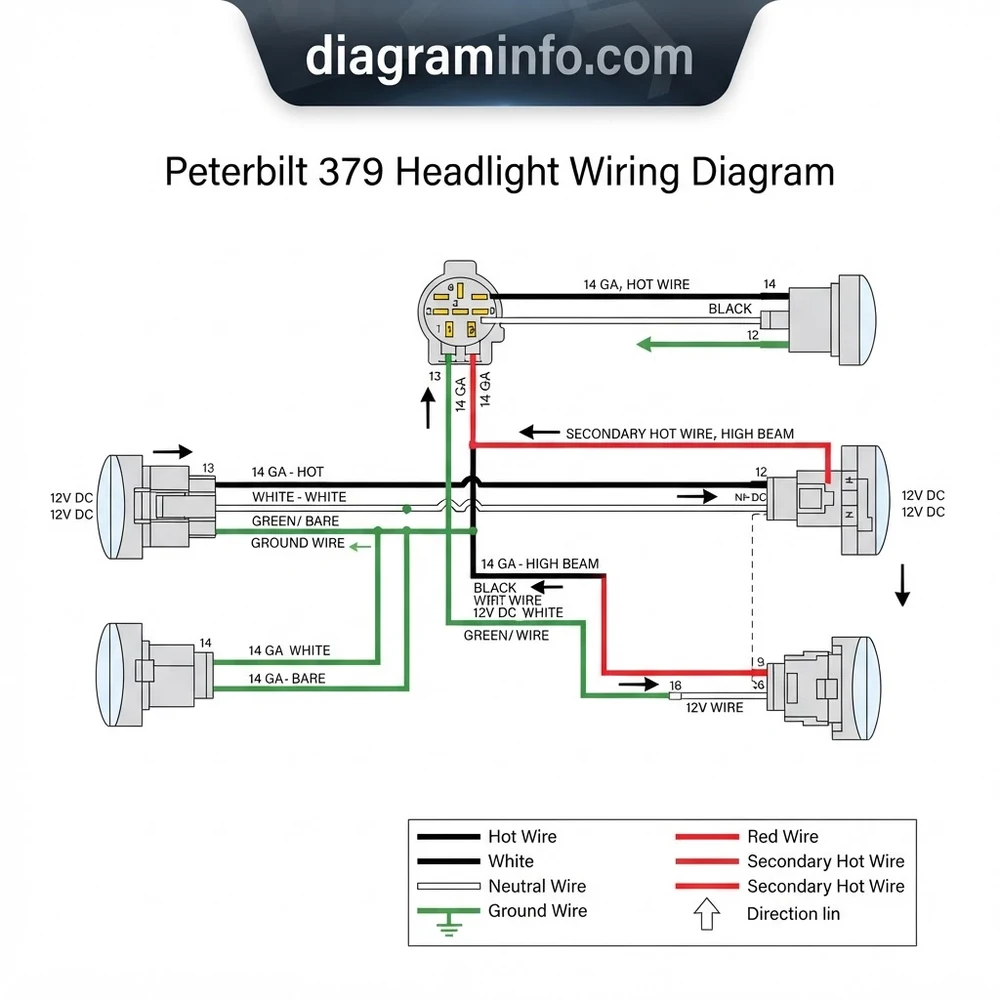

Step-by-Step Guide to Understanding the Peterbilt 379 Headlight Wiring Diagram
Identify – Inspect the factory harness to identify the low beam hot wire, high beam hot wire, and main ground wire.
Locate – Find the primary firewall bulkhead connector and the frame-mounted ground stud behind the front bumper.
Reference – Cross-check your wire color code against the Peterbilt 379 headlight wiring diagram to verify correct circuit paths.
Connect/Route – Route 14 AWG wires through protective loom and snap terminals according to the proper H4 pin assignment.
Verify – Probe each terminal using a multimeter to confirm 12V DC power on active hot wires and continuity to chassis ground.
Troubleshoot – Inspect inline thermal breakers and clean oxidation from grounding points if voltage drop causes flickering headlights.
