A pressure washer unloader valve diagram illustrates the internal bypass route, spring tension assembly, check valve, and inlet/outlet configuration. Located on the manifold pump head, it redirects high-pressure water back to the pump inlet when the trigger gun is released, preventing motor stall and dangerous pressure spikes above 3000 PSI.
📌 Key Takeaways
- Unloader valves divert 100% of pump water flow to bypass when the spray gun trigger is released.
- Internal components feature stainless steel pistons, tension springs, and durable nitrile O-rings.
- Never tighten the locknut completely down; always set maximum pressure using an inline gauge.
- Sticking check valves and pitted brass seats are the primary causes of pressure loss.
- Rebuilding internal valve cartridges is DIY-friendly, but cracked manifold bodies require full replacement.
The unloader valve serves as the primary hydraulic safety and regulating mechanism within commercial and industrial high-pressure cleaning systems. Whether maintaining triplex plunger pumps or high-output hot-water pressure washers, reading a pressure washer unloader valve diagram is vital for diagnosing line pressure spikes, fluid loop thermal buildup, and cavitation issues. The unloader acts as a bypass regulator: when the spray gun trigger is pulled, full fluid volume is directed to the nozzle; when released, the valve diverts pressurized fluid back to the pump inlet or buffer tank. Mastering this blueprint ensures proper system setup and prevents pump head damage.
Pressure Washer Unloader Valve Diagram Component Layout

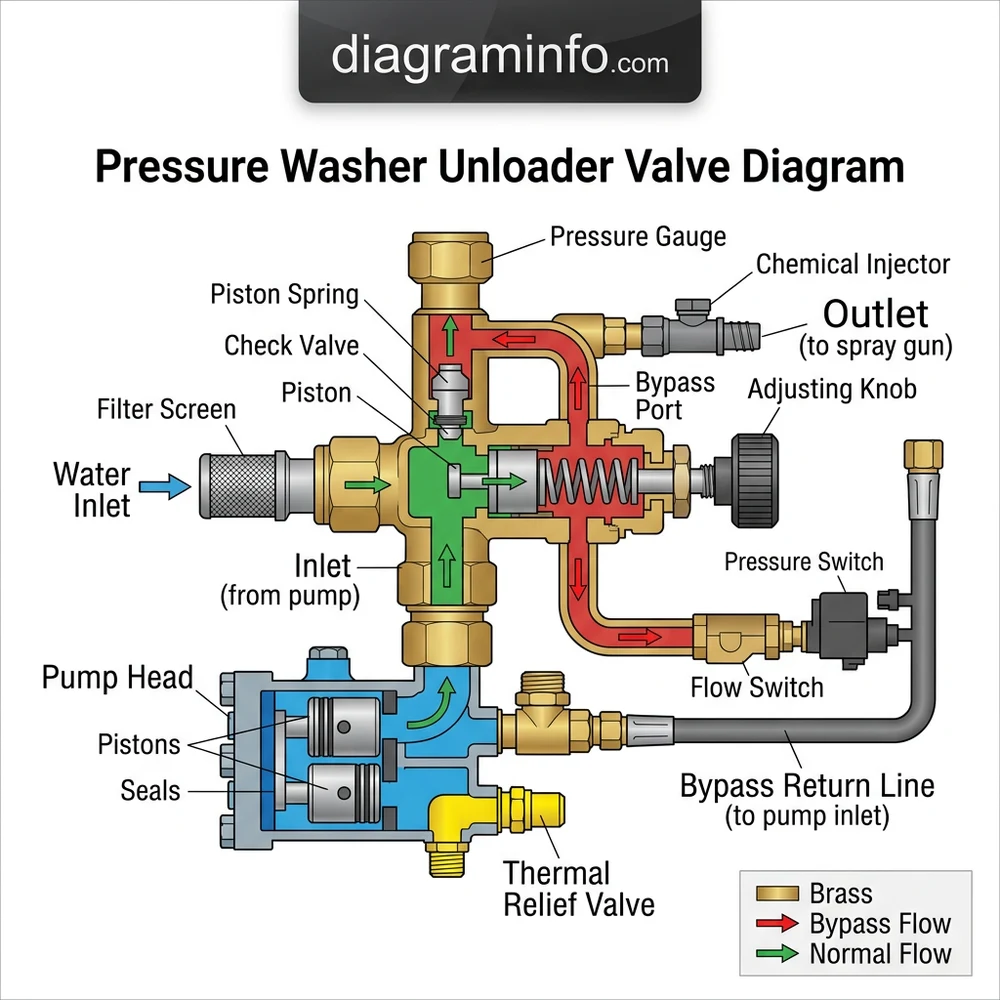

An exploded schematic of a standard pressure washer unloader valve illustrates how precision mechanical components interact under extreme hydraulic forces, typically between 1,500 and 5,000+ PSI. The primary structure consists of a forged brass or 316 stainless steel valve housing designed to withstand intense pressure cycling and fluid velocities reaching up to 45 feet per second.
Recommended Best Deal Products
According to OEM specifications, standard commercial unloader valves utilize high-grade stainless steel poppets mated with micro-polished tungsten carbide or ceramic valve seats to prevent fluid erosion and wire-drawing under high differential pressures.
Every internal component plays a specific role in maintaining system equilibrium:
- Main Pressure Adjustment Knob & Locknut: Regulates tension on the internal spring, establishing the operational system pressure limit (PSI/bar).
- Tension Spring: Heavy-gauge alloy spring that balances internal fluid force against the main piston assembly.
- Piston & Poppet Assembly: A ground stainless steel shaft fitted with dual Viton or HNBR O-rings and backup rings. It slides axially within the valve body to open or seal the primary orifice.
- Check Valve Assembly: A spring-loaded, unidirectional non-return valve positioned at the discharge port. It seals immediately upon trigger release to lock working pressure in the downstream high-pressure hose.
- Bypass Port: An internal or external discharge gallery that redirects idle fluid volume back to the suction manifold or float tank.
| Component Name | Standard Material | Primary Function | Common Failure Mode |
|---|---|---|---|
| Valve Body | Forged Brass / 316 SS | Houses internal chambers and fluid ports | Internal scouring from particulate contamination |
| Piston Shaft | Hardened Stainless Steel | Transfers spring force to poppet ball/seat | Scored shaft, sheared backup rings |
| Check Valve Seat | Tungsten Carbide / Brass | Seals trapped line pressure on discharge side | Pitting, calcium scaling, failure to seat |
| O-Rings & Seals | Viton (FKM) / PTFE | Prevents internal and external fluid bypass | Thermal hardening, nibbling, chemical swell |
Tracing the Pressure Washer Unloader Valve System Configuration
Understanding how fluid flows through a pressure washer unloader valve requires breaking down the operation into two distinct mechanical phases: Operating Mode (Trigger Engaged) and Bypass Mode (Trigger Released). Unloader valve designs generally fall into two system configurations: Trapped-Pressure (TP) unloaders and Flow-Actuated unloaders.
Phase 1: Operating Mode (Trigger Engaged)
When you pull the spray gun trigger, high-pressure fluid exits through the spray tip. The sudden drop in downstream trapped pressure allows the check valve spring to unseat the check ball. Fluid flows smoothly from the pump manifold, through the main unloader chamber, and out to the discharge hose. Hydraulic pressure acting on the lower face of the piston matches the pre-loaded spring force on top, keeping the bypass passage closed tightly. Consult our triplex plunger pump rebuild guide for details on matching pump displacement to unloader bypass capacities.
Phase 2: Bypass Mode (Trigger Released)
Releasing the spray gun trigger halts water discharge instantly. The continuous displacement from the pump forces fluid into the unloader manifold, causing downstream pressure to spike within milliseconds. This sudden hydraulic spike forces the internal check valve onto its seat, trapping working pressure (e.g., 3,500 PSI) inside the hose assembly.
Recommended Best Deal Products
Simultaneously, this pressure spike pushes the internal piston upward against the main tension spring. As the piston rises, it unseats the bypass poppet, opening the internal channel that routes 100% of the pump output back to the low-pressure suction side or supply tank. The manifold pressure on the pump side drops to under 150 PSI, allowing the engine or motor to idle without working against hydraulic head pressure.
When calibrating a trapped-pressure unloader, always use a calibrated pressure gauge installed directly between the pump outlet and the unloader inlet. Adjust the tension knob so peak trapped pressure does not exceed 10% above operating pressure.
Diagnosing Faults Using the Pressure Washer Unloader Valve Diagram
When troubleshooting hydraulic pressure anomalies, referencing the unloader valve schematic helps isolate mechanical friction, sealing failures, and fluid restriction issues.
Engine Stalling Upon Trigger Release
If the engine stalls or bogs down heavily the moment you let go of the spray trigger, the unloader piston is failing to shift into bypass mode. This failure is typically caused by a seized piston stem, binding O-rings, or severe mineral scale deposits blocking the bypass port. Inspect the internal stem for score marks and verify that the main tension spring isn’t bound down completely.
Pressure Loss or Low Discharge PSI
When operating pressure drops despite correct engine RPM, the bypass poppet valve may not be seating fully. Debris (such as sand or metal shavings) caught between the poppet ball and tungsten seat allows high-pressure fluid to continuously leak into the low-pressure bypass loop. Furthermore, verify correct tip sizing according to our high-pressure spray gun nozzle sizing chart, as an worn or oversized orifice mimics unloader bypass failure.
Pulsating Spray and Hose Vibration
A chatter or violent vibration in the high-pressure hose points to an unstable balance between spring tension and fluid dynamics. This often occurs when O-rings are worn, allowing fluid to bypass the piston head, or when the check valve spring breaks, causing the valve to rapidly flutter on and off its seat.
Never operate an unloader valve in closed-loop bypass (recirculating water directly back to the pump inlet) for longer than 2 minutes. Friction heats recirculating water rapidly; temperatures exceeding 140°F (60°C) will melt pump packings and crack ceramic plungers. Integrate a dedicated safety valve per our thermal relief valve selection guidelines.
Pressure Washer Unloader Valve Diagram Technical FAQs
What is the main functional difference between Trapped-Pressure and Flow-Actuated unloaders?
A trapped-pressure (TP) unloader triggers bypass mode via hydraulic pressure spikes trapped downstream in the hose when the trigger closes. A flow-actuated unloader senses the velocity of water flow stopping; once fluid movement ceases, it bypasses pump displacement. Flow-actuated models eliminate trapped line pressure, making the spray gun easier to squeeze initially.
How do I adjust the unloader valve spring setting properly without damaging the pump?
With the machine running at rated operational RPM and gun trigger pulled, turn the tension adjustment knob clockwise until operating PSI stops increasing on your inline gauge. Stop turning the knob immediately once pressure plateaus. Tighten the jam nut to lock this position. Turning the knob further only increases dangerous trapped pressure spikes without raising working performance.
Can I rebuild an unloader valve using an O-ring repair kit instead of replacing it?
Yes, provided the internal brass or stainless steel housing walls aren’t scored or pitted. OEM repair kits typically include new Viton stem O-rings, Teflon backup rings, poppet balls, and check valve springs. Clean the internal valve bore with 0000 steel wool and lubricate new elastomeric seals with silicone grease prior to reassembly.
Why does water leak out of the unloader valve weep hole or adjustment knob stem?
Fluid leaking from around the adjustment spring stem indicates failure of the upper piston dynamic seals (O-rings and backup rings). High-pressure fluid leaks past the primary piston seal into the spring chamber. Replace the piston seal stack and inspect the piston shaft for micro-pitting or corrosion.
Step-by-Step Guide to Understanding the Pressure Washer Unloader Valve Diagram
Identify – Recognize the primary bypass loop, tension adjustment knob, and valve body on your pump schematic.
Locate – Find the unloader valve attached directly to the brass high-pressure pump manifold.
Reference – Consult the diagram layout to determine the correct order of internal seals, spring, and piston stem.
Connect/Route – Install internal check valve components and thread the valve body securely into the bypass port.
Verify – Attach an inline pressure gauge and test spray trigger release to confirm smooth bypass operation.
Troubleshoot – Check internal O-rings and tension spring seating if system pressure fluctuates or drops.
