2-Pin Motorcycle Kill Switch Wiring Diagram: 2026 Pinout Guide

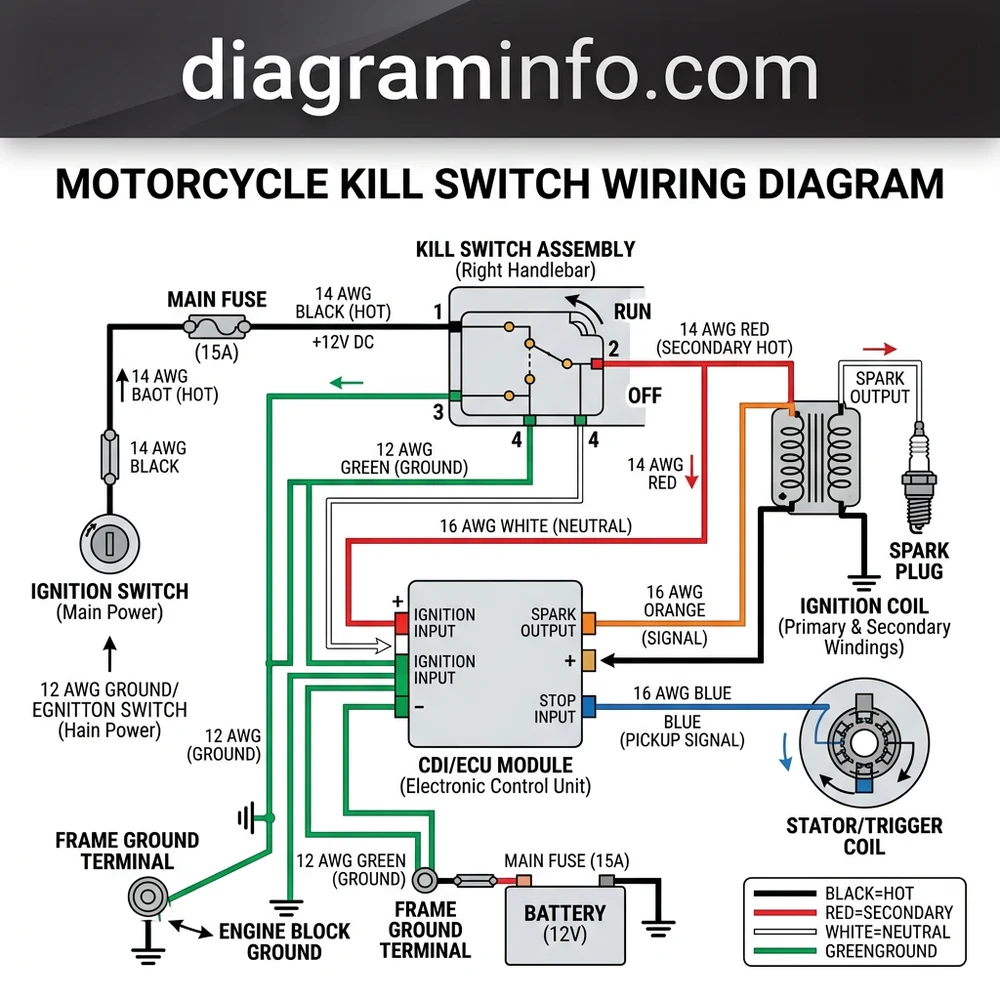

A motorcycle kill switch wiring diagram typically features a two-wire or four-wire circuit. In a standard 2-pin setup, the black hot wire runs from the ignition coil or CDI unit to the switch, while the green ground wire connects directly to the chassis frame. Flipping the switch grounds out the ignition circuit, immediately cutting engine power.
📌 Key Takeaways
- Standard handlebar kill switches operate on 12V DC circuits to interrupt ignition or ground the CDI box.
- Wire color codes vary by manufacturer: Honda uses black/white for ignition cut-off and green for ground wire.
- Handlebar switch mounting bolts must be torqued to 4–6 Nm to prevent cracking plastic housings while ensuring ground contact.
- Oxidation and dirty copper contacts inside the handlebar housing represent the most common point of circuit failure.
- Basic 2-wire switch replacement is a manageable DIY job, but ECU-integrated kill switches require exact pinout mapping.
Integrating or replacing an engine stop control on a motorcycle requires a clear understanding of the ignition system architecture and control loop logic. Whether working on a vintage capacitor discharge ignition (CDI) system or a modern transistor controlled ignition (TCI) setup with electronic fuel injection (EFI), correctly following a motorcycle kill switch wiring diagram prevents blown fuses, damaged igniters, and safety failures. This technical guide outlines the schematic logic, wire color code standards across major manufacturers, pin assignment procedures, terminal block connections, and electrical specs necessary to execute a bulletproof installation.
Motorcycle Kill Switch Circuit Types: CDI Grounding vs. TCI Ignition Power
Before making physical connections, you must identify whether your motorcycle utilizes a grounded kill circuit (typical for CDI setups) or an open-circuit kill setup (standard on TCI and ECU-driven ignitions). Attempting to wire a CDI-style grounding switch into a TCI system will result in a direct dead short, immediately popping the main ignition fuse when the switch is flipped to the “STOP” position.
Recommended Best Deal Products
According to OEM factory service manual schematics, Capacitor Discharge Ignition (CDI) systems operate by generating high voltage via stator source coils and storing it in a capacitor inside the igniter module. The engine stop switch operates on a Normally Open (NO) logic loop when the engine is running. To kill the engine, flipping the switch to “STOP” closes the internal contact points, directing the high-voltage pulse away from the ignition transformer and sending it down a ground wire directly into the chassis. This immediately starves the spark plug of energy.
Conversely, Transistor Controlled Ignition (TCI) and modern Electronic Fuel Injection (EFI) circuits employ Normally Closed (NC) switch logic. In this design, a 12V DC hot wire feeds power from the ignition main relay or key switch into the kill switch. When the switch is set to “RUN”, the internal contacts remain bridged, transferring 12V DC current to the positive primary terminal of the ignition coils and the engine management computer. Flipping the switch to “STOP” opens the contacts, interrupting the circuit, which immediately de-energizes the coil primary windings and halts injector pulsing.
When retrofitting aftermarket handlebar controls, verify whether the internal switch block utilizes isolated contacts or a shared internal bus line. Custom builds often integrate the engine stop switch with the starter button, sharing a single hot wire lead inside the housing.
Standard Pin Assignment and Wire Color Code Reference
Wire color coding varies substantially across OEM manufacturers and aftermarket harness builders. When working with a custom motorcycle kill switch wiring diagram, always cross-reference terminal function using a digital multimeter set to continuity mode rather than relying solely on insulation colors.
| Manufacturer / System | Switched Hot Wire (Power In) | Kill Output / Signal Out | Chassis Ground Wire | Pin Assignment & Notes |
|---|---|---|---|---|
| Honda (TCI / Standard) | Black (12V Switched) | Black / White Line | Green | Pin 1: Black (12V In) Pin 2: Black/White (Coil Out) |
| Honda (CDI Vintage) | N/A (CDI Pulse Circuit) | Black / White Line | Green | Pin 1: Black/White (CDI Lead) Pin 2: Green (Frame Ground) |
| Yamaha (TCI / EFI) | Red / White Line | Red / White or Red / Black | Black | Pin 1: Red/White (Main Relay) Pin 2: Red/Black (ECU/Coils) |
| Suzuki (TCI) | Orange / White Line | Orange / White (Internal Bus) | Black / White Line | Pin 1: Orange/White (12V feed) Pin 2: Orange/Yellow (Ignition) |
| Kawasaki (TCI) | Brown or Red | Red / Black Line | Black / Yellow Line | Pin 1: Brown (Fuse box feed) Pin 2: Red/Black (Coils feed) |
| Universal Aftermarket (2-Pin) | Red Wire | Black Wire | Bare/Green (Optional) | Pin 1: Line In Pin 2: Line Out / Ground |
When connecting aftermarket clip-on switches, identifying the wire color code correctly ensures that secondary safety interlocks—such as the kickstand switch, clutch lever switch, and neutral wire safety circuit—remain functional within the total wiring loom. Disconnecting or incorrectly bypassing these safety loops during control replacement can lead to dangerous unexpected starter motor engagement while in gear.
Recommended Best Deal Products
Wire Gauge, Voltage Standards, and Terminal Block Connections
Proper conductor sizing prevents excessive voltage drop and resistance heating within the ignition primary circuit. Because the kill switch on a TCI motorcycle delivers total operating current directly to the ignition coils (and in some setups, powers the fuel pump relay), utilizing the correct wire gauge is critical for maintaining nominal coil saturation times.
• System Operating Voltage: 12.6V DC nominal (13.8V – 14.4V DC while charging)
• Primary Ignition Conductor Gauge: 16 AWG (1.0 mm²) stranded copper for TCI main feed lines
• CDI Low-Current Grounding Conductor Gauge: 18 AWG (0.75 mm²) stranded copper
• Maximum Allowable Circuit Voltage Drop: < 0.2V DC between main ignition terminal block and coil positive
• Terminal Type: Sealed multi-pin automotive connectors (e.g., Sumitomo HM/MT series or Deutsch DT series)
When running conductors from the handlebar control switch down to the main terminal block, route the harness through high-flex multi-conductor sleeve tubing. The harness must maintain sufficient slack through the entire handlebar sweep from lock to lock to prevent mechanical stress on individual crimp pins. Terminate all connections using open-barrel crimp terminals secured with a ratcheting crimp tool. Avoid using non-insulated hardware-store butt connectors or twist connections, as vibration will induce micro-fretting corrosion, raising resistance and causing intermittent spark cutouts.
To integrate the kill switch cleanly into your main harness, use a central terminal block or multi-pin connector block. Routing through a dedicated terminal block simplifies future diagnosis, allowing a technician to isolate handlebar switch leads from the main engine harness without unwrapping high-temp electrical tape or loom tubing.
How to Wire a Motorcycle Kill Switch Diagram Step by Step
Follow this systematic procedure to correctly execute a handlebar kill switch installation. Ensure the vehicle battery is fully disconnected at the negative terminal before cutting or stripping any wires within the main electrical harness.
Step 1: System Identification and Multimeter Continuity Mapping
Determine your ignition architecture using the factory manual or visual inspection. Inspect the ignition coil positive connections to see if they receive 12V DC power directly from the main harness (TCI) or if they connect directly to an external igniter/CDI box (CDI). Take your new switch unit and test terminal continuity using a multimeter. Set the meter to the resistance ($\Omega$) or continuity beep setting. Connect the probes across the switch pins. For a standard 2-wire TCI switch, the meter should show continuous continuity ($< 0.5\Omega$) in the "RUN" position and open circuit ($\infty\Omega$) in the "STOP" position.
Step 2: Prepare the Main Power or Signal Leads
Strip 6mm of PVC insulation off the ends of your input hot wire and output supply wires using a precision wire stripper. If retrofitting a modern TCI circuit, locate the 12V switched power source coming from the ignition switch circuit or main fuse block. Crimp male or female pin terminals onto the 16 AWG conductors. Ensure both the wire core and the insulation barrel are gripped securely by the terminal crimp ears.
Step 3: Route through the Main Handlebar Junction
Feed the sub-harness down the handlebars along the factory routing paths. Secure the wiring using UV-resistant nylon cable ties every 4 to 6 inches, taking care not to pinch conductors against metal cable guides or throttle cable brackets. Direct the wiring leads into the headlamp bucket or under-tank terminal block enclosure where the primary motorcycle kill switch wiring diagram splits off toward the coils and frame ground points.
Step 4: Connect the Output and Ground Wire Leads
For a 2-wire TCI system: Click the switched 12V input pin into Pin 1 of your multi-pin terminal block connector. Click the output pin (feeding the ignition coil positive primary terminal) into Pin 2 of the connector block. For a CDI circuit: Insert the CDI trigger kill line into Pin 1, and land the switch’s output ground wire onto an eyelet terminal bolted directly to the bare-metal chassis ground point or clean engine casing. Ensure chassis ground attachment points are scraped free of paint, powder coating, or heavy oxidation to maintain low electrical resistance.
Step 5: Inspect and Interface Interlock Safety Circuits
If your handlebar switch includes an integrated engine start button, ensure the shared internal terminal block jumper receives feed power correctly without back-feeding the starter relay signal wire. Check that the neutral wire safety signal circuit from the transmission gear position sensor interfaces with the starter solenoid coil ground path. This guarantees the engine will only crank when the clutch is pulled or the transmission is in true neutral, regardless of kill switch position.
Step 6: Voltage Drop and Operational Load Testing
Reconnect the main battery negative terminal. Turn the main ignition key switch to “ON”. Set the kill switch to “RUN”. Set your digital multimeter to DC Volts ($V\overline{\dots}$). Measure total system battery voltage across the terminals, then measure voltage at the positive terminal of the ignition coil. The measured voltage at the coil should read within 0.2V DC of total battery voltage. Set the kill switch to “STOP”. The coil positive terminal voltage must drop immediately to 0.0V DC. Start the motorcycle and test the engine cut function under idle conditions to confirm immediate spark breakdown.
Troubleshooting Common Motorcycle Kill Switch Wiring Diagram Errors
When an engine fails to start or experiences intermittent ignition dropouts following a handlebar switch installation, systematic diagnosis along the motorcycle kill switch wiring diagram pinout pinpoints the fault quickly.
Never ground the output wire of a TCI-style ignition switch. Direct-grounding a 12V switched hot wire will short the main harness, causing blown main fuses, melted conductor insulation, or catastrophic damage to the electronic control unit (ECU).
Fault 1: Blown Main Fuse Immediately Upon Switching to “STOP”
Cause: A CDI-style (Normally Open, ground-to-kill) switch configuration was wired into a TCI/EFI ignition system. When switched to “STOP”, the hot wire carrying 12V DC power is dumped directly down a chassis ground wire.
Correction: Disconnect the ground wire connection immediately. Re-wire the TCI kill switch in series along the positive feed line between the ignition fuse/relay and the ignition coil positive terminal.
Fault 2: Engine Cranks Continuously but Produces No Spark
Cause: High internal resistance across corroded switch contacts, a disconnected neutral wire interlock diode, or an open ground wire connection on a CDI ignition circuit.
Correction: Perform a voltage drop test across the switch contacts in “RUN” mode. If voltage drop exceeds 0.3V DC across the switch terminals, disassemble the housing, clean oxidation off the copper contact pads using 1000-grit sandpaper and contact cleaner, apply dielectric grease, and reassemble.
Fault 3: Intermittent Engine Cutout While Turning Handlebars
Cause: Mechanical strain or broken internal conductor strands inside the wire insulation near the steering head pivot point due to inadequate harness strain relief.
Correction: Perform a wiggle test with the engine idling. Set the meter to AC/DC voltage at the coil feed pin and flex the harness near the neck tube. Replace broken harness sections with ultra-flexible, high-strand-count silicone-insulated copper wire, allowing extra slack loop clearance around the triple clamps.
Motorcycle Kill Switch Wiring Diagram Technical FAQ
What wire gauge should be used for a 12V ignition engine kill switch?
For standard TCI and EFI motorcycle ignition systems, use 16 AWG (1.0 mm²) stranded tinned-copper wire. This conductor size safely handles continuous current draws up to 10-15 Amps required by dual ignition coils and engine control relays without experiencing thermal degradation or excessive voltage drop. For low-current CDI grounding circuits, 18 AWG (0.75 mm²) wire is sufficient.
How do you identify a grounding wire versus a hot wire without a schematic?
Disconnect the battery completely. Set a digital multimeter to resistance ($\Omega$) mode. Connect one probe to a clean, unpainted structural engine bolt or frame ground point. Touch the second probe to each disconnected wire end inside the headlight bucket or handlebar switch junction. A true ground wire will display near-zero resistance ($0.0 – 0.2\Omega$). A hot wire will show infinite resistance ($\infty\Omega$) or measurable coil/lamp load resistance back to ground through non-isolated accessories.
Can a 2-pin kill switch replace a 4-pin handlebar engine stop switch?
Yes, provided you understand why four wires were present originally. Modern 4-pin handlebar switch assemblies typically house two separate isolated sub-circuits: two pins for the ignition circuit and two pins for the starter button or front brake light switch loop. To replace this with a 2-pin dedicated kill switch, isolate the starter button logic and re-pin those leads into a separate momentary button circuit on your custom control panel.
Why does the motorcycle main fuse blow when operating the engine kill switch?
This occurs when positive 12V power is shorted directly to the frame. The most common cause is misinterpreting the pin assignment on a 3-pin or 4-pin combined handlebar switch housing, resulting in the switched 12V hot wire feeding directly into a ground wire terminal when the switch contact changes state.
How does the kill switch integrate with the neutral wire safety circuit?
The neutral wire connects to a gear position switch on the engine case, bringing that signal to logic ground when the transmission is in neutral. This ground signal paths through an interlock diode to complete the coil circuit of the starter relay. While the kill switch interrupts the primary ignition coil firing circuit directly, the neutral safety loop controls the starter motor actuation path, working in series or parallel through the safety relay unit to enforce engine start conditions.
Step-by-Step Guide to Understanding the Motorcycle Kill Switch Wiring Diagram
Identify – Determine switch type (2-wire or 4-wire) and verify if it uses normally open or normally closed pin assignment contacts.
Locate – Find the ignition coil feed wire, CDI/ECU cut-off lead, and nearest handlebar or frame ground point.
Reference – Cross-check the motorcycle kill switch wiring diagram to verify factory wire color code definitions.
Connect/Route – Route the hot wire from the ignition source to terminal 1 and attach the ground wire to terminal 2.
Verify – Use a multimeter in continuity mode to confirm the circuit grounds out when switched to OFF.
Troubleshoot – Inspect wire harness connections for loose crimps or corrosion if engine fails to shut down immediately.
