2026 Bendix Air Brake Relay Valve Diagram: Component Identification
An air brake relay valve diagram outlines port connections: Port 1 (Supply from reservoir), Port 4 (Control signal from treadle valve), and Port 2 (Delivery to brake chambers). Operating at 100–120 PSI, securing mounting bolts to a torque spec of 25–30 lb-ft prevents air leakage and delayed rear axle brake response.
📌 Key Takeaways
- Control port signal pressures trigger rapid reservoir air release to brake chambers at 100–120 PSI.
- Mounting hardware requires a torque spec of 25–30 lb-ft to prevent air leaks at the body seals.
- Modern ABS-integrated relay valves trigger an ECU diagnostic code and check engine light during electrical faults.
- Cracked internal diaphragms or stuck exhaust valves represent the primary point of pressure leak failure.
- Severe air leaks causing system pressure drops below 60 PSI require immediate replacement over rebuilds.
Air brake relay valves serve as critical pressure-actuated control components in heavy-duty commercial vehicle air brake systems, drastically reducing braking lag on long-wheelbase trucks, tractors, and trailers. Positioned near the rear axle assemblies, the relay valve connects directly to a primary air storage tank. When the driver presses the foot valve, a low-volume control signal opens the relay valve, allowing high-volume air from the local reservoir to rapidly pressurize the rear brake chambers. Interpreting an air brake relay valve diagram is essential for commercial vehicle mechanics, fleet maintenance technicians, and heavy equipment inspectors troubleshooting pressure imbalances, slow brake releases, or anti-lock braking system (ABS) fault codes.

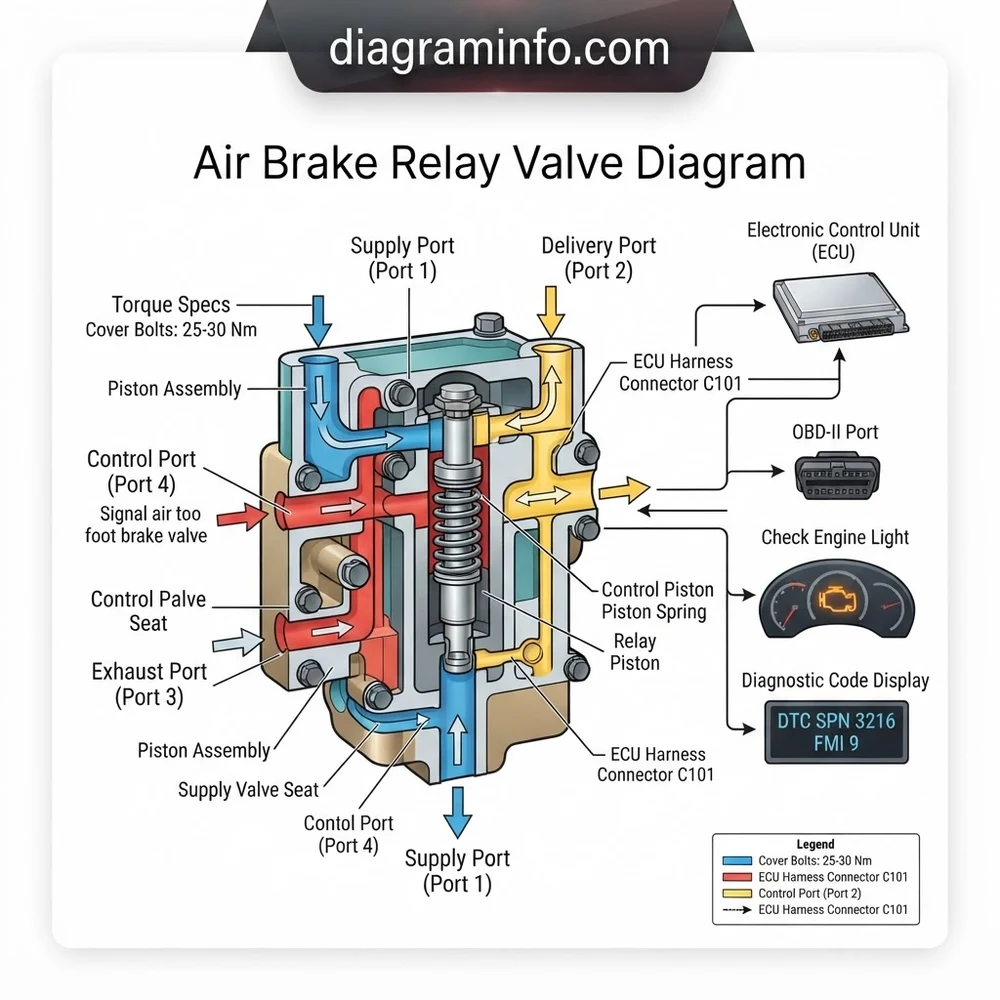

Air Brake Relay Valve Diagram: Port Identification and System Schematics
Accurately reading an air brake relay valve diagram requires understanding standard international port numbering protocols (DIN/SAE standards) and line sizing conventions. On typical Bendix, Sealco, and Wabco relay valve assemblies, four fundamental ports govern pneumatic pressure distribution across the vehicle chassis:
Recommended Best Deal Products
- Port 1 (Supply / Reservoir Port): Plumbed directly to the main or secondary air reservoir using heavy-wall 1/2-inch or 3/8-inch synthetic air tubing. High-pressure air rests at Port 1 continuously, waiting for a signal to actuate the internal poppet valve.
- Port 2 (Delivery Ports): Multiple 3/8-inch or 1/2-inch NPT output ports (typically 2 to 4 outlets) routed directly to the service brake chambers or spring brake actuators on the target axle group.
- Port 4 (Control / Signal Port): Connected to the primary service line from the dual-foot treadle valve or hand control valve via a 1/4-inch or 3/8-inch pilot line. This line delivers the low-volume pneumatic control signal that modulates relay valve opening depth.
- Port 3 (Exhaust Port): Located on the bottom underside of the valve housing, shielded by a rubber dust diaphragm or duckbill check valve. It rapidly purges air pressure from Port 2 delivery lines into the atmosphere as soon as driver foot pressure is released.
In modern commercial vehicles equipped with electronic braking systems or ABS, the relay valve assembly often incorporates internal solenoid control coils wired directly to the brake module. For detailed electrical connections on these hybrid systems, refer to our comprehensive guide on ABS modulator valve wiring diagram configurations.
| Port Number | Port Designation | Thread / Line Size | Operating Function |
|---|---|---|---|
| Port 1 | Supply (Input) | 1/2″ NPT (3/8″ or 1/2″ Line) | Receives full reservoir air pressure directly from air storage tank. |
| Port 2 | Delivery (Output) | 3/8″ or 1/2″ NPT (3/8″ Line) | Supplies modulated air pressure straight into rear service brake chambers. |
| Port 3 | Exhaust (Vent) | Atmospheric Vent / Flap | Exhausts delivery pressure quickly when brake pedal is released. |
| Port 4 | Control / Service Signal | 1/4″ NPT (1/4″ or 3/8″ Line) | Receives pilot pressure signal from treadle valve to actuate internal piston. |
On dual-circuit relay valves and trailer control valves, auxiliary balance ports or secondary signal lines may be present. Always cross-reference manufacturer crack pressure ratings (typically 2.5 to 5.5 PSI) when replacing relay valves to prevent wheel lockup or premature brake shoe wear.
How Air Brake Relay Valves Operate: Signal Mechanics and Flow Dynamics
To successfully trace an air brake relay valve diagram, you must understand the mechanical and pneumatic interactions occurring within the valve body during application, hold, and release phases.
During the static state (brakes released), supply pressure from the primary air tank enters Port 1 and fills the lower valve chamber. An internal return spring pushes the supply valve poppet closed against its seat, blocking air from entering Port 2. At the same time, the central control piston rests in its upper position, leaving the central exhaust channel open so delivery lines (Port 2) vent freely to atmosphere through Port 3.
When you depress the brake pedal, compressed air travels from the cab treadle valve through the control line into Port 4. This air signal enters the small cavity above the large control piston. Because the surface area of the control piston is substantial, even a modest signal pressure generates enough downward mechanical force to compress the return spring. As the piston moves down, it first seals against the internal exhaust seat, closing off Port 3. Continuing downward, the piston forces open the spring-loaded supply poppet, allowing high-volume air from Port 1 to rush directly out through Port 2 into the rear brake chambers.
Recommended Best Deal Products
As delivery pressure builds beneath the control piston, equal pressure balances the signal force above it. Once delivery pressure equals control signal pressure, the internal piston lifts slightly, allowing the supply poppet to close while keeping the exhaust seat sealed. This dynamic equilibrium is called the hold position, maintaining exact braking effort proportional to pedal position. Releasing the pedal vents Port 4 back through the treadle valve, allowing delivery pressure beneath the piston to drive it upward, opening Port 3 to exhaust rear brake air instantaneously.
Common Relay Valve Malfunctions, Diagnostic Codes, and Mechanical Symptoms
Pneumatic relay valve failures produce distinct mechanical symptoms and, on electronically controlled chassis, trigger system fault logging. Technicians diagnosing air system faults must differentiate between internal valve breakdown and upstream supply or control problems.
If an electronically managed tractor or trailer experiences solenoid open circuits or air pressure calculation mismatches inside an integrated ABS relay valve, the electronic control unit (ECU) illuminates the ABS warning indicator or a dashboard check engine light. Connecting a commercial diagnostic reader to the vehicle data link port—which functions as the heavy-duty equivalent to a standard automotive OBD-II port—allows technicians to extract an active diagnostic code (such as SPN 790 / FMI 7 or SPN 1056). These codes point specifically to delivery pressure response delays or modulator circuit faults.
Primary physical symptoms of relay valve failure include:
- Continuous Leakage from Exhaust Port 3 (Brakes Released): Indicates a damaged internal supply valve poppet seat or compromised sealing O-rings within the relay housing. Alternatively, a ruptured internal spring brake diaphragm in a double-diaphragm chamber can backfeed air into Port 2, venting continuously out of Port 3.
- Continuous Leakage from Exhaust Port 3 (Brakes Applied): Caused by a cracked control piston, damaged exhaust seat seal, or ruptured flexible rubber diaphragm inside the upper body of the relay valve.
- Slow Brake Release or Severe Brake Dragging: Often caused by a clogged or frozen Port 3 exhaust check boot, rusted control piston walls, or swollen internal rubber seals caused by petroleum contamination.
- Delayed Brake Application: High valve crack pressure or a restricted Port 4 pilot signal line delays valve movement, forcing the front brakes to engage significantly earlier than the rear tandem axles.
Petroleum contamination is a major catalyst for premature valve failure. When engine oil pressure forces motor oil past worn piston rings in the engine-driven air compressor, fluid enters the air lines. Compressor overheating—frequently caused by restricted engine coolant flow passages or a slipping timing chain drive gear on engine-mounted compressors—creates baked-on sludge that ruins rubber relay valve diaphragms. Check our detailed commercial air compressor troubleshooting guide if oil accumulation is detected during air tank draining.
Never attempt to remove or service an air brake relay valve while the air system is pressurized. Always block vehicle wheels, exhaust all reservoir pressure fully via manual drain valves, and cage spring brake chambers before loosening pneumatic fittings.
Step-by-Step Air Brake Relay Valve Leak Testing and Electrical Diagnosis
Isolating relay valve defects requires systematic testing with calibrated pressure test gauges and soap-based leak detection fluid. Follow this diagnostic routine to confirm valve integrity:
Step 1: System Static and Applied Pressure Loss Testing
Block all drive wheels and release the parking brakes. Charge the air system until the compressor governor reaches cut-out pressure (120–135 PSI). Turn the engine off. Observe the dash pressure gauges for 1 minute; pressure drop must not exceed 2 PSI per minute for a single vehicle or 3 PSI per minute for a combination rig. Next, apply and hold full foot pedal pressure for 1 minute; applied pressure drop must remain under 3 PSI per minute (single) or 4 PSI per minute (combination).
Step 2: Exhaust Port Soap Bubble Leak Test
Apply soapy water solution directly across the Port 3 exhaust opening. With brakes released, no bubbling should occur. If continuous bubbling appears, disconnect the Port 2 delivery lines one at a time. If air continues escaping from the valve exhaust port with delivery lines detached, replace the relay valve. If air escapes from the detached line instead of the valve, the leak originates downstream from a leaking spring brake chamber pushrod seal.
Step 3: Signal Pressure and Crack Pressure Verification
Install inline pressure test gauges into Port 4 (control signal) and Port 2 (delivery). Have an assistant slowly depress the treadle pedal. Measure the exact pressure at Port 4 when air pressure first registers at Port 2. The difference between signal pressure onset and delivery pressure onset represents valve crack pressure, which must conform to OEM specs (typically 2.5 to 4.5 PSI). If Port 4 reaches 15 PSI before Port 2 begins pressurizing, the internal piston is binding or the return spring is broken.
Step 4: ABS Modulator Solenoid Electrical Diagnostics
For ABS-equipped relay valves displaying an active diagnostic code, disconnect the multi-pin electrical connector from the ABS ECU harness. Measure resistance across the internal hold and release solenoid coils using a digital multimeter set to Ohms. Standard OEM solenoid coil resistance should register between 7.0 and 14.0 Ohms. A reading of 0 Ohms indicates a shorted internal coil, while infinite resistance indicates an open circuit requiring valve solenoid block replacement. Review our dual air brake system schematic to trace full pneumatic routing across primary and secondary circuits.
Mounting Specifications, Tightening Torque Specs, and Maintenance Best Practices
When installing a replacement air brake relay valve, strict adherence to mounting hardware torque spec parameters and thread sealant procedures prevents air leaks, body distortion, and fitting thread damage. Clean all bracket surfaces thoroughly prior to installation.
Standard OEM Torque Specs for Air Brake Relay Valve Installation:
• Mounting Bracket Fasteners (3/8″ Grade 5): 25–30 lb-ft (34–41 Nm)
• Supply Port Fittings (1/2″ NPT Pipe Thread): 2–3 turns past finger-tight
• Delivery & Control Port Fittings (3/8″ NPT Pipe Thread): 2–3 turns past finger-tight
• ABS Harness Solenoid Connector Screws: 15–20 lb-in (1.7–2.2 Nm)
When preparing threaded NPT fittings, apply PTFE paste or thread sealant tape starting two threads back from the fitting tip. Avoid over-applying tape, as loose shreds of PTFE tape carried through air lines can lodge between the relay valve internal poppet and seat, causing severe, immediate pressure leaks.
Air Brake Relay Valve Diagram Frequently Asked Questions
What is the difference between a standard relay valve and an ABS relay valve?
A standard mechanical relay valve operates solely on pneumatic pilot pressure received at Port 4 from the foot valve. An ABS relay valve (or ABS modulator relay valve) incorporates high-speed electronic solenoids controlled directly by the vehicle braking ECU. During normal stopping, it acts like a conventional relay valve. However, during wheel lockup conditions, the ECU energizes internal solenoids to override pilot signals, holding or dumping Port 2 delivery pressure to maintain wheel traction regardless of foot pedal position.
Why is air leaking constantly out of the bottom exhaust port on my relay valve?
Continuous air venting from Port 3 (exhaust) usually points to two main causes: an internal failure of the relay valve supply poppet seat, or an internal rubber seal failure inside one of the rear spring brake actuators. To determine which component is at fault, temporarily disconnect the delivery lines from Port 2. If air continues blowing out of the empty Port 2 fittings on the valve, the relay valve is defective internally. If air flows back out of the disconnected hose coming from the brake chamber, the spring brake cylinder has an internal seal blow-by leak.
Can I adjust the crack pressure on a commercial air brake relay valve?
No, crack pressure on modern commercial vehicle relay valves is factory-preset by internal spring rates and control piston surface area ratios. Attempting to adjust or tamper with internal return springs alters system brake balance, potentially causing dangerous front-to-rear brake timing skew or premature wheel lockup. If crack pressure falls outside factory specifications during gauge testing, replace the relay valve assembly entirely.
How does engine oil in the air tanks affect the relay valve diagram and operation?
When an engine air compressor develops piston ring wear or restricted coolant flow, high engine oil pressure forces hot lubricant into the pneumatic discharge line. Oil accumulates inside air storage tanks and flows directly into Port 1 of the relay valve. Over time, petroleum products soften, swell, and destroy internal rubber diaphragms, seals, and O-rings, leading to sticking pistons, sluggish brake release timing, and continuous exhaust port air leaks.
How do I verify if a brake warning on the dash is related to the relay valve or ECU?
Connect a commercial J1939 diagnostic scan tool to the truck’s diagnostic connector port (similar to an OBD-II diagnostic setup on passenger vehicles). Scan the brake ECU module for active or historical diagnostic codes. A code referring to “Brake Pressure Modulator Solenoid Circuit” or “Pressure Mismatch” points to an electrical or sensor issue within an ABS relay valve assembly. If no diagnostic codes are logged but mechanical brake dragging or air loss is observed, perform a manual pressure test using mechanical gauges at Ports 1, 2, and 4.
