Heavy-duty tow vehicles, travel trailers, and recreational vehicles rely on standardized 7-way RV blade electrical connectors to seamlessly transfer power, lighting signals, and braking telemetry between the tow rig and trailer chassis. Understanding these complex wiring schematics—from primary tow-vehicle junction blocks down to the auxiliary 12V DC power lines that feed interior coach distribution panels and components referenced in a thetford rv toilet parts diagram—is essential for automotive technicians, fleet mechanics, and advanced RV owners. Proper wiring execution guarantees full operational integrity for electric brakes, running lights, turn signals, and high-amp battery charge lines during long-haul transit.

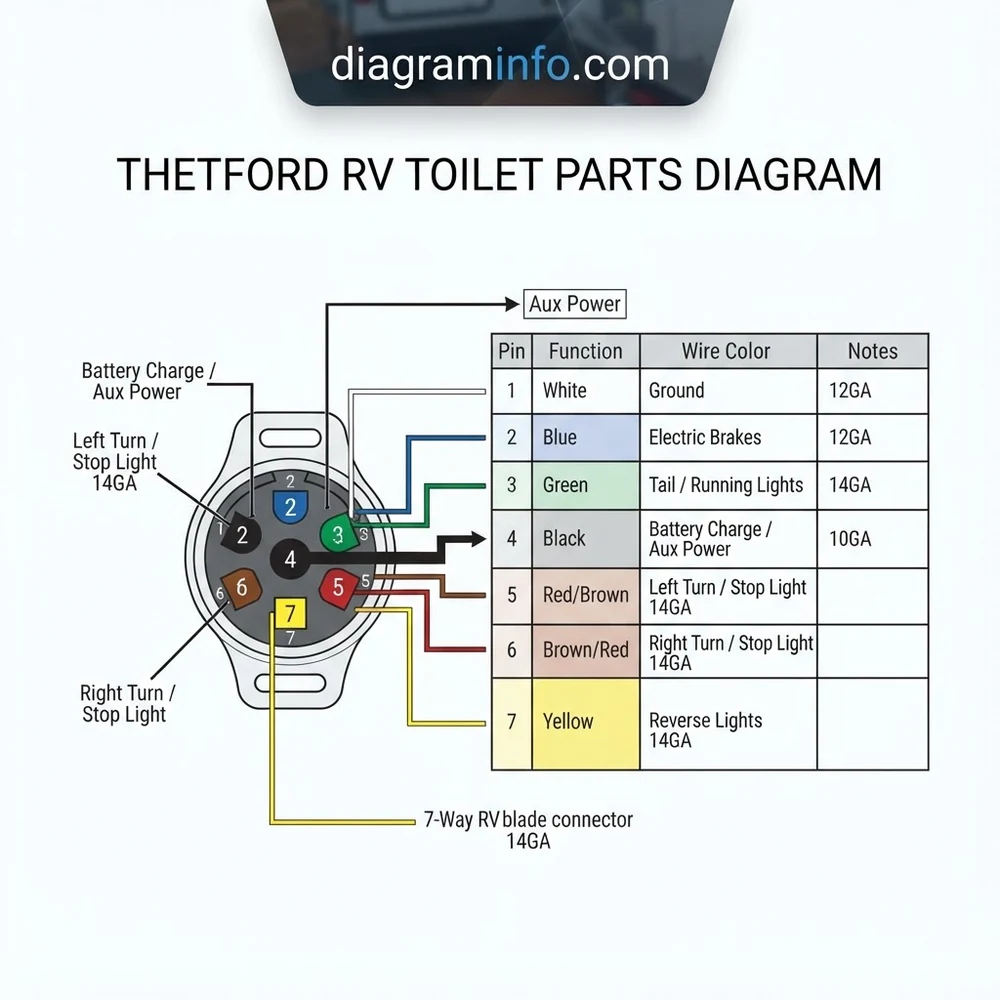

Pinout orientation viewed from the socket face (trailer side and vehicle side), detailing wire color coding, terminal assignments, ground pin paths, brake controller circuits, and auxiliary power leads.
Understanding the RV Blade 7-Way Pinout and Thetford RV Toilet Parts Diagram Connections
The standard 7-way RV blade connector operates under North American SAE J2863 specifications. Each terminal inside the molded housing is assigned a dedicated circuit designed to handle specific electrical current loads. Below is the technical breakdown of pin assignments, wire gauge requirements, color standards, and operational functions for trailer harnesses and integrated coach accessories.
| Pin # | Wire Color | Function | Recommended Gauge | Circuit Specifications & Notes |
|---|---|---|---|---|
| Pin 1 | White | Main Ground Pin | 10 AWG | Direct chassis ground connection. Must match auxiliary supply gauge. |
| Pin 2 | Blue | Electric Brake Controller | 12 AWG / 10 AWG | Carries PWM signal from cabin brake controller to electric brake magnets. |
| Pin 3 | Green | Running Lights & Tail Lights | 14 AWG | Powers exterior clearance, side marker, and tail light assemblies. |
| Pin 4 | Black | Auxiliary Power (+12V DC) | 10 AWG | 30A fused feed for battery charging and interior appliances/water pumps. |
| Pin 5 | Red | Left Turn Signal & Stop Light | 14 AWG | Combined stop/turn conductor for driver-side tail housing. |
| Pin 6 | Brown | Right Turn Signal & Stop Light | 14 AWG | Combined stop/turn conductor for passenger-side tail housing. |
| Pin 7 | Yellow | Reverse Auxiliary / Backup | 14 AWG | Triggers reverse lighting or hydraulic surge brake lockout solenoids. |
Pin 4 (Auxiliary Power) supplies 12V DC current to the onboard coach converter/charger block. According to manufacturer specifications, electric macerator pumps and electric flush mechanisms illustrated in a thetford rv toilet parts diagram (such as Tecma or Aqua-Magic electric models) tie into this main distribution block. Ensuring low resistance on both Pin 4 and the primary Ground Pin (Pin 1) prevents voltage drops that cause motor stalling or control module resetting during flush cycles.
When reviewing technical wiring schematics, notice that wire color standardizations can vary slightly between aftermarket harness manufacturers and commercial trailer builders. Always verify pin position visually from the plug terminal face rather than relying purely on wire insulation color. Pin 1 (ground pin) and Pin 4 (auxiliary power) are designed with larger terminal contacts inside the molded housing to safely pass up to 30 continuous amperes without thermal degradation.
How to Wire an RV Blade Plug with a Thetford RV Toilet Parts Diagram Setup
Execution of a heavy-duty trailer electrical installation requires strict adherence to wire stripping lengths, terminal torque values, and environmental sealing standards. Follow this procedure to assemble or replace a 7-way RV blade connector plug tied into your towable equipment’s main distribution box.
- Prepare the Main Harness Cable: Strip back approximately 2.5 inches of the outer black PVC jacket on the main trailer wiring harness. Take care not to nick or score the primary conductor insulation underneath. Slide the rubber weather-seal boot onto the cable before terminating any wires.
- Strip Conductor Ends: Using a precision wire stripper, expose exactly 1/4 inch (6.3mm) of bare copper on each individual conductor wire (10 AWG for ground pin and auxiliary power; 12-14 AWG for electric brake, running lights, and turn signals). Twist the stranded wire ends tightly to eliminate stray strands.
- Terminate the Main Ground Pin (Pin 1): Insert the heavy 10 AWG white wire into Terminal 1. Tighten the set screw to 12-15 in-lbs of torque. A secure ground connection is critical—loose ground terminations cause high resistance, resulting in flickering running lights and erratic brake controller operation.
- Connect the Electric Brake Controller Lead (Pin 2): Secure the 12 AWG or 10 AWG blue wire into Terminal 2. This wire transfers high-amp proportional voltage pulses directly from the tow vehicle’s brake controller to the trailer’s electric brake drums.
- Attach Tail and Running Lights (Pin 3): Insert the 14 AWG green wire into Terminal 3. This energizes side markers, clearance lights, and rear tail lamp circuits.
- Connect Auxiliary Power (+12V DC Feed) (Pin 4): Strip and insert the 10 AWG black wire into Terminal 4. As documented across auxiliary equipment manuals and any complete thetford rv toilet parts diagram service guide, this 12V line routes directly through an inline 30A circuit breaker to feed internal house batteries, electric flush valves, and macerator solenoids.
- Connect Left and Right Turn Signal Leads (Pins 5 & 6): Fasten the red wire (Left Turn Signal / Stop) to Terminal 5 and the brown wire (Right Turn Signal / Stop) to Terminal 6.
- Terminate Backup / Auxiliary Reserve Line (Pin 7): Secure the yellow wire to the center terminal (Terminal 7). If your trailer is not equipped with reverse lights or hydraulic lockout valves, cap and seal this terminal to prevent moisture bridging.
- Final Mechanical Assembly: Align the internal wire terminal block with the outer RV blade housing keyway. Slide the rubber boot over the rear cable entry point and tighten the cable clamp screws to prevent strain on individual wire terminal screws.
Terminal Screws: 12-15 in-lbs (1.4-1.7 Nm) | Housing Strain Relief Screws: 18-22 in-lbs (2.0-2.5 Nm) | Minimum Ground Conductor: 10 AWG SAE J1128 stranded copper | Maximum DC Circuit Resistance: < 0.2 Ohms from tow plug to trailer junction box.
Preventing Faults in Electric Brake Controllers and Auxiliary Power Circuits
Modern tow vehicle electronic systems rely on clean signal loops to detect trailer connectivity and calibrate proportional braking. Electric brake controller systems send a low-voltage sensing pulse down the Pin 2 blue wire to confirm circuit continuity with the brake electromagnets. If excessive resistance or a high-resistance ground exists within the trailer harness, the vehicle dash module will display “Trailer Disconnected” or output fault codes.
Equally critical is managing the load on the Pin 4 auxiliary power circuit. When charging onboard trailer battery banks, high current draw occurs simultaneously with the operation of 12V RV equipment. If an electric macerator or flush motor detailed on a thetford rv toilet parts diagram is energized during travel, instantaneous current draw can exceed 20 amps. If the main battery charge line lacks a 30A auto-reset thermal circuit breaker at the tow vehicle battery junction, nuisance tripping or severe voltage drop will occur.
Never substitute 14 AWG primary wire for the Pin 1 ground pin or Pin 4 auxiliary power conductors. Undersized wire causes severe overheating, melting wire insulation and risking short circuits against adjacent running light or turn signal conductors inside the harness loom.
To eliminate feedback loops and voltage sag across delicate onboard electronics, professional technicians isolate high-draw DC sanitation circuits using a dedicated relay triggered by the house battery master switch, keeping heavy motor inductive spikes away from the main RV blade connector pin bus.
Troubleshooting Ground Pin Failures and Flat Connector Adapter Errors
Diagnostic field history demonstrates that over 80% of all trailer electrical failures originate at the main chassis ground pin connection. A compromised ground path forces electrical current to seek alternate return paths through running light filaments, brake controller circuits, or metallic mechanical hitches. This results in dim tail lamps that flicker erratically whenever the brake pedal is depressed or turn signals are activated.
Adapting 7-Way RV Blade Plugs to 4-Way or 5-Way Flat Connectors
Light-duty utility trailers and boats frequently employ 4-way or 5-way flat connectors instead of standard 7-way RV blade housings. When using molded pigtail adapters to bridge these systems, distinct circuit limitations occur:
- 4-Flat Connectors: Retain only Ground (White), Running Lights (Brown), Left Turn/Brake (Yellow), and Right Turn/Brake (Green). Electric brake control (Pin 2) and 12V auxiliary power (Pin 4) are completely disconnected.
- 5-Flat Connectors: Add a blue reverse light wire to trigger hydraulic surge brake lockout solenoids when backing up, but still omit the 12V DC auxiliary charge line.
- Adapter Ground Looping: Inexpensive adapter plugs often rely on thin 16 AWG internal ground jumpers. High-amp equipment—or onboard systems requiring steady 12V current like those mapped out in a thetford rv toilet parts diagram—will not function through a standard 4-flat adapter without a direct auxiliary hardwire feed.
When diagnosing ground faults, set a Digital Multimeter (DMM) to the Low-Ohms scale (200Ω). Connect one probe to Pin 1 (white ground pin) on the trailer plug face and the second probe to bare chassis metal on the trailer frame. The reading must register below 0.2 Ohms. Any higher resistance indicates terminal oxidation, paint interference at the chassis ground eyelet, or a damaged wire strand inside the molded plug sleeve.
Frequently Asked Questions About Thetford RV Toilet Parts Diagrams and Trailer Wiring
How does the auxiliary power pin on an RV blade plug power components in a Thetford RV toilet parts diagram?
Pin 4 (Auxiliary Power) on the 7-way RV blade delivers 12V DC current directly from the tow vehicle’s alternator/battery to the trailer’s internal 12-volt fuse panel. High-end electric sanitation units, such as Tecma silent-flush or electric-actuated models shown on a thetford rv toilet parts diagram, draw 12V DC power from this distribution panel. A solid connection on Pin 4 keeps the house battery bank charged while driving so that high-amp macerator flush pumps operate at full RPM without depleting onboard battery voltage.
Why does my brake controller show an error code when I turn on the running lights?
This failure occurs when there is a ground cross-bridge or short circuit inside the trailer junction box or 7-way plug housing. If the main white ground pin (Pin 1) has high electrical resistance, current returning from the running lights circuit (Pin 3) back-feeds through the electric brake magnets (Pin 2) to find ground. The tow vehicle’s brake controller senses this back-fed voltage and triggers a short-circuit or trailer disconnect error.
What is the correct wire gauge for the ground pin and auxiliary power line?
According to SAE standards, Pin 1 (Ground) and Pin 4 (Auxiliary Power) must use a minimum of 10 AWG (American Wire Gauge) stranded copper wire. Pins 2 (Electric Brakes), 3 (Running Lights), 5 (Left Turn), 6 (Right Turn), and 7 (Reverse/Auxiliary) typically utilize 12 AWG to 14 AWG wires, as their current requirements are lower.
Can I run an electric macerator or water pump directly from the flat connector on my vehicle?
No. Standard 4-pin or 5-pin flat connectors do not have a dedicated 12V auxiliary power pin or sufficient wire gauge capacity to support high-draw DC motors. Running high-amp devices requires a dedicated 7-way RV blade plug setup with a 10 AWG power wire protected by a 30-amp circuit breaker, or an isolated 12V house battery circuit.
How do I prevent corrosion inside my 7-way trailer wiring plug?
Apply a generous layer of non-conductive dielectric grease (silicone compound) directly into the terminal cavities on both the vehicle socket and trailer blade plug. Dielectric grease displaces moisture, prevents atmospheric oxidation on copper and brass terminals, and protects low-voltage signals from environmental contamination during wet road conditions.
Step-by-Step Guide to Understanding the Thetford Rv Toilet Parts Diagram
Identify – Examine the harness pins and match wire gauges to the reference diagram specs.
Locate – Position the main junction box and tow vehicle connector terminals clearly.
Reference – Cross-check wire insulation color codes against the 7-way pinout assignment schematic.
Connect – Secure running lights, brake controller lines, and auxiliary power feeds to designated terminals.
Verify – Test output voltage across all pins using a 12V circuit multimeter before road testing.
Troubleshoot – Inspect frame ground points and fuse links if voltage drops or shorts occur.
