An English sword diagram outlines the structural anatomy of double-edged blades, featuring two primary sections: the blade (foible, forte, ricasso, fuller) and the hilt (crossguard, grip, tang, pommel). The tang extends through the grip, secured at the pommel, maintaining structural balance and hilt alignment under impact forces.
📌 Key Takeaways
- The hilt balance point typically sits 3 to 5 inches forward of the crossguard on traditional English broadswords.
- The full-length peened tang provides primary structural integrity, connecting the blade directly to the pommel.
- A central fuller reduces total blade weight by up to 30% without sacrificing longitudinal rigidity.
- Crossguard looseness is the primary mechanical failure point, caused by wood grip shrinkage or peen wear.
- Inspect tang shoulder transitions for stress micro-cracks before executing dynamic martial re-enactment testing.
Analyzing an English sword diagram requires a clear understanding of mechanical architecture, metallurgical specifications, and physical mass distribution. Whether examining a medieval arming sword, a Renaissance broadsword, or an 18th-century cavalry saber, the underlying structural system relies on precise engineering ratios to achieve structural integrity and optimal dynamic balance. According to historical armory specifications and metallurgical reconstruction standards, every component—from the distal taper of the blade to the peened tang end—serves a specific mechanical function. This technical overview breaks down the complete English sword blueprint, offering step-by-step schematics, dimensional tolerances, and structural diagnostic procedures for bladesmiths, conservators, and technical evaluators.
Deconstructing the English Sword Diagram: Structural Component Overview
The structural layout of a classic English sword system is divided into two primary sub-assemblies: the blade structure and the hilt system configuration. Each component is fabricated to precise hardness levels and geometric tolerances to withstand severe dynamic impact forces without catastrophic failure.
High-carbon steel alloys (such as AISI 1075 or 5160 spring steel) are heat-treated across a differential hardness gradient. Blade edges maintain 52–56 HRC, the blade core and fuller maintain 45–48 HRC, while the tang is normalized to 30–35 HRC to maximize fatigue resistance under flexural loads.

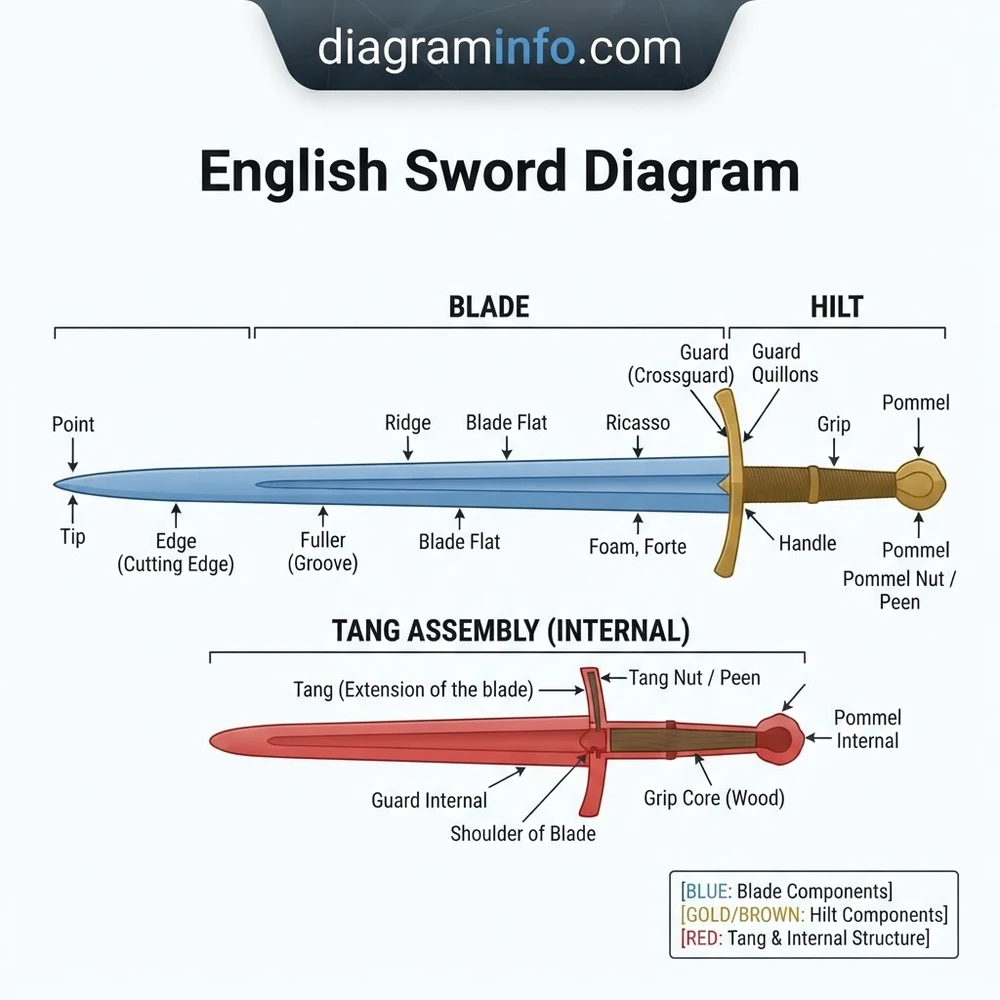

As illustrated in the schematic, the blade configuration features three distinct functional zones along its length: the forte (lower structural third near the hilt), the medio (center section), and the foible (agile upper third ending at the point). Running central to the blade axis is the fuller, a structural groove designed to reduce mass while maintaining cross-sectional moment of inertia.
| Component ID | Material Specification | Hardness Range | Primary Mechanical Function |
|---|---|---|---|
| Blade (Forte / Foible) | AISI 1075 / 5160 High Carbon | 52 – 56 HRC | Impact absorption, edge retention, flexural resilience |
| Tang (Rod / Structural Core) | Forged Monolithic Extension | 30 – 38 HRC | Transfers torsional energy, anchors hilt assembly |
| Crossguard (Quillons) | Wrought Iron / Mild Steel | 15 – 25 HRC | Hand protection, structural stop against incoming impact |
| Grip Core | Hardwood / Leather Wrap / Wire | N/A | Vibration damping, tactile interface for torque transfer |
| Pommel & Peen Block | Mild Steel / Cast Iron / Brass | 20 – 30 HRC | Counterweight balance, mechanical compression lock |
The hilt layout relies on mechanical compression. The tang passes sequentially through the crossguard shoulder, the carved wood grip core, and the hollow pommel cavity, terminating at the peen block where the tip of the tang is cold- or hot-riveted under mechanical pressure.
How to Interpret an English Sword Diagram and Blueprint Layout
To evaluate an English sword structural blueprint accurately, technical personnel must read the layout through three primary diagnostic vectors: mass balance points, distal taper profiles, and mechanical joint alignments.
Analyzing Center of Percussion and Balance Metrics on the Schematic
Referencing the center-line layout on the diagram, locate the Point of Balance (PoB). Manufacturer specs for authentic English broadswords indicate a PoB positioned 3.5 to 5.0 inches (89 to 127 mm) forward of the crossguard shoulder. The Center of Percussion (CoP)—or harmonic node—typically resides at approximately two-thirds of the total blade length from the crossguard. A correct schematic layout highlights these harmonic nodal points where impact vibrations cancel out, preventing shock transmission into the operator’s grip assembly.
Tracing Stress Distribution Along the Tang and Hilt Configuration
When examining the tang region on the English sword schematic, note the shoulder transition geometry. Right-angled tang shoulders create extreme stress risers prone to shear failure during off-axis impacts. According to engineering best practices, a minimum fillet radius of 3.0 mm must be maintained where the tang meets the blade forte. The blueprint configuration should indicate a gradual shoulder taper from a nominal width of 25–30 mm down to 8–10 mm near the pommel block.
Distal taper describes the thinning of the blade’s cross-sectional thickness from the hilt to the tip. A standard English knightly arming sword schematic specifies a thickness of 6.0 mm at the ricasso, tapering smoothly down to 3.5 mm at the mid-blade section, and 1.8 mm near the point apex. Missing distal taper indicates an improper reproduction layout with heavy, sluggish handling traits.
Evaluating Blade Cross-Sectional Geometry and Fuller Profiles
Look closely at the cross-sectional inset drawings on the English sword diagram. Late medieval English swords (Oakeshott Type X through Type XVIII) utilize either diamond, hexagonal, or flattened lenticular cross-sections. Single or double fullers must occupy between 30% and 60% of the overall blade length. The profile depth should not exceed 25% of total blade thickness per side to prevent buckling under bending stresses.
Troubleshooting Structural Failures in English Sword System Configurations
Defects and structural compromises in an English sword assembly often stem from mechanical fatigue, improper heat treatment gradients, or loose hilt compressions. Technicians and restorers should use the following diagnostic procedures when evaluating structural flaws against the schematic layout.
Diagnosing Tang Fractures and Hilt Loosening
A loose crossguard or rotating pommel indicates failure in the hilt compression system. Inspect the peened tang button at the pommel terminus. If the peen joint has expanded or deformed under repetitive shock loads, micro-movement develops inside the wood grip core. To resolve this without stripping the whole assembly, shim inserts or controlled cold-peening adjustments must be applied directly to the pommel tail shaft.
Never attempt to repair a fractured tang by welding mild steel threaded rod onto a high-carbon blade stub. Welded heat-affected zones (HAZ) create severe embrittlement right at the highest stress point near the crossguard junction, leading to sudden structural separation during dynamic stress tests.
Identifying Metallurgical Micro-Fissures and Edge Delamination
Perform a non-destructive magnetic particle inspection (MPI) or dye penetrant test along the fullers and edge bevels shown on the diagram. Quench cracks frequently form at sharp structural transitions, such as the termination point of the fuller groove or near ricasso notches. Micro-cracks exceeding 0.5 mm in depth require grinding back beyond the fissure tip followed by localized induction tempering to relieve residual stress.
Frequently Asked Questions: English Sword Diagram Schematics
What is the primary structural role of the fuller in an English sword diagram?
The fuller is an engineered structural channel designed to reduce overall blade mass without compromising cross-sectional stiffness or structural yield strength. By removing non-structural core metal along the neutral axis, the fuller optimizes the strength-to-weight ratio and shifts the center of gravity closer to the hilt assembly.
How does tang geometry affect overall hilt system reliability?
Tang geometry determines how bending moments and impact energy transfer from the blade into the hilt. Full-length rectangular tangs with rounded shoulder fillets prevent rotational slippage and distribute stress evenly across the wood grip and pommel block. Narrow push-tanks or square-shouldered cutouts create extreme stress concentrations leading to early fatigue failure.
What are the target hardness specifications across an English sword blueprint?
Manufacturer specifications recommend a differential hardness layout: 52–56 HRC along the cutting edges for durability and wear resistance, 45–48 HRC along the central spine and fuller zone for dynamic elasticity, and 30–38 HRC (normalized/tempered) at the tang to prevent brittle fracture under high tensile and torsional shock.
How do you locate the harmonic node on an English sword schematic layout?
The primary harmonic node (Center of Percussion) is located on the diagram by identifying the point along the foible section where impact causes zero vibration feedback at the handgrip. Mechanically, it typically aligns at a distance equal to two-thirds of the blade length measured from the crossguard shoulder junction.
Why is pommel peening preferred over threaded nut fastener configurations?
Peening creates a permanent, solid-state mechanical compression coupling between the tang, pommel, grip, and guard. Threaded nut configurations introduce localized stress risers at the thread roots, which rapidly loosen, gall, or shear under the intense vibrational energy created during hard impact conditions.
Step-by-Step Guide to Understanding the English Sword Diagram
Identify – Recognize the primary sections including the blade, crossguard, grip, and pommel on the diagram.
Locate – Find specific structural features such as the fuller, ricasso, edges, and tang shoulder.
Reference – Cross-check component layout dimensions and hilt assembly sequence using the diagram specifications.
Connect/Route – Assemble the guard, wooden grip core, and pommel over the full-length central tang.
Verify – Check hilt tightness, balance point location, and alignment along the central blade ridge.
Troubleshoot – Remedy rattling guards or loose pommels using shims or re-peening structural tang ends.
