Husky Air Compressor Parts Diagram: 2026 Component Guide
A Husky air compressor parts diagram details the internal drive structure and pneumatic layout, highlighting key components like the unloader valve, pressure switch, reed valves, safety relief valve, and check valve. Located between the pump manifold and tank input, these parts regulate cut-in/cut-out pressures (typically 95-135 PSI) and prevent backflow during motor shutdown.
📌 Key Takeaways
- Pressure switches are pre-set to standard cut-in (95 PSI) and cut-out (125–135 PSI) thresholds.
- The tank check valve prevents high-pressure compressed air from flowing back into the pump head.
- Always disconnect 120V/240V power and completely bleed tank pressure to 0 PSI before servicing.
- Worn reed valves inside the pump head are the primary cause of slow pressurization.
- Replace cracked manifold fittings or brittle air lines immediately to avoid dangerous catastrophic pressure loss.
Analyzing a husky air compressor parts diagram is essential for diagnosing mechanical failures, performing valve head overhauls, or replacing degraded pressure switches. Husky compressors—ranging from portable 8-gallon pancake models to heavy-duty 60-gallon stationary units manufactured by Campbell Hausfeld or MAT Holdings—rely on precise mechanical tolerances and specific electrical schematics. Understanding how pump components, check valves, pressure switches, and unloader lines interconnect enables technicians and mechanics to order exact OEM replacement parts, restore operating pressure (typically 135 to 175 PSI), and safely service motor capacitors and pneumatic delivery lines.

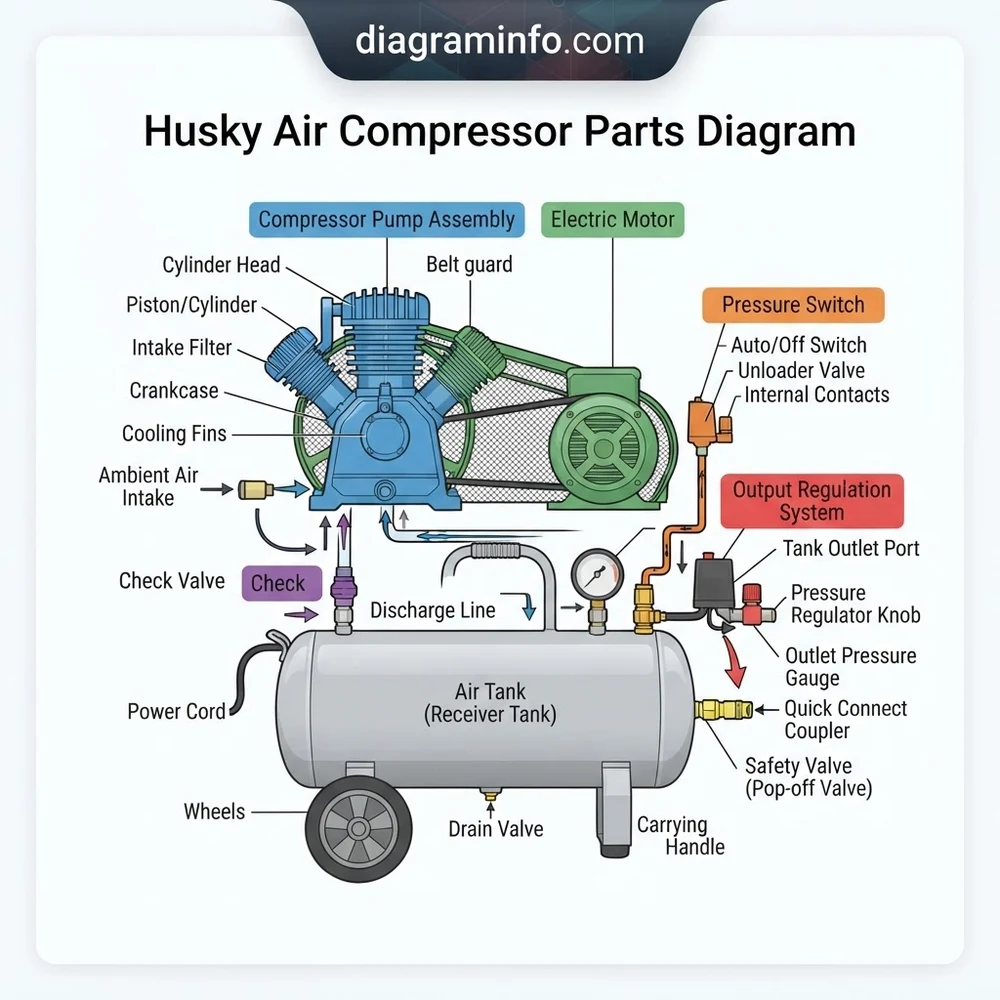

Husky Air Compressor Parts Diagram: Component Breakdown and Layout Overview
A standard Husky air compressor configuration integrates three primary mechanical and electrical subsystems: the pump crankcase assembly, the motor and drive system, and the pneumatic manifold assembly. Consult the detailed breakdown table below for key components, specifications, and primary system functions typically identified on a husky air compressor parts diagram.
| Callout # | Component Name | Technical Specifications & Function |
|---|---|---|
| 01 | Cylinder Head Assembly | Aluminum housing housing inlet/outlet stainless steel reed valves. Torqued to 15–18 ft-lbs in a cross-pattern. |
| 02 | Valve Plate & Gasket Stack | Separates low and high-pressure chambers; requires precise alignment during rebuilds to prevent compression loss. |
| 03 | Piston & Compression Rings | PTFE/Cast-iron rings fitted on the connecting rod pin; controls displacement and prevents oil blow-by in splash-lubricated pumps. |
| 04 | Check Valve Assembly | 1/2″ NPT tank inlet valve fitted with a spring-loaded fluorocarbon disc and 1/4″ unloader line fitting. Prevents backflow. |
| 05 | Pressure Switch & Unloader | 4-port manifold switch set to 125 PSI cut-in / 155 PSI cut-out; controls 120V/240V motor power and releases head pressure. |
| 06 | Motor Start Capacitor | 250VAC 50–70 µF capacitor providing initial start torque to single-phase induction motors. |
The internal pump structure houses the crankshaft, splash pin, oil sight glass, and wrist pin connections. In oil-free models, the compression ring utilizes a high-temperature PTFE weave instead of cast-iron oil control rings. Refer to our comprehensive compressor head gasket replacement guide when replacing blown gaskets or servicing warped valve plates causing extended pump-up times.
According to manufacturer specs, torque single-stage cast iron cylinder head bolts to 18 ft-lbs (24.4 Nm) using a crisscross sequence. Oil crankcase capacity for Husky belt-drive pumps (e.g., C601H series) requires precisely 16 oz. of non-detergent ISO 100 or SAE 30 compressor oil.
How to Interpret the Husky Air Compressor Blueprint and System Configuration
Reading a Husky air compressor schematic requires following two distinct operational paths: the mechanical air compression circuit and the electrical control loop. Tracing both paths ensures precise identification of failing assemblies when cross-referencing OEM schematic callout numbers.
First, trace the air path starting at the intake filter element. Outside air enters through the intake manifold, passes through the low-pressure suction reed valve on the downstroke of the piston, and is compressed on the upstroke. The air forces open the discharge reed valve, traveling through the finned copper delivery tube into the tank check valve. The check valve allows compressed air to enter the ASME-rated steel tank while preventing reverse pressure flow into the pump head.
Second, locate the electrical system layout on the diagram. Incoming AC line power (120V single-phase or 240V dual-pole) enters the pressure switch contacts. The pressure switch connects in series with the motor’s thermal overload protector and start capacitor circuit. You can cross-reference wire color designations (typically black to line L1, red/white to line L2, and green to ground) by reviewing our dedicated pneumatic pressure switch wiring diagram.
When replacing components using the husky air compressor parts diagram schematic, match the unloader tube’s outer diameter (typically 1/4-inch nylon or copper) and fitting thread pitch (1/8-inch NPT or compression). Misaligned fittings will leak air continuously during the motor off-cycle.
Common Husky Air Compressor Parts Diagram Failures and Troubleshooting
Mechanical and electrical failures often produce distinct symptoms that map directly to callout locations on the husky air compressor parts diagram. Use the systematic diagnosis procedures below to locate and repair faulty parts.
1. Continuous Air Bleed at Unloader Valve After Shut-off: If air streams out of the pressure switch unloader port after the motor stops, the issue is not the unloader valve. The fault lies with internal check valve seat degradation (Callout #04). Carbon deposits or torn fluorocarbon seals prevent complete closure, allowing tank pressure to leak backwards into the unloader line. Inspect and execute standard check valve testing procedures before ordering a replacement valve body.
2. Motor Hums but Fails to Rotate under Load: Locate the electrical end bell configuration on your blueprint. Check for a defective start capacitor or broken centrifugal switch contacts. Additionally, if the unloader valve fails to discharge line pressure upon shutdown, the motor will attempt to restart against 150 PSI of head pressure, causing the thermal breaker to trip instantly.
3. Low Pressure Output or Thermal Overheating: A damaged head gasket, carbon-fouled reed valves, or worn piston rings prevent the pump from reaching maximum cut-out pressure. Disassemble the cylinder head according to the diagram callout order, clean the valve plate, and verify that the stainless steel valve reeds lay perfectly flat against the ports without light showing through.
Always isolate electrical power (lockout/tagout) and completely exhaust tank pressure via the manual safety relief valve ring pull before removing cylinder heads, check valves, or pressure switch covers. Compressed air and stored electrical charge in capacitors pose severe injury risks.
Husky Air Compressor Parts Schematic and Assembly FAQs
How do I identify the exact OEM model number on my Husky air compressor?
Locate the metallic data plate riveted to the side of the air receiver tank or printed on the motor housing label. Models commonly start with prefixes such as C (e.g., C601H, C301H) or H (e.g., H1502FA). Matching this exact model string ensures you download the correct husky air compressor parts diagram and select compatible replacement part numbers, as internal pump components vary between manufacturing years.
What is the function of the unloader line attached to the pressure switch?
The unloader line connects the pump discharge tube (or check valve body) to the small release valve under the pressure switch. When the switch reaches cut-out pressure and stops the motor, it mechanically opens this valve to bleed trapped high-pressure air off the top of the piston. This allows the motor to restart without mechanical resistance during the next cycle.
Can I service pump reed valves individually or must I buy the entire valve plate assembly?
While some older belt-drive Husky pumps allow replacement of individual stainless steel reed strips, manufacturer specs generally recommend replacing the valve plate assembly, upper head gasket, and lower cylinder gasket as a matched set. Reusing old gasket surfaces alongside new reed valves frequently leads to micro-leaks and reduced CFM output.
Why is oil leaking out of the pump air intake filter on my Husky compressor?
Oil escaping through the intake filter typically indicates blown piston compression rings or damaged cylinder wall scoring, which allows crankcase pressure to force oil upward past the valve plate. Alternatively, overfilling the crankcase past the center red dot on the oil sight glass will cause excess oil to splash through the breather tube directly into the intake assembly.
What causes the safety relief valve to pop open repeatedly?
The ASME safety relief valve opens automatically if tank pressure exceeds its rated threshold (typically 150 or 175 PSI). If this occurs, the pressure switch contacts have likely welded shut, or the internal diaphragm has ruptured, preventing the switch from cutting power to the motor at the designated cut-out limit. Replace the pressure switch assembly immediately.
Step-by-Step Guide to Understanding the Husky Air Compressor Parts Diagram
Identify – Locate your specific Husky air compressor model number on the tank label to reference the matching diagram.
Locate – Isolate the failed component on the physical unit and find its corresponding callout number on the structural schematic.
Reference – Match the callout index number to the official parts list to retrieve the exact OEM part number and specifications.
Connect/Route – Follow the diagram line paths to correctly route unloader tubing, electrical wiring, and pressure switch connections.
Verify – Reassemble components according to torque specs on the diagram and perform a soap-bubble test for air leaks.
Troubleshoot – Consult the schematic airflow pathways if the system fails to build pressure or shut down at the correct cut-out PSI.
