4R70W Wiring Diagram: Complete Connection Guide 2026
The 4R70W wiring diagram details the harness connections for valve body solenoids, speed sensors, and the transmission range sensor. Key wires include the main power (often red/light green), ground (black), and specific circuits for shift solenoids (SSA, SSB), and torque converter clutch (TCC) operations, critical for proper automatic transmission function and diagnostics.
📌 Key Takeaways
- The 4R70W transmission typically utilizes a 16-pin main connector for all electrical inputs and outputs.
- Proper identification of the hot wire (VPWR) and dedicated ground wire is critical to prevent electrical damage or operational failures.
- Always disconnect the vehicle’s battery before attempting any wiring work on the 4R70W transmission to ensure safety.
- Corroded or damaged pins within the main transmission harness connector are a common cause of erratic shifting or diagnostic trouble codes.
- Seek professional automotive technician assistance for internal transmission wiring repairs or persistent electrical issues beyond simple external connections.
Understanding the intricate connections of the 4R70W automatic transmission wiring diagram is paramount for accurate diagnostics, proper installation, and optimal performance in automotive and equipment applications. This guide meticulously details the wire color codes, pin assignments, and critical connection sequences, empowering experienced mechanics and technical professionals to confidently navigate the complexities of this robust transmission’s electronic control system. Precision in following these electrical paths directly impacts shift quality, torque converter lock-up, and overall transmission longevity.

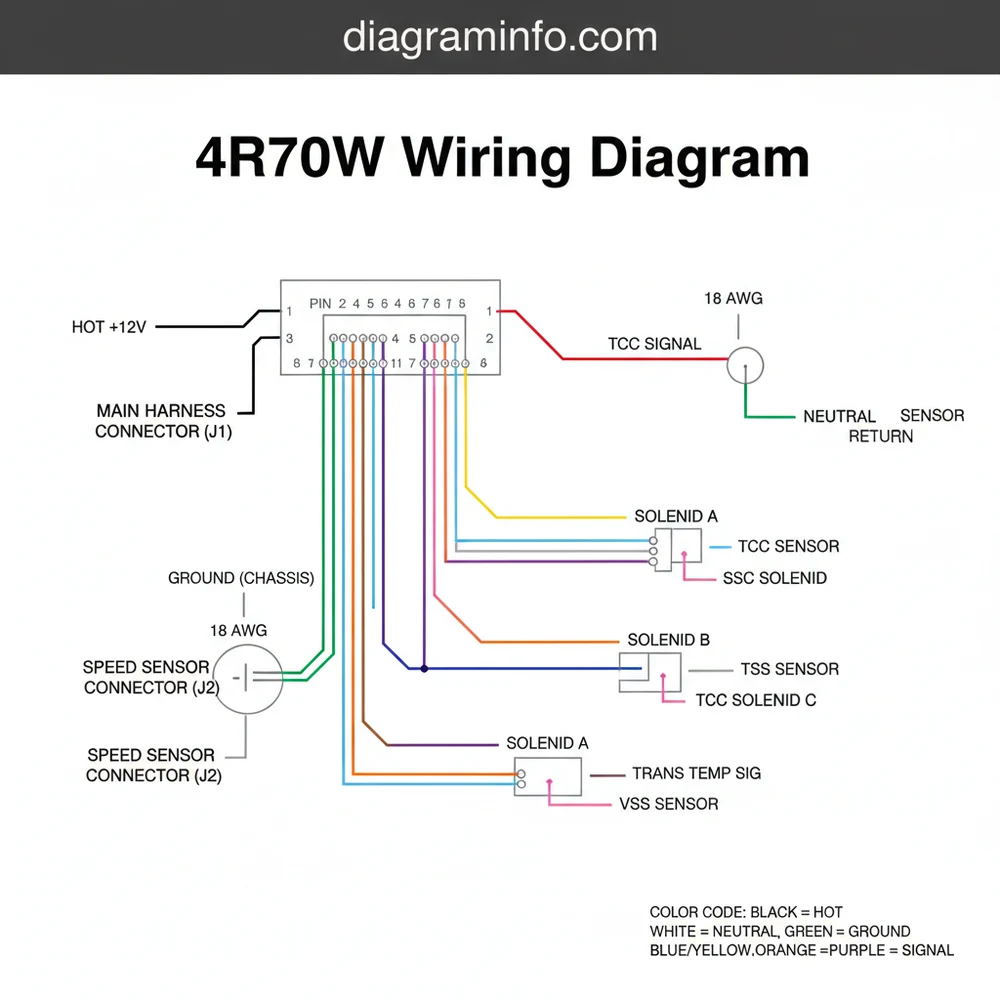

Wire Color Reference Table
| Wire Color (Common) | Function | Typical Pin/Terminal | Notes |
|---|---|---|---|
| Red/Light Green (R/LG) | Switched 12V Power | Main Connector Pin 1 | Supplies power to internal solenoids. Essential hot wire. |
| White/Red (W/R) | Shift Solenoid 1 (SS1) Control | Main Connector Pin 2 | PCM-controlled ground for 1-2/3-4 shifts. |
| Yellow/Red (Y/R) | Shift Solenoid 2 (SS2) Control | Main Connector Pin 3 | PCM-controlled ground for 2-3/4-1 shifts. |
| Tan/Red (T/R) | Torque Converter Clutch (TCC) Solenoid Control | Main Connector Pin 4 | PCM-controlled ground for TCC engagement. |
| Gray/Red (GY/R) | Electronic Pressure Control (EPC) Solenoid (+) | Main Connector Pin 5 | One side of the EPC solenoid coil. PWM controlled. |
| Black/White (BK/W) | EPC Solenoid (-) / Chassis Ground | Main Connector Pin 6 (or chassis) | Common ground wire for EPC solenoid control. |
| Green/Yellow (G/Y) | Output Shaft Speed (OSS) Sensor (+) | Main Connector Pin 7 | Signal wire for vehicle speed (post-transmission). |
| Black/Pink (BK/PK) | Output Shaft Speed (OSS) Sensor (-) | Main Connector Pin 8 | Ground reference for OSS sensor. |
| Light Blue/White (LB/W) | Turbine Shaft Speed (TSS) Sensor (+) | Main Connector Pin 9 (on 1998+ models) | Input shaft speed signal. Not present on early models. |
| Gray/Black (GY/BK) | Turbine Shaft Speed (TSS) Sensor (-) | Main Connector Pin 10 (on 1998+ models) | Ground reference for TSS sensor. |
Wire colors for the 4R70W can vary significantly by vehicle model, production year, and specific harness manufacturer. Always consult the OEM service manual pertinent to your vehicle’s exact year and model for definitive pinouts and wire color identification. Failure to do so can lead to electrical damage or transmission malfunction.
Step-by-Step Connection Guide
Properly wiring a 4R70W transmission involves meticulous attention to detail, ensuring each conductor is routed and terminated according to the manufacturer’s specifications. This sequence focuses on integrating the transmission harness with the vehicle’s Powertrain Control Module (PCM) and main power supply. Refer to the diagram provided and your specific vehicle’s OEM service manual for precise pin assignments at the PCM connector.
1. Isolate Power and Disconnect Battery: Before commencing any wiring, disconnect the negative terminal of the vehicle’s battery to prevent electrical shorts and personal injury. Verify no residual voltage is present using a multimeter on critical power feeds.
2. Identify Transmission Connector: Locate the main 4R70W 16-pin transmission connector, typically on the driver’s side of the transmission case. This is your primary terminal block for the internal solenoids and sensors.
3. Route Main Harness: Carefully route the new or repaired 4R70W wiring harness from the transmission connector area to the PCM location. Ensure the harness is protected from heat, sharp edges, and moving components. Utilize appropriate wire loom and securing clips.
4. Connect Switched 12V Power: Locate the Red/Light Green (R/LG) wire, typically at Pin 1 of the transmission connector. This is your primary hot wire. Splice it into a fused, ignition-switched 12-volt power source, often found in the main engine harness or fuse box. Use a crimp connector or solder joint with heat shrink for a secure connection, ensuring the circuit can support the solenoids’ current draw (typically 15A fuse).
5. Connect Shift Solenoid Grounds: The PCM controls the shifting by providing a ground path for SS1 and SS2. Connect the White/Red (W/R) wire (SS1, Pin 2) and the Yellow/Red (Y/R) wire (SS2, Pin 3) from the transmission harness to their respective PCM output pins. These are specific control circuits; incorrect connection will result in limp mode or incorrect gear selection.
6. Wire Torque Converter Clutch (TCC) Solenoid: Connect the Tan/Red (T/R) wire (TCC, Pin 4) to its designated PCM output pin. The PCM modulates this ground signal to control torque converter lock-up, crucial for fuel efficiency and reduced transmission slip.
7. Integrate Electronic Pressure Control (EPC) Solenoid: The EPC solenoid wiring consists of two wires. Connect the Gray/Red (GY/R) wire (EPC positive, Pin 5) and the Black/White (BK/W) wire (EPC negative, Pin 6) to their corresponding PCM pins. The PCM uses Pulse Width Modulation (PWM) on these wires to precisely regulate line pressure, affecting shift feel and holding capacity.
8. Connect Speed Sensors:
OSS Sensor: Connect the Green/Yellow (G/Y) wire (OSS +, Pin 7) and the Black/Pink (BK/PK) wire (OSS -, Pin 8) to their dedicated PCM input pins. This sensor provides critical vehicle speed data.
TSS Sensor (if applicable): For 1998 and later 4R70W transmissions, connect the Light Blue/White (LB/W) wire (TSS +, Pin 9) and the Gray/Black (GY/BK) wire (TSS -, Pin 10) to their respective PCM input pins. The TSS sensor is vital for slip calculations and diagnostics, particularly in conjunction with the OSS.
9. Verify Ground Connections: Ensure all relevant ground wires, including any chassis grounds or the EPC solenoid negative control, are securely fastened to a clean, unpainted chassis point or connected to the appropriate PCM ground return circuits. A robust ground wire connection is fundamental for all electrical components.
10. Double-Check and Test: Before restoring battery power, visually inspect all connections for proper crimps, soldering, insulation, and routing. Use a multimeter to confirm continuity and check for any accidental shorts to ground or power. Reconnect the battery and perform initial system checks as per OEM recommendations, observing any diagnostic trouble codes (DTCs).
For specialized applications or swaps, consider employing a standalone transmission controller. These units often feature their own terminal block and wire color code, necessitating a thorough review of the controller’s specific documentation. They can offer enhanced tuning capabilities beyond the factory PCM. For more on advanced transmission control, see our article on “Stand-Alone Transmission Controllers.”
Common Wiring Mistakes & Troubleshooting
Incorrect wiring can lead to a range of performance issues, from intermittent shifting problems to complete transmission failure. Understanding common mistakes and their rectification is crucial for effective troubleshooting.
1. Incorrect Gauge Wire: Using an undersized wire gauge (e.g., 20 AWG instead of 16 AWG) for power or solenoid circuits can cause excessive voltage drop and heat buildup. This results in solenoids not receiving adequate voltage (specified by OEM as 12V), leading to weak engagement, erratic shifting, or solenoid burnout. Symptoms include delayed shifts, harsh shifts, or diagnostic trouble codes (DTCs) related to solenoid circuit performance. Fix: Always match or exceed the OEM specified wire gauge. Verify wire specifications using a gauge chart and confirm voltage at the solenoid connector under load using a multimeter.
2. Poor Ground Connections: An improperly terminated ground wire can introduce electrical noise, intermittent signals, and insufficient current return paths. This often manifests as erratic sensor readings (OSS/TSS), unpredictable solenoid behavior, or phantom DTCs. For instance, a poor ground for the EPC solenoid can lead to wildly fluctuating line pressure. Fix: Ensure all ground wires are securely attached to a clean, corrosion-free chassis point or the designated PCM ground. Test ground continuity with an ohmmeter (resistance should be very low, ideally < 0.5 ohms).
3. Reversed Polarity on Sensors: While many sensors are AC generators (e.g., older OSS), some (like newer TSS) may be Hall effect and polarity-sensitive. Reversing the polarity on a voltage-based sensor can result in no signal, incorrect readings, or even sensor damage. This directly impacts the PCM’s ability to calculate gear ratios and control shift timing. Fix: Carefully verify the positive and negative terminals for each sensor against the wiring diagram. Use a multimeter to confirm correct voltage output or signal integrity.
4. Damaged or Chafed Insulation: Wiring harnesses in automotive environments are subjected to heat, vibration, and abrasion. Damaged insulation exposes conductors, leading to shorts to ground, shorts to power, or open circuits. Symptoms can range from blown fuses to intermittent transmission failures or unusual DTCs that appear and disappear. Fix: Conduct a thorough visual inspection of the entire harness, especially where it passes through bulkheads or near hot components. Repair damaged sections using heat-shrink tubing or, for severe damage, replace the entire segment of wire.
5. Improper Terminal Block Connections: Loose or improperly seated pins within the transmission connector or PCM terminal block can cause intermittent electrical contact. This leads to erratic operation of the corresponding component, such as a TCC that cycles on and off, or shift solenoids that intermittently fail to activate. This often presents as hard-to-diagnose intermittent issues. Fix: Use a pick tool to inspect for bent or pushed-back pins. Ensure connectors are fully seated and latched. Test terminal tension by gently pulling on individual wires within the connector.
According to OEM specifications for the 4R70W, the internal solenoids operate on a nominal 12V supply. The resistance of the Shift Solenoids (SS1, SS2) typically falls between 20-30 ohms, while the Torque Converter Clutch (TCC) solenoid is usually 10-15 ohms. The Electronic Pressure Control (EPC) solenoid has a significantly lower resistance, often between 0.8-1.5 ohms, requiring careful current management from the PCM.
FAQ
Are 4R70W wiring diagrams consistent across all production years?
No, the 4R70W wiring diagram, specifically the pin assignment and the presence of certain sensors, can vary significantly between production years. For instance, earlier models (pre-1998) typically lacked a Turbine Shaft Speed (TSS) sensor, while later versions (1998 and newer) incorporated it for more precise control. Always consult the specific OEM service manual for the exact vehicle year to avoid discrepancies. For detailed information on transmission evolution, refer to our article on “4R70W Transmission Identification and History.”
What is the significance of the EPC solenoid wiring in the 4R70W?
The Electronic Pressure Control (EPC) solenoid is critical for regulating transmission line pressure, which directly impacts shift feel, holding capacity, and overall transmission health. Its wiring is typically PWM (Pulse Width Modulated) controlled by the PCM, meaning the PCM varies the ground signal rapidly to achieve precise pressure control. Incorrect EPC wiring or a faulty solenoid can lead to harsh shifts, slipping, or transmission damage due to improper hydraulic pressure. Ensure both its positive and negative control wires are correctly terminated to the PCM.
How do I test a 4R70W solenoid using the wiring diagram?
To test a 4R70W solenoid, first identify its corresponding wire color and pin assignment on the transmission connector from the diagram. Disconnect the main transmission harness. Using a multimeter set to ohms, measure the resistance between the designated solenoid control wire and the common 12V power supply wire (R/LG, Pin 1) at the transmission side of the connector. Compare your reading to OEM specifications (e.g., 20-30 ohms for shift solenoids, 0.8-1.5 ohms for EPC). An open circuit (OL) or a short (very low resistance) indicates a faulty solenoid. You can also apply a fused 12V source and ground to the individual solenoid pins to audibly check for clicking, but be cautious with current limits for the EPC.
What does “pin assignment” mean in the context of a 4R70W wiring diagram?
Pin assignment refers to the specific function or electrical connection assigned to each individual pin or terminal within a multi-pin connector. For the 4R70W, the main transmission connector has a defined layout where each numbered pin (e.g., Pin 1, Pin 2) corresponds to a particular circuit, such as a hot wire, a ground wire, or a specific solenoid control wire. Understanding the pin assignment from the diagram is vital for correctly connecting the transmission harness to the vehicle’s PCM and ensuring all components receive the correct signals and power.
Can I use generic wiring connectors for the 4R70W, or do I need OEM-specific ones?
While some aftermarket connectors may exist, it is highly recommended to use OEM-specific or high-quality aftermarket connectors designed precisely for the 4R70W. Generic connectors may not have the correct terminal block dimensions, weather sealing, or locking mechanisms, leading to poor connections, moisture intrusion, or accidental disconnections. Such issues can cause intermittent faults, corrosion, and ultimately, transmission malfunctions. Always prioritize quality and compatibility to maintain signal integrity and system reliability.
