Craftsman 33 Gallon Air Compressor Parts Diagram: 2026 Guide
The Craftsman 33-gallon air compressor parts diagram displays a single-stage oil-free pump configuration linked to a 1.6 HP induction motor. Key components include the pressure switch assembly, unloader valve, check valve mounted at the tank manifold, transfer tube, air filter, and safety relief valve rated at 150 PSI.
📌 Key Takeaways
- The single-stage oil-free pump utilizes a cylinder sleeve torque spec of 7-10 ft-lbs.
- Check valves feature 1/2-inch MNPT tank connections with integrated 1/4-inch unloader ports.
- Always depressurize the tank below 0 PSI before disconnecting pneumatic transfer tubes.
- Continuous pressure relief bleeds indicate a failed check valve seal rather than a faulty switch.
- OEM rebuild kits are recommended over aftermarket seals to maintain 150 PSI burst pressure safety.
Maintenance and mechanical overhaul of Craftsman 33-gallon air compressor units (such as popular Sears 919-series models like 919.167330 and 919.165330) require an exact understanding of their structural and pneumatic configuration. Servicing these vertical and horizontal units—rated for maximum operating pressures from 150 to 175 PSI—demands precise technical knowledge of individual sub-assemblies ranging from the oil-free single-stage pump block to the pressure control manifold. Utilizing an accurate Craftsman 33 gallon air compressor parts diagram enables technicians to pinpoint internal wear components, trace high-pressure pneumatic lines, verify torque limits, and correctly source replacement OEM hardware.

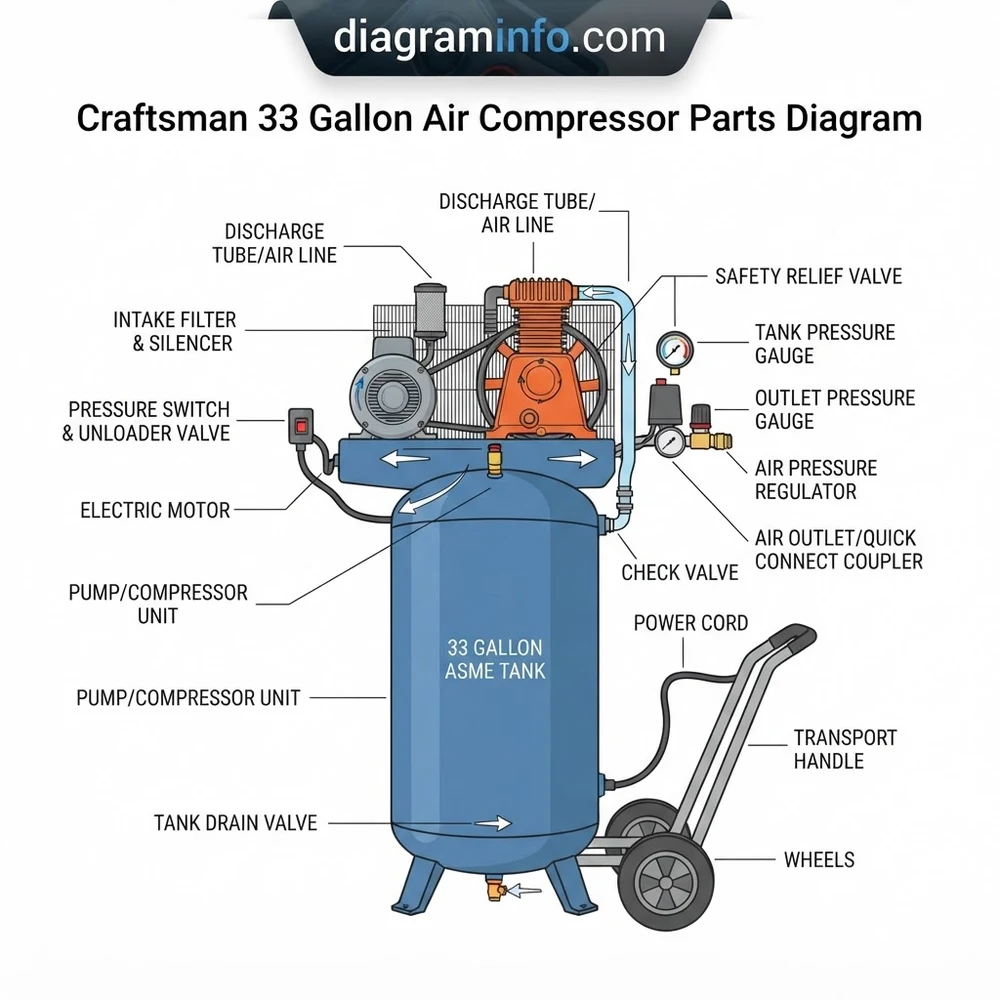

Craftsman 33 Gallon Air Compressor Parts Diagram: Detailed System Configuration
The internal arrangement of a Craftsman 33-gallon air compressor splits into three core mechanical systems: the drive motor and pump block, the pressure control manifold, and the ASME receiver tank structure. Evaluating the breakdown schematic reveals how pneumatic force transfers from the compression chamber through the check valve into the main storage reservoir.
Recommended Best Deal Products
Most oil-free Craftsman 33-gallon models utilize a Teflon-coated cylinder compression ring (Part No. DAC-308 or K-0650 kit). Never apply oil, grease, or belt dressing to this cylinder sleeve during rebuilds; oil degradation will ruin the Teflon seal coating and contaminate downstream air tools.
The primary pump assembly employs an eccentric bearing mounted directly to the electric motor shaft, driving a connecting rod up and down inside a precision cylinder sleeve. Air enters through an intake filter assembly, passes through stainless steel reed valves in the valve plate, and exits into the copper transfer tube. From there, compressed air flows directly down toward the tank inlet check valve.
| Diagram Callout | Component Description | Technical Specification / Notes |
|---|---|---|
| 1 | Induction Motor / Pump Head | 120V AC, 15A, 1.6–1.9 HP continuous running rating |
| 2 | Check Valve Assembly | 1/2″ NPT Tank Inlet x 3/8″ Compression Inlet x 1/4″ Unloader Port |
| 3 | Pressure Switch & Regulator | Cut-in: 120 PSI / Cut-out: 150 PSI; 1/4″ NPT manifold fittings |
| 4 | Safety Relief Valve | ASME rated blow-off setting: 160–175 PSI max safety limit |
| 5 | 33-Gallon Steel Tank | ASME Code stamped; Max pressure rating 175 PSI |
Pump Head Bolt Fasteners: 1/4″-20 Grade 5. Fastener Torque Spec: 7 to 10 ft-lbs (84–120 in-lbs). Always tighten in a cross-pattern sequence to ensure an even seal across the cylinder gasket.
Deciphering the Craftsman 33 Gallon Air Compressor Blueprint and Layout
To successfully execute a system teardown or component replacement, you must understand how to trace electrical circuit paths and high-pressure air routing on the exploded view schematic. The layout maps out critical interconnections between line power, switching elements, and mechanical valving.
Recommended Best Deal Products
The electrical path enters through a standard 120V 15-amp grounded power cord wired directly to the pressure switch terminals. Inside the switch housing, a double-pole single-throw (DPST) contact block responds to diaphragm movement triggered by tank pressure. When tank pressure drops below 120 PSI, the switch closes the circuit, sending current through an inline thermal overload protector directly to the motor windings.
Simultaneously, you must track the secondary pneumatic unloader line running from the bottom of the pressure switch to the tank check valve. When the pressure switch reaches its cut-out setting (150 PSI) and breaks electrical contact to stop the motor, it trips a tiny needle valve inside the switch body. This bleeds off trapped head pressure out of the copper discharge tube, allowing the motor to restart without working against deadhead head pressure during the next cycle.
When performing a complete pump overhaul using the compressor blueprint as your guide, adhere to the following sequence:
- System Depressurization: Pull the ring on the ASME safety relief valve until tank pressure reaches 0 PSI, open the lower tank drain valve completely, and disconnect incoming AC power.
- Shroud Removal: Unfasten outer plastic housing screws to reveal the motor body, belt/flywheel (on belt-driven models) or direct-drive eccentric assembly, and intake filter housing.
- Head Disassembly: Unbolt the four head bolts holding the top manifold. Inspect reed valves on the valve plate for pitting, carbon buildup, or fatigue cracks. Review our detailed guide on preventative compressor maintenance for proper replacement intervals.
- Cylinder & Compression Ring Extraction: Slide the cylinder sleeve up off the piston. Check the cylinder wall interior for deep scuff marks or gouges before replacing the Teflon piston ring.
Diagnostic Strategies Using the Air Compressor Overview Schematic
System failures on 33-gallon Craftsman compressors usually show up as mechanical leaks, electrical tripping, or poor pressure delivery. Comparing physical symptoms against the schematic layout allows for rapid, accurate diagnosis without replacing functioning parts unnecessarily.
Never attempt to service or disassemble the check valve, pressure switch, or discharge tube without verifying zero tank pressure on the primary manifold gauge. Residual pressure inside the 33-gallon tank can cause severe personal injury or eject brass fittings at high velocity.
Consider the following common mechanical and electrical fault conditions:
Issue 1: Continuous Air Leak From Pressure Switch Unloader Valve After Motor Stops
A common misdiagnosis leads owners to replace the pressure switch assembly. However, tracing the schematic shows the unloader line connects directly to the tank check valve. If the internal spring-loaded rubber seal inside the check valve degrades or accumulates tank rust, pressurized tank air flows backward up the transfer tube and out the unloader port. To resolve this issue, perform an air compressor check valve replacement on the port located on top of the tank manifold.
Issue 2: Motor Hums, Trips Thermal Overload, or Fails to Turn Over
If the motor hums without rotating, check the unloader valve function. If trapped discharge line pressure fails to bleed off at shutoff, the motor cannot overcome the starting load against the piston head. If the unloader works properly, test the start/run capacitor (typically rated 40–60 µF) mounted inside the motor end-cap housing using a multimeter set to microfarads.
Issue 3: Unit Runs Continuously But Will Not Exceed 80–100 PSI
This symptom points directly to worn pump chamber components. Inspect the valve plate assembly for broken stainless steel intake/exhaust reed valves, or examine the compression ring for excessive side clearance inside the sleeve. Consult our guide on pressure switch wiring schematics if adjustments to the main spring differential cut-out setting are needed.
Craftsman 33 Gallon Air Compressor Parts Diagram Frequently Asked Questions
Where can I find the exact model number on my Craftsman 33-gallon tank assembly?
The full model number tag (e.g., 919.167330 or 919.165330) is located on a metallic foil label affixed directly to the rear side of the 33-gallon ASME air tank structure, usually near the motor mount plate or lower shroud base. Always use this complete 9-digit number when ordering parts from an exploded blueprint view.
Why is air leaking constantly from the pressure switch unloader port after the compressor turns off?
This air leak indicates a failed check valve seated at the tank entry port, not a bad pressure switch. The internal check valve plunger seal is worn or held open by debris, allowing tank pressure to backflow down the unloader line and vent continuously through the switch unloader port.
What is the correct torque spec for the pump head bolts on a 33-gallon Craftsman compressor?
Manufacturer specifications call for tightening the four cylinder head bolts to 7 to 10 ft-lbs (84–120 in-lbs) using a calibrated torque wrench. Tighten in a cross pattern to prevent warping the valve plate assembly or cracking the cylinder sleeve top flange.
Can I grease or lubricate the cylinder wall on an oil-free Craftsman compressor pump layout?
No. Oil-free pumps rely on a self-lubricating Teflon/carbon-composite compression ring. Applying oil, grease, or WD-40 to the cylinder sleeve or piston assembly breaks down the Teflon coating, creates sticky carbon sludge under heat, and leads to immediate pump failure.
How often should the moisture drain valve at the bottom of the 33-gallon tank be operated?
Drain accumulated condensation from the bottom drain petcock after every use, or daily during heavy operation. Moisture left inside the 33-gallon steel vessel causes internal tank pitting rust, damages the check valve seal surface, and sends water droplets downstream into pneumatic air tools.
Step-by-Step Guide to Understanding the Craftsman 33 Gallon Air Compressor Parts Diagram
Identify – Disconnect power source and completely open the drain valve to purge tank pressure.
Locate – Cross-reference the exploded parts diagram to identify the target component and part number.
Reference – Inspect the pump head layout, noting line connections and mounting bolt locations.
Connect/Route – Install replacement components using PTFE thread sealant on male NPT fittings.
Verify – Reconnect the power, close drain valves, and run the system to confirm full 150 PSI cutoff.
Troubleshoot – Check for air leaks at joints with soapy water if cut-off target pressure is not reached.
