Simonton double hung vinyl window parts diagram: 2026 Guide
A double hung vinyl window parts diagram illustrates the upper and lower movable sashes, main frame structure, constant force balance springs or block-and-tackle assemblies, tilt latches, and pivot shoes. This layout clarifies how sash balance shoes slide along vinyl jamb tracks to support smooth vertical movement and secure tilt-in cleaning operations.
📌 Key Takeaways
- Constant force balance coil springs are rated by sash weight, typically stamped in poundage numbers (e.g., #5 or #7 coil ratings).
- Tilt latches and pivot bars lock sashes into jamb balance shoes, enabling 90-degree inward tilting for maintenance.
- Ensure balance spring tension is disengaged prior to removing sash components to prevent high-velocity recoil injuries.
- The most common mechanical failure point is a cracked plastic balance shoe or detached coil spring cord.
- Simple latch, lock, and balance spring replacements are easy DIY tasks, while distorted vinyl frames require professional replacement.
Double-hung vinyl windows represent one of the most reliable and thermally efficient fenestration designs in modern residential and commercial structures. Understanding the internal mechanics of these assemblies requires a deep dive into a double hung vinyl window parts diagram. By analyzing the structural layout, technical personnel, facility maintenance staff, and advanced contractors can quickly isolate mechanical failures, perform precise counter-balance adjustments, and restore optimal thermal efficiency. This manual provides a technical overview of the double hung vinyl window parts diagram, detailing frame extrusions, sash interlocks, counter-balance configurations, and field-servicing procedures required for complete system restoration.

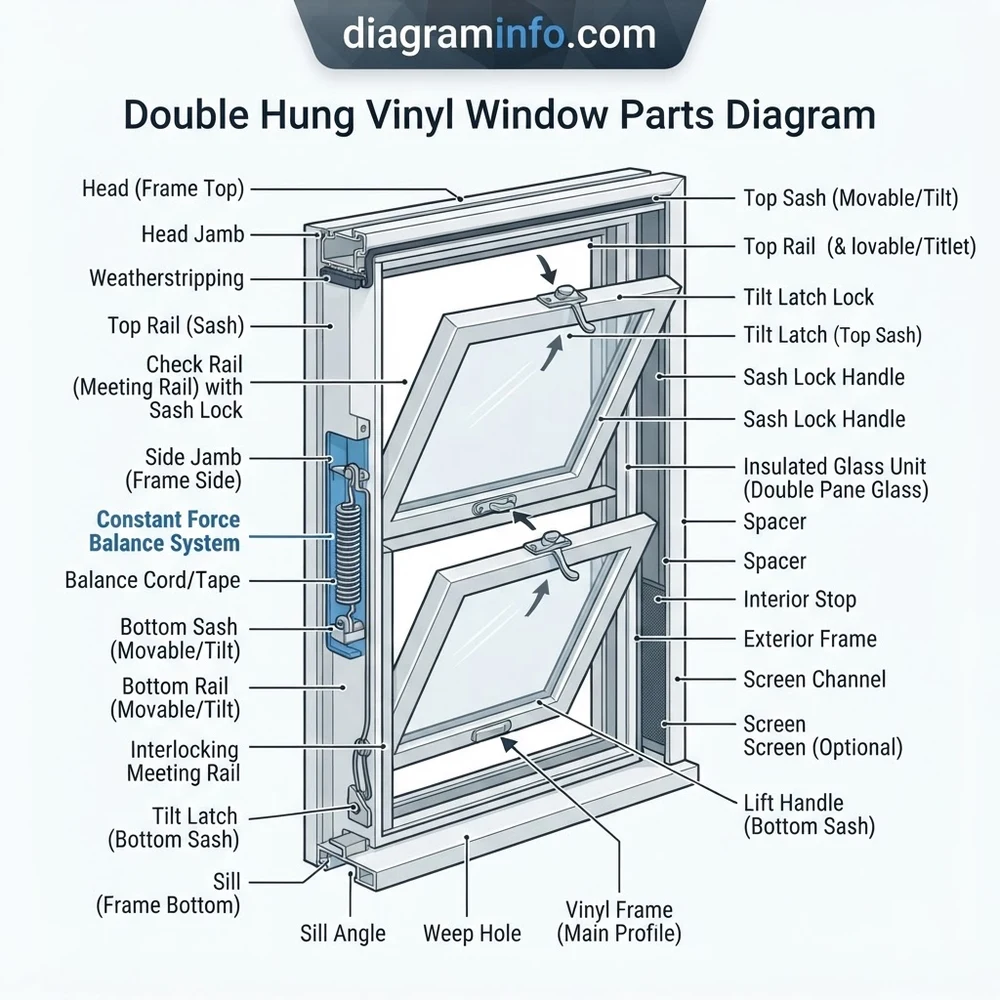

Anatomy of a Double Hung Vinyl Window Parts Diagram
A double-hung vinyl window system consists of two vertically sliding sashes within a fixed master frame. According to fenestration engineering standards, the structural blueprint relies on multi-chambered rigid polyvinyl chloride (uPVC) extrusions fused at 45-degree angles via high-temperature corner welds. The double hung vinyl window parts diagram separates these structural elements into three core sub-assemblies: the master frame, the upper/lower sashes, and the mechanical balance hardware.
Master Frame Extrusions and Sill Layout
The exterior perimeter consists of the head jamb (top), side jambs (left and right), and the sill (bottom). Modern vinyl frames feature multi-cavity chambering to enhance thermal performance and structural rigidity. The sill profile incorporates a sloped design or a dam system with integrated weep holes and baffle caps to divert water outward. Vertical jamb tracks contain distinct channels in which the upper and lower sashes slide independently.
Sash Profile and Insulated Glass Unit (IGU) Assembly
Each movable sash comprises two vertical stiles, a top rail, and a bottom rail. The point where the top rail of the lower sash meets the bottom rail of the upper sash is the meeting rail interlock. This junction features hook-and-cleat extrusions engineered to interlock under pressure, suppressing air and water infiltration. Insulated Glass Units (IGUs)—typically dual or triple-pane with Low-E coatings and argon gas fill—are secured within the sash frame using double-sided structural glazing tape and snapped vinyl glazing beads.
Mechanical Balance System and Locking Hardware Configuration
To counteract gravity, the sashes rely on a counter-balance system housed within the jamb cavities. Key hardware components shown on the schematic layout include spring balance mechanisms, pivot shoes, pivot bars, and spring-loaded tilt latches. Security and seal compression are provided by sweep locks and keepers installed along the meeting rails.
| Component Name | Primary Structural Role | Serviceability & Material Specs |
|---|---|---|
| Master Frame Jamb Extrusion | Provides track guides and houses balance springs | Rigid uPVC; non-serviceable welded corners |
| Constant Force Spring / Coil | Provides lift assistance calibrated to sash weight | Stainless steel tape coil; replaceable via jamb cutout |
| Pivot Shoe & Lock Cam | Locks balance spring in place during sash tilt | Nylon casing with zinc die-cast cam; standard replacement |
| Pivot Bar (Pin) | Connects bottom of sash stile to the pivot shoe | Stamped steel or die-cast zinc; screw-mounted to rail |
| Tilt Latch Mechanism | Retracts spring bolts to allow sash to tilt inward | Surface-mounted or mortised ABS plastic / zinc housing |
| Bulb & Wool Pile Weatherstripping | Seals air gaps along tracks, meeting rails, and sill | Polypropylene backing; press-fit into T-slots |
When replacing balance components, verify the weight stamp or spring number stamped directly on the coil tape or block-and-tackle assembly housing. Match this number against the physical weight of the sash (measured with a digital scale) to ensure correct counter-balance function. Incorrectly weighted springs cause sash creep or high operating force.
How to Read the Double Hung Vinyl Window Parts Schematic Layout
Interpreting a technical double hung vinyl window parts diagram requires understanding exploded views and assembly sequences. Follow this systematic approach to isolate components during inspection, maintenance, or teardown.
Step 1: Identifying Frame and Track Boundaries
Locate the outer frame border on the overview blueprint. The left and right vertical channels contain deep track pockets. The inner track holds the bottom sash, while the outer track holds the top sash. Note the location of the jamb spreaders or jamb covers, which keep the track clearances uniform across the height of the window frame.
Step 2: Disassembling and Disengaging the Sash Assembly
To safely remove the lower sash from the frame assembly according to schematic specs:
- Unlock the sash by disengaging the sweep lock.
- Raise the lower sash approximately 3 to 4 inches off the sill frame.
- Slide both spring-loaded tilt latch buttons inward toward the center of the top rail.
- Tilt the sash inward toward the room to a 90-degree horizontal angle.
- Lift one side of the sash upward to disengage the pivot bar from the nylon pivot shoe lock cam. Once free, tilt and lift the opposite pivot bar out of its balance shoe.
Step 3: Accessing the Counter-Balance System
Once the sash is removed, locate the pivot shoe inside the jamb track. On a standard constant force spring configuration, the stainless steel band extends from the pivot shoe up to a coiled spring cradle fastened higher in the jamb track. For detailed sash removal procedures or hardware retrofits, consult our general vinyl frame repair and sash adjustment guide.
Standard master frame squareness tolerance: The diagonal measurements across opposite corners of the frame must match within 1/8 inch (3.175 mm). If the frame is racked beyond this tolerance, sashes will bind, tilt latches will fail to engage, and meeting rail interlocks will leak air.
Troubleshooting Failures Using the Vinyl Window Diagram
Mechanical failure in vinyl window assemblies generally stems from component wear, structural deformation, or loss of balance tension. Using the double hung vinyl window parts diagram as a diagnostic guide, technicians can systematically pinpoint and repair issues.
Sash Creep or Dropping (Balance Spring Failure)
Symptom: The lower or upper sash drops immediately after being raised, failing to hold its position. Diagnose this by checking the balance springs mapped on the schematic. A broken coil tape, snapped cord on a block-and-tackle unit, or a stripped plastic spring housing will prevent vertical hold. Inspect the pivot shoe cam—if the internal metal cam slot splits, the pivot bar will slip out under load. If you observe fogging between panes during inspection, refer to our guide on insulated glass unit seal failure repair.
Air and Water Infiltration at the Meeting Rail Interlock
Symptom: Drafts or moisture penetration at the center horizontal junction of the window. Refer to the interlock section on the diagram. Common causes include worn wool pile weatherstripping, crushed bulb gaskets, or distorted vinyl extrusions. Ensure weatherstripping T-backing is fully seated into its track slot. If drafts persist, inspect for frame bowed outward near the center jambs, which prevents full lock engagement.
Hard Operation and Track Binding
Symptom: Extreme resistance when sliding the sash up or down. Check for accumulated debris inside the vinyl jamb track pocket or excessive friction caused by misplaced balance shoes. Never oil vinyl window tracks with petroleum-based lubricants, as petroleum causes uPVC swelling and breakdown. Use dry silicone spray only. For complete weatherization upgrades, read our window weatherstripping replacement procedure.
When servicing constant force or block-and-tackle balance shoes inside the jamb channel, ensure the internal lock cam is turned into the “locked” position (slot horizontal) before releasing tension. An unsecured balance shoe under spring tension can snap rapidly upward, causing severe impact injuries or shattering the vinyl track.
Frequently Asked Questions About Double Hung Window System Architecture
How do constant force coil balances differ from block-and-tackle balance systems on a schematic blueprint?
A constant force balance uses a flat, coiled stainless steel ribbon mounted in a plastic housing that uncoils smoothly as the sash lowers, providing uniform tension across the entire travel distance. A block-and-tackle system uses a heavy-duty extension spring combined with a series of nylon pulleys and high-tensile cord housed inside a long metal channel. Constant force systems require less jamb depth and offer simpler modular replacement.
What components must be replaced if a double hung window sash falls out when tilted?
If the sash detaches unexpectedly when tilted inward, inspect the pivot bars at the bottom corners of the sash rail and the metal lock cams inside the balance shoes. A snapped, bent, or heavily corroded pivot bar will slip out of the shoe slot. Alternatively, a cracked nylon pivot shoe housing will flex under torque, allowing the pivot bar to pop free during operation.
Can cracked vinyl frame extrusions shown on the layout be thermal welded in the field?
Structural master frame or sash extrusions cracked across major stress points cannot be reliably re-welded in the field to original factory specifications. Structural integrity relies on factory-controlled hot-plate butt welding. Cosmetic hairline cracks in non-load-bearing vinyl stops or fins can be sealed with specialized PVC solvent cements, but compromised load-bearing corners require a full sash or frame replacement.
How do you determine the correct replacement tilt latch size from a diagram component list?
Tilt latches are categorized as surface-mounted or mortised (internal flush mount). Measure the distance from the center of the attachment screw holes to the nose edge of the latch bolt, along with the overall length and width of the housing bezel. Match the setback dimensions and bolt spring displacement against OEM parts manual spec sheets before ordering.
Step-by-Step Guide to Understanding the Double Hung Vinyl Window Parts Diagram
Identify – Locate your window sash balance system type (constant force coil vs. block-and-tackle) on the visual parts diagram.
Locate – Find the tilt latches at the top rail of the lower sash and retract them to tilt the sash inward 90 degrees.
Reference – Consult the layout diagram to locate the pivot bars inserted into the bottom corner of the tilted sash frame.
Connect/Route – Lift the sash out of the metal balance shoes locked inside the vinyl jamb track channel.
Verify – Check coil spring weight numbers or cord tension on the exposed balance shoe assembly before installing new components.
Troubleshoot – If the sash slips, reset the internal balance shoe cam slot horizontally using a flat-head screwdriver to re-engage tension.
