2026 Arctic Cat 400 Carburetor Hose Diagram Routing Guide
The Arctic Cat 400 Keihin/Mikuni carburetor hose routing connects the main fuel inlet nipple directly to the petcock supply line. Dual upper brass nipples route vent lines upward under the handlebars or airbox frame. The lower float bowl nipple attaches to a drain hose routed downward past the swingarm. Torque boot clamps to 2.5 Nm.
📌 Key Takeaways
- Main fuel line mounts to the primary 1/4-inch inlet nipple; intake boot clamps require a 2.5 Nm torque spec.
- Incorrectly routed vent lines cause vacuum lock, leading to engine sputtering and stalling under heavy throttle load.
- Models with digital displays may illuminate a check engine light or display a diagnostic code when lean conditions affect engine speed.
- Float bowl overflow lines must be routed straight down away from exhaust components to prevent thermal ignition risks.
- Simple vacuum line replacements fix 80% of fuel delivery issues before needing ECU or full carburetor rebuilds.
Proper hose routing on the Keihin CVK34 and CVK36 carburetors fitted to the Arctic Cat 400 (model years 1998 through 2008) is critical for maintaining stable air-fuel ratios, instant throttle response, and engine reliability. Unlike fuel-injected systems, carbureted utility ATVs rely entirely on pressure differentials, precise float bowl venting, and engine-generated vacuum signals to meter fuel accurately. Misrouting a single atmospheric vent or vacuum line can cause severe rich or lean conditions, float bowl starvation, or crankcase oil contamination. This technical guide breaks down the complete hose topology, functional mechanics, diagnostic procedures, and factory torque specifications for shop technicians and advanced DIY builders working on the Arctic Cat 400 powertrain.

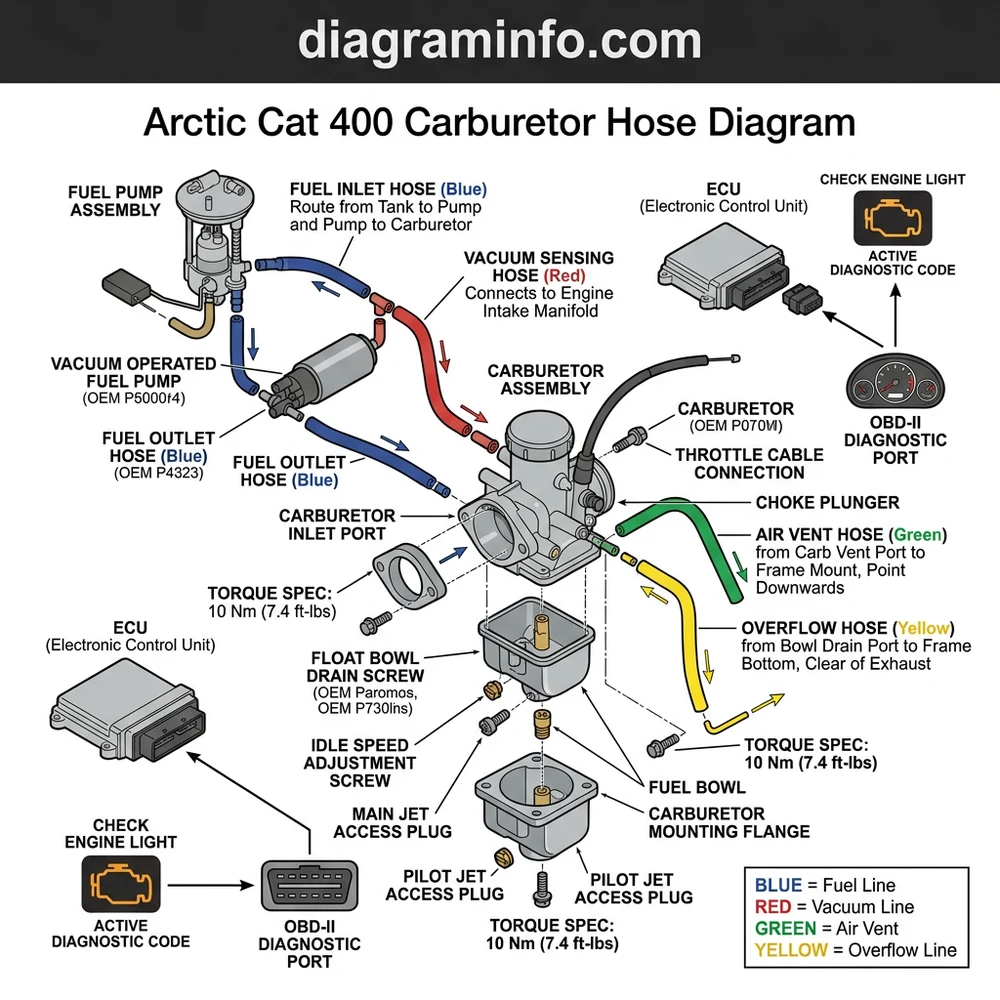

Arctic Cat 400 Carburetor Hose Diagram: Component Layout and Port Identification
The Keihin constant velocity (CV) carburetor used on the Arctic Cat 400 features six primary external fluid and air ports. Correct identification of each nipple on the carburetor body is essential during reassembly or engine replacement. Referring to the arctic cat 400 carburetor hose diagram layout below ensures every circuit operates within factory tolerances.
Recommended Best Deal Products
| Port / Nipple ID | Inner Diameter (ID) & Material | Routing Destination | Functional Operating Spec |
|---|---|---|---|
| Main Fuel Inlet Nipple | 1/4 in (6.3 mm) NBR Fuel Hose | Vacuum Petcock / In-Line Fuel Filter | Gravity / Vacuum Assist Feed (0.5–1.5 PSI) |
| Vacuum Actuator Port | 3/16 in (4.8 mm) Vacuum Hose | Petcock Vacuum Diaphragm / Intake Spigot | Engine Intake Vacuum (4–7 in-Hg at Idle) |
| Atmospheric Vent Lines (T-Fitting) | 3/16 in (4.8 mm) Vinyl / Polyurethane | Routed High under Frame Rail / Handlebar Pod | 1.0 ATM Reference Pressure (Unrestricted) |
| Float Bowl Drain / Overflow Port | 3/16 in (4.8 mm) Clear Polyurethane | Routed Down Past Lower Frame Skid Plate | Atmospheric Drain / Overfill Relief |
| Carburetor Heater Passages (Liquid Cooled) | 5/16 in (7.9 mm) Reinforced EPDM Hose | Thermostat Housing & Pump Bypass Loop | Engine Coolant Flow (160°F–190°F / 12 PSI Max) |
| Crankcase Breather Line (Airbox System) | 1/2 in (12.7 mm) Heavy-Wall EPDM | Engine Valve Cover to Lower Airbox Port | Crankcase Pressure Venting (< 0.5 PSI) |
Main Fuel Inlet Line
The primary fuel inlet nipple is a brass fitting located on the left side of the carburetor body above the float bowl seam. OEM specifications mandate fuel-rated hose capable of resisting 10% ethanol blends. It receives fuel directly from the automatic vacuum-operated petcock assembly mounted under the gas tank.
Vacuum Actuation Line
Positioned on the intake engine-side spigot or upper body casting, this port supplies engine manifold vacuum to the internal rubber diaphragm of the automatic petcock valve. When the engine cranks or runs, manifold vacuum draws the petcock diaphragm open, allowing fuel to flow down to the carburetor float chamber.
Dual Atmospheric Bowl Vent Lines
The Keihin CVK34/36 utilizes a upper vent circuit connected via a T-fitting, splitting into two independent vent hoses. These lines provide 1.0 atmosphere ambient air pressure onto the fuel surface inside the float chamber. Equalized pressure is mandatory for fuel to draw through the pilot and main jets into the venturi. These lines must terminate high under the chassis frame to avoid drawing in water during deep puddle crossings.
Bowl Drain and Overflow Line
Attached to the bottom nipple of the float bowl, this hose serves a dual purpose. When the manual drain screw is unseated, it drains the bowl for storage or jetting service. If the float needle valve fails or becomes contaminated, fuel rises above the internal overflow standpipe and vents harmlessly to the ground, preventing hydraulic lock inside the engine cylinder.
Keihin CVK34 Torque & Clearance Specs: Intake manifold clamp screws: 22–26 in-lbs (2.5–3.0 Nm); Float bowl retaining screws: 18–20 in-lbs (2.0–2.2 Nm); Main jet torque: 13–15 in-lbs (1.5–1.7 Nm); Intake boot cylinder head bolts: 8.5 ft-lbs (11.5 Nm). Float height setting: 17.0 mm ± 1.0 mm measured from the bowl mating surface without depressing the spring-loaded float needle pin.
Recommended Best Deal Products
Vacuum Routing, Timing Chain Synchronicity, and Engine Mechanical Interlocks
Understanding how the arctic cat 400 carburetor hose diagram integrates with engine mechanical systems is crucial for isolating complex driveability faults. Constant velocity carburetors do not open the main slide directly via the throttle cable. Instead, pulling the throttle butterfly valve creates a differential engine manifold vacuum signal across the upper rubber diaphragm, raising the vacuum slide and jet needle.
If the engine mechanical integrity is compromised, manifold vacuum drops instantly. Mechanics evaluating vacuum signal strength at the carb petcock port must also evaluate mechanical timing. A stretched engine timing chain or worn timing chain tensioner retards camshaft timing. This mechanical delay decreases intake valve sealing efficiency and reduces manifold vacuum below the critical 4.0 in-Hg minimum threshold required to open the vacuum petcock or smoothly lift the CV slide under load.
Additionally, liquid-cooled Arctic Cat 400 variants utilize engine coolant flow routed through carb heating jackets cast into the lower body. Engine coolant warmed by the cooling system flows continuously past the throttle plate housing to prevent icing inside the venturi during cold weather operating conditions. A clogged bypass port restricts coolant circulation, leading to throttle plate freezing in high humidity environments.
Furthermore, crankcase pressure and engine oil pressure dynamics influence airbox cleanliness and fuel metering. Excessive blow-by gases forced past worn piston rings pressurize the crankcase, driving engine oil mist through the valve cover breather tube directly into the airbox filter housing. This oil buildup coats the carburetor intake bell, clogging internal air jet passages and destroying air-fuel mixture calibration. Technicians troubleshooting carbureted systems should inspect the airbox drain loop whenever evaluating vacuum line integrity. For broader diagnostic workflows, reference our companion guide covering Arctic Cat ignition system troubleshooting.
When replacing carburetor vacuum and vent lines, never use unreinforced soft silicone tubing or oversized clear vinyl. Engine heat causes soft silicone to collapse under intake vacuum, cutting off fuel flow. Always install 70-durometer oil- and fuel-resistant EPDM or polyurethane vacuum tubing rated for automotive vacuum service.
Common Arctic Cat 400 Carburetor Hose Routing Errors and Symptoms
Misinterpreting the arctic cat 400 carburetor hose diagram leads to distinct operational failures. Because carbureted ATVs lack automated sensor feedback mechanisms, routing errors create symptoms that closely mimic electrical, valvetrain, or ignition faults found on modern electronic fuel injection (EFI) engines.
Comparison: Carbureted Vacuum Failures vs. EFI Sensor Faults
On modern fuel-injected Arctic Cat models, a failed intake manifold seal or MAP sensor triggers an engine ECU fault, illuminating a check engine light and storing a specific diagnostic code via an OBD-II style diagnostic reader. Conversely, on the carbureted Arctic Cat 400, a cracked vacuum line or pinched bowl vent yields no electronic alerts. The technician must rely entirely on vacuum gauges, visual routing confirmation, and mechanical testing.
Pinched or Submerged Bowl Vent Hoses
If the dual upper vent hoses are pinched under the fuel tank, routed improperly into a pinched frame bracket, or submerged in mud during deep water operation, the float bowl loses atmospheric pressure reference. As fuel is consumed by the engine, a vacuum lock forms inside the float bowl. The engine starts fine, runs for 2 to 5 minutes, stumbles under load, and dies. Opening the tank cap does not resolve this issue; unpinching the atmospheric vent lines immediately restores proper fuel flow.
Crossed Petcock Vacuum Line and Drain Line
Connecting the petcock vacuum hose to the float bowl drain nipple instead of the intake manifold port prevents the vacuum petcock from opening. The engine will start briefly on residual fuel inside the bowl and immediately stall out. Furthermore, if fuel bypasses the needle seat while the drain screw is loose, fuel will be drawn directly into the intake tract or spilled into the belly pan.
Never cap or block off the upper carburetor vent lines. Blocking atmospheric vents forces float bowl fuel up through the main needle jet and pilot circuits, flooding the engine cylinder with liquid gasoline. This can cause severe hydraulic lock, bent connecting rods, or engine oil dilution.
Systematic Diagnosis Steps for Arctic Cat 400 Carburetor Hose Diagrams
When executing repair or restoration procedures, follow this systematic diagnostic flow to verify line integrity, sealing, and vacuum supply against factory specifications.
Step 1: Vacuum Petcock Function and Diaphragm Integrity Test
Disconnect the fuel line from the main fuel inlet nipple on the carburetor. Connect a hand vacuum pump (such as a Mityvac) to the petcock vacuum supply line. Apply 5.0 in-Hg of vacuum to the line. Fuel should flow freely from the outlet hose into a graduated cylinder. Release the vacuum; fuel flow must instantly stop completely. If vacuum drops on the gauge or fuel leaks through the vacuum line, the internal petcock diaphragm is ruptured and requires replacement.
Step 2: Intake Boot and Vacuum Nipple Leak Detection
With the engine idling at factory specification (1,250–1,350 RPM), spray unchlorinated brake cleaner or propane around the rubber intake manifold boot, vacuum takeoff nipples, and carburetor cap seam. An instantaneous drop or rise in engine idle speed indicates an unmetered air leak. Inspect the intake boot rubber for dry-rot cracking or internal metal flange separation. Torque intake boot fasteners to 8.5 ft-lbs (11.5 Nm). Detailed procedures for pilot circuit adjustments can be verified in our Keihin CVK jetting and float calibration guide.
Step 3: Atmospheric Vent Hose Routing and Flow Check
Remove the dual vent hoses from the upper carburetor body T-fitting. Blow low-pressure compressed air (< 10 PSI) through the lines toward their frame termination points to ensure no mud wasp nests, dirt, or ice block the passages. Reinstall the vent lines, ensuring they form a loop elevated higher than the carburetor top cap before traveling down along the frame rails. Securing the hoses elevated prevents water siphon back into the float chamber during deep water crossings.
Step 4: Float Bowl Overflow and Needle Valve Inspection
Attach a clear 3/16-inch polyurethane tube to the float bowl drain nipple. Loop the tube upward against the side of the carburetor body. Open the manual drain screw counter-clockwise 1.5 turns. The fuel level visible inside the tube should stabilize precisely 0.5 mm to 1.5 mm below the float bowl mating seam. If fuel continues to rise and overflows out the top of the tube, the needle valve tip is worn, the float assembly is saturated, or the float height is set incorrectly.
Arctic Cat 400 Carburetor Hose Diagram Frequently Asked Questions
Where should the main atmospheric vent hoses be routed on an Arctic Cat 400?
The dual atmospheric vent hoses originating from the upper carburetor T-fitting must be routed upward toward the main frame tube beneath the fuel tank, then tucked high inside the upper steering pod assembly or upper frame rails. Routing them high prevents water, mud, and trail debris from entering or blocking atmospheric reference pressure to the float bowl during deep mud or water crossings.
Why is fuel leaking out of the bottom carburetor drain hose continuously?
Continuous fuel leakage from the bottom drain hose indicates either that the manual float bowl drain screw is unseated, or that the internal float needle valve is failing to seal against its seat. Debris lodged between the rubber needle tip and brass seat, a fuel-logged plastic float, or incorrect float height (spec: 17.0 mm) allows excess fuel to enter the bowl, raising the fuel level above the internal overflow tube drain line.
Does the Arctic Cat 400 carburetor hose layout change between manual and automatic models?
The primary hose connections—including fuel feed, vacuum actuation, bowl vents, and overflow lines—remain identical between manual shift and automatic (CVT) Arctic Cat 400 models utilizing the Keihin CVK34/36. However, automatic models include additional air intake snout routing clamps near the belt housing ducting, and liquid-cooled variants feature extra 5/16-inch coolant bypass lines attached to the carburetor casting for anti-ice thermal management.
How do I test if a vacuum leak is causing a high idle on my Arctic Cat 400?
To detect a vacuum leak, start the engine and let it reach operating temperature (approx. 160°F). While at idle, lightly spray fogging oil or carburetor cleaner around the intake manifold boot, vacuum line barbs, and carburetor top cover. If the engine RPM fluctuates, drops, or stalls out, an unmetered air leak is present. Inspect rubber vacuum caps for dry rot, check hose clamps, and verify intake boot mounting bolt torque (8.5 ft-lbs / 11.5 Nm).
Can I eliminate the vacuum-operated petcock and install a manual fuel valve?
Yes, mechanics can convert the vacuum petcock to a manual gravity-fed valve. However, if a manual petcock is installed, the original vacuum port on the intake manifold spigot must be tightly sealed with a high-temperature EPDM vacuum cap and clamp. Leaving the intake manifold vacuum port open creates a massive unmetered air leak that causes extreme lean conditions, severe backfiring, and potential engine cylinder overheating. For authentic replacement components and hose kit part numbers, consult our Arctic Cat 400 OEM replacement parts catalog index.
Step-by-Step Guide to Understanding the Arctic Cat 400 Carburetor Hose Diagram
Identify – Label each existing hose and compare them with the Arctic Cat 400 carburetor hose diagram positions.
Locate – Find the primary fuel inlet on the carburetor body, upper vent ports, and bottom drain nipple.
Reference – Cross-check line diameters and hose clip positions on the diagram to avoid improper line sizing.
Route – Run vacuum vent hoses upward into the upper frame plastics and the bowl drain hose downward past the engine block.
Connect – Slip hoses onto brass nipples, securing all fuel and vacuum joints with spring retaining clips.
Verify – Inspect intake boot clamp tightness to a 2.5 Nm torque spec, start the engine, and check for fuel leaks or a diagnostic code.
