Submersible Pump Layout: How Does a Well Pump Work Diagram 2026
A well pump system pulls groundwater into a pressure tank using an electric submersible pump or jet pump. When system pressure drops below 30–40 PSI, the pressure switch signals the motor control box to activate the pump. Impellers force water up the drop pipe, through a check valve, and into the pressure tank until reaching 50–60 PSI.
📌 Key Takeaways
- Submersible well pumps operate on 230V AC single-phase or three-phase power, delivering 10–15 GPM at 40–60 PSI operating pressure.
- The pressure switch serves as the central control mechanism, standardly calibrated for 30/50 PSI or 40/60 PSI cut-in and cut-out thresholds.
- An inline check valve prevents backflow and prevents high water column weight from spinning impellers backward upon pump deactivation.
- Pipelining leaks or failing start capacitors represent the primary cause of pump rapid cycling and motor thermal overload trips.
- Replace accessible pressure switches and pressure gauges DIY; hire a certified professional for deep-well pulling and high-voltage wiring.

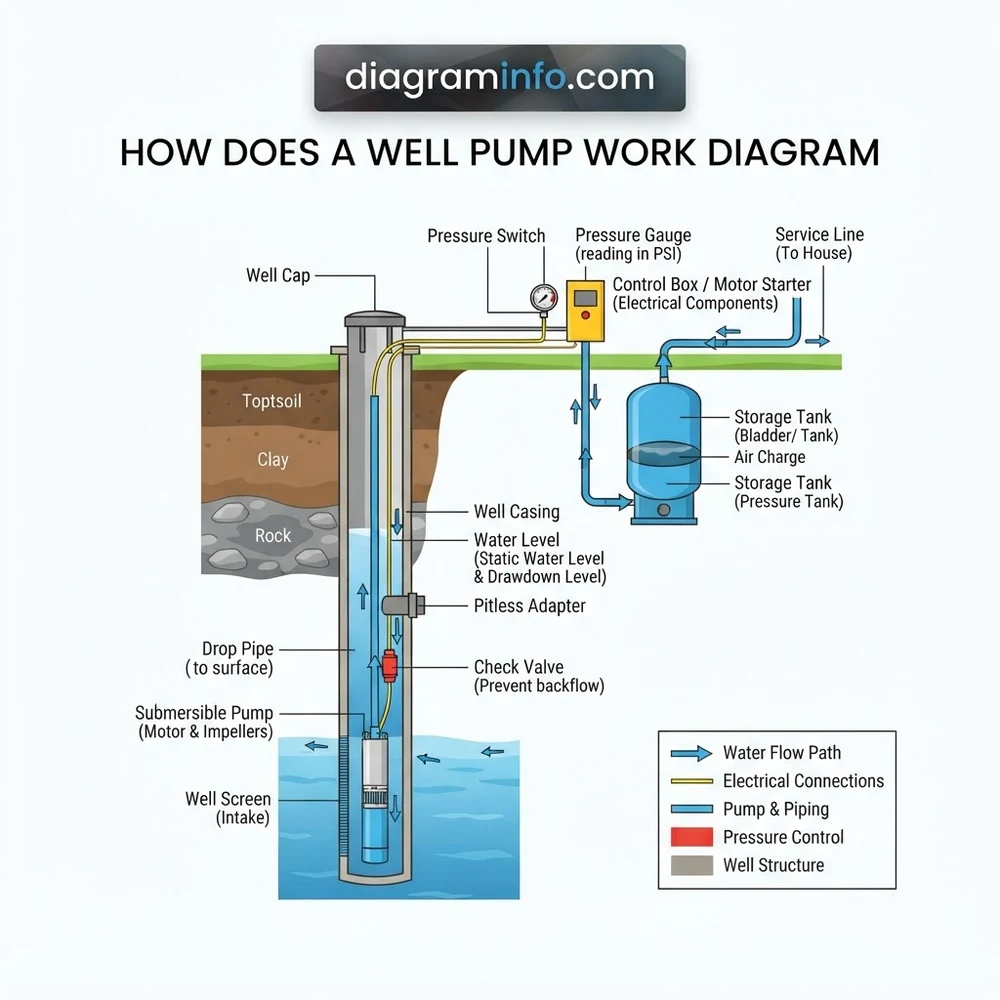

Understanding the mechanical and electrical relationships in a residential or light commercial water well configuration requires a rigorous analysis of system schematics. A complete well pump assembly integrates hydraulic impellers, high-torque submersible motors, electromechanical pressure switches, and pneumatic expansion tanks working under precise balance. Whether servicing a 2-wire or 3-wire 230V system, mastering the system blueprint allows technicians to systematically trace power distribution, pressure dynamics, and fluid delivery mechanics. This technical guide examines every physical component, electrical path, and fluid dynamics stage illustrated in a standard deep-well submersible system schematic.
How Does a Well Pump Work Diagram: Core Component Breakdown
A deep-well submersible water system relies on an interconnected network of electromechanical and hydraulic sub-assemblies. According to OEM specifications from major pump manufacturers like Franklin Electric and Grundfos, failure to align component performance parameters leads to premature motor winding burnout or rapid switch contact erosion. The standard system layout connects power distribution at the top well head to the motor positioned hundreds of feet down the casing.
Recommended Best Deal Products
Submersible Pump Motor and Multi-Stage Impeller Stack
Positioned at the bottom of the drop pipe string, the submersible pump unit consists of a hermetically sealed, oil-filled or water-lubricated induction motor coupled directly to a multi-stage centrifugal pump end. The motor typically operates on 230V single-phase power at 3450 RPM. As the motor shaft rotates, dynamic liquid impellers constructed of glass-filled Noryl or stainless steel accelerate water radially outward into stationary diffusers. Each stage adds kinetic energy, converting velocity into head pressure (roughly 0.433 PSI per foot of lift). A built-in spring-loaded stainless steel check valve sits directly above the discharge head to prevent reverse hydraulic shock (water hammer) from damaging the impeller stack during shutdown cycles.
Electromechanical Pressure Switch and Control Box Mechanics
The brain of the automatic system is the pressure switch, commonly a Square D Pumptrol FSG2 series calibrated to a 30/50 PSI or 40/60 PSI operating range. The switch diaphragm senses line pressure through a 1/4-inch NPT nipple connected to the tank manifold. When system pressure drops below the cut-in threshold (e.g., 40 PSI), internal springs snap dual contacts closed, completing the 230V circuit across terminals L1-T1 and L2-T2. On 3-wire single-phase installations, power feeds through an external wall-mounted control box housing a start capacitor, potential relay, and run capacitor. The potential relay drops the auxiliary start winding out of the circuit once the motor reaches 75% to 80% of operating speed, protecting the high-resistance start windings from thermal failure.
Bladder Pressure Tank and Pneumatic Cushion
The diaphragm or bladder pressure tank stores energy in a compressed air chamber separated from the potable water by a butyl rubber membrane. As water is forced into the lower chamber, the fixed air charge compresses according to Boyle’s Law ($P_1V_1 = P_2V_2$). This stored pressure delivers water to household fixtures without forcing the pump motor to start for minor drawdowns. Tank pre-charge must always be calibrated to exactly 2 PSI below the pressure switch cut-in setting when the tank is empty of water.
| System Component | Electrical/Mechanical Spec | Torque / Calibration Spec | Functional Role |
|---|---|---|---|
| Submersible Motor | 230V 1-Phase, 60Hz (2 or 3-Wire) | 1.5–3.0 Full Load Amps (1 HP) | Drives fluid impellers in deep casing |
| Pressure Switch | DPST, 1/4″ NPT diaphragm port | 40 PSI Cut-in / 60 PSI Cut-out | Automates motor cycle based on line pressure |
| Control Box Relay | Solid-state or electromechanical potential | Pick-up: 205-235V, Drop-out: 50-110V | Disengages start capacitor post-acceleration |
| Pitless Adapter | Bronze/Stainless wedge slide connection | 35 ft-lbs drop pipe interface torque | Creates frost-proof wall penetration link |
| Pressure Expansion Tank | Heavy-gauge steel with butyl bladder | 38 PSI pre-charge (for 40/60 switch) | Maintains system head pressure, reduces cycles |
How to Trace and Install a Well Pump System Schematic Step by Step
Servicing, installing, or diagnosing a deep-well system requires systematic procedures to prevent electrical shock, pipe damage, or premature component destruction. If you are comparing standard setups against deep well jet pump electrical schematics, note that submersible units require dedicated submersible drop cable (UL Type THW or flat pump cable) designed for continuous submersion under hydrostatic pressure.
Estimated Time: 2.5 to 4 hours (complete diagnostic trace and mechanical verification)
Required Tools: Digital Multimeter (CAT III 600V rated), Clamp-on AC Ammeter, 1000V Megohmmeter (Megger), Air Pressure Gauge (0-100 PSI, 1 PSI increments), Insulated Screwdrivers, Torque Wrench, Pitless Pull Tool.
Safety Precautions: Lockout/Tagout (LOTO) 240V double-pole circuit breaker. Discharge all start capacitors using a 20kΩ, 5W resistor across terminals prior to handling. Depressurize the water system to 0 PSI before loosening fittings or switch nipples.
Recommended Best Deal Products
Step 1: Verify Power Input and Pressure Switch Line Voltage Wire Tracing
Begin by isolating the main service disconnect panel. Connect your digital multimeter leads to the line-side terminals (L1 and L2) of the Square D pressure switch. Turn breaker ON to verify line supply measures between 208V AC and 240V AC nominal. Ensure wire gauge meets National Electrical Code (NEC) Table 310.15(B)(16) standards (minimum 12 AWG copper for 20A circuits, 10 AWG for 30A circuits). Verify the green equipment grounding conductor terminates securely at the ground bar within the switch enclosure and bonds back to the main service panel ground.
Step 2: Inspect and Wire the External Control Box (3-Wire Systems Only)
On 3-wire systems, power flows from load terminals T1 and T2 on the pressure switch directly to terminals L1 and L2 inside the control box. Trace color-coded motor conductors exiting the box: Black connects to Main Winding (Terminal B), Red connects to Start Winding (Terminal R), Yellow connects to Common (Terminal Y), and Green/Bare connects to the ground lug. Check the start capacitor for physical bulging or oil leakage. Verify internal start relay continuity across contacts 1 and 2 (normally closed at rest).
A 2-wire submersible pump houses its start components, switch mechanism, and thermal overload built directly inside the submerged motor housing. A 3-wire pump moves these failure-prone components above ground into the external wall-mounted control box, allowing rapid servicing without pulling the drop pipe string out of the well casing.
Step 3: Measure Air Pre-Charge and Hydraulic Balance at the Pressure Tank
Isolate the pressure tank by opening the main drain valve to evacuate all standing water until line gauge displays 0 PSI. Attach an accurate dial or digital tire pressure gauge to the Schrader valve on top of the tank shell. Read the pre-charge pressure. For a standard 40/60 PSI pressure switch configuration, adjust the air charge to precisely 38 PSI using a small oil-less air compressor. If air escapes from the water drain line while depressing the Schrader valve core, the internal bladder has ruptured and the entire vessel requires replacement.
Step 4: Execute Winding Resistance and Megohmmeter Ground Checks
With main power fully disconnected and locked out, disconnect the motor lead wires (Black, Red, Yellow) inside the control box or splice point. Refer to our comprehensive submersible motor winding resistance testing guide to cross-reference OEM resistance charts. Set your DMM to low-ohms ($\Omega$) mode and test resistance across the leads:
- Main Winding: Measure resistance between Black and Yellow leads (typically 1.0 to 4.0 $\Omega$ depending on HP).
- Start Winding: Measure resistance between Red and Yellow leads (typically 3.0 to 12.0 $\Omega$).
- Total Winding: Measure resistance between Black and Red leads (must equal Main + Start winding values within ±0.5 $\Omega$).
- Insulation Resistance to Ground: Connect a 500V DC megohmmeter (Megger) between the Yellow lead and the bare copper/casing ground. A new motor should read >200 Megohms ($M\Omega$). An operational used pump should read >20 $M\Omega$. Any reading below 0.5 $M\Omega$ indicates insulation breakdown in the submersible cable splice or motor windings, requiring pump removal.
Step 5: Verify Hydraulic Sealing at the Pitless Adapter and Wellhead
Inspect the top of the well casing cap. The electrical cable penetrates through an approved watertight conduit seal (bug-proof well cap). Below the frost line, the drop pipe attaches to the female pitless adapter body secured permanently through the casing wall. The male slide fitting attached to the drop pipe utilizes a synthetic O-ring seal to bridge the vertical drop pipe to the horizontal discharge line running to the structure. Apply 35 ft-lbs of torque to the lock-nut mechanism during installation to prevent dynamic drawdown leakage under pressure.
Diagnosing System Failures Using the How Does a Well Pump Work Diagram
When troubleshooting well pump operational anomalies, tracing hydraulic and electrical symptoms against the system schematic prevents unnecessary component replacement. Use a systematic process of elimination starting from the high-voltage power source down to submerged components.
Well pump circuits operate on 230V AC up to 30 Amps. Accidental contact across double-pole breaker legs or energized capacitor terminals can cause severe electrical shock, arcing, or death. Always verify zero potential with a calibrated meter before servicing controls.
Rapid Cycling (Short-Cycling) Hydraulic Symptoms
If the pump motor turns ON and OFF rapidly every few seconds during fixture operation, the system is short-cycling. The schematic indicates that the air cushion in the pressure tank has been absorbed by water (waterlogged). Causes include a torn rubber bladder, a leaking Schrader valve core, or a incorrect pre-charge setting. Running a system in a short-cycling state will overheat the motor windings and weld the mechanical switch contacts closed within days.
Motor Fails to Start (Humming vs. Dead Circuit)
When the pressure switch closes but the motor refuses to turn, check for line voltage across switch terminals T1 and T2. If 230V is present but the motor hums and trips the thermal overload protector:
- On 3-wire systems, test the start capacitor with a DMM capacitance ($\mu F$) setting. Replace if capacitance drops below 10% of rated microfarads listed on the cap body.
- Check the start relay contacts inside the control box for severe pitting or carbon tracking.
- Inspect impellers for mechanical binding due to sand accumulation or scale buildup.
Overcurrent Trips and Low Insulation Resistance Faults
If the main branch circuit breaker trips instantly upon contact closure, a direct phase-to-phase short or phase-to-ground fault exists. Check for heat-damaged wires inside the well cap junction box. A submerged splice exposed to thermal expansion and water movement often chafes against the steel well casing, creating a direct ground fault. In advanced installations using constant pressure VFD drive system configurations, fault codes on the variable frequency drive screen will directly isolate ground faults, high ambient temperature, or dry-well run protection conditions.
Well Pump System Layout and Blueprint Technical FAQ
How do I distinguish between a 2-wire and a 3-wire submersible well pump schematic?
A 2-wire submersible pump schematic shows two insulated power conductors (Black and Red, or Black and Black) plus a bare/green ground wire running directly from the load side of the pressure switch into the well casing. There is no wall-mounted control box. A 3-wire schematic features three distinct insulated power conductors (Black, Red, Yellow) plus a ground running from an above-ground control box down to the motor assembly. The 3-wire layout exposes start components (capacitor and relay) for easier service access above ground.
What is the correct air pre-charge pressure for a well pressure tank, and how is it measured?
The tank air pre-charge must be set precisely 2 PSI below the pressure switch cut-in setting. For example, on a 30/50 PSI system, the pre-charge must be 28 PSI; on a 40/60 PSI system, it must be 38 PSI. To measure pre-charge accurately, turn off main electrical power to the pump, open a low-level tap to completely drain all hydraulic water pressure down to 0 PSI on the system pressure gauge, and check the Schrader valve on top of the tank using a calibrated tire gauge.
Why does my pressure switch chatter or burn out contacts repeatedly?
Pressure switch contact chattering occurs when line pressure fluctuates rapidly at the sensing diaphragm. Common causes include a clogged 1/4-inch NPT switch nipple choked with iron bacteria or hard water scale, a fully waterlogged pressure tank, or placing the pressure switch too far away from the inlet of the tank manifold. Contact burning (arcing) is accelerated by low voltage (voltage drop over long cable runs), loose wire connections, or running an oversized motor without a dedicated magnetic motor starter/contactor.
How do I test submersible pump motor windings for ground faults and open circuits?
Isolate power and disconnect the three motor leads (Black, Red, Yellow) inside the control box. Use a digital multimeter set to low ohms to check winding integrity: measure Black to Yellow (Main Winding) and Red to Yellow (Start Winding). Resistance should match OEM specs (typically 1.0 to 12.0 $\Omega$). To check for ground faults, use a 500V DC megohmmeter connected between any one motor lead and the bare copper grounding wire or well casing metal. Any reading below 0.5 Megohms ($M\Omega$) indicates compromised wire insulation or motor stator winding failure.
What role does the pitless adapter play in frozen ground depth schematics?
The pitless adapter allows the drop pipe string suspended inside the well casing to connect to the horizontal underground discharge pipe below the local frost depth line (typically 36 to 72 inches deep depending on climate). It creates a tight, slide-fitting mechanical connection using an elastomeric O-ring seal that resists system pressure without leakage. This design allows technicians to pull the pump assembly straight up out of the casing using a specialized threaded pitless pull tool without digging up the ground surrounding the well head.
Step-by-Step Guide to Understanding the How Does A Well Pump Work Diagram
Identify – Locate the main power disconnect box, pressure switch, and bladder pressure tank in your utility area.
Locate – Reference the circuit diagram to identify line voltage (L1/L2) and motor load terminals on the pressure switch.
Reference – Trace the water line layout from the well casing pitless adapter through the check valve to the tank tee.
Connect/Route – Wire 230V power supply wires to input terminals and run submersed cable wires down through the well seal.
Verify – Measure tank air pre-charge pressure with power off; set it 2 PSI below the pressure switch cut-in setting.
Troubleshoot – Test system startup and cut-out pressure using a calibrated mechanical pressure gauge while monitoring voltage drop.
