Ford F150 Gas Tank Diagram

The Ford F150 gas tank diagram is a very useful tool for anyone who owns this vehicle. It can help you understand how the fuel system works and how to properly maintain it. The diagram can also be helpful if you ever need to replace any parts of the fuel system.

If you’re looking for a Ford F150 gas tank diagram, you’re in luck. There are a few different ways to find one online, and we’ve compiled a list of the best options below. The first place to check is the Ford website.

If you head to the support section and enter your vehicle information, they should have a diagram available. Another option is to search for “Ford F150 gas tank diagram” on Google. This should bring up a few different results, including some from third-party websites that have collected diagrams from various sources.

Finally, if you still can’t find what you’re looking for, try reaching out to a Ford dealership or mechanic. They may be able to provide you with a diagram or even take a look at your vehicle themselves and tell you where the gas tank is located.

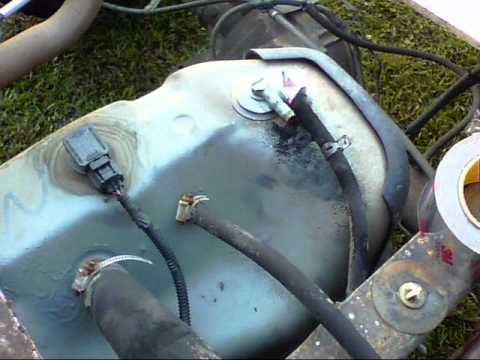

Ford F150 Gas Tank Diagram


How Big is Gas Tank on Ford F150?

Assuming you are referring to a 2015 Ford F-150, the gas tank holds 22 gallons.

How Do I Know If My F150 Fuel Pump is Bad?

If your F-150 is having trouble starting, stalling or running Roughly, it could be a sign of a bad fuel pump. Other symptoms may include hearing a whining noise from the back of the truck when the key is turned on, loss of power while driving up hills and poor fuel economy. To test if your fuel pump is working properly, first check the fuse in the engine bay.

If it’s blown, replace it and see if that fixes the problem. If not, there are a few other ways to test your fuel pump. One way is to use a voltmeter to test the voltage at the fuel pump connector.

With the key in the ON position but the engine off, you should see around 12 volts. If not, then there may be an issue with either the power supply to the pump or ground connection for it. Another way to test for proper operation is by listening to the sound of the pump when turning on the key.

You should hear a slight hum coming from behindthe rear seat area. If not, then this could indicate that either there’s no power getting tothe pump or that it’s seized up and not able to turn on. Ultimately, if you suspect that your fuel pump may be going bad, it’s bestto have somebody with experience take alook at it so they can properly diagnoseand fix any issues that may be present.


How Do You Change a Fuel Pump on a Ford F-150?

Assuming you have a basic understanding of mechanics, changing a fuel pump on a Ford F-150 is not overly difficult. The most important thing is to ensure that you have the correct replacement part for your specific model year and engine size. Once you have the new fuel pump, follow these steps:

1. Disconnect the negative battery cable to prevent any electrical shorts. 2. Relieve the pressure from the fuel system by disconnecting the fuel line at the tank and letting the remaining gasoline run into a container. 3. Remove the gas tank from your truck following the instructions in your owner’s manual.

This will give you better access to the fuel pump which is located inside the tank. 4. Using a small socket wrench, remove the bolts holding down the fuel pump assembly and carefully lift it out of the tank being careful not to damage any of hoses or wires attached to it. Some models will also require that you remove an access panel in order to reach the bolts holding down the assembly.

. If this is case, make sure to put this panel back in place before moving on to step 5 so that nothing falls into your gas tank while it’s open! 5. Take your new fuel pump and install it in reverse order of how you removed the old one making sure all connections are tight and secure before moving on.

. Don’t forget to re-install that access panel if your model required its removal earlier! 6) once everything is reconnected, turn on your ignition (without startingthe engine) for about 2 seconds then turn it off again.

. This will prime thnewfuelpumpand get it ready for use..

Start up your truck and check for any leaks around thnewpumpbefore driving as even a small amount of gasoline leaking can be extremely dangerous!

Where is the Fuel Funnel Located on a F150?

The fuel funnel is located in the same place on a f150 as it would be on any other vehicle. It is located near the gas tank and is used to fill up the gas tank.

1999-2003 Ford F150 gas tank replacement

Ford F150 Rear Fuel Tank Not Working

If you have a Ford F150 with a rear fuel tank that isn’t working, there are a few things you can check. First, make sure that the fuel selector valve is in the correct position. If it’s not, the fuel won’t be able to flow from the rear tank to the engine.

Next, check the fuel lines for any leaks or blockages. If there are any, repair or replace them as necessary. Finally, check the rear fuel tank itself for any cracks or leaks.

If you find any, you’ll need to replace the entire tank. If your Ford F150 has a rear fuel tank that isn’t working properly, don’t despair! There are a few things you can do to troubleshoot the problem and get your truck back on the road.

Ford F150 Gas Tank Size

The Ford F-150 comes in a variety of different models and configurations, so it’s no surprise that the gas tank size varies as well. The base model F-150 has a 23 gallon tank, while the XLT model has an upgraded 26 gallon tank. If you’re looking for even more range, the Lariat model comes with a 36 gallon fuel tank.

So whether you’re using your F-150 for work or play, there’s a gas tank size that will fit your needs.

1995 Ford F150 Fuel Tank Switching Valve

The 1995 Ford F-150 comes with a fuel tank switching valve that allows you to switch between the two fuel tanks. This is a useful feature if you run out of gas in one tank and need to switch to the other. The process is simple and only takes a few minutes.


If you’re looking for a Ford F150 gas tank diagram, you’ve come to the right place. Here at Ford Parts Diagrams, we have a wide selection of diagrams that can help you find the right part for your truck. Whether you need a new gas tank or just want to replace an old one, we have the diagram that will help you get the job done.

We also carry a wide selection of other parts for your Ford truck, so be sure to browse our website before making your final purchase.
