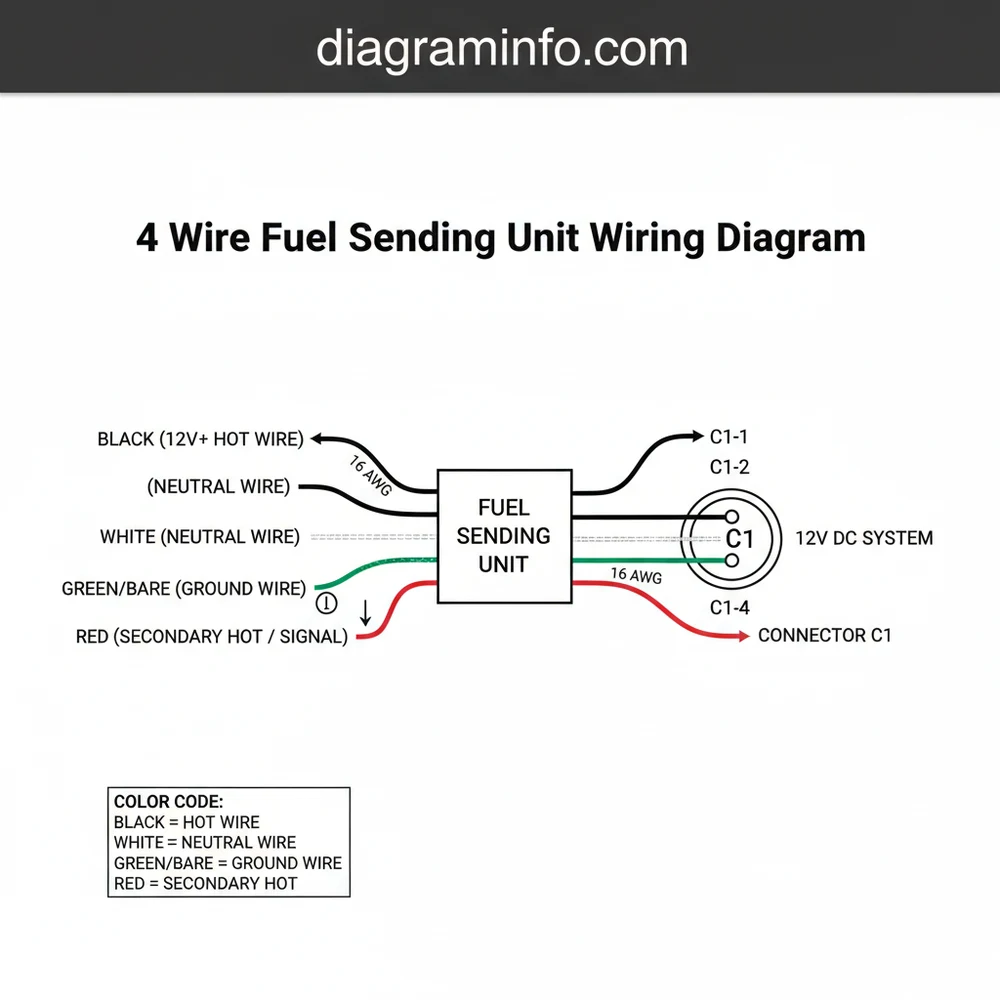

4 Wire Fuel Sending Unit Wiring Diagram 2026: Complete Connection Guide

Accurate fuel system diagnostics and maintenance are critical for optimal vehicle and equipment performance. Successfully wiring a 4-wire fuel sending unit ensures precise fuel level monitoring and can integrate essential functions like low-fuel warnings into your vehicle’s or machinery’s operational systems. This article provides a technically detailed guide, focusing on the specific pin assignments, wire color codes, and connection sequences required for a robust and reliable installation. Understanding this wiring diagram is essential for avoiding common errors that can lead to erroneous gauge readings or system malfunctions, directly impacting operational efficiency and safety.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

WIRE COLOR REFERENCE TABLE

STEP-BY-STEP CONNECTION GUIDE

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Properly connecting a 4-wire fuel sending unit demands meticulous attention to detail to ensure functional accuracy and system longevity. Follow these steps precisely, referencing the diagram above and your specific OEM documentation for terminal identification.

1. Battery Disconnection and Safety Measures: Begin by disconnecting the negative (ground) terminal of the vehicle’s battery. Isolate the fuel pump relay or fuse to de-energize the fuel system, if applicable. Ensure the work area is free from open flames or spark-producing equipment.
2. Identify Sending Unit Terminals and Harness: Locate the 4-wire connector on the fuel sending unit. Refer to the OEM wiring diagram to precisely identify the function of each terminal (S1, G1, S2, G2/P). Match these to the corresponding wires in your vehicle’s harness. Modern units often have molded terminal block identifiers, while older units may require pin-out charts.
3. Connect Fuel Level Signal Wire (S1): Identify the fuel level signal wire from your vehicle’s harness, typically a Tan, Yellow, or Light Green wire according to common automotive wire color code standards. Connect this wire securely to the S1 (Pin 1) terminal of the new 4-wire fuel sending unit. Utilize high-quality, weather-sealed crimp connectors or solder connections with heat-shrink tubing to prevent moisture ingress and ensure a durable, low-resistance connection. This wire carries the variable resistance signal that directly feeds your fuel gauge or engine control unit (ECU). For accurate gauge readings, a clean signal path is paramount.
4. Connect Primary Sensor Ground Wire (G1): Locate the dedicated sensor ground wire in your vehicle’s harness, commonly Black or Brown. Connect this wire to the G1 (Pin 2) terminal of the sending unit. This ground provides the essential return path for the fuel level sensor circuit. An inadequate or high-resistance ground connection here will lead to erratic or inaccurate fuel gauge readings. Ensure this ground connection is robust and free from corrosion. According to best practices in automotive electrical systems, this ground should ideally return to the main chassis ground or a dedicated sensor ground input at the ECU.
5. Connect Low Fuel Warning Signal Wire (S2): Identify the low fuel warning signal wire from your vehicle’s harness, which might be Dark Blue, Grey, or Pink. Connect this wire to the S2 (Pin 3) terminal on the sending unit. This circuit typically activates a dashboard warning light when fuel levels drop below a critical threshold. The nature of this signal (e.g., switched ground, switched positive, or variable thermistor output) varies by OEM, so confirm the required input at your warning light module or ECU.
6. Connect Warning Circuit Ground/Power Wire (G2/P): The fourth wire’s function (G2/P / Pin 4) is crucial. If it’s a dedicated ground for the low-fuel warning circuit (common), connect it to the corresponding ground wire in your harness (often Black with a tracer, or a shared ground). If manufacturer specifications indicate it’s a switched 12V power input for an active low-fuel sensor, connect it to a fused ignition-switched 12V supply. Verifying the specific design of your sending unit is non-negotiable here. A common mistake is misinterpreting this wire, leading to a non-functional warning system.
7. Secure and Protect Connections: Once all connections are made, inspect them for integrity. Ensure there are no exposed conductors. Use loom, zip ties, and appropriate mounting hardware to secure the wiring harness away from moving parts, sharp edges, and excessive heat sources. This prevents abrasion, short circuits, and premature wire degradation.
8. Initial Testing and Calibration: Reconnect the battery and re-enable the fuel pump circuit. Turn the ignition to the ‘ON’ position (without starting the engine). Observe the fuel gauge; it should move to reflect the current fuel level. If equipped, check the low fuel warning light functionality by cycling the ignition or by manually triggering the low fuel switch if accessible. In some applications, particularly with new ECU installations or gauge clusters, calibration of the fuel gauge may be necessary. Refer to your vehicle’s service manual for specific calibration procedures, which often involve using a diagnostic scanner or performing a specific key-cycle sequence. A stable voltage supply to the gauge (typically 12V reference) is critical for accurate readings.

COMMON WIRING MISTAKES & TROUBLESHOOTING

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Even for seasoned technicians, errors can occur when dealing with complex electrical systems. Understanding common pitfalls and their remediation is key to efficient troubleshooting.

1. Incorrect Ground Wire Connection:

   Consequence: The most frequent cause of erratic or permanently pegged (full or empty) fuel gauge readings. If the sensor ground (G1) is not properly connected to a solid chassis or sensor ground, the resistance signal from the sending unit cannot be accurately measured by the fuel gauge or ECU. Similarly, a poor ground for the warning circuit can cause intermittent or non-functional warning lights.

   Fix: Verify continuity between the sending unit’s ground wire (G1 and G2 if separate) and a known good chassis ground point using a multimeter. Expect less than 0.5 ohms of resistance. Inspect for corrosion, loose terminals, or damaged wire insulation. For critical sensor grounds, ensure a direct, low-resistance path to the ECU’s sensor ground reference.
2. Reversed Signal and Power/Ground Wires:

   Consequence: This can lead to incorrect gauge readings (e.g., empty when full, or vice versa), short circuits, or even damage to the sending unit or the connected gauge/ECU if the sending unit relies on specific voltage inputs for internal electronics. For active sensors, applying ground to a power input or vice-versa can be destructive.

   Fix: Always double-check the OEM wiring diagram against your connections. Use a multimeter to verify voltage presence on power wires (e.g., 12V) and ground continuity on ground wires before making final connections. If a voltage reference is expected at the gauge’s input, confirm it is present from the dash harness side. According to industry best practices, never assume wire functions based solely on color without manufacturer confirmation.

3. Using Incorrect Wire Gauge:

   Consequence: While less critical for signal wires carrying very low current, using an undersized wire for a ground or power feed (especially if the 4th wire is a power input) can introduce excessive resistance into the circuit. This results in voltage drop, signal degradation, and inaccurate readings. It can also lead to overheating if current draw is higher than anticipated (e.g., if the sending unit also supplies power to a small internal pump, though this is rare for a “sending unit” exclusively).

   Fix: Always match or exceed the original wire gauge specified by the OEM. Common automotive signal wires are typically 18-22 AWG, while power and primary ground wires might be 16-14 AWG depending on current requirements. For reference, ensure your wiring adheres to SAE J1128 or equivalent standards for automotive applications.

4. Loose or Corroded Connections:

   Consequence: Intermittent gauge readings, flickering low fuel lights, or complete circuit failure. Corrosion increases resistance, distorting the signal from the sending unit. Loose connections can momentarily break the circuit, causing unpredictable behavior.

   Fix: Inspect all crimps and solder joints. Ensure they are clean, tight, and properly insulated. Use dielectric grease on exposed terminals within connectors to prevent moisture and corrosion. If using spade terminals, ensure they fit snugly and are not bent or fatigued. Manufacturer specifications often include torque values for bolted connections where applicable.
5. Misunderstanding Sending Unit Type (Resistive vs. Active):

   Consequence: While this article primarily discusses a common resistive sender with an auxiliary switch, some modern 4-wire units might be active (e.g., Hall effect or capacitive sensors) requiring precise voltage references (e.g., 5V or 12V) and producing a voltage-based or PWM signal, not a variable resistance. Incorrectly wiring an active sensor as a passive resistive one will result in no reading or damage.

   Fix: Always confirm the specific technology of your 4-wire sending unit from the manufacturer’s data sheet. Active sensors will have distinct power (Vcc), ground, and signal output pins. Resistance-based senders typically vary resistance between the signal and ground pins. Referencing technical bulletins or fuel pump wiring diagrams for the specific vehicle can provide additional context.

FAQ

Why do some fuel sending units have 4 wires, and others only 2 or 3?

The number of wires on a fuel sending unit reflects its functionality beyond simply reporting fuel level. A 2-wire unit typically provides only the resistive signal for the fuel gauge (signal and ground). A 3-wire unit often adds a dedicated power or ground for an auxiliary function like a low-fuel warning light, or sometimes for a separate sensor ground. A 4-wire unit, as detailed here, commonly includes both the primary fuel level signal and its ground, plus an independent circuit for a low-fuel warning or an additional sensor, each potentially with its own signal/power and ground. This modularity allows for more robust system integration, separating critical functions like fuel gauge readings from warning systems.

What voltage should I expect on the signal wire?

For a traditional resistive 4-wire fuel sending unit, the signal wire (S1) carries a voltage that varies with the resistance of the sender. This voltage is typically a division of a reference voltage supplied by the fuel gauge or ECU. You won’t measure a direct “output voltage” from the sender itself in the same way you would an active sensor. Instead, the gauge/ECU applies a small voltage (often 5V or 12V, depending on the system) across the sender and measures the resulting voltage drop or current flow. A full tank typically results in a low resistance (e.g., 0-30 ohms), while an empty tank results in high resistance (e.g., 200-280 ohms), causing the measured voltage to fluctuate accordingly. Always consult the OEM specifications for expected resistance ranges at various fuel levels.

How can I test a 4-wire fuel sending unit for proper operation?

To test the fuel level sensor, disconnect the unit’s connector and use an ohmmeter to measure resistance between the signal wire (S1) and its dedicated ground (G1). The resistance should change smoothly as the float arm is manually moved from empty to full. Consult your vehicle’s service manual for the specific empty and full resistance values (e.g., 0-30 ohms empty, 200-280 ohms full). For the low fuel warning circuit, test continuity or resistance across the warning signal wire (S2) and its associated ground/power (G2/P). This circuit often acts as a simple switch, closing or opening at a specific fuel level. Some thermistor-based warning sensors will show a change in resistance with temperature, which correlates to fuel level exposure. For more advanced fuel system diagnostics, specialized scan tools may be required to read direct ECU inputs.

Can a 4-wire fuel sending unit be used with a 2-wire fuel gauge?

Typically, yes, if the 4-wire sending unit’s primary fuel level signal (S1) and its dedicated ground (G1) are isolated and compatible with the 2-wire gauge’s input requirements. You would connect the 2-wire gauge’s signal input to S1 and its ground to G1. The remaining two wires for the low fuel warning system would simply be left unconnected or terminated safely. However, ensure the resistance range of the 4-wire sender matches the expected input range of your 2-wire gauge (e.g., both 0-90 ohm or 0-240 ohm systems). Mixing incompatible resistance ranges will result in inaccurate readings. Always verify system compatibility before attempting such an adaptation.
