Ford EFI Fuel Return Line Diagram: Proper Routing 2026

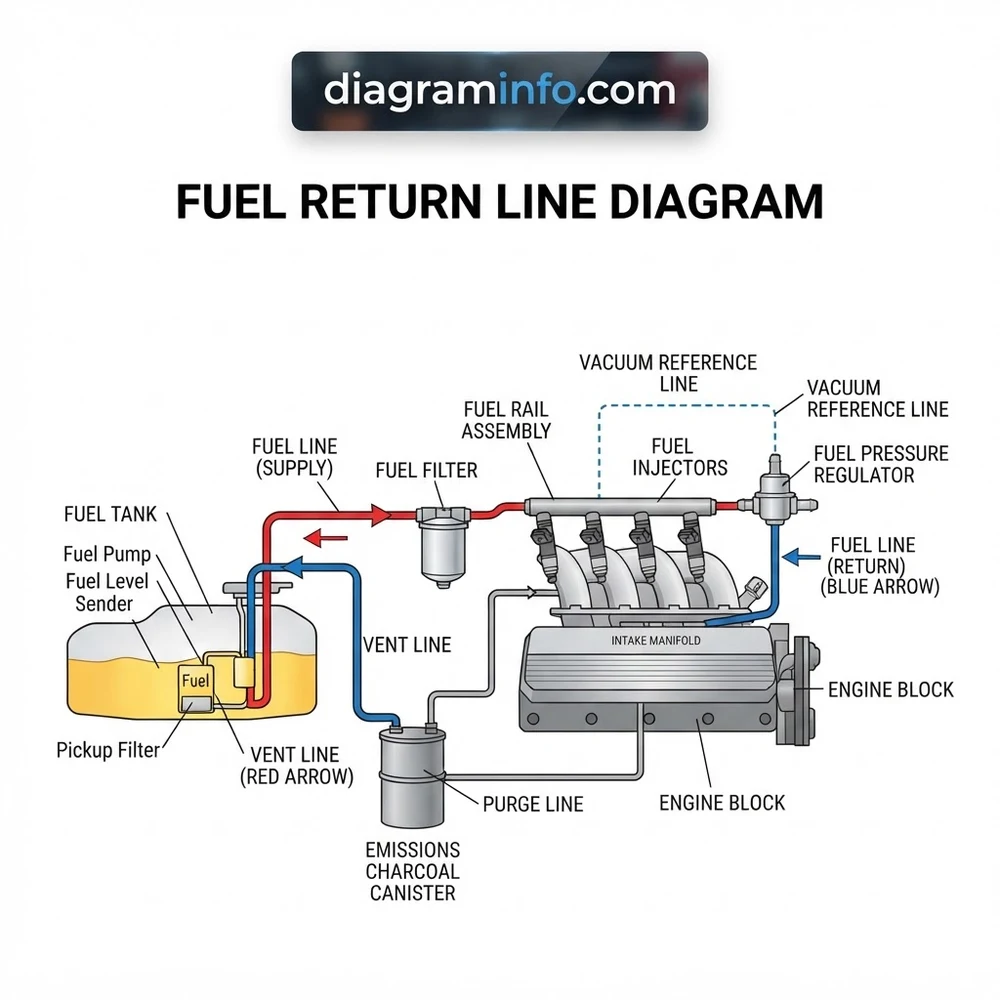

The fuel return line diagram illustrates low-pressure (3–10 PSI) excess fuel routing from the fuel rail regulator back to the fuel tank. Starting at the return outlet of the fuel pressure regulator, it routes via quick-connect fuel hoses along the chassis rail directly to the return port on the fuel sending unit.
📌 Key Takeaways
- Operates at low pressure (3-10 PSI) compared to high-pressure supply lines (35-65 PSI).
- Identified by smaller diameter hose connections (typically 5/16 inch vs 3/8 inch feed line).
- Requires fuel-rated hose clamps torqued to 15-20 in-lbs or factory quick-connect fittings.
- Restricted return lines cause high rail pressure, rich air-fuel mixtures, and black exhaust smoke.
- DIY friendly for hose replacement, but high-pressure system depressurization must be performed first.
Modern internal combustion engines—both diesel and gasoline direct injection (GDI)—rely on precise thermal and pressure management within the fuel delivery circuit. A fuel return line diagram serves as the critical technical blueprint for tracing low-pressure fuel routed from the fuel rail or injection pump back to the reservoir. Understanding this schematic layout is essential for preventing vapor lock, maintaining accurate fuel pressure regulator operation, and diagnosing hard-start conditions. Whether servicing heavy equipment or modern automotive powertrains, reading this diagram correctly ensures system integrity and prevents catastrophic high-pressure pump cavitation.
Anatomy of a Fuel Return Line Diagram: Key Components and Layout
A standard fuel return line diagram depicts the pathway used to divert unburned fuel back to the fuel tank. This circuit stabilizes rail pressure, cools high-pressure pumps, and removes air bubbles from the fuel gallery. In a modern fuel return line structure, several core components must be identified to perform complete system diagnostics.
Fuel Pressure Regulator Bypass Port
The fuel pressure regulator (FPR) acts as the boundary between the high-pressure supply side and the low-pressure return side. Located at the discharge end of the fuel rail or integrated into the injection pump, the FPR uses a spring-loaded diaphragm to vent excess fuel once target system pressure (typically 35–65 PSI on gasoline EFI systems or up to 29,000 PSI upstream in common rail diesel units) is exceeded. The outlet port connects directly to the hard line return circuit.
Fuel Cooler and Thermal Management Loops

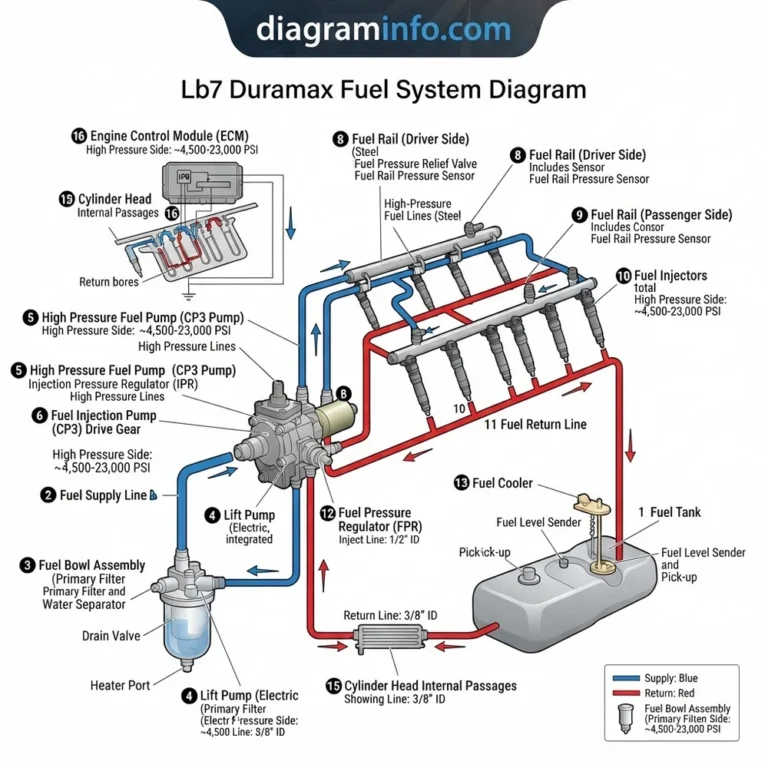

In heavy equipment and common rail diesel applications, fuel absorbs significant heat as it lubricates high-pressure pump pistons and cooling galleries. As shown in the diagram layout, fuel returning from the injectors can reach temperatures exceeding 180°F (82°C). To protect plastic fuel tank bladders and reduce fuel vapor pressure, a finned air-to-liquid fuel cooler is plumbed inline along the chassis return line.
Tank Return Siphon and Jet Pump Assemblies
In saddle-style or dual-chamber fuel tanks, the return flow is engineered to drive a passive siphon jet pump (venturi pump). The kinetic energy of returning fuel creates a localized vacuum that transfers fuel from the passive side of the tank to the active pump module side, maintaining active fuel level around the lift pump strainer.
According to OEM service manuals, fuel return line quick-connect fittings generally conform to SAE J2044 standards (5/16″ or 3/8″ sizes). Torque specs for return line banjo bolts on fuel rails typically range between 18–22 lb-ft (24–30 Nm). Always replace copper crush washers during reassembly.
| Component Name | Schematic Symbol / Line Type | Operating Pressure | Primary Material / Seal Type |
|---|---|---|---|
| Fuel Pressure Regulator Outlet | Solid Low-Pressure Line (Blue/Green) | 3 – 10 PSI (0.2 – 0.7 bar) | Viton (FKM) O-Rings / Aluminum Body |
| Diesel Injector Spill Line | Dashed / Thin Connector Line | 0.5 – 3.0 bar (Backpressure Dependent) | Braided Hose / Quick-Release Clips |
| Chassis Return Hardpipe | Continuous Medium Line | < 15 PSI (< 1.0 bar) | Fluoropolymer-Lined Steel or Nylon 12 |
| Siphon Jet Venturi Tee | Y-Junction / Directional Arrow | 5 – 8 PSI Venturi Flow | Molded Thermoplastic / Integrated Nozzle |
Tracing Fuel Return Line System Schematics: Step-by-Step Analysis
When analyzing a fuel return line diagram for maintenance or diagnostic mapping, you must follow the hydraulic flow logically from high-pressure points to the low-pressure reservoir return point.
Identifying High-to-Low Pressure Circuit Transition Points
Locate the primary supply pump and trace high-pressure fuel lines up to the fuel rail. As shown in the diagram above, the return circuit originates immediately after the high-pressure threshold components. On gasoline port-injected systems, this transition point is the pressure regulator vacuum-referenced port. On common rail diesel platforms, return points exist at both the high-pressure pump spill valve and individual injector back-leakage nipples. For deeper information on high-pressure delivery dynamics, consult our analysis on high-pressure common rail system layout schematics.
Reading Schematic Symbols and Line Weight Conventions
In OEM electrical and hydraulic blueprints, line weight and style differentiate supply lines, return lines, and vapor recovery circuits:
- Thick Solid Line: High-pressure fuel feed from lift pump or high-pressure pump to rail.
- Medium Solid/Dashed Line: Low-pressure return fuel returning to tank.
- Dot-Dash Line: EVAP / Tank vapor recovery lines routed to the carbon canister.
- Directional Arrows: Fluid flow direction away from engine bay back to the fuel module.
Always cross-reference line colors when tracing physical chassis bundles. Manufacturers frequently color-code fuel lines near quick-connect junctions: blue or green clips generally signify return lines, while white or gray clips designate high-pressure feed lines. For diagnostic steps on checking regulator operation, review our guide on fuel pressure regulator testing procedures.
Mapping Chassis Line Routing and Quick-Connect Assemblies
Follow the physical or schematic path as the return line runs along the vehicle frame rails. The configuration must bypass hot exhaust components by at least 4 inches (100 mm) or utilize heat shielding. Note all quick-disconnect junction points, check valves, and inline strainers depicted on the diagram layout to ensure no hidden check valves are missed during line purging.
Troubleshooting Systems Using the Fuel Return Line Blueprint
System failures on the return side cause noticeable operational symptoms, including rich running conditions, high fuel rail pressure, engine stalling, or physical fuel leakage from injector seals.
Diagnosing Excessive Return Line Backpressure
A pinched, kinked, or clogged return pipe causes fuel backpressure to build behind the pressure regulator. Because regulators operate on differential pressure, elevated return line pressure adds directly to fuel rail pressure. For example, if return backpressure rises by 15 PSI due to a pinched hose under the cab, rail pressure will rise from 43.5 PSI to 58.5 PSI. This causes severe rich fuel trims, spark plug fouling, and oxygen sensor codes (e.g., P0172).
Excessive backpressure in diesel return lines (> 1.5–2.0 bar) can blow off piezoelectric injector return clips or unseat internal injector hydraulic valves, causing catastrophic uncontrolled cylinder fueling and engine runaway. Never cap off or pin down a return line on a running diesel engine.
Performing Injector Bleed-Off Diagnostics
Using the fuel return line diagram configuration as a roadmap, technicians can isolate individual cylinder return lines (bleed-off lines) on common rail diesel engines. By plumbing clear sight tubes into each injector return port and cranking the engine, you can visually measure return fluid volume. An injector returning significantly more fuel than OEM specifications indicates worn internal needle seats or leaking control valves, leading to long-crank or no-start conditions due to loss of rail pressure build-up. To understand how vapor systems interact with tank pressures, reference our guide on fuel tank vapor recovery line schematics.
Fuel Return Line Diagram Configuration FAQs
What is the standard operating pressure inside a fuel return line system?
Under normal operating conditions, a fuel return line operates under low pressure, typically between 3 and 10 PSI (0.2 to 0.7 bar) on gasoline EFI vehicles. On piezoresistive diesel common rail systems (such as Bosch CP4 layouts), return backpressure is precisely held by a hold-pressure valve between 10 and 15 PSI (0.7 to 1.0 bar) to ensure proper internal hydraulic dampening of the injectors.
Why do diesel fuel return line schematics include a fuel cooler?
High-pressure diesel pumps squeeze fuel to extreme pressures (up to 2,000+ bar), generating significant thermal energy. Excess fuel returned from the injectors and pump can reach temperatures capable of melting plastic fuel tank components or causing thermal degradation of the main fuel supply. The inline cooler drops return fluid temperatures below 140°F (60°C) before it re-enters the tank manifold.
Can a restricted return line cause high fuel rail pressure?
Yes. Any physical restriction, corrosion blockage, or pinched hose along the return path prevents excess fuel from exiting the rail. This forces the regulator diaphragm shut, elevating systemic line pressure on the supply side, leading to over-fueling, black exhaust smoke, rich engine codes, and accelerated pump motor wear.
How do returnless fuel systems differ from return-style diagrams?
In a returnless fuel system (ERFS), there is no return line running from the engine bay back to the tank. Instead, the pressure regulator and return bypass circuit are located entirely inside the fuel tank module. The fuel return line diagram for a returnless setup only shows a single supply line exiting the tank, controlled dynamically by a Pulse-Width Modulated (PWM) fuel pump driver module based on rail pressure sensor feedback.
