3.6 liter 2013 Chevy Impala 3.6 Belt Diagram: Routing 2026
For the 2013 Chevy Impala 3.6L, the serpentine belt routing typically begins at the crankshaft pulley, then goes over the A/C compressor, under the alternator, over the power steering pump, and around the idler pulley and automatic belt tensioner. Always refer to the under-hood diagram for the exact path.
📌 Key Takeaways
- The typical serpentine belt for the 2013 Impala 3.6L is Gates K060930 or equivalent, measuring 93.0 inches effective length.
- Always verify the belt routing path against the pulley diagram located under the hood or in the service manual for critical identification.
- To release tension, use a 15mm wrench or socket on the belt tensioner pulley bolt and rotate clockwise to relieve pressure.
- Most common failure points include a worn belt, failing belt tensioner, or a seized idler pulley, often leading to squealing or slipping.
- Seek professional help if the belt routing is unclear, if components like the tensioner are seized, or if complex diagnostics are required beyond simple replacement.
Understanding the correct serpentine belt routing for your 2013 Chevrolet Impala with the 3.6-liter V6 engine is paramount for maintaining optimal vehicle performance and preventing unexpected breakdowns. This single multi-ribbed belt drives several critical auxiliary components, including the alternator, power steering pump, water pump, and air conditioning compressor. Incorrect routing can lead to component malfunction, premature belt wear, and even engine overheating due to a non-functional water pump. This comprehensive guide provides the precise routing, part specifications, and maintenance insights specific to your vehicle.
Belt Part Numbers
Selecting the correct serpentine belt is critical for proper system function and longevity. Always prioritize OEM (Original Equipment Manufacturer) or high-quality aftermarket equivalents that meet or exceed GM’s specifications. The dimensions listed are nominal and may vary slightly between manufacturers.
| Belt Type | OEM Part # (ACDelco) | Dimensions (Nominal) | Compatible Models (Examples) |
|---|---|---|---|
| Serpentine Drive Belt | ACDelco 6K930 | 6-rib, 93.0 inches (2362 mm) effective length | 2012-2013 Chevy Impala 3.6L, 2010-2017 Chevy Equinox 3.6L, 2010-2017 GMC Terrain 3.6L, various other GM 3.6L applications |
| Serpentine Drive Belt (Alternative) | Gates K060930 / Dayco 5060930 | 6-rib, 93.0 inches (2362 mm) effective length | Direct aftermarket replacement for OEM specification |
While OEM part numbers are provided, always cross-reference with your specific vehicle’s VIN and current component specifications, especially if aftermarket components like oversized alternators or underdrive pulleys have been installed. Belt length requirements can change with such modifications.
Step-by-Step Routing Instructions

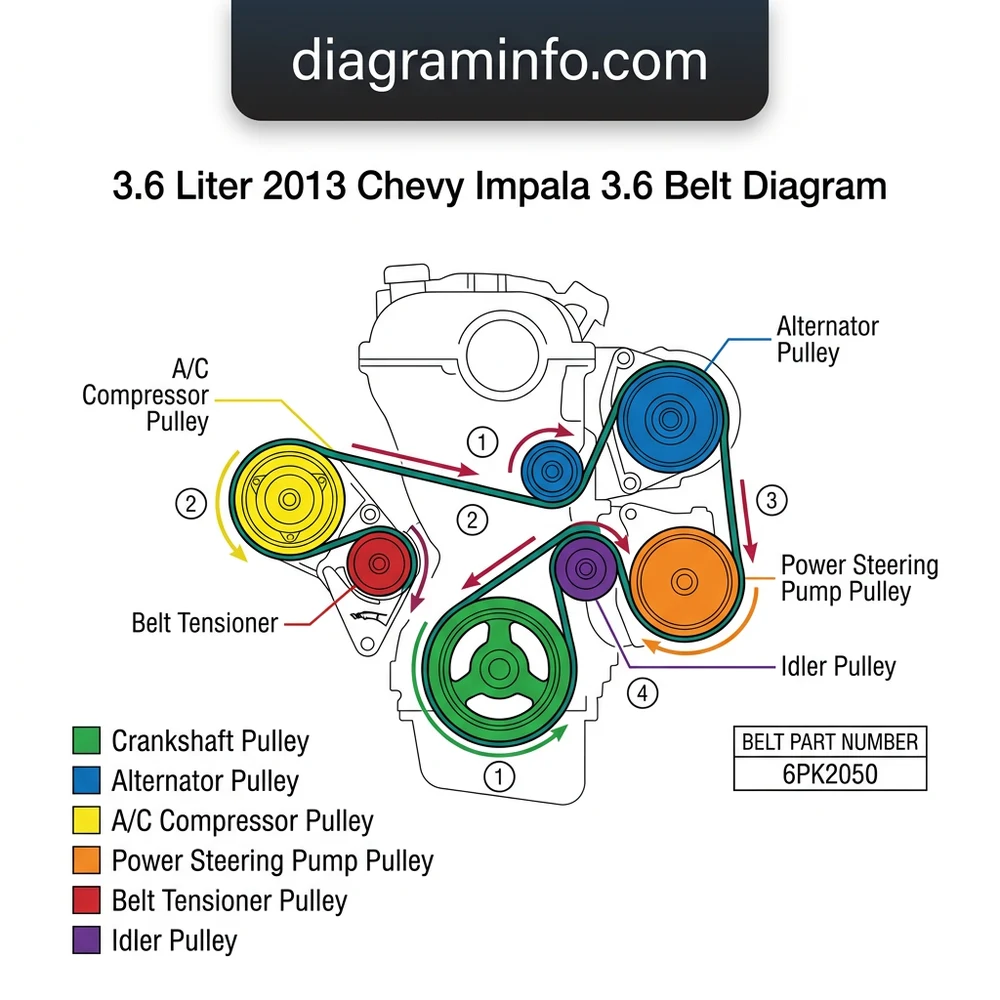

Accurate serpentine belt routing is crucial for the proper operation of all engine accessories. The following instructions detail the path for the 2013 Chevrolet Impala 3.6L V6 engine, referencing the common pulley arrangement. Refer to the diagram above as you follow these steps.
- Crankshaft Pulley (1): Begin by wrapping the belt around the bottom-most pulley, which is the crankshaft pulley. Ensure the ribbed side of the belt makes full contact with the crankshaft pulley. This pulley is the primary driver for all accessories.
- A/C Compressor Pulley (2): From the crankshaft, route the ribbed side of the belt upwards and to the right (when viewed from the front of the engine) around the A/C compressor pulley. The belt should enter from the bottom and exit towards the top of this pulley.
- Idler Pulley (3 – Lower): Continue from the A/C compressor, directing the ribbed side of the belt over the top and then under the lower idler pulley. This pulley typically has a smooth surface as the non-ribbed side of the belt runs over it, guiding the belt path.
- Water Pump Pulley (4): After passing the lower idler pulley, guide the ribbed side of the belt upwards and to the left, wrapping it around the water pump pulley. This pulley is crucial for cooling system operation.
- Power Steering Pump Pulley (5): From the water pump, continue routing the ribbed side of the belt to the left and slightly upwards, over the power steering pump pulley. Proper engagement here ensures power assist for steering.
- Alternator Pulley (6): Next, direct the ribbed side of the belt from the power steering pump pulley to the top-most pulley on the engine, the alternator pulley. This pulley is responsible for charging the vehicle’s electrical system.
- Idler Pulley (7 – Upper): From the alternator, route the smooth (back) side of the belt over the top of the upper idler pulley. This pulley typically has a smooth surface, providing tension or guiding the belt without direct rib-to-rib contact.
- Automatic Belt Tensioner Pulley (8): Finally, bring the belt down from the upper idler pulley to the automatic belt tensioner pulley. The ribbed side of the belt will pass under this pulley. This is the last point of contact before returning to the crankshaft pulley, and it is where you will leverage a tool to relieve tension for removal or installation.
Ensure that the belt is seated correctly in all pulley grooves, with no ribs hanging over or misaligned. Double-check that the belt is not twisted anywhere along its path. A correctly routed belt will appear taut, with all ribbed surfaces engaging ribbed pulleys and smooth surfaces engaging smooth idlers/tensioners as depicted in the diagram.
Before initiating belt installation, inspect all pulley surfaces for wear, damage, or contamination. Bearings in idler and tensioner pulleys should spin freely with minimal resistance and no abnormal noise. Refer to our detailed guide on Auxiliary Pulley Inspection and Replacement for further diagnostic information.
Tension & Adjustment Notes
The 2013 Chevrolet Impala 3.6L engine utilizes an automatic belt tensioner to maintain optimal belt tension. This component is crucial as it compensates for minor belt stretch and ensures consistent engagement across all pulleys, preventing slipping or excessive load on accessory bearings. Unlike older systems that required manual adjustment, the automatic tensioner uses spring pressure to keep the belt taut.
To check the tensioner’s operation, observe its arm while the engine is running. A properly functioning tensioner will maintain steady tension without excessive vibration or movement. If the tensioner arm bounces excessively, appears stuck, or makes grinding noises, it indicates a failing unit that requires immediate replacement. A common symptom of a failing tensioner is belt squeal, even with a new belt.
When installing or removing the belt, a specialized serpentine belt tool or a long breaker bar and socket is required to rotate the tensioner arm. Locate the square drive opening on the tensioner body, typically a 3/8″ or 1/2″ drive, and apply counter-clockwise (or clockwise, depending on the specific design) pressure to relieve tension and allow belt removal or installation. Always release tension slowly to avoid sudden movements that could damage the tensioner or other components.
Never attempt to operate the engine with incorrect belt routing or a malfunctioning tensioner. Doing so can lead to severe damage to engine accessories, battery discharge, or engine overheating. Always ensure the tensioner is correctly positioned and applying appropriate force after belt installation. If you are unsure about the tensioner’s functionality, consult the service manual for diagnostic procedures or seek professional assistance.
Manufacturer specifications indicate that the tensioner should be replaced if it shows signs of weakened spring tension, excessive pivot wear, or if the belt cannot be adequately tensioned. While the tensioner itself does not have a specific service interval, it is often replaced concurrently with the serpentine belt as a preventative measure, especially at higher mileage. Maintaining proper belt tension is integral to the longevity of the entire auxiliary drive system. For detailed diagnostic steps on the electrical system components, review our article on Diagnosing Alternator and Battery Issues.
While applying torque to the tensioner’s square drive for belt removal/installation is a temporary action, if the tensioner mounting bolt requires removal (for replacement), refer to the OEM service manual for the precise torque specification, typically in the range of 30-40 lb-ft (40-54 Nm) for aluminum engine blocks. Over-torquing can strip threads, and under-torquing can lead to tensioner failure.
FAQ
What is the typical service life for a serpentine belt on a 2013 Chevy Impala 3.6L?
According to general OEM recommendations and industry standards, a serpentine belt typically has a service life of 60,000 to 100,000 miles, or approximately 5-7 years, whichever comes first. However, this is a guideline. Factors such as severe operating conditions (extreme temperatures, dusty environments), frequent short trips, or accessory failures (e.g., a seized pulley) can significantly reduce belt life. Regular visual inspection for cracks, fraying, glazing, or missing ribs is more critical than strictly adhering to a mileage interval. If any damage is observed, immediate replacement is advised.
What are the common symptoms of a failing serpentine belt or tensioner?
Several indicators point to issues with the serpentine belt or its tensioner. The most common symptom is a squealing or chirping noise from the engine compartment, particularly during startup, acceleration, or in wet conditions. Other symptoms include a noticeable loss of power steering assist, an uncharged battery (due to alternator failure), an illuminated battery or check engine light, engine overheating (due to water pump failure), or a non-functioning air conditioning system. A visual inspection might reveal cracks, frayed edges, glazing on the belt’s surface, or excessive wobbling or bouncing of the tensioner pulley.
What tools are essential for replacing the serpentine belt on this vehicle?
For replacing the serpentine belt on a 2013 Chevy Impala 3.6L, you will primarily need a serpentine belt tool or a long breaker bar (typically 24 inches or longer) with an appropriate socket to fit the square drive of the automatic belt tensioner (often 1/2-inch or 3/8-inch drive). Depending on engine bay access, a universal joint or extension for your ratchet might also be beneficial. No special diagnostic equipment is generally required for the physical replacement, but a torque wrench is essential if you plan to replace the tensioner itself and need to correctly torque its mounting bolt. For a complete overview of recommended shop tools, refer to our article on Essential Automotive Service Tools.
Why does my new serpentine belt squeal after installation?
A new serpentine belt squealing after installation is a common issue with several potential causes. Firstly, ensure the belt is correctly routed as per the diagram; a single misaligned rib can cause noise. Secondly, the tensioner might be faulty; even with a new belt, a weak or seized automatic tensioner will fail to apply adequate pressure, leading to slippage. Thirdly, inspect all pulleys for contamination (oil, coolant), excessive wear, or seizing. A worn pulley or a component with a failing bearing (e.g., alternator, A/C compressor) can cause the new belt to slip or wear prematurely. Finally, some new belts can temporarily squeal due to manufacturing residues, which usually dissipates after a few minutes of operation; however, persistent squealing warrants further investigation.
Can I drive my Impala if the serpentine belt breaks?
No, driving your 2013 Chevrolet Impala 3.6L with a broken serpentine belt is strongly discouraged and can lead to severe engine damage. A broken serpentine belt means that essential components like the alternator, water pump, power steering pump, and A/C compressor are no longer functioning. This will quickly lead to an uncharged battery (stalling the vehicle), rapid engine overheating (potentially warping cylinder heads or cracking the engine block), and loss of power steering assist, making the vehicle difficult and dangerous to control. If the serpentine belt breaks, pull over safely as soon as possible and arrange for towing. Operating the vehicle even for a short distance can result in costly repairs that far outweigh the cost of a tow.
Frequently Asked Questions
What is the part number for the serpentine belt on the 2013 Chevy Impala 3.6L?
The common OEM equivalent serpentine belt part number for the 2013 Chevy Impala 3.6L is Gates K060930 (GM P/N 12628468). This specifies a 6-rib belt with an effective length of approximately 93.0 inches. Always cross-reference with your specific vehicle’s build code and check the existing belt for any markings.
How do I route the serpentine belt on the 2013 Chevy Impala 3.6L correctly?
Refer to the belt routing path diagram under the hood, usually on the fan shroud or radiator support. The belt typically runs from the crankshaft, over the A/C compressor, under the alternator, over the power steering pump, then around the idler pulley and belt tensioner. Ensure all ribs align perfectly with the grooves on each pulley.
What size belt does the 2013 Chevy Impala 3.6L use?
The 2013 Chevy Impala 3.6L typically uses a 6-rib serpentine belt with an effective length of 93.0 inches. Belt part numbers like Gates K060930 or Dayco 5060930 are common replacements. Always verify the part number against your vehicle’s specifications or existing belt, as minor variations can occur.
How do I adjust belt tension on the 2013 Chevy Impala 3.6L?
The 2013 Impala 3.6L uses an automatic belt tensioner, so manual adjustment isn’t required. To relieve tension for removal or installation, use a 15mm wrench or socket on the tensioner’s center bolt/square drive and rotate it clockwise. The tensioner spring maintains optimal belt tension automatically.
What causes the serpentine belt on the 2013 Chevy Impala 3.6L to slip?
Belt slippage commonly results from a worn or glazed belt, a failing automatic belt tensioner, or a seized/damaged idler pulley or accessory pulley. Oil or fluid contamination on the belt or pulleys can also cause slippage. Inspect all components for wear, damage, or leaks to diagnose.
Can I replace the serpentine belt on the 2013 Chevy Impala 3.6L myself?
Yes, replacing the serpentine belt is a common DIY task for the 2013 Impala 3.6L. You’ll need basic hand tools, primarily a 15mm wrench or breaker bar. Ensure you have the correct belt routing path diagram and the new belt (using the correct belt part number) before starting. Proper safety precautions, like disconnecting the battery, are recommended.
