12V Victron Solar Pond Pump Setup Diagram: Guide 2026
To wire this 12V system, connect the 12V battery to the MPPT controller’s BATT terminals first using 10 AWG fused wire (15A fuse). Next, connect the PV solar panel to the PV input terminals observing polarity (+ red, – black). Finally, wire the 12V pond pump to the MPPT LOAD terminals or direct to battery via a switch.
📌 Key Takeaways
- Always connect the 12V battery to the MPPT charge controller before connecting the solar panel to prevent controller damage.
- Use 10 AWG to 12 AWG copper wire for solar input and battery connections, incorporating an inline 15A fuse near the positive battery terminal.
- MPPT (Maximum Power Point Tracking) controllers boost charging efficiency by 15% to 30% compared to standard PWM controllers in solar pump systems.
- Connecting a 12V submersible pond pump directly to the MPPT load output terminal provides low-voltage disconnect protection for the battery.
- Verify correct solar panel VOC (Open Circuit Voltage) stays within the MPPT controller’s maximum voltage threshold (typically under 25V for 12V systems).
Designing an off-grid solar water circulation system requires precise electrical engineering to ensure component longevity and continuous fluid movement. Integrating a solar panel, Maximum Power Point Tracking (MPPT) charge controller, 12V deep-cycle battery bank, and a 12V submersible or inline pond pump creates an efficient, self-sustaining DC circuit. Unlike direct PV-to-pump arrangements, adding an MPPT controller and a battery buffer stabilizes working voltage, preventing pump stall under overcast conditions and enabling nocturnal aeration. This technical guide breaks down the complete electrical configuration, wire sizing standards, overcurrent protection placement, and operational logic required to build and maintain a reliable off-grid pumping system.

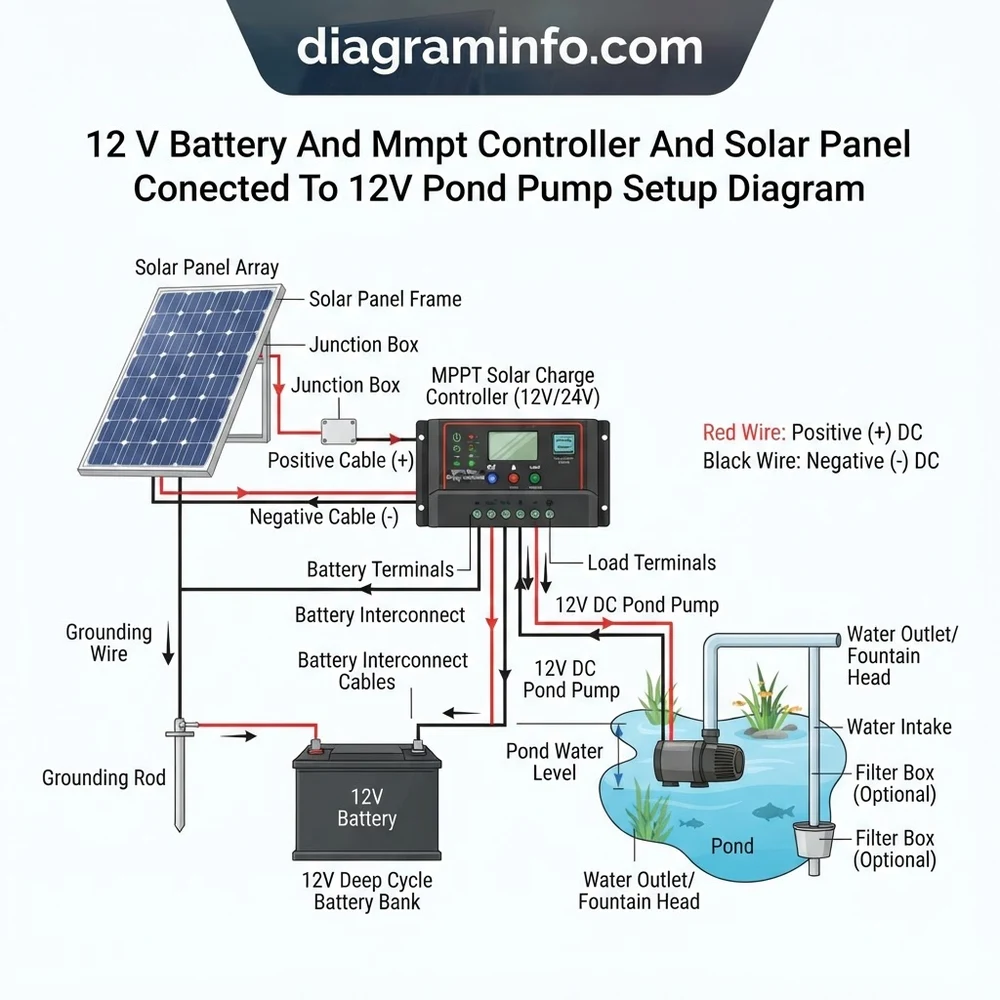

12 V Battery and MPPT Controller and Solar Panel Connected to 12V Pond Pump Setup Diagram: Core Components
Understanding the internal dynamics and continuous rated load capabilities of each sub-assembly prevents thermal overload and premature system failure. According to OEM technical specifications, an off-grid DC pumping architecture relies on four main power and control nodes, linked via appropriately sized copper conductors.
System Voltage: 12V DC Nominal | Solar Array Voc Max: 50V DC | MPPT Conversion Efficiency: ≥98% | Recommended Circuit Protection: Marine-grade ANL / ATC fuses rated at 125% of maximum continuous load.
The photovoltaic (PV) array harvests solar irradiance, outputting a floating DC voltage (typically 18V to 24V Voc for standard 12V-nominal panels). The MPPT charge controller down-converts this variable higher voltage to the precise charging profile required by the 12V battery bank (Bulk: 14.4V–14.6V, Float: 13.6V–13.8V for AGM/Flooded; 14.2V/13.5V for LiFePO4). The battery acts as a low-impedance energy reservoir, delivering stable amperage to the 12V pond pump during peak demand or cloudy weather.
| Component | Electrical Specification | Conductor Requirement | Primary Function |
|---|---|---|---|
| Solar PV Module | 100W–300W (18V–22V Vmp) | 10 AWG Solar Cable (PV1-F) | Converts photons to DC electrical current. |
| MPPT Controller | 20A–30A Rating (12V Auto-detect) | 8 AWG Marine Tinned Copper | Optimizes DC-DC buck step-down and multi-stage charging. |
| 12V Battery Bank | 100Ah Deep-Cycle (AGM or LiFePO4) | 4 AWG – 6 AWG Battery Cables | Stores energy, stabilizes system voltage, absorbs pump start inrush. |
| 12V Pond Pump | 3A–12A Continuous Draw (DC Brushless) | 12 AWG–14 AWG Multi-strand | Circulates water through filtration or aeration systems. |
When reviewing the overall system design, pay close attention to wire gauge and overcurrent protection. Installing fuses within 7 inches of the positive battery terminal protects against short-circuit fire hazards caused by insulation chafe. Refer to off-grid solar sizing guidelines to ensure your array wattage matches your pump’s daily Watt-hour consumption profile.
Step-by-Step Blueprint for Reading the 12 V Battery and MPPT Controller and Solar Panel Connected to 12V Pond Pump Setup Schematic
Executing an installation using the system schematic requires adhering strictly to the correct connection sequence. Connecting solar panels before initializing the controller can permanently damage the sensitive microprocessor inside the MPPT unit due to high open-circuit voltage spikes.
Always connect the 12V battery bank to the MPPT controller’s battery terminals BEFORE connecting the solar panel array. This allows the controller to establish logic power, auto-detect system voltage (12V), and activate internal voltage regulation routines.
Follow this wiring topology to complete the installation safely:
- Step 1: Battery Terminal Connection. Crimp high-quality copper lugs onto 8 AWG or 6 AWG tinned copper wire. Install an inline 30A fuse on the positive leg within 7 inches of the battery terminal post. Connect the positive cable to the MPPT Controller “BATT +” terminal, followed by the negative cable to “BATT -“. Torque screw terminals to 1.8 N·m (16 in-lbs). Verify controller screen boots up.
- Step 2: Photovoltaic Array Integration. Mount a 2-pole DC circuit breaker between the PV array and controller. Run 10 AWG UV-resistant PV cable from the panel junction box to the controller’s “PV +” and “PV -” terminals. Ensure correct polarity using a digital multimeter prior to engaging the breaker.
- Step 3: Load Circuit and Pump Wiring. Connect the 12V pond pump to the dedicated “LOAD +” and “LOAD -” output terminals on the MPPT controller (if pump draw is within controller load rating, typically ≤15A–20A). For high-amp pumps exceeding the load terminal capacity, wire the pump directly to the battery bank via an automotive 40A relay triggered by the controller’s low-voltage load terminal or an external float switch. Consult our marine-grade fuse selection standards for high-vibration automotive/marine installations.
Using the MPPT load terminals (rather than direct battery attachment) provides built-in Low Voltage Disconnect (LVD) protection. This prevents deep discharging below 11.5V (for AGM) or 10.8V (for LiFePO4), preserving battery cycle life.
Troubleshooting 12 V Battery and MPPT Controller and Solar Panel Connected to 12V Pond Pump System Layout Issues
Diagnosing operational faults in DC solar pumping structures requires a systematic approach using a calibrated digital multimeter and clamp meter. Below are standard technical procedures to isolate common system failures.
Symptom 1: Pump Cycles On and Off (Low Voltage Disconnect Cycling)
If the pump operates for brief periods before shutting down, check the real-time terminal voltage under load. High internal resistance in under-sized wiring or degraded battery cells causes severe voltage drop upon motor start. If the voltage at the MPPT load terminal drops below 11.5V during startup, replace continuous conductors with a larger wire gauge (e.g., step up from 14 AWG to 10 AWG) or test individual battery cell health under load. Review detailed DC water pump low-voltage disconnect circuits for hysteresis adjustment techniques.
Symptom 2: Controller Displays Solar Over-Voltage or Reverse Polarity Error
Check the PV input terminals with a multimeter set to DC Volts. Ensure the panel Voc does not exceed the MPPT controller’s absolute maximum input rating (usually 50V–100V depending on controller specifications). Reverse polarity will cause fault illumination or trip internal semiconductor protection; reverse the red (+) and black (-) leads on the PV input side after opening the inline DC breaker.
Symptom 3: Pump Motor Hums But Fails to Rotate
Disconnect power immediately to prevent rotor winding burn-out. Pump impellers in pond applications are subject to biological fouling and debris lock. Remove the pump housing and manually turn the impeller. Measure current draw upon reapplication of power—an amp draw exceeding 150% of nominal rating indicates mechanical binding or shorted motor windings.
12 V Battery and MPPT Controller and Solar Panel Connected to 12V Pond Pump Setup Diagram Questions Answered
Should the 12V pond pump connect to the MPPT load terminals or directly to the battery?
If the pump’s running current and inrush start current are below the MPPT controller’s rated load output capacity (commonly 10A to 20A), connect directly to the controller load terminals to utilize programmable Low Voltage Disconnect (LVD). If the pump draws more current than the controller’s load terminal rating, connect it directly to the 12V battery bank using an appropriately rated fuse and a heavy-duty DC relay controlled by the MPPT load signal.
What size solar panel and battery capacity are required for continuous 24/7 pond pump operation?
To run a typical 12V, 3-Amp pond pump continuously (36 Watts continuous), total daily energy consumption is 864 Watt-hours (Wh). Accounting for system inefficiencies (85% efficiency factor), you need approximately 1,016 Wh/day. In a region averaging 4 peak sun hours per day, a minimum of 260W–300W of solar panel capacity and a 200Ah 12V deep-cycle battery (100Ah usable for AGM at 50% DoD, or 160Ah for LiFePO4 at 80% DoD) are required.
Why is an MPPT charge controller preferred over a PWM controller in this configuration?
MPPT (Maximum Power Point Tracking) controllers offer up to 30% higher charging efficiency compared to Pulse Width Modulation (PWM) units, particularly in cold or overcast environments. MPPT controllers step down high solar panel operating voltages (e.g., 20V–40V Vmp) to match the lower 12V battery charging voltage while proportionally increasing current, maximizing total power extraction from the solar panel.
What type of fuse protection is required in this DC system blueprint?
Install fast-acting DC marine-rated fuses (ANL, MRBF, or ATC style). Place a fuse rated for 125% of maximum continuous current between the battery positive post and the MPPT controller (typically 20A to 30A), a DC dual-pole breaker between the PV panel and the controller, and an inline fuse (10A to 15A) on the positive feed to the 12V pond pump.
