2011 Nissan Maxima Alternator Connector Wiring Diagram (2026)
The 2011 Nissan Maxima towing setup incorporates a 7-way RV blade connector tied to vehicle charging circuits. Pin 1 connects to ground (white), Pin 2 electric brake controller (blue), Pin 3 running lights (green), Pin 4 auxiliary power from alternator charging system (black), Pin 5 left turn (yellow), Pin 6 right turn (brown), Pin 7 reverse lights (purple).
📌 Key Takeaways
- Pin 4 requires a dedicated 10-gauge black wire fused at 30 amps to tap +12V auxiliary power from the Maxima charging system.
- Ground connection (Pin 1, 10-gauge white wire) must attach directly to clean vehicle chassis metal to prevent voltage drops.
- Electric brake controller signal uses Pin 2 (12-gauge blue wire) and operates independently of lighting ground paths.
- Most common trailer light flickering issues stem from severe resistance at corroded 7-way RV blade terminal contacts.
- Always isolate trailer auxiliary power lines with an inline relay to stop trailer loads from draining the car battery when parked.
Understanding the 2011 Nissan Maxima alternator connector wiring diagram is essential when troubleshooting charge system failures, retrofitting auxiliary power circuits, or wiring secondary electrical accessories such as a 7-way RV blade or 4-pin flat connector for towing applications. The seventh-generation A35 Nissan Maxima utilizes a 3.5L VQ35DE V6 engine equipped with a variable-voltage charging system managed by the Engine Control Module (ECM) and Intelligent Power Distribution Module Engine Room (IPDM E/R). Accurately mapping terminal assignments, wire colors, and circuit functions prevents costly electrical component damage and ensures reliable charging under heavy electrical loads.

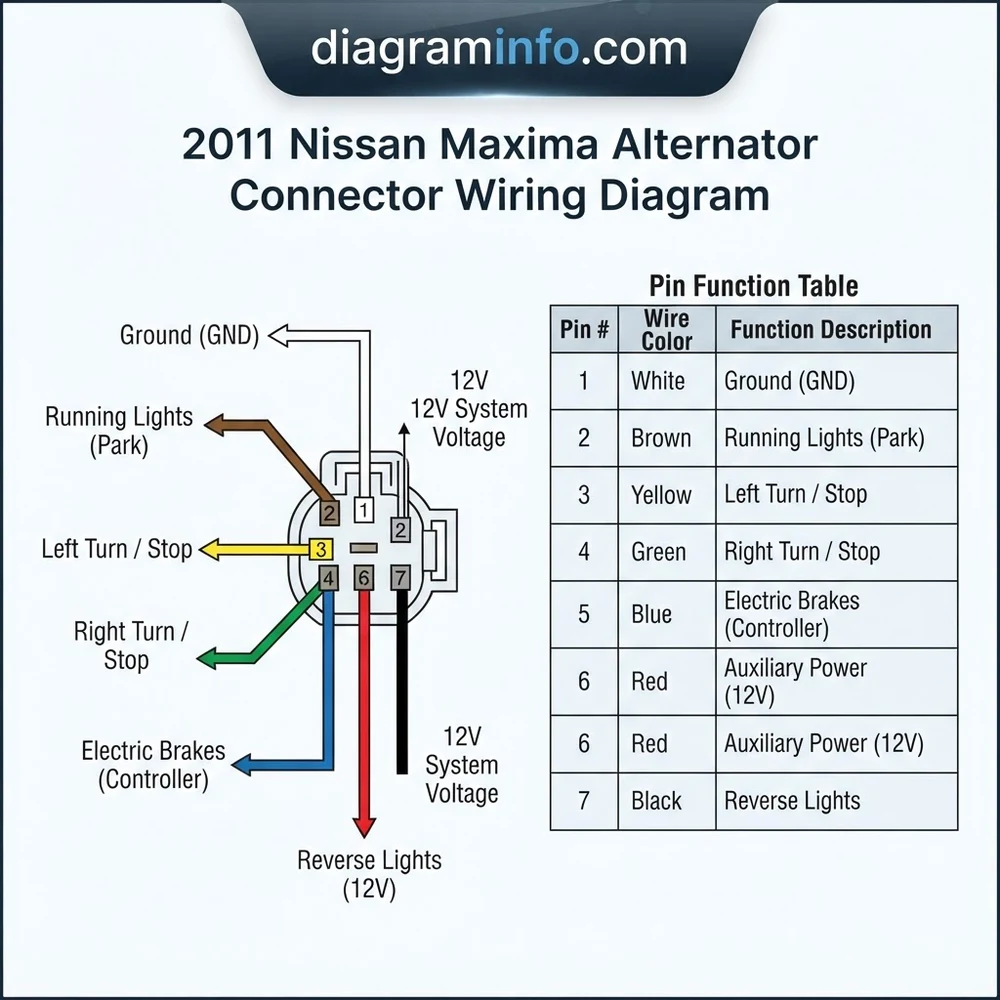

[DIAGRAM_PLACEHOLDER: Complete 2011 Nissan Maxima Alternator Connector Wiring Diagram showing Terminal S, L, C pinouts, B+ main battery stud, IPDM integration, and 7-way RV blade / 4-pin flat trailer connector interface]
The 2011 Nissan Maxima features an Intelligent Battery Sensor (IBS) on the negative battery terminal and ECM-controlled dynamic charging. Voltage outputs natively fluctuate between 12.2V and 14.7V depending on electrical load, ambient temperature, and throttle position. Never mistake an idle output of 12.5V as a failed alternator without analyzing the ECM command signal at Terminal C.
2011 Nissan Maxima Alternator Connector Wiring Diagram Pinout and Terminal Specs
The OEM alternator used on the 2011 Nissan Maxima (typically a 130-amp or 150-amp Hitachi unit) utilizes a 3-pin harness connector along with a dedicated heavy-gauge B+ battery output terminal. According to factory OEM wiring schematics, the connector pins are arranged sequentially in a female weatherproof housing plugged directly into the internal voltage regulator backplate.
| Pin / Terminal | Wire Color | Circuit Function | Voltage / Signal Specification |
|---|---|---|---|
| Terminal S (Pin 1) | Yellow / Red-Yellow | Battery Voltage Sense Feed | Constant 12V B+ from 10A IPDM Fuse #43 |
| Terminal L (Pin 2) | Light Green | Charge Warning Lamp Indicator | 0V with key on engine off; 12V when charging properly |
| Terminal C (Pin 3) | Blue or Grey | ECM PWM Charge Control Signal | Pulse-width modulated signal (10 Hz, duty cycle 0%–100%) |
| B+ Terminal | Red (4 AWG Cable) | Main Power Output to Battery | Direct connection to 140A Fusible Link at battery positive |
When tying auxiliary equipment, electric brake controllers, or trailer towing harnesses into the Maxima electrical network, matching correct wire gauges and terminal duties is mandatory. Integrating a trailer lighting harness requires translating vehicle light commands to standard trailer connector configurations, such as the 7-way RV blade and 4-pin flat connector standard.
| Trailer Pin Location | Standard Wire Color | Function Pin Connection | Recommended Wire Gauge |
|---|---|---|---|
| Pin 1 | White | Ground Pin (Chassis Return) | 10 AWG to 8 AWG |
| Pin 2 | Blue | Electric Brake Controller Feed | 12 AWG |
| Pin 3 | Brown | Running Lights / Tail Lights | 16 AWG |
| Pin 4 | Black or Red | Auxiliary Power (+12V Battery Charge) | 10 AWG (Fused 30A/40A) |
| Pin 5 | Yellow | Left Turn Signal & Stop Light | 16 AWG |
| Pin 6 | Green | Right Turn Signal & Stop Light | 16 AWG |
| Pin 7 | Purple | Reverse Lights / Auxiliary Back-Up | 16 AWG |
Alternator Output Stud (B+) Torque Spec: 11 Nm (97 in-lbs / 8.1 ft-lbs). Alternator Mounting Bolts: 49 Nm (36 ft-lbs). Never over-torque the B+ terminal nut, as cracking the ceramic insulator housing will ground the main 140A power feed directly to the alternator casing, inducing an immediate short circuit.
Integrating Auxiliary Power, RV Blade Plugs, and Brake Controllers with Maxima Wiring
When powering high-draw external equipment or towing trailers behind a 2011 Nissan Maxima, connecting directly to the alternator wiring harness or ECM sense lines is strongly discouraged. The smart alternator charging control loop constantly calculates system draw via the negative terminal current sensor. Tapping directly into Terminal S or Terminal C will distort the voltage feedback loop, causing the ECM to store Diagnostic Trouble Code (DTC) P0605 or P1550 through P1555.
To safely supply high-current power for an auxiliary power line on a 7-way RV blade socket, route a dedicated 10 AWG power feed directly from the positive battery terminal post or the high-amp side of the main fusible link box. Install a 30A or 40A auto-reset circuit breaker within 12 inches of the battery connection. Integrate an ignition-controlled 40-amp automotive relay triggered by an ignition switched feed from the IPDM E/R. This ensures that auxiliary power feeds only deliver current when the engine is running, preventing flat battery conditions during key-off states.
For vehicles towing lightweight trailers or utility equipment equipped with electric brakes, an aftermarket proportional electric brake controller must be installed inside the cabin. Connect the brake controller input trigger wire to the cold side of the Nissan Maxima brake pedal switch (typically a Pink or Red wire at the pedal bracket harness). Route the heavy-duty blue output wire through the firewall grommet down to Pin 2 of the 7-way RV blade plug. Always ensure your vehicle electrical modifications follow a dedicated ground path back to a clean chassis terminal, rather than splicing into localized control module ground returns.
For more insights on upgrading vehicle charge networks and isolating heavy current accessories, consult our detailed IPDM E/R relay box diagnosis manual and our comprehensive trailer brake controller installation guide.
How to Wire the 2011 Nissan Maxima Alternator Connector Wiring Diagram Step-by-Step
Completing a harness repair, alternator replacement, or towing auxiliary interface installation requires strict adherence to safe disconnection protocols and accurate wiring sequences. Follow these precise procedures to service the 3-pin alternator harness and map output connections safely.
- Isolate Electrical System and Prepare Vehicle: Turn off the ignition, switch off all accessories, and disconnect the negative battery terminal cable using a 10mm socket. Wait at least 3 minutes to allow system capacitors and residual power in the ECM to dissipate fully.
- Gain Access to the Alternator Plug: Support the front right of the vehicle on jack stands. Remove the right front wheel and inner fender splash shield to expose the front accessory belt drive area. Locate the 3-pin alternator regulator connector mounted near the top housing of the alternator assembly.
- Disconnect and Inspect the 3-Pin Regulator Harness: Depress the locking tab on the Sumitomo 3-pin connector and pull straight out. Inspect internal pins for corrosion, spread female terminals, or melted insulation. If replacing a damaged connector pigtail, cut damaged wires back by 2 inches, strip 1/4 inch of insulation, and prepare heat-shrink butt connectors.
- Splice Replacement Connector Pigtail (If Repairing Harness): Match terminal assignments precisely as defined in the 2011 Nissan Maxima alternator connector wiring diagram:
- Solder or crimp Pin 1 (Yellow or Red/Yellow sense wire) to the corresponding harness lead supplying fused battery voltage.
- Solder or crimp Pin 2 (Light Green charge lamp wire) to the instrument cluster indicator lead.
- Solder or crimp Pin 3 (Blue or Grey ECM signal wire) to the ECM PWM control lead.
- Apply heat shrink tubing over each connection using a heat gun to create a moisture-proof seal.
- Connect Main B+ Output Cable: Slide the rubber protective boot off the B+ terminal stud. Remove the 12mm hex nut, position the 4 AWG ring terminal onto the threaded post, reinstall the nut, and torque precisely to 11 Nm (97 in-lbs). Slide the rubber boot completely over the terminal stud to prevent metallic contact and short circuits.
- Wire Trailer Lighting and Auxiliary Power Feeds: When converting vehicle lighting outputs for a 4-pin flat connector or 7-way RV blade plug:
- Install a powered tail light converter module powered by a fused 12V battery feed to tap left turn signal (Green/Yellow wire at tail lamp), right turn signal (Purple wire at tail lamp), and running lights (Pink wire).
- Attach the White ground pin wire using a 10 AWG conductor directly to a bare metal chassis ground ring terminal secured with a self-tapping screw and star washer.
- Connect the Blue wire from the brake controller directly to Pin 2 of the RV blade socket for electric brake command.
- Connect the fused Black auxiliary power wire from the battery isolation relay to Pin 4.
- System Re-energization and Functional Check: Reconnect the negative battery terminal clamp. Start the engine and verify that the charge warning lamp on the instrument cluster extinguishes immediately. Measure battery voltage using a digital multimeter across battery terminals to verify charging system response.
Do NOT apply direct 12V battery power to Terminal C (Blue/Grey wire) of the alternator connector during testing. Terminal C is directly connected to a low-side transistor driver inside the Engine Control Module. Direct battery potential on Terminal C will instantly destroy the internal ECM driver circuit, requiring complete ECM replacement and key reprogramming.
Avoid Common Faults: Ground Pin Failures and Running Light Circuit Overloads
When performing maintenance on the alternator harness or wiring trailer interfaces, technicians frequently encounter recurring electrical failures caused by incorrect connection protocols or insufficient circuit isolation.
The single most prevalent failure point in combined towing and charging systems is an inadequate ground pin connection. A loose, corroded, or undersized ground wire creates high electrical resistance. When heavy loads like electric brake actuators (drawing up to 15 amps) or trailer battery chargers operate, current attempts to return to the battery through weak signal grounds or trailer hitch ball couplings. This causes flickering running lights, intermittent brake controller error codes, and electrical noise interfering with the alternator voltage regulator sense circuit (Terminal S).
Another major mistake involves tapping high-current trailer running lights or auxiliary accessories directly into the vehicle’s factory tail light wires without an isolated, powered tail light converter. The 2011 Maxima tail lamps and marker circuits are controlled directly through solid-state drivers inside the IPDM E/R. Exceeding nominal circuit amperage triggers internal thermal shutdown protection within the IPDM, disabling rear running lights entirely until the fault is cleared and the system is reset.
Finally, misidentifying Pin 1 (S) and Pin 3 (C) during harness repairs will result in no-charge or over-charge conditions. Connecting constant 12V power into Terminal C overrides ECM load control, causing alternator output to lock at a fixed 14.5V default rate, lighting the battery warning icon, and setting DTC P0605.
For detailed procedures on diagnosing complete charging networks and alternator duty cycles, check out our guide on Nissan VQ35DE charging system overhaul strategies.
2011 Nissan Maxima Alternator Connector Wiring Diagram Diagnostic and Voltage Testing
Accurate diagnosis of the 2011 Maxima charging loop requires specific voltage testing protocols using a Digital Multimeter (DMM) and, ideally, an oscilloscope or duty-cycle compatible meter for signal line verification. Execute these static and dynamic tests whenever battery charge warnings or low voltage symptoms arise.
With the engine off and key in the OFF position, measure voltage across the positive and negative battery posts. Base battery voltage must read between 12.4V and 12.6V. Next, unplug the 3-pin alternator harness plug and probe Pin 1 (Yellow or Red/Yellow wire) relative to engine ground. Voltage at Pin 1 must match battery voltage exactly. If voltage reads 0V, inspect the 10A fuse located inside the IPDM E/R fuse box.
Turn the ignition key to the ON position with the engine OFF. Probe Pin 2 (Light Green wire). You should detect approximately 1V to 3V, pulled low by the charge lamp indicator circuit in the combination meter. When the engine starts and the alternator rotor begins generating magnetic flux, the internal regulator grounds the internal side, raising Terminal L potential to battery voltage, which turns off the dash battery icon.
To evaluate Terminal C (Blue/Grey wire), turn the engine ON and measure duty cycle using a DMM set to Hz / % Duty Cycle. At idle with no heavy accessories operating, the ECM outputs a square-wave signal operating at approximately 10 Hz with a duty cycle ranging between 20% and 80%. When high-draw electrical accessories (headlights, rear defroster, electric brake controller) are activated, the ECM increases the duty cycle to command higher field current, elevating system output to 14.2V–14.7V.
2011 Nissan Maxima Alternator Connector Wiring Diagram Frequently Asked Questions
What are the wire colors on a 2011 Nissan Maxima alternator connector?
The factory 3-pin alternator regulator harness utilizes three primary wire colors: Pin 1 (S) is Yellow or Red/Yellow (battery voltage sense feed), Pin 2 (L) is Light Green (charge warning lamp trigger), and Pin 3 (C) is Blue or Grey (ECM PWM variable charge control signal). The main battery output wire attached to the eyelet stud (B+) is a heavy-gauge Red 4 AWG cable.
How does the ECM charge control signal on Terminal C affect charging voltage?
The 2011 Nissan Maxima uses an ECM-controlled smart charging system. The ECM sends a pulse-width modulated (PWM) signal to Terminal C at the alternator connector. By altering the duty cycle of this 10 Hz signal, the ECM commands the voltage regulator to increase or decrease output voltage between 12.2V and 14.7V to reduce engine drag, improve fuel efficiency, and extend battery life.
Can I wire a 7-way RV blade trailer connector directly to the alternator B+ post?
While you can physically connect an auxiliary power feed to the main B+ post on the alternator, it is technically preferable to connect directly to the vehicle battery positive terminal or main power distribution block via an inline 30A or 40A auto-reset circuit breaker and an ignition-controlled relay. Tapping directly at the alternator stud bypasses battery filtering, exposing delicate trailer electronics to potential voltage spikes.
Why does my 2011 Maxima alternator only produce 12.5 volts while idling?
An alternator output reading of 12.5 volts at idle does not necessarily indicate a failed alternator. If the battery state of charge is high, ambient temperature is warm, and no major electrical loads (such as headlights or climate control fans) are running, the ECM will intentionally drop alternator duty cycle via Terminal C to save fuel. Turning on the high-beam headlights and cabin heater fan should prompt the ECM to increase output to over 14.0 volts.
What gauge wire should be used for the ground pin on a trailer connector interface?
The ground pin (Pin 1 on a 7-way RV blade connector) must use at least a 10 AWG or 8 AWG copper wire connected securely to a bare metal chassis point on the towing vehicle. Using undersized wire (such as 16 AWG) for the ground return path causes high resistance, resulting in poor electric brake performance, dim running lights, and voltage fluctuations across vehicle circuits.
