Ford Focus MK3 Air Con System Diagram: Repair Guide 2026
The Ford Focus MK3 air con system diagram details the closed loop layout between the A/C compressor, condenser, TXV expansion valve, and evaporator. It illustrates electrical paths from the dual pressure switch to the R11 compressor relay in the engine junction box, operating standard R134a (530g) or R1234yf refrigerant lines.
📌 Key Takeaways
- Refrigerant capacity varies by year: 2011–2014 MK3 uses 530g ± 10g of R134a, while 2015+ models switch to 460g of R1234yf.
- The A/C clutch magnetic coil circuit runs through Fuse F27 (10A) and Relay R11 in the Underhood Engine Junction Box (EJB).
- High-pressure line port is located near the right headlight; low-pressure service port sits along the bulkhead wall.
- Compressor clutch air gap must be set strictly between 0.35 mm and 0.65 mm using feeler gauges to prevent slipping.
- Leak detection requires UV dye inspection, particularly around the condenser lower corners and compressor shaft seal.
The Ford Focus Mk3 (C346 platform, manufactured from 2011 through 2018) utilizes an advanced heating, ventilation, and air conditioning (HVAC) setup integrated directly into the Powertrain Control Module (PCM) and Body Control Module (BCM). Interpreting the Ford Focus Mk3 air con system diagram requires a comprehensive understanding of both the mechanical refrigeration loop and the electronic control architecture. Whether servicing a 1.0L EcoBoost, 2.0L Duratec, or 1.5L TDCi engine variant, analyzing this electrical and mechanical configuration is essential for accurate signal tracing, precise fault isolation, and efficient component replacement.
Ford Focus Mk3 Air Con System Diagram: Component Layout

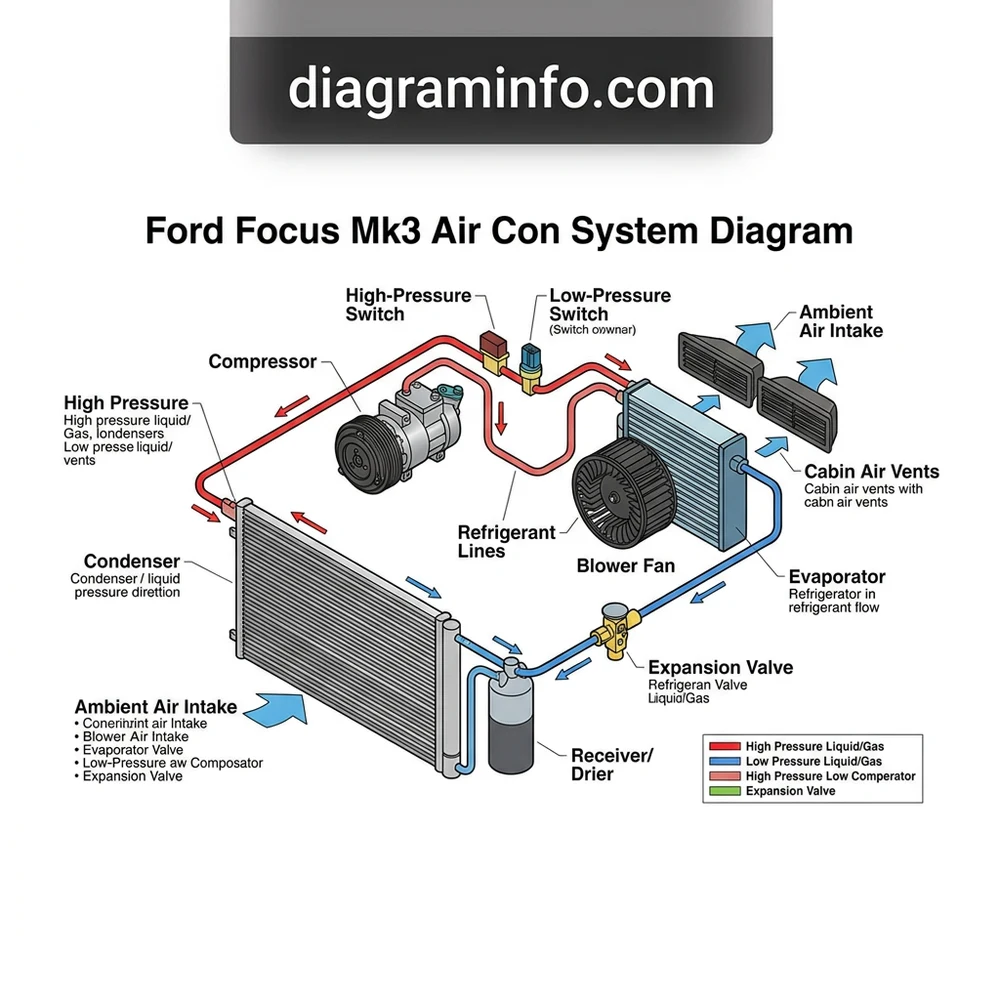

The HVAC architecture of the Mk3 Focus consists of two primary operational domains: the high-pressure/low-pressure mechanical refrigerant circuit and the low-voltage electronic sensor-actuator control network. As illustrated in the standard structural overview, these primary mechanical components work in tandem with electronic monitoring nodes to maintain optimal evaporator temperatures and system pressure equilibrium.
Key physical and electrical components in the system layout include:
- Compressor Assembly: Most Mk3 models employ an externally controlled variable-displacement swash-plate compressor (such as the Sanden PXC16), eliminating the traditional cycling clutch on higher-spec trims, while selected standard variants retain a classic magnetic clutch driven by the Engine Junction Box (EJB) relay R11.
- Condenser & Sub-Cooling Receiver-Drier: Positioned at the front cooling module ahead of the radiator, this parallel-flow aluminum condenser incorporates an integrated receiver-drier desiccant cartridge to trap moisture and store liquid refrigerant under high pressure.
- Thermostatic Expansion Valve (TXV): Located at the interior firewall bulkhead, the block-type TXV meters high-pressure liquid refrigerant into the low-pressure evaporator based on superheat temperature sensing.
- Evaporator Core & Temperature Sensor: Housed inside the climate plenum within the dashboard, the evaporator absorbs cabin heat. An NTC thermistor (Evaporator Temperature Sensor) monitors core temperature to prevent icing.
- A/C Pressure Transducer: Mounted on the high-pressure liquid line near the right-hand chassis rail, providing real-time pressure feedback to the engine management software.
| Component Reference | System Function | OEM Specification / Wiring Identifiers |
|---|---|---|
| A/C Pressure Transducer | Monitors high-side line pressure (3-wire piezo-resistive) | Pin 1: 5V (GN-OG) | Pin 2: Signal (BN-GN) | Pin 3: Ground (BK-BU) |
| Variable Displacement Control Valve | Regulates compressor stroke volume via PWM signal | 100 Hz – 400 Hz pulse-width modulated driver from PCM |
| A/C Clutch Relay (R11) | Supplies 12V switched power to magnetic clutch coil | Located in EJB; switched via PCM low-side ground driver |
| Evaporator Temp Sensor | Prevents evaporator core freeze-up | 2-pin NTC thermistor; Resistance range ~30kΩ (0°C) to 10kΩ (25°C) |
Ford Focus Mk3 pre-facelift models (2011–2015) use 530g ± 10g of R134a refrigerant with WSH-M1C231-B (PAG 46) oil. Facelift models (post-2016 Euro 6 compliance) utilize R1234yf refrigerant with a factory charge of 475g ± 10g and specialized POE/PAG lubricant compatible with modern leak detection additives. Always check the under-hood specification label before servicing.
Tracing Electrical and Fluid Pathways in the Ford Focus Mk3 Air Con Schematic
Interpreting the signal flow on a Ford Focus Mk3 air con schematic requires separating the mechanical fluid circulation from the low-voltage multiplexed control loops. Superheated, high-pressure gas leaves the compressor outlet port, flows to the condenser to dump thermal energy to ambient air, converts into a high-pressure liquid state, flows through the high-pressure service port and transducer, and enters the expansion valve metering orifice.
On the electrical side, user inputs from the interior Dual Automatic Temperature Control (DATC) panel or manual climate control head travel over the Mid-Speed CAN (MS-CAN) bus to the Body Control Module. The BCM relays the cooling demand signal over the High-Speed CAN (HS-CAN) bus to the Powertrain Control Module. The PCM acts as the ultimate gatekeeper for compressor activation.
Before activating the compressor circuit, the PCM verifies the following sensor conditions:
- High-side system pressure is between 30 psi (2.0 bar) and 420 psi (29.0 bar) via the pressure transducer.
- Engine coolant temperature (ECT) is below 115°C (239°F).
- Evaporator core temperature remains above 2°C (35.6°F) to avoid freeze-up.
- Ambient air temperature sensor reads above 4°C (39.2°F).
When these conditions are validated, the PCM provides a low-side ground driver signal to energize Relay R11 in the Engine Junction Box or outputs a PWM duty cycle (typically 10% to 90%) to the compressor variable displacement control solenoid. For full panel and relay board assignments, technicians should consult our Ford Engine Junction Box fuse and relay guide.
On Mk3 models equipped with DATC, interior blend doors are driven by stepper motors communicating directly over a Local Interconnect Network (LIN) bus branch connected to the main HVAC module. A broken LIN-bus signal line will disable climate control automation without throwing a standard Powertrain Check Engine light.
Troubleshooting HVAC Failures via the Ford Focus Mk3 Air Con System Diagram
Systematic diagnosis of the Ford Focus Mk3 air conditioning network requires correlating real-time manifold gauge readings with OBD2 live-data PIDs gathered from the PCM and climate module. Using the wiring blueprint alongside diagnostic software (such as FORScan or OEM IDS) prevents unnecessary component replacement.
Common failure modes and signal tracing procedures include:
1. DTC P0532 (A/C Pressure Sensor Circuit Low Input)
This diagnostic trouble code indicates that voltage on the Brown/Green signal wire (PCM Connector C137 Pin 42) has dropped below 0.19V. Using a multimeter, probe Pin 1 of the sensor harness for a stable 5.0V reference fed from the PCM. If reference voltage is zero, inspect the Green/Orange wire for an open circuit or check for shared sensor ground shorts. Cross-reference signal pins using our Ford Focus PCM sensor wiring reference chart.
2. Compressor Inoperative Despite A/C Switch Activation
If live data shows the A/C Request PID is “YES” but the compressor valve duty cycle remains at 0%, inspect the PCM lockout criteria. Check if ambient temperature reads incorrectly low or if engine knock sensors have flagged severe engine load conditions. If relay R11 fails to pull in on magnetic clutch variants, backprobe coil pin 86 to check if the PCM is pulling the control wire to ground.
3. Condenser Fan Activation Failure
The PCM commands the cooling fan control module via a 100 Hz PWM signal based on refrigerant pressure. If high-side pressure exceeds 250 psi without condenser fan engagement, test the signal line between the PCM and the fan module mounted on the shroud. Loss of this control line defaults the fan to 100% duty cycle or turns it off entirely depending on the module software revision.
When probing sensor connectors at the PCM or engine harness, always use high-impedance backprobe pins. Piercing wires or shorting the 5V reference wire to 12V battery power will permanently damage the internal analog-to-digital converter (ADC) inside the PCM.
Ford Focus Mk3 Air Conditioning System Configuration FAQ
What refrigerant type and total fill capacity does the Ford Focus Mk3 air conditioning system require?
Focus Mk3 models produced between 2011 and early 2016 use 530g ± 10g of R134a refrigerant. Models produced from late 2016 onward feature the R1234yf system with a fill capacity of 475g ± 10g. Oil capacity is 120ml of PAG 46 (or POE equivalent for late-model yf systems).
Where are the main A/C electrical fuses and relays located in the Ford Focus Mk3 diagram?
Primary protection is split across two main junction boxes:
- Engine Junction Box (EJB under hood): Relay R11 (A/C Clutch Relay), Fuse F22 (10A A/C clutch / control valve solenoid).
- Passenger Junction Box (PJB behind glovebox): Fuse F27 (15A Climate Control Module/DATC) and Fuse F62 (5A Module Logic Power).
How do I test the 3-wire A/C pressure sensor using schematic voltage values?
With the ignition ON and sensor plugged in, backprobe Pin 2 (Brown/Green wire). At normal static room temperature (~20°C) with system static pressure around 70–80 psi, signal voltage should measure approximately 1.1V to 1.4V DC. Voltage below 0.4V indicates low pressure/refrigerant loss, while voltage above 4.5V indicates an open signal ground or overpressure condition.
Why does the Ford Focus Mk3 variable-displacement compressor fail to pump cold air despite having correct gas pressure?
Unlike traditional cycling clutch systems, variable displacement compressors rely on an internal electronic control valve (ECV). If the internal mechanical swash-plate sticks or the ECV solenoid coils fail internally (normal resistance should be 10.5Ω to 13.5Ω), the compressor will spin without compressing refrigerant. Review the Ford Focus Mk3 electrical wiring schematic to trace the PWM control signal from the PCM to the compressor connector prior to condemning the mechanical pump unit.
Step-by-Step Guide to Understanding the Ford Focus Mk3 Air Con System Diagram
Identify – Identify system specifications on the ford focus mk3 air con system diagram, noting refrigerant type and fuse locations.
Locate – Locate high-pressure and low-pressure service ports, along with Relay R11 in the underhood fuse box.
Reference – Reference the electrical schematic structure to check voltage across the pressure sensor harness and clutch control relay.
Connect/Route – Connect manifold gauges to service ports and verify line routing structure from compressor to condenser.
Verify – Verify static and dynamic pressures against technical values under active compressor clutch operation.
Troubleshoot – Troubleshoot voltage drops or pressure anomalies using the layout pinout diagrams to isolate faulty components.
