Lower Extremity Veins and Arteries of the Leg Diagram: Component Breakdown 2026
A veins and arteries of the leg diagram maps the lower limb vascular system, detailing oxygenated blood delivery via the femoral, popliteal, and anterior/posterior tibial arteries. It illustrates venous return through deep paired veins (venae comitantes) and superficial pathways (great and small saphenous veins) regulated by one-way bicuspid valves.
📌 Key Takeaways
- The femoral artery transitions into the popliteal artery behind the knee at the adductor hiatus (approx. 10–12 cm above the joint line).
- Superficial venous drainage relies on the great saphenous vein (GSV), running anterior to the medial malleolus, and small saphenous vein (SSV).
- Bicuspid venous valves maintain unidirectional blood flow against gravity, preventing venous reflux under standard 90–120 mmHg arterial systemic pressures.
- Deep vein thrombosis (DVT) in the popliteal or femoral veins represents the primary clinical risk for pulmonary embolism.
- Medical imaging (Doppler ultrasound or CTA) is required when Doppler ankle-brachial index (ABI) values drop below 0.90.
Understanding the complex fluidic routing within human anatomy requires a precise schematic approach, particularly when analyzing lower extremity vascular networks. The veins and arteries of the leg diagram serves as an essential structural blueprint for medical imaging technicians, vascular clinicians, and clinical biomedical engineers mapping blood delivery and return circuits. From the high-pressure arterial supply originating at the internal/external iliac branching down to the low-pressure venous return pathways supported by deep muscle pumps, interpreting this schematic enables accurate hemodynamic assessment. This reference breaks down component layouts, velocity specifications, directional trace reading, and common pathology diagnostics.
Lower Limb Vascular Component Layout and Structural Overview

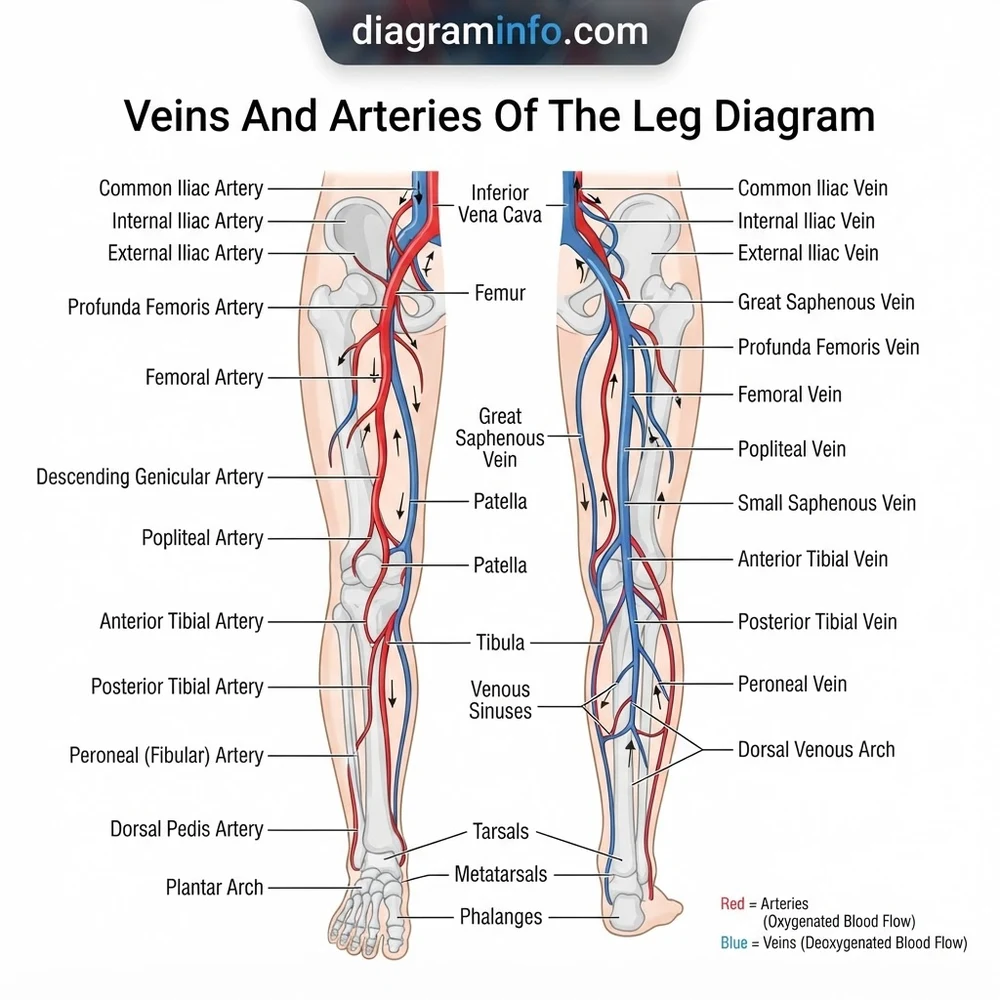

The vascular system of the human lower limb operates as a dual-circuit fluidic loop. The high-pressure arterial side distributes oxygenated blood under arterial pressure (typically 120/80 mmHg nominal peak), while the low-pressure venous side returns deoxygenated blood against gravitational force utilizing muscular pump mechanisms and unidirectional bicuspid valves. As shown in the diagram above, the veins and arteries of the leg diagram separates these systems into distinct parallel pathways that interconnect at capillary beds and through specialized perforator veins.
Primary arterial pathways originate from the abdominal aorta branching into the common iliac arteries. The external iliac artery transitions into the femoral artery upon crossing the inguinal ligament. Major arterial components in the layout include:
- Femoral Artery (and Deep Femoral Branch): Supplies the anterior and deep thigh compartments, operating with an average lumen diameter of 7.0–9.0 mm and mean peak systolic velocity (PSV) of 90–140 cm/s.
- Popliteal Artery: Traverses the popliteal fossa behind the knee joint, splitting into the anterior and posterior tibial arteries. Reference popliteal fossa anatomical mapping for precise articular alignment.
- Anterior Tibial & Dorsalis Pedis Arteries: Supply the anterior leg compartment and foot dorsum, critical for distal pulse point checks.
- Posterior Tibial & Peroneal (Fibular) Arteries: Run along the posterior and lateral lower leg compartments into the plantar arterial arch.
The venous architecture consists of deep and superficial systems. The deep veins run alongside corresponding arteries within the muscular fascia, including the popliteal and femoral veins. The superficial system, comprising the Great Saphenous Vein (GSV) and Small Saphenous Vein (SSV), resides above the deep fascia. These systems communicate via perforator veins, detailed further in our guide on venous valve insufficiency diagnostics.
| Vessel Component | Average Diameter (mm) | Nominal Operating Pressure / Velocity |
|---|---|---|
| Common Femoral Artery | 8.0 – 10.5 mm | PSV: 100 – 140 cm/s (High Pressure) |
| Popliteal Artery | 5.0 – 7.0 mm | PSV: 60 – 90 cm/s (High Pressure) |
| Great Saphenous Vein (GSV) | 3.0 – 4.5 mm | Flow: 15 – 25 cm/s (10-15 mmHg Hydrostatic) |
| Femoral / Popliteal Vein | 6.0 – 9.0 mm | Flow: 20 – 40 cm/s (Low Pressure / Phasic) |
Step-by-Step Overview: Reading the Veins and Arteries of the Leg Diagram
Interpreting a complex lower extremity vascular schematic requires a structured, systemic methodology. Whether evaluating ultrasound Doppler flow signals, angiography imaging, or clinical anatomy schematics, follow this sequential overview to read the lower limb vascular layout effectively.
Step 1: Identify the Proximal Inflow Segment
Begin at the superior region of the veins and arteries of the leg diagram where the common iliac artery bifurcates at the pelvis level (L4-S1 vertebrae equivalent). Trace the external iliac pathway past the inguinal ligament marker to confirm high-volume arterial inflow into the common femoral artery.
Step 2: Follow Arterial Branching Distal to the Trifurcation
Trace down the femoral canal through Hunter’s canal (adductor canal). Note where the popliteal artery transitions behind the knee and gives rise to the anterior tibial artery, posterior tibial artery, and fibular artery. Verify the continuity down to the ankle joint and dorsalis pedis pulse points.
Step 3: Map the Superficial and Deep Venous Return Routes
Shift focus to the distal venous network at the plantar arch. Trace the deep system upward following the paired anterior/posterior tibial veins into the popliteal vein. Concurrently, map the superficial system starting from the dorsal venous arch into the Great Saphenous Vein (medial aspect) and Small Saphenous Vein (lateral aspect).
Step 4: Analyze Perforator Junctions and Valve Sites
Examine the saphenofemoral junction (SFJ) in the groin and saphenopopliteal junction (SPJ) behind the knee. Ensure all perforator veins (e.g., Cockett, Boyd, and Dodd groups) show unidirectional flow indicators directed from superficial to deep venous systems.
Ankle-Brachial Index (ABI) Normal Range: 0.90 to 1.30. Normal arterial Doppler waveform: Triphasic (sharp systolic upstroke, transient flow reversal, forward diastolic component). Normal venous reflux duration limit: < 500 ms across deep/superficial valves.
Hemodynamic Diagnostics and System Troubleshooting
When diagnostic readings deviate from standard blueprint specs, technicians and clinicians use the schematic layout to isolate specific anatomical disruptions. System failures generally fall into two operational categories: arterial occlusive disease and venous valve reflux or thrombosis.
1. Isolating Arterial Stenosis and Occlusion
If a patient exhibits diminished distal pulses, cross-reference waveform readings against the schematic configuration. A shift from a standard triphasic waveform to a dampened monophasic signal indicates a proximal arterial obstruction (such as atherosclerotic plaque accumulation in the superficial femoral artery). Calculate the Peak Systolic Velocity Ratio (PSVR); a PSVR greater than 2.0 at a localized site indicates >50% arterial lumen reduction according to clinical specs.
2. Diagnosing Venous Stasis and Deep Vein Thrombosis (DVT)
Venous blockage or non-compressibility on ultrasound indicates acute or chronic DVT. Reference the schematic to locate the precise vein segment—such as the popliteal or common femoral vein—and assess flow augmentation. Lack of spontaneous, respiratory-phasic flow signals complete endoluminal occlusion.
For advanced diagnostic protocols on vascular wall compliance and pressure differentials, consult our guide on lower limb Doppler ultrasound mapping.
An Ankle-Brachial Index (ABI) value below 0.50 or an absolute ankle pressure under 50 mmHg indicates severe critical limb ischemia (CLI). Immediate medical intervention is required to prevent tissue necrosis and systemic complications.
Veins and Arteries of the Leg Diagram Blueprint FAQ
How do the deep and superficial systems connect in the lower extremity vascular schematic?
The deep and superficial venous systems connect via perforator veins (such as Cockett, Boyd, and Dodd perforators) equipped with one-way valves. Under normal conditions, these valves direct blood exclusively from the superficial system into the deep venous network, where muscle contractions propel blood back toward the heart.
What are the primary functional differences between arteries and veins shown in the diagram?
Arteries feature thicker tunica media layers designed to withstand high-pressure pulsatile flow generated by heart contractions (systolic/diastolic pressures). Veins possess thinner walls, wider lumens, and internal bicuspid valves designed to prevent retrograde flow under low-pressure, hydrostatic conditions within the lower limb circuit.
Why does the Great Saphenous Vein hold clinical importance in vascular layout schematics?
The Great Saphenous Vein (GSV) is the longest vessel in the human body, extending from the dorsal venous arch of the foot to the saphenofemoral junction (SFJ). It serves as a primary conduit for coronary artery bypass grafting (CABG) and lower extremity autologous bypass procedures due to its substantial length and structural integrity.
What does a monophasic Doppler signal indicate on a lower leg arterial trace?
A monophasic waveform (loss of reverse flow and slow systolic acceleration) indicates significant proximal arterial stenosis or complete occlusion upstream from the measurement point. This baseline departure alerts technicians to search proximal arterial segments on the diagram for flow restriction.
How does muscle pump action affect fluid dynamics in the deep leg veins?
The calf muscle pump (primarily gastrocnemius and soleus muscles) acts as a peripheral physiological pump. Upon muscle contraction, deep veins are compressed, raising intramuscular pressure above 200 mmHg, forcing blood upward through open venous valves while perforator valves close to prevent pressure transmission into superficial tissue.
