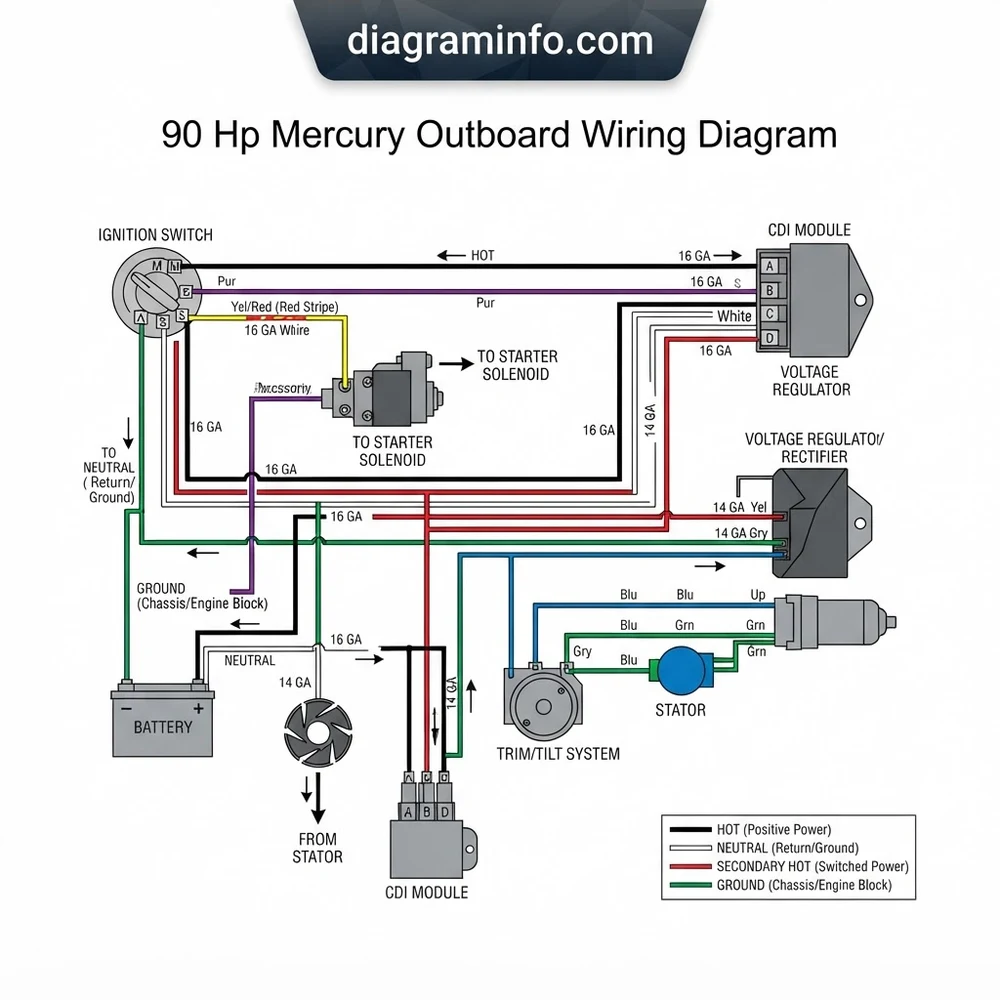

90 HP Mercury Outboard Wiring Diagram: 2026 Pinout
The 90 HP Mercury outboard wiring diagram uses standardized color codes: solid black serves as the main ground wire, solid red provides unswitched +12V hot wire battery power, and purple controls ignition switch power. Yellow with red stripe triggers the starter solenoid, while black with yellow stripe acts as the emergency kill circuit when grounded.
📌 Key Takeaways
- Mercury marine color coding uses solid black for battery ground wire and solid red for unswitched +12V hot wire.
- The black with yellow stripe circuit halts ignition by completing a path to ground when the kill switch triggers.
- Main battery leads require minimum 4 AWG marine-grade tinned copper wire to avoid hazardous voltage drops.
- The neutral wire circuit inside the control box interrupts starter solenoid activation while the engine is in gear.
- Always disconnect battery cables before servicing switch boxes, stators, or main harness connectors.
Performing electrical diagnostics or installing a replacement wiring harness on a 90 hp Mercury outboard engine requires absolute precision. Whether servicing a classic 3-cylinder 2-stroke (1990–2006) or a 90 hp FourStroke EFI model, understanding the OEM schematic prevents costly component failures. Incorrect wiring can permanently damage expensive CDI switch boxes, burn out the charging stator, or short the starter solenoid circuit. This comprehensive guide details every circuit path, standard wire color code, pin assignment, and terminal block connection found on the 90 hp Mercury outboard wiring diagram.
Decoding the 90 Hp Mercury Outboard Wiring Diagram Wire Color Code
Mercury Marine utilizes a standardized wire color code across nearly all outboard models. Knowing these standardized colors is essential when testing system voltage, identifying an ungrounded hot wire, or tracing signals back to the main helm terminal block. The table below outlines the essential wire colors, primary functions, and connection points for 90 hp Mercury outboards.
| Wire Color | Circuit Function | Terminal / Pin Connection | Technical Notes & Specs |
|---|---|---|---|
| Black | Engine Ground Wire (B-) | Engine Block Ground Stud / Bus Bar | Zero resistance to battery negative terminal. Must be clean and free of corrosion. |
| Red | Unswitched Hot Wire (+12V DC) | Starter Solenoid Battery Post / Fuse Block | Constant 12V battery voltage feed. Protected by a 20A inline fuse on engine harness. |
| Purple | Switched Hot Wire (+12V Ignition ON) | Ignition Switch Terminal ‘I’ / Instruments | Energized only when the ignition key is switched to the “RUN” position. |
| Yellow w/ Red Stripe | Starter Engage / Neutral Wire Circuit | Ignition ‘S’ / Neutral Safety Switch / Solenoid | Passes through helm neutral switch. Supplies +12V to trigger starter solenoid relay. |
| Black w/ Yellow Stripe | Ignition Kill Switch / Stop Circuit | CDI Switch Box ‘M’ Terminal / Emergency Lanyard | Grounded to shut down ignition. NEVER apply +12V to this wire or the CDI will fail. |
| Gray | Tachometer Signal Pulse | Voltage Regulator/Rectifier Send / Gauge Pin | Provides AC pulse signal (6-pulse/12-pole output) to the dash tachometer. |
| Tan | Engine Overheat Temperature Switch | Cylinder Head Thermal Switch / Warning Alarm | Completes ground path to sound continuous warning horn when engine temp exceeds ~190°F (88°C). |
| Tan w/ Blue Stripe | Low Oil Warning Switch | 2-Stroke Oil Reservoir Sensor / Alarm Module | Triggers intermittent warning horn signal when 2-stroke oil level drops below safety margin. |
| Green w/ White Stripe | Power Trim Down Command Wire | Trim Switch / Down Power Relay Coil | Carries +12V command signal to trip the trim-down high-current relay coil. |
| Blue w/ White Stripe | Power Trim Up Command Wire | Trim Switch / Up Power Relay Coil | Carries +12V command signal to trip the trim-up high-current relay coil. |
| Yellow (Solid Pairs) | Stator AC Output to Rectifier | Stator Harness to Voltage Regulator Rectifier | Delivers unregulated raw AC voltage (16–80V AC depending on RPM) to the charging system. |
Early 3-cylinder 90 hp Mercury outboards (1987–1993) equipped with 9-amp stator systems utilize two yellow stator leads feeding a standalone rectifier. Later 16-amp and 40-amp red stator systems integrate single or dual water-cooled voltage regulator/rectifier modules. Always consult our internal reference on Mercury Charging System Upgrades when replacing legacy components.
Step-by-Step Wiring Sequence for 90 Hp Mercury Outboard Harnesses
Executing a harness rebuild or main engine installation on a 90 hp Mercury outboard requires structured steps. Follow this exact sequence to ensure all ground wire, hot wire, and control paths are safely connected without shorting components.
Step 1: Main Battery Cable and Heavy Ground Wire Wire Route
Begin by routing the heavy 2 AWG red battery cable directly to the large top terminal stud on the starter solenoid. Route the matching 2 AWG black battery ground wire directly to the engine block mounting stud near the starter motor. Clean the mounting area to bare metal using a brass wire brush and apply dielectric grease to prevent marine galvanic corrosion. Torque the main battery post nuts to 90 lb-in (10 Nm).
Step 2: Terminal Block and Ignition Switch Harness Connections
Connect the main 8-pin or 14-pin helm harness plug into the engine side receptacle. Ensure the locking collar snaps fully into place to maintain a watertight seal. Inspect the primary internal terminal block located on the starboard side of the powerhead. Verify that the solid Red hot wire feeds the inline 20-amp assembly fuse, which then feeds the ignition switch circuit via the main harness bundle.
Step 3: Neutral Wire Safety Circuit and Starter Solenoid Trigger Wiring
Locate the Yellow with Red stripe wire originating from the helm control box ignition switch “S” terminal. Route this wire through the neutral safety switch inside the remote control unit before it passes into the engine harness. Connect the engine terminal end to the small S-terminal actuation stud on the starter solenoid relay. This step prevents the starter from cranking unless the control lever is locked in the neutral position.
Step 4: Ignition Switch Box and Stator Trigger Harness Wiring
For 2-stroke 3-cylinder models, connect the stator leads (Black/Yellow, Red, Blue, and paired Yellow AC leads) to the terminal strip leading to the switch box assembly. Attach the trigger harness leads (Brown, White, Purple stripes) to their matching color-coded studs on the switch box according to the 90 hp Mercury outboard wiring diagram schematic. Connect the Black/Yellow stop circuit wire to the dedicated kill switch terminal on the pack.
Never allow +12V battery current from the Red or Purple hot wire to touch the Black with Yellow stripe ignition kill switch wire. Introducing battery voltage into the stop circuit instantly destroys the internal capacitor diodes within the CDI switch box!
Step 5: Power Trim/Tilt Relay Harness Integration
Attach the Green with White stripe (Trim Down) and Blue with White stripe (Trim Up) command wires from the remote switch to the actuation coils on the dual trim relays. Ensure the high-current 10 AWG red lead feeding the trim pump motor receives a dedicated fuse or circuit breaker link directly off the starter solenoid battery terminal.
Terminal Block Pin Assignment, Wire Gauge, and Voltage Specifications
When custom-building or repairing marine harnesses, installing the correct wire gauge (AWG) and establishing precise terminal block pin assignments are critical to prevent excessive voltage drop. Marine-grade tinned copper wire (SAE J1128 / UL 1426) must always be specified to withstand severe vibration and moisture exposure.
• Pin 1 (Black): Engine Main Ground Wire (14 AWG)
• Pin 2 (Black/Yellow): Emergency Stop / Kill Switch Circuit (16 AWG)
• Pin 3 (Tan): Temperature Alarm Switch Output (16 AWG)
• Pin 4 (Yellow/Red): Neutral Safety / Starter Solenoid Feed (14 AWG)
• Pin 5 (Purple): Switched Ignition +12V DC Supply (14 AWG)
• Pin 6 (Red): Battery Unswitched +12V DC Feed (10 or 12 AWG)
• Pin 7 (Gray): Tachometer Pulse Signal Output (16 AWG)
• Pin 8 (Yellow/Black or Primer): Enriched Choke / Fuel Primer Valve (16 AWG)
Wire Gauge and Current Carrying Capacity Requirements
To avoid high-resistance overheating, follow OEM wire gauge specifications when performing harness splices or panel wiring:
- Battery Main Cables (Starter to Battery): 2 AWG minimum for runs under 10 feet; 1/0 AWG for lengths exceeding 10 feet. Maximum allowable voltage drop: 3% (0.36V DC under load).
- Voltage Regulator to Battery Lead (Red): 10 AWG tinned copper wire capable of handling continuous 40-amp outputs.
- Power Trim Pump High-Current Feeds: 10 AWG wire fused at 110 amps or inline 50-amp reset breaker.
- Ignition Command, Trim Switches, Gauges: 14 AWG to 16 AWG marine primary wire.
- Sensors (Oil level, Water Temperature): 16 AWG to 18 AWG flexible signal wire.
For more detailed technical data regarding overall boat power distribution, read our guide on Marine Gauge Selection and Voltage Drop Calculations.
Common 90 Hp Mercury Outboard Wiring Diagram Errors and Troubleshooting
Diagnosing electrical malfunctions on a 90 hp Mercury outboard requires systematic testing with a digital multimeter (DMM) set to DC Volts and Ohms (Resistance). Below are five classic wiring errors, their symptoms, and corrective technical fixes.
1. Intermittent or No Spark on Multiple Cylinders (CDI Ground Loop Issue)
Symptom: Engine misfires or loses spark entirely on one or more cylinders under vibration.
Cause: Corrosion or loose mounting bolts at the central engine ground wire stud, or oxidation between the switch box ground strap and the mounting bracket.
Fix: Remove the main ground wire leads from the starboard powerhead stud. Sand the mounting surface to bright metal. Measure ground resistance between the CDI casing and battery negative terminal; resistance must be less than 0.2 ohms. Re-torque fasteners to 35 lb-in.
2. Starter Motor Solenoid Clicks But Will Not Engage
Symptom: Turning the ignition switch produces a single loud click at the solenoid, but the starter shaft fails to spin.
Cause: High-resistance drop across the Yellow with Red stripe neutral safety wire circuit, or corroded main 2 AWG starter cable terminals.
Fix: Perform a voltage drop test. Connect DMM red lead to battery positive post and black lead to starter motor input terminal while cranking. If voltage drop exceeds 0.5V DC, inspect the neutral switch contacts and replace damaged 14 AWG harness leads.
3. Voltage Regulator Overheating / Blown Battery Charging System
Symptom: Battery fails to charge (voltage remains at 12.6V DC or drops while running), or tachometer pegging at maximum reading.
Cause: Reversing battery polarity or running the engine with battery isolator switch turned off, which instantly destroys the internal silicon rectifiers.
Fix: Test stator AC output across paired solid yellow wires. At idle (750 RPM), voltage should read approximately 16–22V AC. At 3000 RPM, output should exceed 50V AC. If AC output is correct but DC voltage across battery terminals does not rise to 13.5–14.4V DC when running, replace the voltage regulator/rectifier unit.
4. Engine Cranks in Gear (Neutral Switch Bypassed)
Symptom: Engine starts even when the remote control box throttle lever is engaged in forward or reverse.
Cause: Miswired Yellow/Red neutral wire directly connected from ignition switch “S” terminal to starter solenoid, bypassing the internal helm switch contacts.
Fix: Trace Yellow/Red wire from the key switch down into the remote control housing. Ensure the loop breaks through the microswitch mounted alongside the shift detent arm before continuing back to the engine terminal block.
5. Continuous Warning Horn Alarm Activation
Symptom: Alarm buzzer sounds continuously as soon as the key is turned to the “RUN” position on a cold engine.
Cause: Shorted Tan temperature sensor wire contacting engine block ground wire, or failed oil warning module.
Fix: Disconnect the single Tan wire lead at the cylinder head temperature sensor. If alarm stops, replace thermal switch (part opens at normal temps, grounds out when overheated). If alarm continues, test for a pinched Tan/Blue wire shorted against the chassis frame.
For additional ignition diagnostic procedures, reference our complete guide on Testing Marine Stators and CDI Ignition Modules.
90 Hp Mercury Outboard Wiring Diagram Frequently Asked Questions
What color is the ignition kill switch wire on a 90 hp Mercury outboard?
The standard OEM ignition kill switch wire is Black with a Yellow stripe. When this wire is connected to ground (via emergency lanyard clip or key switch “OFF” position), it grounds out the primary bias circuit in the CDI switch box, stopping spark generation instantly. Never feed 12-volt battery power into this wire.
Why does my 90 hp Mercury trim work in one direction only?
Directional trim failure usually indicates a blown relay or corroded command wire. The Blue with White stripe wire controls the UP relay, while the Green with White stripe wire controls the DOWN relay. Swap the two round trim relays on the side of the engine block. If the direction issue reverses, replace the faulty relay. If problem stays the same, check for a broken command wire in the helm harness.
How do I wire a replacement tachometer using the Mercury wire harness?
Marine tachometers operating on Mercury outboards rely on a 12-pole alternator pulse signal. Connect the gauge signal terminal (SIG) to the Gray wire on the helm harness. Connect the gauge ignition terminal (IGN) to the switched Purple (+12V) wire, and attach the gauge ground terminal (GND) to the solid Black wire. Set the pole selector switch on the back of the tachometer to position “6 pulses / 12 poles” (Position 4 on many aftermarket gauges).
What is the function of the Yellow wire with a Black stripe on 2-stroke Mercury models?
The Yellow with Black stripe wire powers the electric choke solenoid or fuel enrichment valve. When you push in the ignition key while turning it to the “START” position, +12V DC travels down the Yellow/Black wire to energize the primer plunger, enriching the fuel mixture for cold starting.
Can I adapt an older 8-pin Mercury remote harness to a newer 14-pin engine plug?
Yes, you can adapt an 8-pin harness to a 14-pin engine receptacle by utilizing a genuine Mercury Marine harness adapter (OEM Part Number 84-896537K20). The adapter correctly maps basic ignition, trim, start, and charging functions while leaving unused pin assignments (such as SmartCraft digital CAN-bus communication lines) capped off cleanly.
