Harbor Breeze Ceiling Fan Parts Diagram: 2026 Repair
A Harbor Breeze ceiling fan parts diagram outlines the system layout from the mounting bracket and downrod to the motor structure. It details the 3-wire or 4-wire CBB61 capacitor (4.5µF/5µF/6µF), switch housing, and speed pull chain. Standard wiring routes black (fan power), blue (light), white (neutral), and green (ground) through the canopy.
📌 Key Takeaways
- The primary electrical failure point is the multi-wire CBB61 capacitor (rated at 250VAC/300VAC), which causes slow blade rotation or total speed loss.
- Color-coded lead configurations follow standard standards: Black for motor fan live, Blue for light fixture live, White for neutral, and Green/Bare Copper for ground.
- Blade iron screws must be torqued securely to 25-30 in-lbs to prevent mechanical wobble and excessive motor noise.
- Remote control receiver modules sit directly inside the canopy housing between the ceiling junction box and downrod hanger.
- DIY replacement of capacitors, switches, and remote modules is straightforward, but motor winding shorts require complete fan replacement.
Deciphering a full harbor breeze ceiling fan parts diagram requires a technical understanding of both electro-mechanical sub-assemblies and integrated electronic control circuits. Modern Harbor Breeze ceiling units utilize a combination of permanent split-capacitor (PSC) AC induction motors or high-efficiency brushless DC (BLDC) motors, paired with RF receiver modules, multi-tap speed control capacitors, and specialized mounting hardware. Whether you are performing a complete teardown, diagnosing an open motor winding, replacing a degraded multi-value run capacitor, or correcting dynamic rotor imbalance, engineering schematics serve as the essential reference layout. This technical guide breaks down every critical component, voltage path, and mechanical alignment tolerance across standard Harbor Breeze hardware configurations.
Harbor Breeze Ceiling Fan Parts Diagram Assembly Component Breakdown

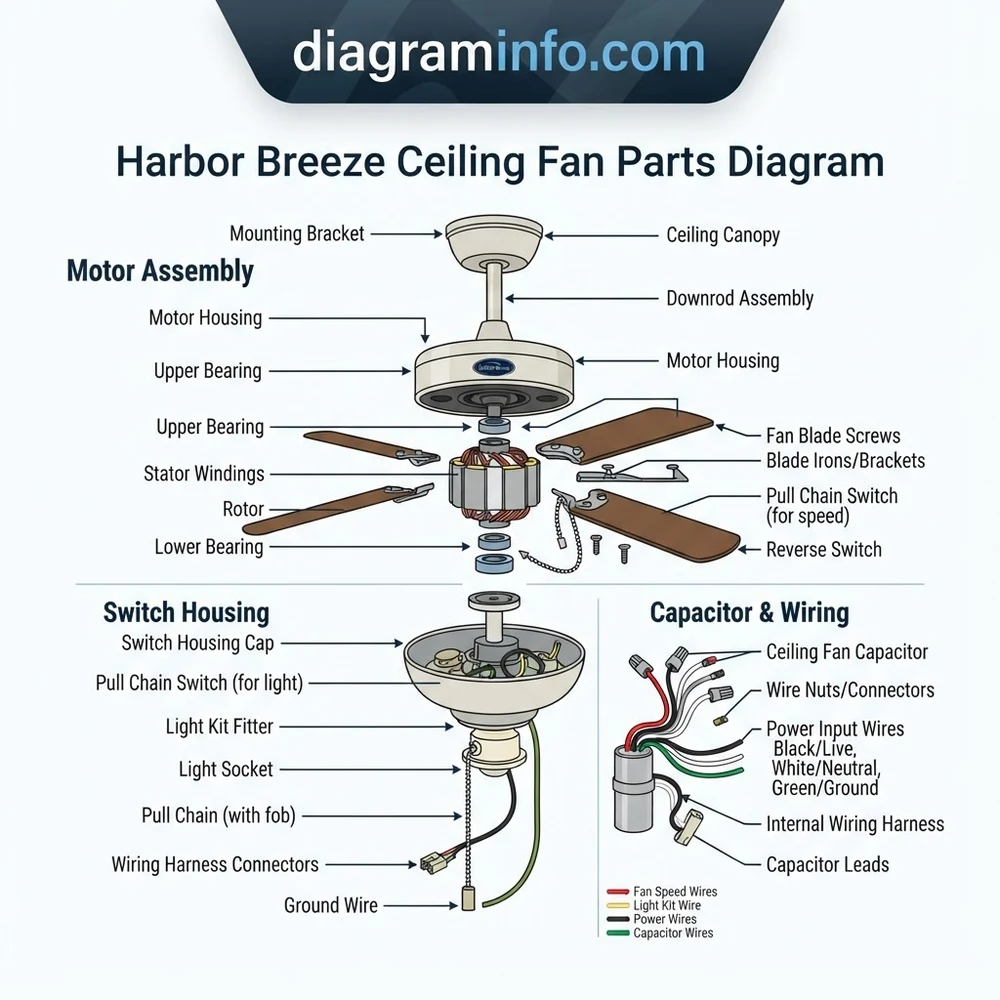

An exploded view of a Harbor Breeze assembly reveals four primary physical sub-systems: the structural mounting hardware, the motor stator/rotor core, the aerodynamic blade iron array, and the lower switch housing control sub-system. Understanding how these mechanical and electrical elements interface according to the structural blueprint prevents improper assembly, unwanted vibration resonance, and electrical short circuits.
Recommended Best Deal Products
Mounting System and Downrod Suspension Hardware
The structural top-end assembly consists of a heavy-gauge steel ceiling mounting bracket secured to a UL-listed outlet box rated for fan support (minimum 35 lbs dynamic load rating). The hanger ball sits inside the mounting bracket socket, providing a hemispherical pivot that compensates for vaulted ceilings up to 19 degrees. A hollow steel downrod—typically 0.75-inch inner diameter—routes the main AWG 18 wiring harness from the ceiling canopy through the decorative canopy cover ring and down into the motor yoke. Hardware securing the downrod includes a hardened clevis pin, a stainless steel cotter pin retainer clip, and dual anti-vibration jam set screws. Proper seating of the hanger ball tab into the bracket slot is mandatory to prevent torque rotation during motor startup.
Motor Assembly Sub-System and Run Capacitor Layout
The drive core consists of a direct-drive outer-rotor AC induction motor enclosed within decorative die-cast aluminum housing halves. Internal components include a laminated silicon steel stator wound with copper magnet wire, dual pre-lubricated 608ZZ or 6202RS shielded ball bearings, and a rubberized elastomeric flywheel on direct-drive motor variations. Connected directly to the motor speed taps is a CBB61 metallized polypropylene film run capacitor. This component is typically configured as a 4-wire or 5-wire dual/triple-value unit (e.g., 4.5µF + 6µF + 5µF ±5% tolerance rated at 250VAC to 300VAC). The capacitor introduces a phase shift in the auxiliary stator winding, generating the rotating magnetic field required to initiate and maintain rotor torque across low, medium, and high speeds.
Blade Iron Configuration and Aerodynamic Components
The rotational array comprises cast zinc or stamped steel blade brackets (blade irons) mounted to the lower motor flange or inner rotor face. Each blade iron attaches to a high-density fiberboard or ABS synthetic blade via three fasteners equipped with neoprene isolator washers. These elastomeric washers absorb axial harmonic frequencies, reducing structural hum. Blade pitch angles on standard Harbor Breeze layouts range from 12 to 14 degrees, requiring precise weight-matching tolerances within ±1.0 gram per blade set to eliminate dynamic wobble at high rotational speeds (RPM range: 60 RPM low to 220 RPM high).
Switch Housing, Control Receiver, and Lighting Sub-System
Positioned below the motor core is the lower switch housing assembly, connected via a multi-pin quick-connect wiring harness. This enclosure houses the RF remote control receiver (operating on standard 303.9 MHz or 315 MHz frequencies), the 3-speed pull-chain switch (e.g., Zing Ear TP-01 logic sequence: L-1, L-2, L-3, OFF), and the mechanical slide switch for reverse rotation control. The lower light kit fitter mounts to the switch housing cup, incorporating an LED driver circuit board or standard E12/E26 porcelain lamp sockets supplied by blue (hot) and white (neutral) auxiliary leads.
| Component Name | Standard Technical Specification | Functional Role in System Schematic |
|---|---|---|
| CBB61 Run Capacitor | 4.5µF / 6µF / 5µF ±5%, 250-300V AC | Splits single-phase AC line into auxiliary phase-shifted motor winding taps for multi-speed control. |
| RF Receiver Module | 120V AC / 60Hz Input, 303.9MHz / 315MHz RF | Decodes wireless handheld RF signals to modulate light dimming (TRIAC) and motor speed relays. |
| Stator / Rotor Core | 153mm x 15mm or 188mm x 15mm Silicon Steel | Converts electrical input energy into mechanical shaft torque via electromagnetic induction. |
| 3-Speed Pull Switch | 6A 125VAC / 3A 250VAC (Zing Ear / Weber) | Mechanically routes input line phase across internal capacitor circuit combinations. |
How to Read the Harbor Breeze Ceiling Fan Parts Schematic Layout
Interpreting a electrical and mechanical layout diagram demands step-by-step trace analysis starting from incoming line voltage down through switch logic networks and component loads. Reference schematics represent both electrical connectivity and mechanical alignment order.
Recommended Best Deal Products
Always verify whether your specific model schematic represents a traditional manual pull-chain wiring configuration or an integrated solid-state RF receiver configuration. Mixing receiver wire outputs with direct capacitor speed taps will destroy the internal switching relays.
Tracing Line Voltage and Motor Lead Color Schematic Coding
Primary AC input power enters the top canopy wiring harness as 120V AC, 60Hz single-phase service. Standard Harbor Breeze lead color configurations conform to the following operational parameters:
- Black Lead: 120V AC Line Hot power dedicated to motor operation.
- White Lead: System-wide common AC Neutral return wire.
- Blue Lead: Switched 120V AC Line Hot power dedicated to the light kit circuitry.
- Green / Bare Copper: Equipment ground conductor connected to canopy plate and downrod hanger ball.
- Red / Brown / Gray Leads: Internal motor speed taps routing load through the speed selection switch and CBB61 capacitor networks.
When an internal RF remote control receiver module is installed, input 120V AC power (Black and White) connects directly to the receiver AC-IN terminal block. The module outputs supply separate modified sign-wave voltage to the motor (Red/Black) and light kit (Blue), with a shared White Neutral output going to both loads. For advanced secondary controller installation, refer to our comprehensive ceiling fan capacitor wiring guide to verify multi-wire capacitor bridge connections.
Interpreting CBB61 Multi-Capacitor Microfarad (µF) Circuitry
The motor speed control circuit relies on changing total capacitive reactance (X_C = 1 / (2πfC)) in series with the motor start winding. On the harbor breeze ceiling fan parts diagram layout, the capacitor housing usually displays a block schematic showing internal parallel/series connections:
- High Speed: 120V AC applies directly to the primary main winding coil; the capacitor circuit is bypassed or connected in high-value run configuration.
- Medium Speed: Line voltage routes through a lower-microfarad capacitor tap (e.g., 4.5µF), dropping effective voltage across the main winding and reducing RPM.
- Low Speed: Line voltage routes through two capacitor internal sections in series or a microfarad tap as low as 2.5µF to 3.5µF, significantly increasing circuit impedance and lowering motor torque.
Mechanical Fastener Torque Standards and Structural Tolerances
The exploded mechanical component diagram dictates precise assembly sequences and torque requirements to prevent structural hardware fatigue, bearing wear, and operational noise. When reassembling components shown on the layout blueprint, torque values must adhere to OEM technical standards:
• Downrod Yoke Cross-Pin Fasteners: 35–40 in-lbs torque
• Downrod Anti-Vibration Set Screws: 20–25 in-lbs torque (apply medium-strength threadlocker)
• Blade Iron to Motor Hub Bolts: 25–30 in-lbs torque
• Blade Bracket to Synthetic Blade Screws: 12–15 in-lbs torque (do not crush rubber grommets)
• Mounting Bracket Screws to Ceiling Box: 40–50 in-lbs torque
Harbor Breeze Ceiling Fan Parts System Troubleshooting and Diagnostics
Fault isolation on a Harbor Breeze ceiling assembly requires combining systematic electrical measurements with physical mechanical inspection. Isolating a failed component involves testing voltage supply, winding resistance, capacitive value drift, and dynamic balance tolerances.
Disconnect primary 120V AC electrical power at the breaker panel before testing winding resistance or removing internal wire nuts. High-voltage capacitors retain stored electrical energy; discharge CBB61 capacitor terminals across an insulated 10kΩ resistor prior to multimeter testing.
Motor Winding Resistance Testing and Thermal Fuse Failures
When the fan fails to rotate despite receiving full line voltage at the switch housing, perform static resistance measurements using a Digital Multimeter (DMM) set to the 200Ω/2kΩ resistance range:
- Isolate the motor harness by disconnecting quick-connect plugs.
- Measure resistance across the main run winding (Black wire to White neutral). Typical healthy resistance ranges from 35Ω to 90Ω.
- Measure resistance across the auxiliary start winding (Capacitor input lead to White neutral). Healthy resistance ranges from 80Ω to 220Ω.
- An infinite (OL) resistance reading on all winding legs indicates a blown internal thermal fuse (typically rated for 115°C or 130°C cut-off) embedded within the stator wire bundles. Stator replacement or motor assembly renewal is required.
- Zero resistance (0Ω) between any motor phase lead and the grounded outer metal housing indicates an insulation breakdown and a short-to-ground fault.
For additional testing procedures regarding isolated AC motor stator shorts, consult our detailed AC motor troubleshooting manual.
RF Receiver Module Signal Failures and DIP Switch Alignment
If the motor and lighting system fail to respond to remote control commands, the root cause usually stems from control receiver signal loss or damaged output switching TRIACs / relays:
- DIP Switch Calibration: Verify that the 4-bit DIP switch bank located inside the handheld remote battery compartment matches the switch sequence set on the physical receiver module in the fan canopy (e.g., 0-1-1-0 configuration).
- Input Voltage Check: Measure AC line voltage entering the receiver across AC-N (White) and AC-L (Black). Meter must register 110V AC – 120V AC.
- Output Load Diagnostic: Press the fan speed toggle on the remote control. Measure output voltage between receiver Neutral (White) and Motor Output (Red/Black). If input voltage is present but output voltage remains at 0V AC, the internal board-mounted switching relay or TRIAC has failed due to an overcurrent surge. Check our guide on universal remote control receiver schematics for module replacements.
Dynamic Mechanical Oscillation and Rotor Alignment Protocols
Systemic wobbling at high rotational speeds strains the mounting assembly bracket and downrod pin joint. Address dynamic imbalances using structural diagnostic alignment steps:
- Hanger Ball Slot Check: Ensure the alignment tab on the mounting bracket is fully locked into the keyway slot of the downrod ball.
- Vertical Tracking Inspection: Measure the vertical distance from the ceiling to the tip of each fan blade at a fixed reference point. Distance variance between any blade tip must not exceed 1/8 inch (3.17 mm). Bend blade irons gently at the mounting shoulder to correct pitch discrepancies.
- Fastener Tension Audit: Confirm all motor hub bolts and blade attachment hardware are torqued according to hardware spec tables. Elastic flywheel degradation must be checked; cracked rubber flywheel hubs create lateral rotor play and must be replaced.
Frequently Asked Harbor Breeze Blueprint and Configuration Questions
How do I locate the model number on my Harbor Breeze fan to find the matching schematic?
Harbor Breeze prints the exact model identification number (e.g., Bronze 52-in model #LIT52ABZ5C or Model #A18012) on a silver aluminum foil label attached to the top flat surface of the main motor housing. To view this label, pull down the upper canopy cover ring and lower the decorative canopy down the downrod. The label lists model number, UPC, electrical wattage consumption, motor amperage rating (e.g., 0.55A), and manufacturing date code. Use this specific model code when referencing exact factory exploded parts schematics and replacement part numbers.
What are the standard wire color codes used in Harbor Breeze wiring schematics?
Standard North American single-phase color coding applies to input connections: Black represents 120V AC Live/Hot power for fan motor function, White represents Neutral return, Blue represents dedicated 120V AC Live power for the lighting kit, and Green or Bare Copper indicates Earth Ground. Within the lower switch housing diagram, non-standard internal color wires include Red, Pink, or Yellow, which represent output speed taps leaving the pull switch or receiver module going directly into the multi-tap CBB61 run capacitor array.
Can I substitute a 5-wire CBB61 capacitor with separate individual capacitors?
Yes, provided the microfarad (µF) rating and voltage tolerances of the individual capacitors match the individual circuit segments of the 5-wire unit. A 5-wire CBB61 capacitor is simply a single resin-encapsulated package housing two or three distinct capacitors sharing a common AC neutral lead. To substitute individual film capacitors, connect one terminal of each replacement capacitor together to form the common neutral connection, and wire the remaining output legs to their corresponding speed switch taps matching the microfarad values (e.g., 4.5µF for medium speed tap, 6.0µF for high/run phase) indicated on the original schematic component label.
Why does the fan hum loudly after replacing components based on the layout diagram?
An audible 60Hz magnetic line hum following component replacement is typically caused by one of three electrical or mechanical root causes: installation of an incompatible wall-mounted solid-state TRIAC light dimmer switch in series with the motor line (which chops the sine wave form), replacement of the CBB61 run capacitor with incorrect microfarad values (causing excessive phase angle displacement and stator core vibration), or failure to reinstall elastomeric neoprene isolation washers between the blade irons and the motor hub. Always ensure motor power circuits are fed by clean, un-dimmed AC sine wave power supply lines.
What torque specs should be applied to downrod set screws and blade mounting bolts?
Downrod anti-vibration jam set screws located on the motor yoke assembly must be torqued to 20–25 in-lbs; ensure medium-strength threadlocking compound (e.g., Loctite 242) is applied to prevent screw back-out from continuous motor torque cycles. The main clevis lock pin hardware must be tightened to 35–40 in-lbs. Blade iron attachment screws connecting directly to the die-cast aluminum motor housing require 25–30 in-lbs torque to maintain balanced tracking, while synthetic blade-to-iron screws should be tightened to 12–15 in-lbs to prevent splitting the blade material or over-compressing isolation grommets.
Step-by-Step Guide to Understanding the Harbor Breeze Ceiling Fan Parts Diagram
Identify – Locate the specific Harbor Breeze model number on the sticker atop the motor housing to match the correct parts diagram.
Locate – Position the mounting bracket, canopy, downrod, motor assembly, switch housing, and blade irons on your work surface.
Reference – Consult the schematic to verify wire color codes and capacitor terminal layout before making electrical connections.
Connect/Route – Route black, blue, white, and ground wires from the ceiling junction box through the downrod canopy to the switch housing.
Verify – Perform a mechanical stability check on blade screws and test voltage continuity using a multimeter prior to final assembly.
Troubleshoot – Refer to the diagram’s capacitor and pull-chain schematic if fan blades spin slowly or fail to respond to speed changes.
