1756-IF8 Wiring Diagram: Pinout Guide (2026)

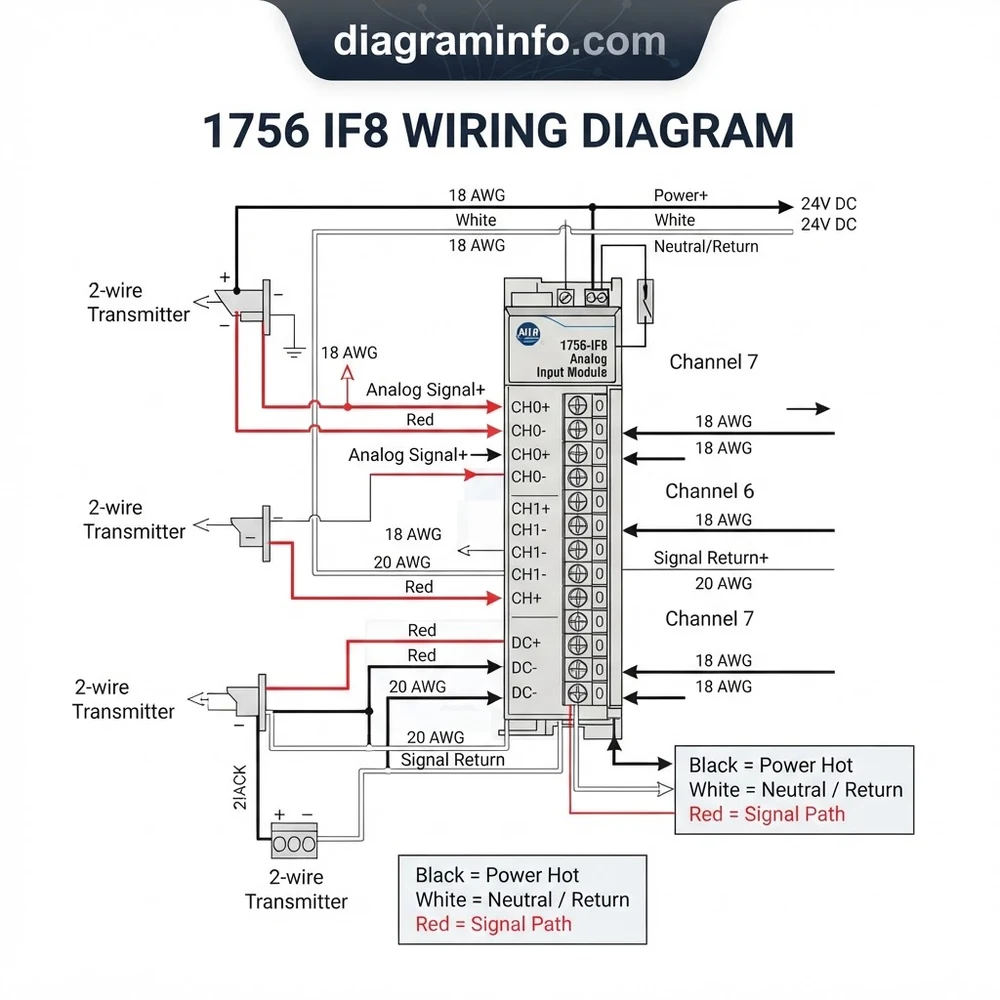

The Allen-Bradley 1756-IF8 wiring diagram details connections for 8 differential analog channels using a 36-pin 1756-TBCH RTB. For a 2-wire 4-20mA loop, connect external 24V DC hot wire to transmitter (+), signal return to IN-0+ (pin 2), jumper IN-0- (pin 4) to i-rtn0 (pin 6), and attach the shield ground wire to chassis ground.
📌 Key Takeaways
- 1756-IF8 requires a 36-pin (1756-TBCH) or 20-pin (1756-TBNH) removable terminal block.
- Current inputs require jumpering IN-x- to i-rtn-x pin assignment to engage internal loop resistance.
- Maximum terminal block screw torque spec is 0.5 to 0.8 Nm (4.4 to 7.1 lb-in).
- Unused differential channel inputs must be jumpered to prevent floating signal channel faults.
- Shield ground wire should be grounded at the chassis ground bar on one end only to prevent ground loops.
Proper field installation of the Allen-Bradley ControlLogix 1756-IF8 analog input module requires strict adherence to channel configuration protocols, signal polarity, and grounding standards. As an 8-channel non-isolated analog input module operating within Rockwell Automation ControlLogix architecture, the 1756-IF8 processes standard process control signals, including 0 to 10V DC, ±10V DC, and 4 to 20mA current loops. Wiring this module incorrectly can introduce signal noise, ground loop offset errors, or permanent hardware damage to the Removable Terminal Block (RTB). This technical wiring guide provides explicit pin assignments, color codes, cable specifications, and step-by-step schematics for differential and single-ended operational modes.
1756-IF8 Wiring Diagram Pin Assignment and Signal Specifications
The 1756-IF8 module utilizes a 36-pin Removable Terminal Block (1756-TBCH cage clamp or 1756-TBNH NEMA screw clamp). Before attaching conductors, verify whether the channel is configured for single-ended, differential, or high-speed differential mode in Studio 5000 Logix Designer. Input modes determine how the positive signal terminal (IN-x+), negative return terminal (IN-x-), voltage return (vRTN), and current return (iRTN) are interconnected across the terminal block.
The following reference table maps field conductor connections using standard Belden 8760 / 9501 industrial instrument cable color conventions. The table outlines signal pathways for current (4-20mA) and voltage (0-10V DC) field devices.
| Terminal Pin | Terminal Identification | Wire Color Code (Belden 8760/9501) | Electrical Function & Signal Type |
|---|---|---|---|
| Pin 2 | IN-0+ | Red (Hot Wire / Signal Positive) | Channel 0 Positive Input (+V / +mA) |
| Pin 4 | IN-0- | Black (Neutral Wire / Signal Return) | Channel 0 Negative Input (-V / -mA) |
| Pin 6 | iRTN-0 | Jumper to Pin 4 (or Black Wire) | Channel 0 Current Return (Required for 4-20mA) |
| Pin 8 | IN-1+ | White (Hot Wire / Signal Positive) | Channel 1 Positive Input (+V / +mA) |
| Pin 10 | IN-1- | Black with White Stripe (Return) | Channel 1 Negative Input (-V / -mA) |
| Pin 12 | iRTN-1 | Jumper to Pin 10 | Channel 1 Current Return (Required for 4-20mA) |
| Pin 14 to 28 | IN-2+ to IN-7+ / IN-2- to IN-7- | Pair-Specific Standard Colors | Channels 2 through 7 Field Signal Connections |
| Pin 34 / 36 | vRTN | Green/Yellow or Black Common | Voltage Return Common Reference |
| RTB Ground Bus | SHIELD / GND | Bare Copper / Green Ground Wire | Chassis Earth Ground Wire Drain Connection |
Module Voltage Range: ±10.25V DC, 0-5V, 1-5V, 0-10V. Current Range: 0-20.5 mA, 4-20 mA. Internal Input Impedance: 10MΩ (Voltage Mode), 249Ω (Current Mode when iRTN is tied to IN-x-). Maximum Overvoltage Protection: 30V DC continuous across voltage terminals.
Differential vs. Single-Ended Configuration in the 1756-IF8 Wiring Diagram
When engineering field connections, selecting between differential and single-ended operational modes alters the physical layout of the terminal block jumpers and return wires. The 1756-IF8 non-isolated module shares a common ground bus across channels, making proper return paths critical to preventing cross-channel interference.
Differential Wiring Mode (4 Channels Max)
Differential mode offers superior noise rejection and eliminates common-mode ground loops. In differential wiring, each input channel utilizes a separate pair of signal conductors (IN-x+ and IN-x-). For 4-20mA current loop configurations, a physical jumper must connect terminal IN-x- directly to the corresponding iRTN terminal (e.g., Pin 4 to Pin 6 for Channel 0). This places the internal 249-ohm precision shunt resistor in series with the input circuit, converting the 4-20mA current into a voltage drop readable by the module’s analog-to-digital converter.
Single-Ended Wiring Mode (8 Channels Max)
Single-ended mode permits wiring up to 8 analog field devices to a single 1756-IF8 module. All negative input terminals (IN-0- through IN-7-) are tied internally or externally via jumpers to the central voltage return terminal (vRTN). While this reduces total cable length and simplifies panel design, all connected field devices must share the same power supply ground wire. If field transducers are located at significant physical distances from the PLC rack, common-mode ground voltage differentials will distort signal conversion accuracy. Review your system design alongside related documentation, such as the 1756-IB16D digital input module wiring standards, to ensure chassis grounding integrity.
Do NOT apply an external voltage source (e.g., 24V DC field loop power) directly across IN-x+ and IN-x- while the iRTN terminal is jumpered without an inline load. Connecting a low-impedance voltage supply directly across the internal 249Ω shunt resistor will burn out the channel’s input resistor network, requiring module replacement.
Step-by-Step 1756-IF8 Wiring Diagram Connection Guide for Analog Inputs
Completing a clean, reliable installation on a ControlLogix terminal block requires systematic execution. Follow these exact steps to connect 2-wire loop-powered, 3-wire, and 4-wire analog field devices to the 1756-IF8 module.
- Isolate Field and System Power: Turn off the 24V DC field supply supply voltage and power down the ControlLogix chassis rack. Remove the 1756-TBCH or 1756-TBNH terminal block housing from the module door assembly by unlatching the top and bottom retaining tabs.
- Prepare Signal Cables and Wire Gauges: Strip back the overall outer jacket of the shielded twisted pair cable (18 to 22 AWG gauge wire) by approximately 2 inches (50 mm). Strip individual conductor insulation to exposing 5/16 inch (8 mm) of bare copper wire. Crimp narrow wire ferrules onto stranded conductor tips to prevent loose strands from shorting adjacent terminal block pins.
- Install Current Loop Jumper (For 4-20mA Applications): If wiring a 4-20mA loop, install a jumper wire (22 AWG gauge) between the negative terminal IN-x- (e.g., Pin 4) and the designated current return terminal iRTN-x (e.g., Pin 6). For standard 0-10V DC voltage inputs, leave the iRTN terminal completely unconnected.
- Connect 2-Wire Transmitter (Loop-Powered):
- Connect the 24V DC positive hot wire from the external power supply to the positive terminal (+VDC) of the field transmitter.
- Connect the transmitter output signal wire (Red / Positive) to the 1756-IF8 positive terminal IN-0+ (Pin 2).
- Connect the supply negative wire (Black / Neutral wire) to the 1756-IF8 negative terminal IN-0- (Pin 4). Ensure the iRTN jumper is installed between Pin 4 and Pin 6.
- Connect 4-Wire Transmitter (Self-Powered / Voltage Output):
- Connect the positive signal wire (Red / Hot wire) directly to IN-0+ (Pin 2).
- Connect the negative signal reference wire (Black / Neutral wire) to IN-0- (Pin 4).
- For 0-10V DC mode, connect a signal ground wire from IN-0- (Pin 4) to the module’s vRTN terminal (Pin 34) if using single-ended configurations.
- Terminate Cable Shielding: Gather all bare drain wires from shielded instrument cables. Slip a piece of clear insulating sleeving over each drain wire, then terminate the ground wire to the system enclosure shield bus or the designated RTB ground terminals. Never tie shields at both ends.
- Secure Terminal Screws and Mount RTB: Tighten terminal clamp screws to a recommended torque specification of 0.5 to 0.8 N·m (4.4 to 7.1 lb-in). Seat the wired terminal block firmly onto the 1756-IF8 module connector interface until both latches click into place.
For installations utilizing high-density field wiring panels, ensure compatibility with standard 1756 ControlLogix wiring arm accessories. Refer to standard panel layouts used in 1756-OF8 analog output installation protocols to maintain consistent wiring color codes and terminal layout logic across the entire control cabinet.
Shielding, Ground Wire Termination, and Cable Gauge Selection
High-resolution analog inputs are susceptible to high-frequency electromagnetic interference (EMI) and radio frequency interference (RFI) generated by variable frequency drives (VFDs), heavy industrial motors, and switching power supplies. Preventing signal oscillation and errant digital counts in Studio 5000 requires strict signal wiring discipline.
Selecting Cable Wire Gauge and Distance Limits
Always use high-quality twisted pair shielded instrument wire, such as Belden 8760 (18 AWG) or Belden 9501 (24 AWG), depending on installation distance. For voltage input signals (0-10V DC), keep cable runs under 50 feet (15 meters) to eliminate voltage drop errors caused by wire resistance. Current loop signals (4-20mA) are immune to line resistance and can travel up to 1,000 feet (300 meters), provided the 24V DC field loop power supply maintains sufficient voltage overhead to compensate for total loop impedance.
| Signal Type | Recommended Wire Gauge | Maximum Distance | Cable Type Requirement |
|---|---|---|---|
| 0-10V DC Voltage | 18 AWG (0.82 mm²) to 20 AWG (0.52 mm²) | 50 feet (15 m) | Overall Foil Shielded Twisted Pair |
| 4-20 mA Current Loop | 18 AWG (0.82 mm²) to 22 AWG (0.33 mm²) | 1,000 feet (300 m) | Overall Foil Shielded Twisted Pair |
| ±10V DC Differential | 16 AWG (1.3 mm²) to 18 AWG (0.82 mm²) | 100 feet (30 m) | Individually Shielded Pairs |
Shield Drain Ground Wire Termination Rules
To avoid creating ground loops, signal cable shields must be grounded at one end only. The standard practice according to Rockwell Automation OEM guidelines is to ground the shield drain wire at the enclosure ground bus bar near the PLC rack. Cut, insulate, and float the bare ground wire shield at the field device end. Connect the main enclosure earth ground bus to the panel ground wire terminal using a heavy-gauge copper conductor (minimum 14 AWG or 10 AWG depending on local electrical codes). Maintain adequate separation between low-voltage instrument wiring and high-voltage AC power lines (minimum 12 inches / 300 mm clearance) in panel wireways.
Common 1756-IF8 Wiring Errors and Field Troubleshooting Protocols
When an analog channel reports underscale errors, overscale anomalies, or random signal drift, field technicians must systematically check physical connections and module indicators. Below are common wiring mistakes and their exact field remedies.
1. Missing iRTN Jumper Wire in 4-20mA Current Loops
- Symptom: The Studio 5000 tag value remains stuck at full scale (+21 mA), reads zero, or fluctuates wildly without responding to field process changes.
- Root Cause: The current return terminal (iRTN-x) is not connected to the negative input terminal (IN-x-). Without this jumper wire, the internal 249Ω resistor is bypassed, creating an open circuit condition for current flow.
- Correction: Install a short 22 AWG jumper wire between IN-x- (e.g., Pin 4) and iRTN-x (e.g., Pin 6).
2. Incorrect Polarity (Reversed Hot Wire and Neutral Wire)
- Symptom: The Studio 5000 input channel tag displays negative saturation (-10V or -0.5 mA) or triggering channel fault bits.
- Root Cause: Signal hot wire (positive) and neutral wire (negative/return) conductors are swapped at the RTB terminal block.
- Correction: Verify transmitter polarity using a digital multimeter set to DC current/voltage. Ensure the positive conductor is seated in IN-x+ and the return conductor is seated in IN-x-.
3. Dual-End Shield Grounding Creating Ground Loops
- Symptom: Analog input readings exhibit continuous, high-frequency noise ripple or 60Hz AC sine wave oscillation.
- Root Cause: The shield drain wire was grounded at both the field transmitter enclosure and the PLC panel ground bus bar. Potential ground voltage differences drive circulating current through the shield foil, inducing noise onto the signal conductors.
- Correction: Disconnect and tape back the shield ground wire at the field instrument side. Ensure shield grounding is made exclusively at the control panel earth ground terminal block.
4. Floating Inputs on Single-Ended Configurations
- Symptom: Unused or connected channels drift unpredictably and cause cross-talk interference on adjacent channels.
- Root Cause: Single-ended mode return paths (vRTN) are floating without a continuous ground wire tie back to the 24V DC power supply ground.
- Correction: Connect all unused channel positive terminals (IN-x+) directly to vRTN, or jumper vRTN (Pin 34/36) back to DC common. Ensure chassis ground is correctly bonded, similar to practices detailed in ControlLogix chassis power supply grounding manuals.
Frequently Asked Questions About 1756-IF8 Wiring Protocols
What terminal block model numbers are compatible with the Allen-Bradley 1756-IF8?
The 1756-IF8 module supports 36-pin ControlLogix Removable Terminal Blocks, specifically model 1756-TBCH (spring-clamp terminal block) and model 1756-TBNH (standard NEMA screw-clamp terminal block). Standard 20-pin RTBs (such as 1756-TBA) are incompatible with this module’s connector housing.
Why does the 1756-IF8 require jumper wires between IN-x- and iRTN-x for 4-20mA signals?
Unlike isolated analog modules with fixed onboard current shunts, the non-isolated 1756-IF8 uses internal switching circuits and selectable precision resistors. To read a 4-20mA current loop, placing a jumper between IN-x- and iRTN-x physically routes the incoming current loop across an internal 249-ohm precision shunt resistor. This converts the current signal into a proportional voltage signal that the module’s internal A/D converter can sample.
Can I mix 0-10V DC voltage inputs and 4-20mA current inputs on the same 1756-IF8 module?
Yes, you can mix voltage and current input channels on the same 1756-IF8 module. Each channel is configured individually in Studio 5000 Logix Designer software. For current channels, install the required IN-x- to iRTN-x jumper on the RTB. For voltage channels, omit the jumper wire and connect the signal directly across IN-x+ and IN-x-.
What is the recommended wire gauge range for the 1756-TBCH terminal block?
The 1756-TBCH spring-clamp RTB accepts wire gauges ranging from 22 AWG to 14 AWG (0.33 mm² to 2.08 mm²) solid or stranded copper wire. When using insulated ferrule terminals, ensure the conductor size does not exceed 16 AWG to permit double-wire entry where channel jumpers are required.
How should unused channels be handled on a 1756-IF8 wiring diagram?
Unused channels on a 1756-IF8 module should be disabled in the Studio 5000 module configuration properties to prevent false channel fault alerts. Physically, jumper unused IN-x+ terminals to IN-x- or vRTN to suppress floating static voltages and eliminate signal noise interference across active processing channels.
