5-Pin Illuminated 5 Pin Rocker Switch Wiring Diagram: 2026 Setup
An illuminated 5 pin rocker switch uses Pin 1 for ground, Pin 2 for fused 12V+ power input, Pin 3 for output to auxiliary power or running lights, Pin 4 for upper LED dash light activation, and Pin 5 tied to ground for lower LED backlight circuit power.
📌 Key Takeaways
- Pins 1 and 5 connect to 12V DC chassis ground to power the internal LED indicators.
- Pin 2 receives fused 12V+ power directly from the battery or RV blade distribution panel.
- Pin 3 routes load power to auxiliary power accessories, running lights, or relay trigger terminals.
- Pin 4 connects to the vehicle dash lighting circuit to trigger independent lower backlighting.
- Always isolate high-draw loads over 20A, such as a brake controller, using an automotive relay.
Modern trailer retrofits, commercial haulers, and RV electrical upgrades frequently rely on standard single-pole single-throw (SPST) dual-LED switches to control auxiliary power feeds, manual overrides for running lights, and electric brake system circuits. Operating a heavy-duty 7-way RV blade harness or a standard 4-pin flat connector infrastructure requires precise circuit isolation and exact control terminal routing. Exceeding switch contact ratings or misrouting ground returns leads to blown fuses, dim LEDs, or damaged vehicle body control modules (BCMs). This technical guide outlines the schematic operational parameters, terminal pinouts, and relay-integrated installation procedures required to implement an illuminated 5 pin rocker switch wiring diagram in automotive, marine, and equipment towing applications.

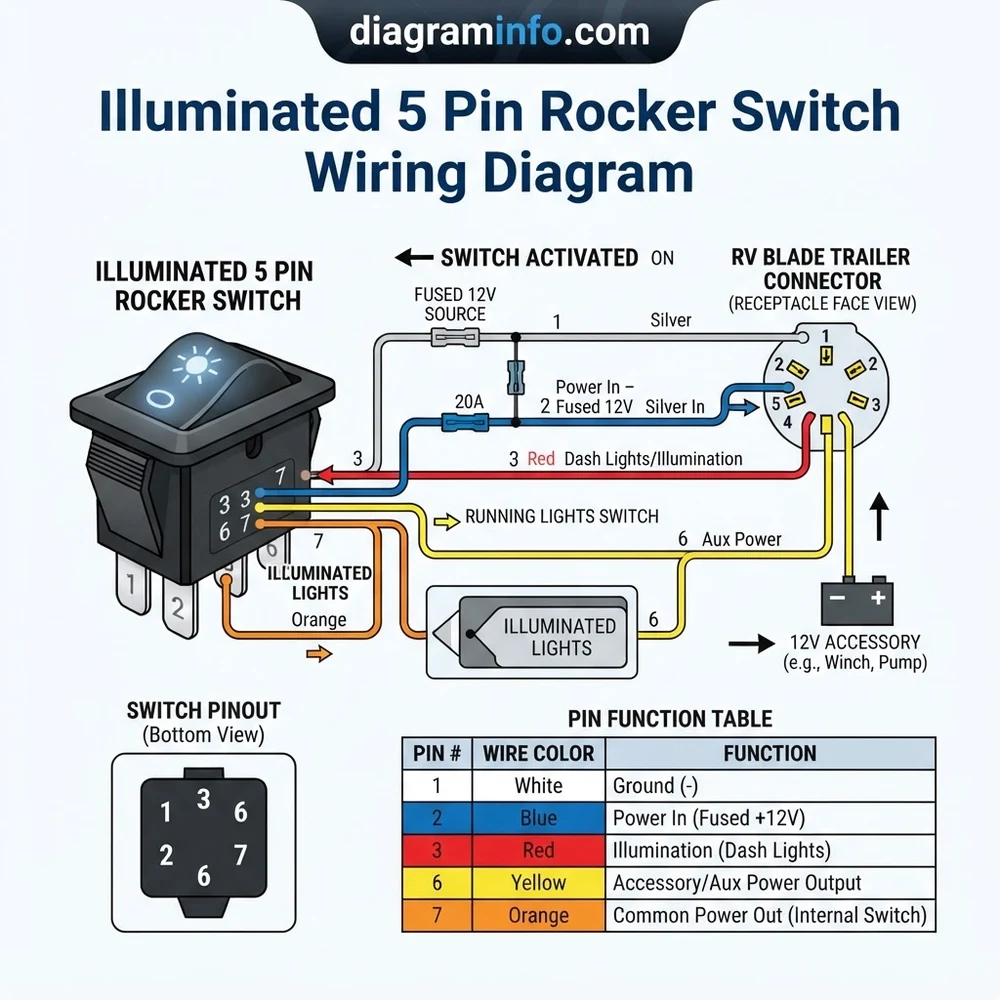

Deciphering the Illuminated 5 Pin Rocker Switch Wiring Diagram Architecture
To correctly interpret an illuminated 5 pin rocker switch wiring diagram, you must first understand the internal switching matrix and illumination circuits inside a standard Carling-style or Marine-grade SPST switch body. Unlike standard two-pin or three-pin toggle switches, a 5-pin rocker switch features two separate light-emitting diodes (LEDs) built into the housing: an independent lower LED (backlight) and a dependent upper LED (load active indicator).
Recommended Best Deal Products
The lower LED serves as an accent or dash light. It illuminates when the tow vehicle’s headlights or running lights are switched on, allowing the driver to locate the switch in low-light conditions. The upper LED is wired internally in parallel with the load output contact; it lights up only when the switch actuator is clicked into the “ON” position and voltage flows out to the connected accessory, such as an auxiliary power relay or trailer work light.
Most 5-pin rocker switches are rated for 20 Amps at 12V DC or 10 Amps at 24V DC. When switching inductive loads or high-current accessories—such as a 10 AWG auxiliary power line, electric brake manual triggers, or high-draw trailer floodlights—the switch must control an intermediate 30A or 40A ISO automotive relay rather than passing heavy current directly through the internal switch contacts.
The standard spade-terminal layout on the rear of a 5-pin rocker switch housing follows a universally standardized pin number pattern (labeled 2, 3, 6, 7, and 8):
- Pin 2 (Power Input): The main 12V DC positive feed supplied from a fused power source or battery distribution block.
- Pin 3 (Power Output / Load): The switched 12V DC output terminal that routes power to Terminal 86 of a relay coil or directly to a low-amperage accessory.
- Pin 6 (Backlight Power Input): The 12V DC input dedicated to driving the independent lower LED. This is typically connected to the vehicle’s dash lighting or running lights circuit.
- Pin 7 (Ground Pin): The primary negative terminal establishing the ground path for the lower independent LED.
- Pin 8 (Ground Pin): The secondary negative terminal completing the ground path for the upper dependent status LED. On standard harnesses, Pin 7 and Pin 8 are jumpered together to a common chassis ground.
Illuminated 5 Pin Rocker Switch Pinout and Wire Color Reference Table
The following reference table maps out standard terminal positions, typical automotive wiring color codes, circuit functions, and connection destinations according to OEM wiring standards for towing and RV blade integration.
| Pin # | Wire Color | Terminal Function | Connection Destination / Notes |
|---|---|---|---|
| Pin 2 | Red (16 AWG) | Main 12V DC Power In | Fused Battery/Ignition bus (10A max inline fuse). Powers main switch contact. |
| Pin 3 | Blue or Yellow (16 AWG) | Switched Power Out (Load) | Connects to Pin 86 of ISO Relay coil or direct accessory positive terminal. |
| Pin 6 | Brown (18 AWG) | Lower LED Accent Light In | Tapped into tow vehicle dash illumination or trailer running lights circuit. |
| Pin 7 | Black (18 AWG) | Lower LED Ground Pin | Chassis ground point or central negative terminal block. Jumpered to Pin 8. |
| Pin 8 | Black (18 AWG) | Upper LED Ground Pin | Connected to Pin 7 ground bridge to complete active status LED circuit. |
Recommended Best Deal Products
Terminal Type: Standard 0.250-inch (6.3mm) male spade connectors. Recommended crimp fittings: Fully insulated female quick-disconnect spade terminals (nylon jacketed) with 3M heat-shrink adhesive sleeves for marine/trailer environmental sealing.
Step-by-Step Illuminated 5 Pin Rocker Switch Wiring Diagram Installation
Executing an installation using an illuminated 5 pin rocker switch wiring diagram requires systematic terminal termination, correct conductor sizing, and complete circuit testing. Follow this step-by-step technical procedure to install the switch into a 12V vehicle or trailer control panel.
Step 1: Isolate System Power and Prepare Cable Leads
Disconnect the negative terminal from the vehicle’s primary battery to prevent accidental short circuits during panel assembly. Measure and strip 1/4-inch of insulation from five conductor ends using a precision wire stripper. Crimp high-quality 0.250-inch heat-shrink female spade connectors onto each conductor using a ratcheting crimp tool to ensure a gastight seal.
Step 2: Construct the Dual Ground Pin Jumper Wire
Cut a 3-inch length of 18 AWG black primary wire. Strip both ends and crimp one end into a female spade connector along with the primary chassis ground return lead. Crimp another spade terminal to the opposite end. Terminate this jumper across Pin 7 and Pin 8. This creates a continuous negative return path for both internal LEDs to a single chassis ground point.
Step 3: Connect the Primary 12V DC Supply Wire to Pin 2
Route a fused 16 AWG red wire from an ignition-switched source or dedicated fuse panel (5A to 10A fuse recommended for relay triggering) directly to Terminal 2. This terminal acts as the incoming hot lead for the primary internal contact switch.
Step 4: Route Switched Power Output from Pin 3 to Load or Relay
Attach a 16 AWG blue or yellow wire to Terminal 3. If controlling an auxiliary power line or high-draw lighting circuit, route this wire directly to Terminal 86 on a 4-pin or 5-pin ISO relay. Connect Relay Terminal 85 to ground, Terminal 30 to a fused 10 AWG battery line, and Terminal 87 out to the trailer connector load line.
Step 5: Connect Dash Illumination Trigger to Pin 6
For independent lower LED backlighting, route an 18 AWG brown wire from the vehicle’s OEM dash light dimming circuit or the running lights wire from a 4-pin flat connector directly to Pin 6. If dimming or independent backlighting is not required, run a short jumper wire from Pin 2 to Pin 6; this causes the lower LED to illuminate whenever main input power is present.
Step 6: Re-energize System and Validate Functional States
Reconnect the main vehicle battery terminal. Perform a three-stage verification process:
- Stage 1 (Headlights ON / Switch OFF): Lower LED must illuminate softly; upper LED must remain dark; load device must be powered off.
- Stage 2 (Headlights ON / Switch ON): Both lower and upper LEDs must illuminate fully; load device or relay must click active, delivering 12V DC to the output circuit.
- Stage 3 (Headlights OFF / Switch ON): Lower LED remains dark (if tied to dash circuit); upper LED lights up bright; load device remains fully powered.
Integrating Switch Control Circuits with RV Blade and Flat Connector Harnesses
Integrating manual rocker switches into established trailer wiring setups—such as a standard 7-way RV blade socket or a 4-pin flat connector—requires an understanding of how tow vehicle signals intersect with onboard trailer functions like electric brake control systems, auxiliary power charging, and running lights.
A standard 7-way RV blade connector incorporates distinct lines for heavy-duty vehicle operations. When adding an in-cab manual switch to manage trailer functions, integrate according to the standardized pin assignments defined below:
- White (10 AWG): System Ground Pin — Connects to central negative bus bar.
- Blue (12 AWG): Electric Brake Control Output — Managed by in-cab electric brake controller.
- Green (14 AWG): Tail Lights / Running Lights — Can be overridden via Pin 3 load output on a 5-pin switch for stationary trailer illumination.
- Black (10 AWG): 12V Auxiliary Power / Charge Line — Activated via relay powered by Pin 3 of the rocker switch to prevent battery drain when engine is off.
- Red/Brown (14 AWG): Left Turn Signal & Stop Light.
- Yellow/Green (14 AWG): Right Turn Signal & Stop Light.
When wiring a 5-pin rocker switch to manually activate running lights or reverse lights on an RV blade trailer plug, always install 50V/6A blocking diodes (such as 6A10 diodes) on the OEM vehicle feed lines. Failure to isolate the tow vehicle BCM from manual switch back-feeding can destroy expensive body control electronics or trip diagnostic trouble codes (DTCs).
If you are tapping into a 4-pin flat connector (which handles basic running lights, ground pin, and left/right turn signal functions), an illuminated switch can be wired as a master disconnect or secondary activation switch for auxiliary equipment mounted on cargo trailers. Below is a structural schematic representation of a relay-isolated rocker switch driving an auxiliary power line alongside an RV blade connector system:
+-------------------------------------------------------------------+
| 12V DC FUSED BATTERY BUS |
+-------------------------------------------------------------------+
| |
(10A Fuse) (30A Inline Fuse)
| |
v v
[Pin 2: Main In] [ISO Relay Pin 30]
5-PIN ROCKER SWITCH |
[Pin 3: Load Out] ---> (16 AWG) ---> [Relay Pin 86]|
[Pin 6: Backlight]<-- (18 AWG) <-- Running Lights |
[Pin 7: Ground] --+ |
[Pin 8: Ground] --+--> (18 AWG) ---> Chassis Ground|
v
[ISO Relay Pin 87]
|
v
[7-Way RV Blade Pin 4]
(12V Auxiliary Power Line)
When implementing manual switches for electric brake emergency overrides or supplemental lighting on utility haulers, always verify that wire gauges match the circuit fuse rating. Standard 16 AWG primary wire is sufficient for driving relay coils (Pins 2 and 3) and LED grounds (Pins 7 and 8), but 10 to 12 AWG cross-linked polyethylene (XLPE) automotive wire must be used for the high-amperage auxiliary power feeding the 7-way RV blade connector.
Troubleshooting Common Illuminated 5 Pin Rocker Switch Wiring Diagram Errors
Electrical anomalies in 5-pin rocker switch circuits usually stem from missing ground return paths, incorrect terminal orientation, or drawing excessive current through internal switch contacts. Technical diagnosis should follow systematic voltage-drop testing using a digital multimeter (DMM).
1. The Switch Upper LED Remains On Continuously (Even With Switch OFF)
Cause: Swapping Pin 2 and Pin 3 connections. If the 12V positive supply line is attached to Pin 3 (Load Out) instead of Pin 2 (Power In), power feeds back into the internal dependent LED circuit continuously. Rearrange incoming positive power to Pin 2 and load out to Pin 3.
2. Neither Internal LED Illuminates, But Load Operates Correctly
Cause: Open ground circuit at Pin 7 and Pin 8. The mechanical switch contacts will successfully route 12V DC power from Pin 2 to Pin 3 regardless of whether the ground pins are attached. However, the internal LEDs require a complete circuit to ground. Check the ground jumper across Pin 7 and Pin 8, and verify clean ring terminal contact to unpainted chassis metal using a DMM continuity test (resistance should read below 0.2 Ohms).
3. Switch Body Becomes Warm to Touch or Melts During Operation
Cause: Excessive current draw bypassing relay isolation. Direct-wiring high-draw loads—such as dual electric brake actuators (drawing 6–12 Amps continuous) or high-wattage trailer auxiliary power feeds (drawing 15–20 Amps)—causes electrical resistance heating across internal switch contacts. Wire Pin 3 exclusively to trigger terminal 86 on a heavy-duty automotive relay.
4. Lower Accent LED Does Not Dim With Tow Vehicle Dash Lights
Cause: Connect Pin 6 to an analog PWM (Pulse-Width Modulation) dimming circuit rather than a solid 12V bus. Note that LED elements have a fixed forward voltage drop; non-dimmable LED rocker switches hooked into solid-state digital dimming modules may flicker or turn off prematurely. Connect Pin 6 to the standard tail light circuit on a 4-pin flat connector for steady on/off operation aligned with running lights.
Illuminated 5 Pin Rocker Switch Wiring Diagram Frequently Asked Questions
Why does an illuminated 5 pin rocker switch require two ground pins?
The two ground pins (Pin 7 and Pin 8) isolate the negative return paths for the switch’s two separate internal LEDs. Pin 7 grounds the independent lower LED (used as a dash accent light or continuous backlight), while Pin 8 grounds the dependent upper LED (which signals active load state). In standard automotive installations, Pin 7 and Pin 8 are jumpered together with a short lead and connected to a common chassis ground.
Can I use a 5 pin rocker switch to manually trigger electric brake control lines?
Yes, but you must pass the switch output through an isolated relay or diode-protected circuit. Directly routing a manual 12V feed into an electronic brake controller output line (blue wire) without isolation can damage the controller’s internal solid-state MOSFETs. Wire Pin 3 of the switch to energize a dedicated relay that passes power safely to the brake magnets during off-road or breakaway lock-up scenarios.
What happens if I jump Pin 2 directly to Pin 6 on the rocker switch?
Jumpering Pin 2 (Main Power In) directly to Pin 6 (Backlight In) powers the lower accent LED whenever main 12V power is supplied to the switch panel. If Pin 2 receives unswitched battery power, the lower LED will stay on continuously, creating a small 15mA to 30mA parasitic drain on the vehicle battery. If Pin 2 is fed by an ignition-switched line, the lower LED will illuminate only when the vehicle key is in the “RUN” or “ACC” position.
How do I wire a 5 pin switch if my trailer connector only uses a 4-pin flat connector?
When working with a standard 4-pin flat connector (Ground, Running Lights, Left Turn/Stop, Right Turn/Stop), connect Pin 6 of the 5-pin rocker switch directly to the brown running lights wire. Connect Pin 2 to a fused 12V power supply on the vehicle, Pin 7/8 to the white ground pin wire, and Pin 3 out to your target accessory (such as trailer bed loading lights). This ensures the switch backlight activates whenever running lights are switched on.
What wire gauge should be used when completing a 5 pin rocker switch installation?
For controlling switch signal terminals (Pins 2, 3, 6, 7, and 8) wired to an external ISO relay, 16 AWG or 18 AWG stranded copper primary wire (TXL or GTL automotive grade) is ideal. For the high-current side of the relay feeding 7-way RV blade auxiliary power or electric brake circuits, use 10 AWG to 12 AWG wire matched to a 30A inline fuse.
