2011 Mercedes E350 Serpentine Belt Diagram: Proper Routing 2026
The 2011 Mercedes E350 serpentine belt typically routes over the crankshaft, AC compressor, alternator, power steering pump, and around the tensioner and idler pulleys. Always consult the under-hood diagram or a service manual for the precise path, ensuring the ribbed side contacts grooved pulleys and the smooth side contacts smooth idlers.
📌 Key Takeaways
- Confirm belt part number for the 2011 E350 V6 engine (e.g., A0019931896 for M272) before replacement.
- Always reference the under-hood routing diagram for the exact 2011 Mercedes E350 serpentine belt path.
- Ensure proper tensioner operation; a worn belt tensioner is a common cause of belt squeal and premature wear.
- Inspect all idler pulleys and the tensioner pulley for smooth rotation and play during belt replacement.
- While DIY replacement is possible, consult a professional if pulleys are seized or the automatic tensioner requires specialized tools.
The serpentine belt in your 2011 Mercedes-Benz E350 (W212 chassis, typically equipped with the M272 V6 engine) is a critical component, transmitting power from the crankshaft to various essential accessory systems such as the alternator, power steering pump, air conditioning compressor, and water pump. Proper routing of this multi-ribbed belt is paramount for the correct operation of these systems and the overall reliability of the vehicle. An incorrectly installed or worn belt can lead to component failure, loss of vital functions, and potential engine damage. Understanding the exact belt routing path is fundamental for any maintenance or replacement procedure on this model.
BELT PART NUMBERS
Selecting the correct serpentine belt for your 2011 Mercedes-Benz E350 is crucial for optimal performance and longevity. While the M272 V6 engine is common for this year, some late 2011 models may feature the M276 engine, which utilizes a different belt. Always verify your specific engine code (found on the engine block or vehicle data card) and cross-reference with manufacturer specifications.
| Belt Type | OEM Part # (Mercedes-Benz) | Dimensions (Ribs x Length) | Compatible Models/Engines |
|---|---|---|---|
| Serpentine Belt (M272 Engine) | A0019931896 (or A0019937896, A0019937996) | 6PK x 2400 mm | W212 E350 (M272), W204 C300/C350, X204 GLK350, W164 ML350 (all with M272 V6) |
| Serpentine Belt (M276 Engine) | A0019932096 | 6PK x 2030 mm | W212 E350 (M276, typically from late 2011+), W204 C350 (M276) |
Always prioritize OEM belts or high-quality aftermarket equivalents from reputable manufacturers. Inferior belts can lead to premature wear, noise, and potential catastrophic failure, compromising the integrity of components such as the alternator and power steering pump. The ‘6PK’ designation indicates 6 ribs. The length in millimeters is critical for correct tensioner operation.
STEP-BY-STEP ROUTING INSTRUCTIONS

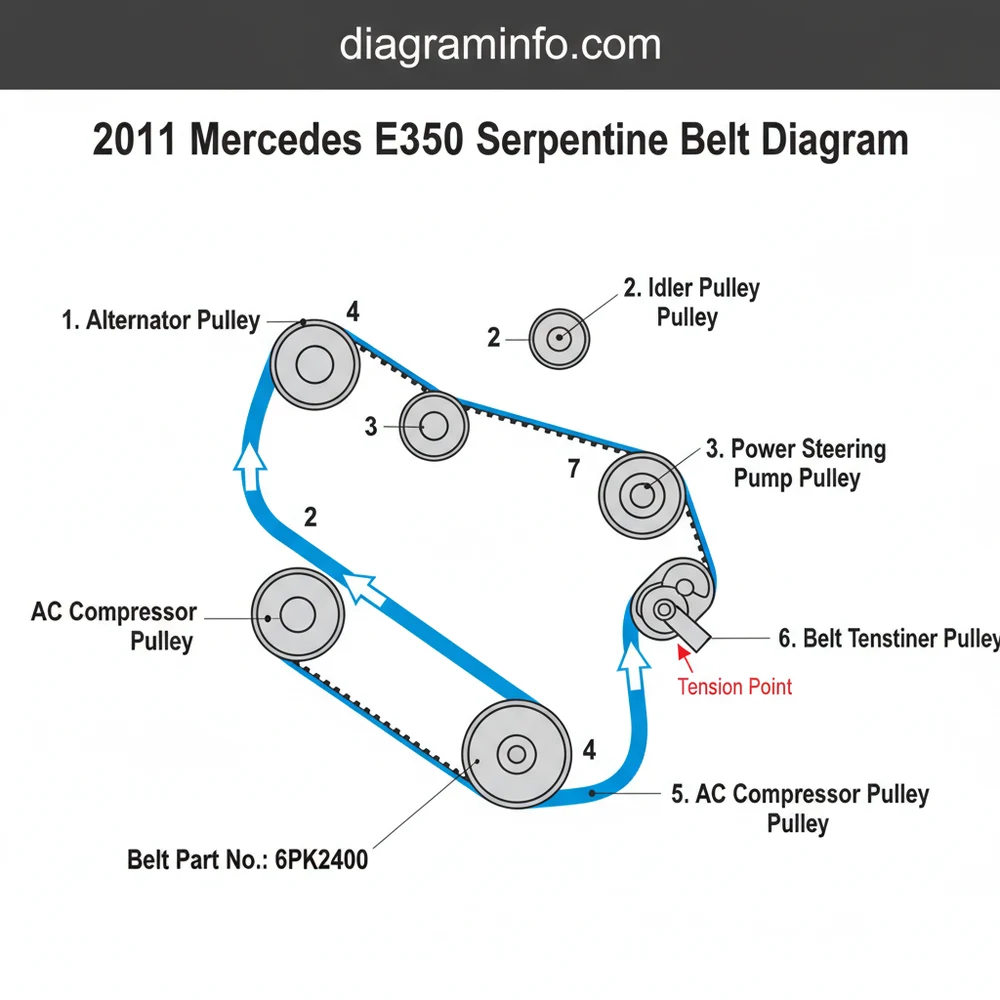

Properly installing the serpentine belt on your 2011 Mercedes E350 M272 engine requires careful attention to the specific routing path. Refer to the provided pulley diagram for visual guidance. This procedure is typically performed after relieving tension on the automatic belt tensioner.
- Preparation: Ensure the engine is cool and the vehicle is safely raised and supported. Access to the belt area may require removing the engine cover and potentially a fan shroud or other minor components. Note the existing belt’s routing before removal, or refer extensively to the engine accessory diagram for your specific M272 setup.
- Tensioner Engagement: Locate the automatic belt tensioner (Pulley #7 in typical diagrams). Using a suitable wrench (often 17mm or 19mm, or a specialized belt tool), rotate the tensioner arm clockwise to relieve tension on the belt. This allows for easy removal of the old belt and installation of the new one. Secure the tensioner in its relaxed position, if possible, with a pin or tool-specific lock.
- Crankshaft Pulley (Pulley #1): Begin by routing the new belt around the crankshaft pulley. This pulley is typically the largest and lowest pulley, directly connected to the engine’s rotation. Ensure the ribbed side of the belt sits correctly within the grooves of the pulley.
- A/C Compressor Pulley (Pulley #2): From the crankshaft, route the belt under the A/C compressor pulley. This pulley usually sits low on the passenger side of the engine. The ribbed side of the belt should engage this pulley.
- Lower Idler Pulley (Pulley #3): Continue routing the belt over the lower idler pulley. This smooth idler pulley acts as a guide. The smooth (back) side of the belt typically rides against this pulley to maintain tension and guide the belt’s path.
- Alternator Pulley (Pulley #4): Route the belt around the alternator pulley. This pulley is generally located higher on the passenger side of the engine. The ribbed side of the belt must engage this pulley for the alternator to generate electrical power.
- Power Steering Pump Pulley (Pulley #5): Guide the belt around the power steering pump pulley, typically situated near the top, on the driver’s side or central. The ribbed side of the belt engages this pulley.
- Upper Idler Pulley (Pulley #6): From the power steering pump, route the belt over the upper idler pulley. Similar to the lower idler, the smooth side of the belt usually contacts this pulley.
- Automatic Belt Tensioner Pulley (Pulley #7): The final segment of the belt will pass over or under the automatic belt tensioner pulley, depending on its specific design and routing. This is often the last pulley to engage, as it’s the one you manipulated to create slack. Carefully route the belt over the tensioner pulley while maintaining the tensioner in its relieved position.
- Release Tensioner: Once the belt is fully seated on all pulleys, slowly release the tensioner tool, allowing the tensioner to apply appropriate tension to the belt.
- Final Inspection: Conduct a thorough visual inspection. Confirm that the belt is correctly seated in all grooves on every ribbed pulley and that the smooth side of the belt is contacting any smooth idler pulleys. Verify that no portion of the belt is hanging off a pulley or twisted. Start the engine briefly to ensure the belt tracks correctly and silently. Look for any unusual noises or vibrations.
Never attempt to route the belt or work around rotating engine components with the engine running. Always ensure the vehicle is off, cool, and properly secured before beginning any maintenance. Incorrect belt routing can cause immediate system failure or damage to the belt and pulleys.
TENSION & ADJUSTMENT NOTES
The 2011 Mercedes E350, like most modern vehicles, utilizes an automatic serpentine belt tensioner. This component is designed to maintain constant, optimal tension on the belt across various engine speeds and temperatures, eliminating the need for manual adjustment. Therefore, there are no specific adjustment procedures for the belt tension itself; the tensioner manages this automatically.
Instead of adjustment, focus shifts to inspecting the tensioner’s condition. A failing belt tensioner can manifest in several ways: a rattling or chirping noise from the front of the engine, excessive belt vibration, or visible wobbling of the tensioner pulley. To check the tensioner, visually inspect it for corrosion, fluid leaks (if hydraulic), or excessive play in the pivot arm. The tensioner pulley itself should spin freely without wobble or grinding noises when the belt is removed. If the tensioner pulley has lateral play or if the arm does not spring back with sufficient force when released, the entire tensioner assembly requires replacement.
Manufacturer specifications dictate that the tensioner should maintain a specific force against the belt. While specialized tools can measure this, a practical field check involves observing the belt’s path and stability. A new belt should feel taut with minimal give. If the belt feels loose shortly after installation or if the tensioner arm is oscillating excessively during engine operation, it indicates a worn tensioner. Refer to the vehicle’s Workshop Information System (WIS) for specific diagnostic procedures and torque specifications for tensioner bolts.
While belt tension is automatic, the mounting bolts for the tensioner typically require specific torque. For the M272 engine serpentine belt tensioner, the mounting bolt torque is often around 25-30 Nm. Always consult official Mercedes-Benz repair documentation (WIS) for precise torque values applicable to your specific model year and engine configuration.
FAQ
How often should the serpentine belt be replaced on a 2011 Mercedes E350?
Mercedes-Benz typically recommends inspecting the serpentine belt at every service interval (e.g., A/B service) and replacing it proactively every 60,000 to 80,000 miles, or every 5-7 years, whichever comes first. However, severe driving conditions, exposure to oil/coolant, or signs of wear (cracking, fraying, glazing) may necessitate earlier replacement. It’s often prudent to replace the belt tensioner and idler pulleys concurrently with the belt, as these components often have similar service lives and contribute significantly to belt system integrity.
What are the signs of a failing serpentine belt or tensioner?
Common indicators of a failing serpentine belt include squealing or chirping noises (especially on startup, when wet, or under load), visible cracks, fraying, glazing, or missing ribs on the belt surface. A failing tensioner might present as a persistent rattling noise from the front of the engine, excessive vibration or wobble of the tensioner pulley, or inadequate tension leading to belt slippage and system underperformance (e.g., dim lights from a struggling alternator, heavy steering from reduced power steering assistance). A complete belt failure will result in the immediate loss of all belt-driven accessories.
Can I drive my 2011 Mercedes E350 without a serpentine belt?
No, driving your 2011 Mercedes E350 without a serpentine belt is highly inadvisable and will quickly lead to critical system failures. The serpentine belt drives the alternator (charging system), water pump (engine cooling), power steering pump (steering assist), and A/C compressor. Without the belt, the battery will deplete, the engine will overheat rapidly, you will lose power steering, and the climate control system will cease functioning. Driving even a short distance without a serpentine belt can cause significant engine damage from overheating and leave you stranded. It’s a critical component for the engine’s cooling system and overall vehicle operation.
What tools are required for a serpentine belt replacement on this model?
To replace the serpentine belt on a 2011 Mercedes E350 (M272), you will typically need a metric socket set, a long breaker bar or ratchet (specifically for relieving tension on the tensioner), a specialized serpentine belt tool (which often includes different length extensions and pins), and potentially a flashlight for better visibility. Depending on engine access, you might also need a pry bar for mild leverage (used carefully) and a torque wrench for re-installing any removed components like the fan shroud or tensioner bolt. No complex diagnostic tools are typically required for the belt replacement itself, though a multitester can be useful for diagnosing related electrical issues.
Are there different serpentine belt types for the 2011 E350?
Yes, there can be. The primary distinction for the 2011 E350 often lies with the engine type. Most 2011 E350s came with the M272 V6 engine, which uses a specific belt length (e.g., 6PK x 2400 mm). However, some late 2011 models began to feature the newer M276 V6 engine, which utilizes a different, shorter serpentine belt (e.g., 6PK x 2030 mm) due to variations in accessory drive layout. It is imperative to identify your specific engine code (e.g., M272.964 vs. M276.952) before purchasing a replacement belt to ensure compatibility. Additionally, aftermarket suppliers might offer belts with slightly different materials or construction, but the dimensional specifications (ribs and length) must match the OEM belt.
Step-by-Step Guide to Understanding the 2011 Mercedes E350 Serpentine Belt Diagram: Proper Routing 2026
Identify – Locate the automatic belt tensioner and the under-hood serpentine belt routing diagram for the 2011 Mercedes E350.
Locate – Note the position of all idler pulleys, the AC compressor, alternator, and power steering pump relative to the current belt routing path.
Reference – Compare the existing belt path to the diagram to understand the exact serpentine belt routing before proceeding with removal.
Connect/Route – Using a breaker bar on the tensioner, relieve tension, remove the old belt, and meticulously route the new 2011 Mercedes E350 serpentine belt over all pulleys, referring to the pulley diagram.
Verify – Once routed, slowly release the belt tensioner and visually confirm the belt is seated correctly in all pulley grooves without kinks or twists.
Troubleshoot – Start the engine briefly; listen for squealing, grinding, or misalignment. If issues persist, re-check routing and inspect idler pulleys and the tensioner for proper function.
Frequently Asked Questions
What is the part number for the 2011 mercedes e350 serpentine belt diagram?
For the 2011 Mercedes E350 (M272 V6 engine), a common serpentine belt part number is Mercedes A0019931896, often cross-referenced to brands like ContiTech 6PK2390 or Gates K060941. Always verify with your VIN or a reputable parts dealer to ensure correct fitment, especially considering potential engine variations for your specific belt part number.
How do I route the 2011 mercedes e350 serpentine belt diagram correctly?
Routing the 2011 Mercedes E350 serpentine belt requires referencing the under-hood belt routing path diagram. Begin by positioning it around the crankshaft pulley, then systematically loop it over the alternator, AC compressor, and power steering pump, ensuring it passes correctly through the idler pulleys and around the tensioner for proper engagement according to the pulley diagram.
What size belt does 2011 mercedes e350 serpentine belt diagram use?
The 2011 Mercedes E350 (M272 engine) typically uses a 6-rib, approximately 2390mm (94.1 inch) long serpentine belt. This corresponds to common belt part numbers like 6PK2390. Always confirm the exact length and rib count by consulting the manufacturer’s specifications or cross-referencing your VIN for precise compatibility with your specific vehicle’s pulley diagram.
How do I adjust belt tension on 2011 mercedes e350 serpentine belt diagram?
The 2011 Mercedes E350 uses an automatic belt tensioner, which maintains proper tension inherently. Adjustment isn’t typically required. If tension issues arise, it usually indicates a failing tensioner pulley or assembly, which should be inspected for smooth operation and replaced if excessive play, noise, or spring weakness is present to ensure correct belt tension.
What causes the 2011 mercedes e350 serpentine belt diagram belt to slip?
Belt slipping on a 2011 Mercedes E350 is often caused by a worn or incorrect belt, a failing automatic belt tensioner losing its spring pressure, or seized idler pulleys. Contamination like oil or coolant on the belt or pulleys can also reduce friction, leading to slippage and noise. Inspect all components thoroughly against the pulley diagram.
Can I replace the 2011 mercedes e350 serpentine belt diagram belt myself?
Yes, replacing the 2011 Mercedes E350 serpentine belt is a manageable DIY task for those with moderate mechanical skills. It primarily involves releasing tension from the automatic belt tensioner, removing the old belt, and routing the new one according to the under-hood belt routing path diagram. Proper tools and safety precautions are essential for successful replacement.
