3-Way Connector 3 Wire Nissan Alternator Wiring Diagram: 2026
A 3-wire Nissan alternator connector typically features S (Battery Sense, White/Red), L (Lamp/Warning, Black/Yellow), and IG (Ignition, Yellow/Green) pins. Terminal S connects to 12V battery power, L feeds the dash indicator, and IG receives switched ignition voltage. Ensure 13.8V to 14.4V charge output during engine operation for proper charging.
📌 Key Takeaways
- S terminal senses direct battery voltage and requires a constant 12V feed to prevent overcharging.
- L terminal controls the dashboard battery warning light and operates through a 12V indicator circuit.
- IG terminal provides switched 12V ignition power to activate the internal alternator voltage regulator.
- Improper chassis grounds cause severe voltage drops, flickering running lights, and charging failure.
- Seek professional diagnostic assistance if alternator charge output drops below 13.2V while idling under load.
Nissan vehicles equipped with high-output Hitachi or Mitsubishi alternators utilize a standardized 3-pin internal regulator connector plug alongside a heavy-duty B+ output post. Correctly interpreting a 3-wire Nissan alternator wiring diagram is crucial when maintaining factory charging systems or wiring auxiliary power feeds for towing setups. This technical wiring guide details the pin assignment, wire color codes, terminal functions, and conversion steps necessary to integrate a Nissan 3-wire charging system with high-draw accessories, including 7-way RV blade plugs, electric brake controllers, and auxiliary trailer battery banks.
Understanding the Connector 3 Wire Nissan Alternator Wiring Diagram
Most modern and classic Nissan engines—including the VG33E, VQ40DE, and QR25DE platforms found in the Frontier, Pathfinder, and Xterra—use a 3-wire oval or T-shaped connector harness to manage internal voltage regulation. According to factory OEM service specifications, the internal regulator relies on three distinct input/output control signals to balance alternator output against vehicle electrical load:
Recommended Best Deal Products
- Sense Terminal (“S”): Directly samples continuous battery voltage to dictate internal regulator output. It bypasses voltage drops across the primary vehicle harness to ensure the battery receives a steady 14.1V to 14.7V charging potential.
- Lamp Terminal (“L”): Connects through the instrument cluster charging indicator lamp. This terminal supplies pre-excitation current to energize the rotor field coils upon ignition key-on. Once the stator generates output voltage, the internal diode trio balances voltage on both sides of the lamp, extinguishing the dash warning light.
- Control / Ignition Terminal (“C”, “E”, or “IG”): Communicates with the Engine Control Module (ECM) or ignition relay. On late-model Nissan platforms, the ECM sends a pulse-width modulated (PWM) signal to this pin to regulate duty cycle based on engine torque load, battery temperature, and electrical demand.
Never run a Nissan 3-wire alternator without the “S” terminal connected. Disconnecting the sense line causes the internal voltage regulator to default to an open-loop state, driving system voltage above 16.5V and damaging connected electronics, brake controllers, and engine sensors.

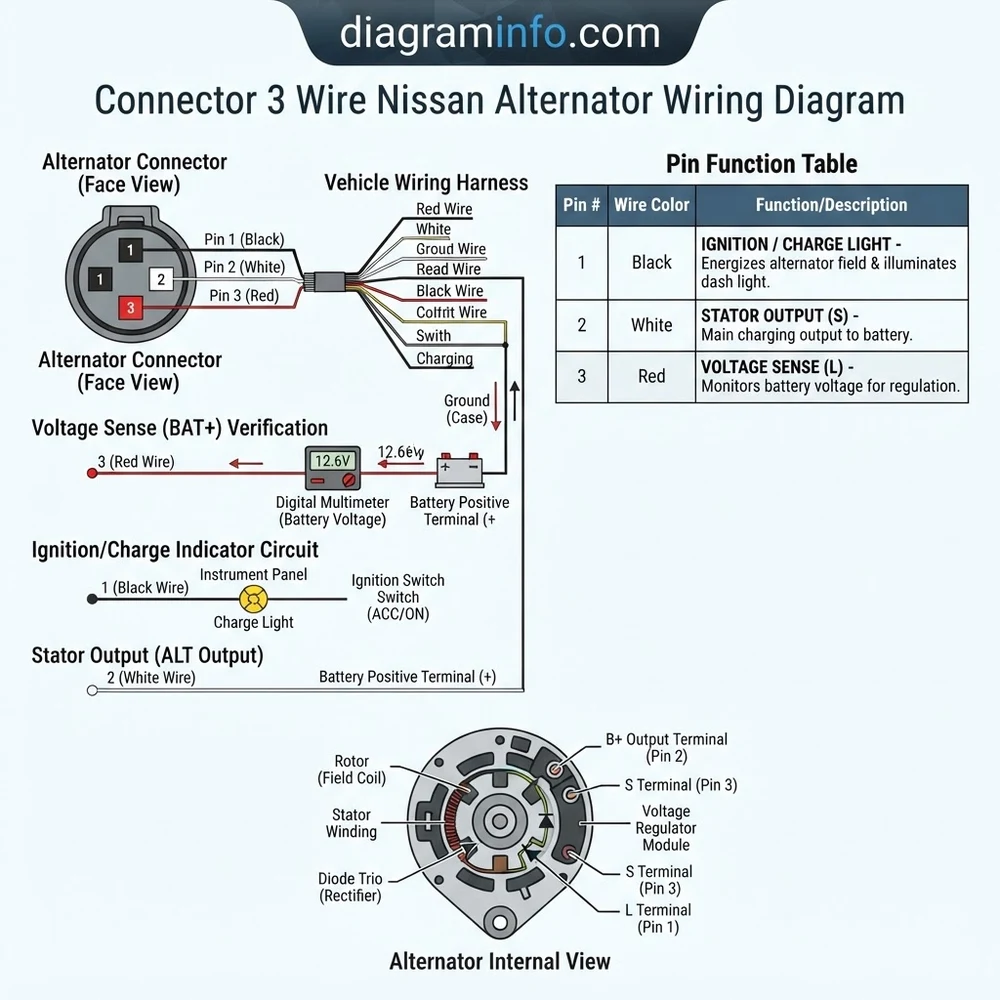

Connector 3 Wire Nissan Alternator Wiring Diagram Pinouts
The following reference tables detail the pin assignments, wire colors, standard circuit gauges, and target electrical values for both the Nissan 3-wire alternator connector plug and the trailer power distribution interface.
| Pin # / Terminal | Nissan OEM Wire Color | Circuit Function | Voltage / Resistance Standard |
|---|---|---|---|
| Pin 1 (“S”) | White or White/Red | Battery Sense Input | 12.6V constant (fused at 10A) |
| Pin 2 (“L”) | Yellow/Green or White/Blue | Charge Indicator Lamp Control | 1.5V–3.0V (Key ON / Engine OFF), 13.5V+ (Engine Running) |
| Pin 3 (“C” / “IG”) | White/Green or Yellow | ECM Duty Cycle / Ignition Feed | 12V Switch Signal or PWM Load Signal |
| B+ Stud | Black or Heavy Red Wire | Main Battery Charging Output | 13.8V – 14.7V DC (Max output up to 130A) |
| Alternator Body | Bare Engine Casing / Strap | Ground Path / Chassis Return | 0.00V drop to negative battery post (<0.2Ω resistance) |
Factory torque specification for the Nissan alternator B+ terminal eyelet nut is 4.4 to 6.5 N·m (39 to 58 in-lbs). Over-tightening can crack the internal insulator housing, leading to an immediate short circuit to the alternator casing.
Step-by-Step Guide for Wiring 3 Wire Nissan Alternator Systems
Follow this standard installation and wiring sequence when replacing a harness connector, installing a high-output alternator upgrade, or servicing the charge output circuit on Nissan platforms.
Recommended Best Deal Products
- Isolate Primary Power: Disconnect the negative battery terminal clamp and verify zero residual system voltage using a digital multimeter set to DC Volts.
- Prepare the B+ Charging Output Wire: Strip a length of 4 AWG or 2 AWG marine-grade tinned copper cable. Crimp a heavy-duty ring terminal onto the wire, heat-shrink the neck, and secure it to the alternator B+ output post using a 10mm socket. Torque to 5.0 N·m. Route this cable through a inline 120A–150A slow-blow fusible link directly to the positive terminal of the primary starter battery.
- Identify Terminal Pin Positions on the 3-Wire Plug: Inspect the rear plastic housing of the 3-pin pigtail connector. Verify pin positions 1, 2, and 3 using the internal terminal locking tab as a top reference point.
- Wire the Battery Sense Line (Pin 1 – S): Connect Pin 1 (White or White/Red wire) to a unswitched, continuous 12V positive power source. Manufacturer specs dictate splicing this wire directly into the primary main power distribution block or battery positive lug via an inline 10A mini-fuse.
- Wire the Ignition / Charge Lamp Circuit (Pin 2 – L): Connect Pin 2 (Yellow/Green wire) to the instrument cluster charge light circuit. If wiring a custom dashboard or standalone harness, wire a standard 12V incandescent warning bulb in series between a key-switched 12V ignition power source and Pin 2. To ensure excite voltage if the bulb filament burns out, splice a 470-ohm, 5-watt resistor in parallel across the lamp connections.
- Wire the ECM Control Line (Pin 3 – C / IG): Route Pin 3 (White/Green wire) directly to the ECM duty-cycle pin on factory-managed vehicles. On legacy retrofits or custom installations where ECM control is deleted, route Pin 3 to a switched ignition 12V supply via a 10A fuse to ensure the internal regulator receives an active turn-on signal when the ignition switch is turned to ON.
- Verify Engine Ground Loop Integrity: Attach a minimum 4 AWG braided grounding strap from the alternator housing mounting bracket to the vehicle chassis frame rail. Ensure bare metal contact at all mounting points.
Do not jump the Sense pin (Pin 1) directly to the B+ post on the rear of the alternator. Doing so bypassing wire resistance and voltage drop measurements across the main harness, causing undercharging at the primary vehicle battery and insufficient voltage output to auxiliary trailer loads.
Wiring RV Blade and Flat Connector Circuits for Auxiliary Trailer Power
When using a vehicle with a 3-wire Nissan alternator to tow camper trailers or equipment haulers, high current demands on the auxiliary charging circuit can cause voltage drop across the vehicle-to-trailer interface. Integrating the 3-wire alternator system with standard 7-way RV blade plugs or 4-pin/5-pin flat connectors requires properly rated wiring and current protection.
| Trailer Plug Pin | Standard RV Blade Color | Wire Gauge (AWG) | Circuit / Load Function | Nissan Power Source Connection |
|---|---|---|---|---|
| Pin 1 | White | 10 AWG or 8 AWG | Main Ground Pin | Direct connection to chassis ground point |
| Pin 2 | Blue | 12 AWG | Electric Brake Controller Output | Output terminal of brake controller unit |
| Pin 3 | Green | 14 AWG | Tail / Running Lights | Nissan taillight harness relay output |
| Pin 4 | Black or Orange | 10 AWG or 8 AWG | Auxiliary Power / Battery Charge Line | B+ output via 40A isolator relay & breaker |
| Pin 5 | Red or Yellow | 14 AWG | Left Turn Signal & Stop Light | Nissan left turn light relay circuit |
| Pin 6 | Brown | 14 AWG | Right Turn Signal & Stop Light | Nissan right turn light relay circuit |
| Pin 7 | Yellow or Purple | 14 AWG | Reverse Lights / Backup Lockout | Nissan backup light circuit switch |
Integrating Auxiliary Battery Charge Lines
To safely feed power from a 3-wire Nissan charging system to an RV or enclosed trailer auxiliary battery bank, tap into the main battery distribution block using a dedicated 10 AWG or 8 AWG wire. Route this wire through a continuous-duty 80A split-charge solenoid or heavy-duty voltage-sensitive relay (VSR), protected by a 40A auto-reset thermal circuit breaker. Control the relay activation coil using the same switched ignition signal that feeds the “IG” / “C” pin on the alternator plug. This ensures that trailer auxiliary power drawing from the RV blade connector cannot drain the main starting battery when the engine is switched off.
Adapting 4-Pin Flat Connectors to 7-Way RV Blade Plugs
Utility trailers utilizing basic 4-pin flat connectors supply only running lights, left turn signal, right turn signal, and a low-current ground pin. When upgrading a Nissan tow rig to support full electric brake controllers and auxiliary power, install a standard 4-pin to 7-way RV blade adapter harness. Plug the existing flat connector directly into the adapter receiver to supply running lights and turn signals. Then, execute the following hardwire connections:
- White Ground Wire: Attach directly to the frame chassis using a ring terminal and star washer to guarantee low resistance for high-amp electric brake return current.
- Blue Wire: Route an insulated 12 AWG wire through the firewall directly to the output terminal of an electronic electric brake controller mounted under the dash.
- Black/Orange Wire: Run a dedicated 10 AWG fused line from the main battery terminal via a heavy-duty ignition-isolated relay to supply high-amp auxiliary power to the RV blade socket.
Common Connector 3 Wire Nissan Alternator Wiring Diagram Failures
Diagnosing Nissan charging system failures requires checking both the engine alternator harness and the vehicle towing interface. The following symptoms point directly to specific wiring breakdown points within the 3-wire alternator diagram configuration:
- Intermittent Battery Discharge During Towing: High electrical resistance across the primary ground pin on the trailer socket forces current to ground through the trailer hitch ball. This causes significant voltage offset, confusing the internal voltage regulator’s Sense (“S”) pin feedback loop and lowering charging output.
- Alternator Will Not Charge (0V Output Above Battery Rest Voltage): Caused by an open circuit on the Lamp (“L”) wire or a blown dash indicator bulb without a parallel bypass resistor. The rotor field coil remains unenergized, leaving the alternator completely inactive.
- Overcharging Condition (Voltage Exceeds 15.5V): Caused by corroded or broken Pin 1 (“S”) wiring. When the sense wire reads 0V, the regulator continuously ramps up excitation current to maximum duty cycle, overcharging primary and auxiliary battery banks.
- Brake Controller Error Codes / Glitching Running Lights: Occurs when the low-current ground wire from a 4-pin flat connector adapter is tied directly to thin body sheet metal instead of a properly prepped primary frame rail chassis ground point.
Connector 3 Wire Nissan Alternator Wiring Diagram Frequently Asked Questions
Can a 3-wire Nissan alternator function without the “L” (Lamp) wire connected?
No, a standard 3-wire Nissan alternator will not reliably begin charging if the Lamp terminal is completely disconnected. The initial pre-excitation current required to magnetize the rotor field coils flows directly through the “L” terminal from the dashboard charging light circuit. While some alternators can self-excite at high engine speeds (typically above 3,000 RPM) due to residual rotor magnetism, dependable low-RPM charging performance requires a fully wired “L” terminal circuit containing an intact light bulb or parallel 470-ohm resistor.
What is the difference between an “S/L/C” Nissan alternator and older “S/L/IG” models?
Older legacy Nissan alternators (found on pre-2000 vehicles) use an “IG” (Ignition) pin to turn on the voltage regulator internal circuitry directly from the key switch. Modern Nissan charging systems replace the “IG” pin with a “C” (Computer/Control) pin connected to the vehicle ECM. The ECM modulates the signal on the “C” pin using pulse-width modulation to vary alternator torque load on the engine during acceleration, idle, or heavy accessory power usage (such as operating an electric brake controller or high-draw RV blade auxiliary circuit).
How do you test a 3-wire Nissan alternator harness with a digital multimeter?
To test the harness connector plug, disconnect it from the alternator back housing with the engine OFF. Turn the ignition switch to the ON position (engine off). Set your multimeter to DC Volts and probe Pin 1 (“S”)—it must read steady battery voltage (12.6V). Probe Pin 2 (“L”)—it should read between 1.5V and 3.0V through the dash indicator lamp circuit. Turn the key OFF and check continuity between the alternator casing and the battery negative terminal—resistance must be less than 0.2 ohms. If voltage measurements match these benchmarks, the external vehicle wiring harness is fully functional.
What gauge wire should be used for the auxiliary power circuit on a 7-way RV blade plug?
The auxiliary power line supplying continuous battery charging capabilities across a 7-way RV blade plug must be wired using a minimum of 10 AWG stranded copper wire for lengths up to 15 feet. For longer wire runs, such as on full-size crew-cab trucks or long-wheelbase vans towing heavy trailers, upgraded 8 AWG wire is recommended to limit total line voltage drop under 3% when drawing a full 30A to 40A output from the Nissan alternator charging system.
Why does the battery light on the dash flicker when electric brakes are activated?
A flickering battery light during electric brake application indicates severe voltage drop across the primary vehicle ground system or a failing battery sense line connection. When the electric brake controller energizes trailer brake electromagnets, current draw instantly increases by 10A to 20A. If the ground pin on the trailer connector is poorly grounded to the vehicle frame, or if the alternator “S” line has corroded terminals, the sudden voltage drop causes an unbalanced potential across the internal diode trio, triggering the dash charge lamp indicator on Pin 2 (“L”).
