Standard CCTV security camera wire color code setups use red for positive 12V DC power (hot wire), black for negative or ground wire, yellow for video signal positive, and white for audio or neutral wire. On RJ45 PoE cameras, pin assignment follows T568B with orange/white and orange handling data and power delivery.
📌 Key Takeaways
- Red indicates 12V DC positive (hot wire), while black serves as the common ground wire.
- Yellow core wire transmits analog composite video positive (+), paired with a bare/black shield ground.
- RJ45 IP camera connections use T568B pin assignment standards for Power over Ethernet (48V PoE).
- Reversing positive power and ground wires will permanently damage the camera’s internal circuit board.
- Voltage drop over 22 AWG pigtail wires beyond 50 feet causes infrared night vision failures.
Integrate a commercial or industrial surveillance camera into a facility network, mobile equipment chassis, or security matrix requires strict adherence to standardized pinouts and conductor color pathways. Reading a standard security camera wire color diagram ensures correct electrical polarity, signal integrity, and thermal stability across all transmission channels. Whether you are crimping modular RJ45 connectors for IEEE 802.3af/at Power over Ethernet (PoE) IP units or hand-splicing multi-conductor raw pigtails on an analog HD PTZ dome, matching the wire color code to its precise terminal block pin prevents costly circuit destruction. This technical guide outlines exact pin assignments, voltage limits, conductor gauge requirements, and step-by-step termination procedures for field technicians and system integrators.

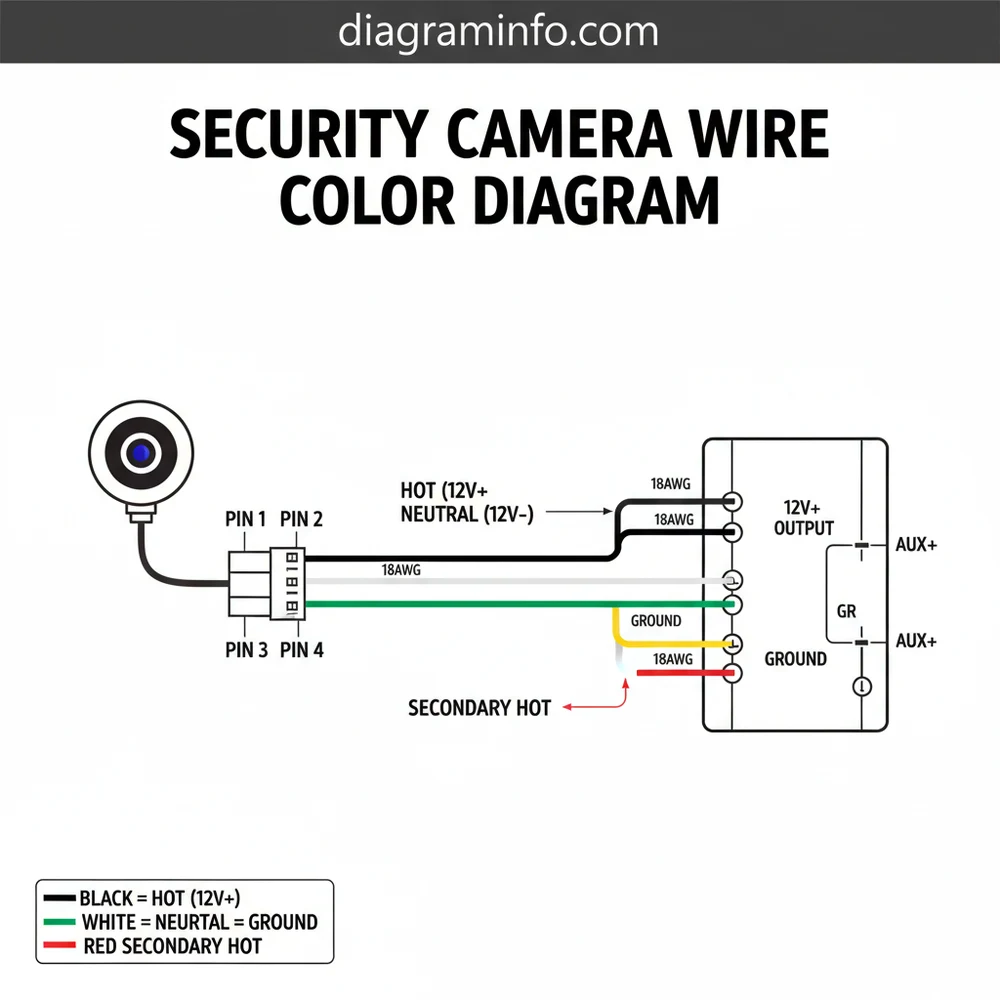

Comprehensive Security Camera Wire Color Diagram and Pin Assignment Reference
Manufacturer specifications indicate that while network IP cameras predominantly rely on standardized Cat5e/Cat6 color schemes, camera pigtails (the bare-wire tail emerging from the camera housing) often utilize proprietary internal color codes. Below is the master reference mapping standard Ethernet wire pairs, 12V DC/24V AC power leads, RS485 telemetry lines, and auxiliary alarm I/O channels to their respective terminal block points.
Recommended Best Deal Products
| Wire Color Code | Function / Signal Name | Pin / Terminal Assignment | Voltage / Signal Specification |
|---|---|---|---|
| White / Orange | TxData+ (Ethernet Transmit Positive) | RJ45 Pin 1 | 1.0 to 2.5 Vp-p Differential Signal |
| Orange | TxData- (Ethernet Transmit Negative) | RJ45 Pin 2 | 1.0 to 2.5 Vp-p Differential Signal |
| White / Green | RxData+ (Ethernet Receive Positive) | RJ45 Pin 3 | 1.0 to 2.5 Vp-p Differential Signal |
| Blue | PoE DC Positive (Mode B) / Unused | RJ45 Pin 4 | +48V to +57V DC (PoE Operating Voltage) |
| White / Blue | PoE DC Positive (Mode B) / Unused | RJ45 Pin 5 | +48V to +57V DC (PoE Operating Voltage) |
| Green | RxData- (Ethernet Receive Negative) | RJ45 Pin 6 | 1.0 to 2.5 Vp-p Differential Signal |
| White / Brown | PoE DC Return/Negative (Mode B) | RJ45 Pin 7 | 0V DC Ground Return |
| Brown | PoE DC Return/Negative (Mode B) | RJ45 Pin 8 | 0V DC Ground Return |
| Red (Pigtail lead) | Hot Wire / Auxiliary DC Power Input | Power Terminal (+) | +12V DC ±10% (1.0A – 2.5A) |
| Black (Pigtail lead) | Ground Wire / DC Power Return | Power Terminal (-) | 0V Common Chassis Ground |
| Yellow (Pigtail lead) | RS485 Data Transmission (+) / A | Terminal Block Pin A | -7V to +12V Common Mode (RS485 Spec) |
| Orange / White (Pigtail) | RS485 Data Transmission (-) / B | Terminal Block Pin B | -7V to +12V Common Mode (RS485 Spec) |
| Bare Copper / Shield Wire | Earth Ground / Shielding Drain Wire | Earth Ground Lug | 0V Earth Continuity Shield |
According to IEEE 802.3af/at standards, Mode A PoE delivers voltage over the data pairs (Pins 1, 2, 3, 6), whereas Mode B uses spare pairs (Pins 4, 5, 7, 8). Always check your switch spec sheet before modifying custom pin assignments on a security camera wire color diagram.
How to Connect Security Camera Wiring Step by Step
Execution of security camera wiring requires precise mechanical stripping, exact pin positioning, and proper strain relief. Deviating from standard pin assignments degrades signal-to-noise ratio (SNR) and causes severe voltage drop across extended wire lengths.
1. Terminate Standard T568B Ethernet Pin Assignments for PoE IP Cameras
Strip approximately 1 inch (25.4 mm) of the outer PVC jacket from your Cat5e or Cat6 network cable using an adjustable radial wire stripper. Untwist the four pair groupings and align the individual conductors flat from left to right according to the T568B color standard shown in the diagram above: White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown. Trim the aligned conductors perfectly square at a length of 0.5 inches (12.7 mm) from the jacket edge using a precision wire cutter. Insert the conductors into an RJ45 modular plug, ensuring every conductor reaches the tip of the connector housing and seats beneath the gold-plated pins. Crimp firmly using a ratchet-style RJ45 crimping tool to secure both the conductor contacts and the strain-relief boot clip.
Do not mix T568A and T568B terminations on the same cable drop unless building a crossover cable. Mismatched end terminations split pair geometry, degrading gigabit transmission rates and interrupting PoE power delivery.
Recommended Best Deal Products
2. Connect Auxiliary DC Power Leads to the Terminal Block
For installations requiring local non-PoE power or supplemental heat-element supplies (e.g., outdoor motorized PTZ enclosures), isolate the designated power pigtail conductors. Identify the hot wire (typically solid Red) and the power ground wire (typically solid Black). Strip 0.25 inches (6 mm) of insulation from each lead using a 18-22 AWG wire stripper. Insert the stripped copper core of the hot wire into the positive (+) screw terminal block position, and the ground wire into the negative (-) or neutral wire terminal position. Tighten the terminal block clamping screws to a torque specification of 0.4 N·m (3.5 in-lbs) to ensure a gas-tight mechanical connection without shearing conductor strands.
3. Wire RS485 Telemetry and Earth Ground Connections
If integrating legacy serial PTZ controls or alarm trigger loops, isolate the Yellow (RS485+) and Orange/White or Green (RS485-) pigtails. Insert these leads into the designated RS485 terminal block ports on your encoder or telemetry interface card. Finally, crimp a ring terminal onto the bare copper drain wire or dedicated green earth ground wire, securing it directly to the structural ground lug or metallic junction box to divert transient voltage surges away from the internal camera microprocessor.
Refer to our detailed technical manuals on power supply load calculation guides, coaxial BNC cabling standards, and IP camera firmware configuration for advanced telemetry calibration procedures.
Common Security Camera Wire Color Diagram Problems and Fixes
Field installations frequently encounter operational failures resulting from pin identification errors, incorrect cable gauge choices, and improper shielding termination. Diagnosing these conditions systematically prevents permanent electrical component failure.
1. Excessive Voltage Drop Due to Incorrect AWG Selection
Symptom: The camera cycles power continuously when infrared (IR) LEDs illuminate, or loss of video occurs during PTZ rotation.
Root Cause: Underestimating line resistance over distance. Standard 24 AWG network conductors carrying 12V DC experience a rapid voltage drop. OEM specifications indicate a 12V DC system delivering 1.5A over 100 feet of 24 AWG wire loses approximately 2.5V, dropping terminal voltage to 9.5V—well below the operational threshold.
Fix: Increase the power conductor gauge to 18 AWG or 16 AWG stranded copper for runs exceeding 50 feet, or step up transmission voltage to 24V AC / 48V PoE at the power supply source.
2. Reversed DC Polarity Across Power Terminals
Symptom: The camera fails to power on, status LEDs remain dark, or the internal thermal fuse trips on the power distribution box.
Root Cause: Misidentifying pigtail wire colors on non-standardized camera blocks—such as connecting a hot wire to a ground terminal.
Fix: Disconnect power immediately. Use a digital multimeter set to DC Voltage mode to verify polarity at the terminal block plug before re-inserting the camera block. Correct polarity shows positive voltage when the red probe contacts the hot wire lead and the black probe contacts the ground wire lead.
3. Ground Loops and Video Noise Interference
Symptom: Horizontal rolling bars on analog HD video feeds or packet drops/latency on IP camera video streams.
Root Cause: Connecting the ground wire or shield drain wire to earth ground at both the camera enclosure end and the head-end server rack, creating a potential difference and ground loop current flow.
Fix: Lift the shield ground at the camera end while leaving it securely bonded to Earth ground at the central rack/power supply terminal block end (single-point grounding strategy).
Security Camera Wire Color Diagram Frequently Asked Questions
What is the standard wire color code for 12V DC security camera power pigtails?
The standard industry convention for direct current (DC) camera pigtails assigns solid Red as the positive (+) hot wire and solid Black as the negative (-) ground wire. However, some industrial PTZ units utilizing dual AC/DC internal rectifiers may use two solid White leads or a Yellow/Black combination. Always measure continuity and polarity with a digital multimeter prior to energizing the circuit.
How do pin assignment standards differ between T568A and T568B PoE security camera wiring?
The primary difference between T568A and T568B lies in the swapped positions of pair 2 (Orange) and pair 3 (Green). In T568A, Pin 1 is White/Green and Pin 2 is Green, whereas in T568B, Pin 1 is White/Orange and Pin 2 is Orange. Standard IP security cameras function identically on either standard, provided the identical pinout scheme is terminated at both ends of the cable run.
What wire gauge should be used for extended security camera power runs?
For standard 12V DC camera installations under 50 feet, 18 AWG copper conductors are recommended. For extended cable runs ranging between 50 and 150 feet, use 16 AWG or 14 AWG power conductors to limit voltage drop below the max 10% tolerance threshold. Alternatively, utilizing IEEE 802.3at High PoE allows power delivery up to 328 feet (100 meters) over standard 23 AWG Cat6 Ethernet cable.
How do you identify non-standard IP camera pigtail wire colors without a schematic?
To identify unlabelled pigtail wires, inspect the printed circuit board (PCB) inside the camera body housing where the pigtail harness connects. Manufacturer PCB silkscreens print exact pin designations next to the terminal socket (e.g., “12V+”, “GND”, “TX+”, “TX-“, “RX+”, “RX-“, “A”, “B”). Match each internal wire color to its corresponding board label to construct a accurate custom wiring reference diagram.
What voltage tolerances apply to standard security camera power terminals?
Manufacturer specifications indicate that standard 12V DC surveillance cameras require an input voltage stability within ±10% (10.8V DC minimum to 13.2V DC maximum). Operating equipment outside of this window risks unrecoverable video processor lockups under low voltage or localized component burnout under high voltage conditions.
Step-by-Step Guide to Understanding the Security Camera Wire Color Diagram
Identify – Strip back the camera pigtail outer jacket to expose internal wire color code leads.
Locate – Isolate the 12V positive hot wire (red) and negative ground wire (black).
Reference – Match the remaining signal leads (yellow video, white neutral/audio) to the target connector diagram.
Connect/Route – Solder or crimp the wire connections using heat-shrink tubing to protect against weather exposure.
Verify – Test voltage at the camera end with a DC multimeter to confirm correct 12V polarity and pin assignment.
Troubleshoot – Inspect wire splices for short circuits between the video shield and ground wire if image shows Rolling lines.
