2008 Jeep Commander Fuse Box Diagram: 2026 Repair Guide
The 2008 Jeep Commander features two main fuse panels: the Integrated Power Module (IPM) located in the engine bay near the battery, and the Interior Fuse Panel under the driver’s side dashboard. The IPM houses critical high-amp mini-fuses and relays for the ECU, fuel pump (20A mini-fuse), and starter switch circuit.
📌 Key Takeaways
- The Integrated Power Module (IPM) under the hood manages high-draw engine relays and primary ECU power.
- The interior fuse panel located under the driver-side dash protects body electronics and OBD-II scanner power.
- Always disconnect the negative battery terminal and observe torque specs (45 in-lbs) when securing IPM terminal posts.
- Corrosion beneath IPM pin connectors is a leading cause of intermittent check engine light illumination and diagnostic code errors.
- Blown mini-fuses can be replaced DIY, but recurring failures require circuit tracing before installing replacement fuses.
The 2008 Jeep Commander (XK platform) utilizes a dual power distribution network designed to manage high current draws from powertrain electronics, chassis safety systems, and cabin accessories. The primary distribution center is the Integrated Power Module (IPM), situated in the engine compartment, which combines high-amp cartridge fuses, micro-relays, and a printed circuit board to interface directly with the vehicle’s CAN-bus network. A secondary interior junction block under the driver-side dashboard protects cabin electronics and diagnostic telemetry. Understanding the official 2008 jeep commander fuse box diagram is essential for professional mechanics and advanced DIY technicians troubleshooting no-start conditions, sensor circuit disruptions, or intermittent electrical faults across the 3.7L V6, 4.7L V8, and 5.7L HEMI engine platforms.

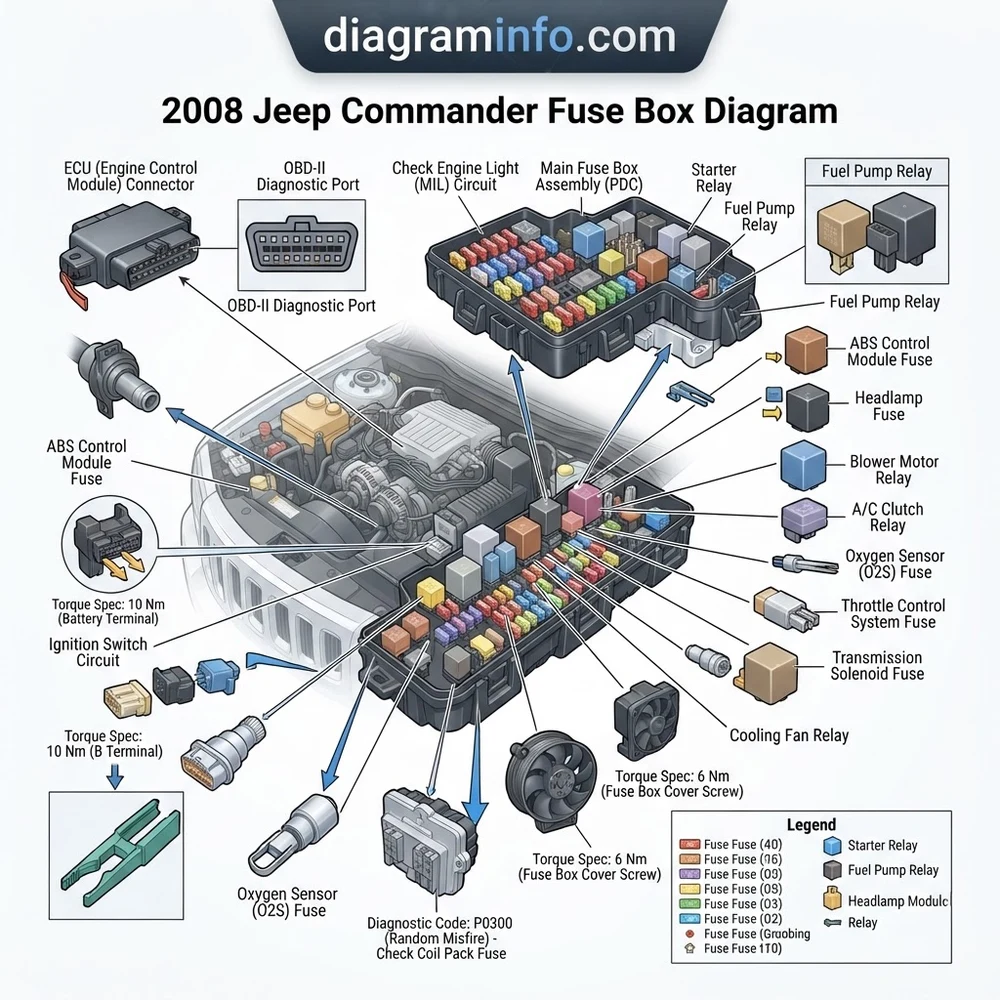

Locating and Decoding the 2008 Jeep Commander Fuse Box Diagram
The electrical architecture of the 2008 Jeep Commander splits primary circuit protection between the engine bay and the lower cabin driver-side footwell. The Integrated Power Module (IPM) serves as the heart of the engine bay power distribution, located adjacent to the battery assembly on the left side of the engine compartment. The IPM integrates both solid-state micro-controllers, standard Blade-type mini fuses, and high-current Maxi/JCASE cartridge fuses into a single molded assembly. Removing the top protective cover reveals the physical layout mapping corresponding directly to the factory schematic.
Recommended Best Deal Products
Inside the passenger compartment, the interior fuse block—also referred to as the Body Control Module (BCM) junction block—is located beneath the instrument panel on the left side, accessible by removing the knee blocker trim panel. This panel supplies regulated power to low-draw interior systems, instrumentation clusters, and the diagnostic data linkage interface. When reading the schematic layout, fuses are categorized by numeric designation (e.g., Cavity 1 through Cavity 38 in the IPM), amperage rating, wire color coding on outgoing terminal pins, and circuit function.
Unlike older vehicle architectures with simple passive fuse blocks, the 2008 Jeep Commander IPM contains internal smart-switching logic. Terminal inputs link directly to the high-speed CAN-C diagnostic network. A blown fuse on a sensor feed circuit can prevent module communication, causing the Powertrain Control Module to enter failsafe shutdown mode.
Under-Hood Integrated Power Module (IPM) Fuse and Relay Allocations
The table below details the key high-current and mini-fuse assignments within the engine compartment IPM according to factory OEM technical specifications for the 2008 model year:
| Cavity / Position | Rating (Amps) | Protected Circuit / Destination Component |
|---|---|---|
| Cavity 1 (J1) | 40A Maxi | Anti-Lock Brake System (ABS) Motor Feed |
| Cavity 2 (J2) | 30A Maxi | Transfer Case Module / Final Drive Control (FDCM) |
| Cavity 3 (J3) | 30A Maxi | Starter Solenoid Relay / Ignition Switch Feed |
| Cavity 8 (J8) | 40A Maxi | Radiator Cooling Fan Low/High Speed Relay Feeds |
| Fuse 11 | 20A Mini | Powertrain Control Module (ECU) / Fuel Pump Relay Power |
| Fuse 12 | 15A Mini | Auto Shut Down (ASD) Relay Output / Ignition Coils |
| Fuse 16 | 15A Mini | Oxygen Sensors, VVT Solenoids, Camshaft Position Sensors |
| Fuse 18 | 20A Mini | Horn Relay Feed / Security Alarm Module |
| Fuse 22 | 10A Mini | Air Conditioning Clutch Relay / HVAC Actuators |
| Fuse 26 | 15A Mini | OBD-II Diagnostic Link Connector (DLC) Pin 16 B+ Feed |
Interior Cabin Fuse Panel and Power Allocation
The interior panel handles auxiliary branch circuits. Cavity 1 within the cabin block provides a 10A feed directly to the Instrument Cluster and steering column control module (SCCM). Cavity 5 supplies 15A to the interior accessory power outlets, while Cavity 8 provides a 10A logic power signal to the Body Control Module and HVAC switch assembly. Diagnostic reference wiring diagrams indicate that when electrical accessories lose power simultaneously with instrument cluster dropouts, the main feed terminal supplying the interior block from IPM Cavity J13 (60A) should be tested before replacing individual mini-fuses.
ECU, OBD-II, and Engine Control Circuit Allocation
Engine operations on the 2008 Jeep Commander rely heavily on uncompromised voltage delivery from the IPM to the Engine Control Unit (ECU / PCM). Ignition voltage distribution runs through the Auto Shut Down (ASD) Relay located inside the IPM. When the ignition switch turns to the “RUN/START” position, the ECU grounds the ASD relay control coil, closing the relay contacts to energize Fuse 12, Fuse 15, and Fuse 16 simultaneously. These sub-circuits feed power directly to the fuel injectors, primary ignition coils, downstream oxygen sensor heaters, and variable valve timing solenoids operating near the engine timing chain setup.
Auto Shut Down (ASD) Relay Output Voltage: 12.6V DC nominal (battery baseline). Maximum permissible voltage drop across relay contacts under full 15A load: 0.2V DC. Battery Terminal Stud Nut Torque Spec: 90 in-lbs (10 Nm).
Powertrain Control Module (PCM) and Ignition Circuits
The ECU requires dual power sources: a constant battery reference voltage (B+) via Fuse 11 and an ignition-switched feed via Fuse 12. If constant battery power to the ECU drops below 9.6 volts during cranking, the processor resets, illuminating the check engine light on the gauge cluster and logging a low supply voltage diagnostic code such as P0685 (ECM/PCM Power Relay Control Circuit Open) or P0688 (Auto Shut Down Relay Sense Circuit Low). Technicians referencing the 2008 jeep commander fuse box diagram must trace the Pink with Yellow Stripe (PK/YL) wire originating at the output side of Fuse 12 directly to PCM Connector C1 Pin 18.
Auxiliary Sensor Feeds: Oil Pressure, Coolant Flow, and Variable Valve Timing
Critical engine monitoring sensors rely on clean power supply feeds derived directly from protected IPM channels:
- Oil Pressure Transducer: Receives a 5-volt reference signal generated internally by the ECU, but the main oil solenoid feed for Multi-Displacement System (MDS) solenoids on 5.7L HEMI engines originates from ASD Relay power (Fuse 12). Insufficient voltage to these solenoids interrupts cylinder deactivation and generates OBD-II code P0520 or P0524.
- Coolant Flow System: The electric cooling fan relay control circuit is protected by high-amp Fuse J8. Improper current delivery starves the high-speed fan relay coil, causing thermal runaway in heavy traffic and setting coolant temperature diagnostic codes (e.g., P0128 for thermostat performance or P0480 for fan control circuit faults).
- Timing Chain Alignment Sensors: Dual Camshaft Position Sensors (CMP) and the Crankshaft Position Sensor (CKP) utilize regulated 5V power from the ECU, but their ground paths return through the engine block. Increased electrical resistance at the main IPM ground stud (G104 near the left fender) can distort CMP/CKP signals, causing false timing chain misalignments codes (P0016 / P0018).
Troubleshooting Electrical Failures via the 2008 Jeep Commander Fuse Box Diagram
Electrical troubleshooting on the XK platform requires a systematic approach using accurate schematics, a digital multimeter (DMM), and an OBD-II diagnostic scanner. When addressing intermittent vehicle power loss, check engine light illuminations, or blown fuse conditions, technicians must avoid jumping straight to component replacement without first proving circuit continuity and load capacity across the fuse block interface.
Never replace a blown fuse with a higher amperage rating. The wiring harness gauge in the 2008 Jeep Commander is matched precisely to the circuit fuse rating. Over-fusing can cause harness overheating, melt wire insulation, damage the internal IPM circuit board, or cause an electrical fire.
Intermittent Power Loss and Check Engine Light Illuminations
Intermittent failure of engine controls on 2008 Commanders often stems from corrosion inside the bottom layer of the Integrated Power Module. Corrosion on terminal pins underneath the IPM causes localized resistance spikes. For instance, if Fuse 16 experiences a voltage drop exceeding 0.5V, the oxygen sensor heater circuits will fail to reach operational temperature within the programmed time threshold. The ECU interprets this slow heater response as a sensor circuit failure, illuminating the check engine light and storing a diagnostic code such as P0138 or P0158.
To inspect for hidden board corrosion, disconnect the negative battery cable, remove the main B+ eyelet nut on the side of the IPM, release the four mounting clips, and lift the module to inspect multi-pin harness connectors C1 through C5. Check for green copper oxidation on male terminal blades feeding the ignition and ECU control circuits.
Blown Fuses Caused by Short Circuits and Sensor Harness Chafing
Repeated blowing of Fuse 16 or Fuse 12 immediately upon turning the ignition key indicates a hard short-to-ground in an ASD-dependent component circuit. Common friction points on 3.7L, 4.7L, and 5.7L Jeep Commander models include:
- The oxygen sensor harness chafing against the front driveshaft or exhaust heat shields.
- The wiring loom routed over the rear cylinder head valve cover, where vibration causes internal wire chafing against aluminum casting edges near timing chain housing brackets.
- Shorts inside the AC compressor clutch coil, which repeatedly pop Fuse 22 when the HVAC system demands cooling.
To isolate a short-to-ground short without wasting fuses, remove the blown fuse and connect a test light across the two fuse cavity terminals. If the short is active, the test light will glow brightly. Wiggle the engine wiring harness near heat shields and valve covers; when the test light turns off or flickers, you have located the shorted section of the wiring harness.
Diagnostic Steps for Pinpointing Voltage Drops and OBD-II Codes
Executing accurate diagnostic steps on the 2008 Jeep Commander power distribution system requires systematic isolation of supply feeds, ground paths, and signal wires. Follow this procedure when diagnosing power delivery faults related to ECU startup or active OBD-II diagnostic fault codes.
Measuring Voltage Drop Across Fuses and IPM Terminals
- Set your digital multimeter to the DC Millivolt (mV) scale.
- Turn the vehicle ignition to the “ON” position with the engine off (or under active fault conditions with engine idling if safe).
- Touch the positive and negative multimeter probes to the two small exposed metal test points on the back of the suspicious blade fuse.
- A reading of 0.0 mV indicates zero current flow or a healthy circuit with negligible resistance. A small millivolt reading (e.g., 1.5 mV to 5.0 mV) corresponds to normal operational current draw (cross-reference with standard fuse voltage drop charts). A reading equal to full battery voltage (12.6V) indicates an open (blown) fuse.
- To measure voltage drop between the battery and the IPM power terminal, place the positive DMM probe directly on the battery positive post and the negative probe on the IPM B+ stud nut. Crank the engine or load the system (turn headlights and blower fan on max). The reading should not exceed 0.2V (200 mV). High readings indicate loose mounting hardware or corroded terminal studs requiring cleaning and torquing to OEM specs.
Correlating OBD-II Fault Codes to Fuse and Relay Testing
When an OBD-II diagnostic scanner is connected to the Diagnostic Link Connector (DLC) under the driver-side dash panel, specific code groups direct technicians toward corresponding fuse circuits listed on the 2008 jeep commander fuse box diagram:
- Code U0100 (Lost Communication with PCM): Verify B+ power at Fuse 11 (20A) and ignition signal at Fuse 12 (15A). Inspect DLC power at Fuse 26 (15A mini fuse in the IPM). If DLC Pin 16 lacks 12V DC power, diagnostic scan tools cannot establish communication with the vehicle CAN-bus network.
- Codes P0685 / P0688 (ASD Relay Control/Sense Circuit): Pull the ASD relay from the IPM socket. Measure resistance across coil terminals 85 and 86 (should read between 75 and 105 Ohms). Apply 12V across 85 and 86 while testing continuity across load terminals 30 and 87. Replace relay if contact resistance exceeds 0.3 Ohms.
- Codes P0520 through P0524 (Oil Pressure System Errors): Verify ground integrity at G104 and check Fuse 12 voltage supply under load. Incorrect supply voltages skew oil pressure sensor voltage output scaling, leading to erroneous fault codes even when mechanical oil pressure is verified via physical gauge connection.
Frequently Asked Questions About 2008 Jeep Commander Fuse Box Diagrams
Where is the 2008 Jeep Commander fuse box located?
The 2008 Jeep Commander features two primary fuse blocks. The main under-hood power center—known as the Integrated Power Module (IPM)—is located on the driver’s side of the engine compartment next to the battery. The interior fuse panel is mounted under the dashboard on the driver’s side, situated to the left of the steering column behind the lower knee trim panel.
Which fuse controls the fuel pump in a 2008 Jeep Commander?
In the under-hood Integrated Power Module (IPM), Fuse 11 (a 20-amp mini fuse) supplies primary power to the fuel pump relay circuit and the Powertrain Control Module. Additionally, high-current fuel pump relay switching operates through the internal power tracks of the IPM. If Fuse 11 blows, the fuel pump will immediately cease operation, leading to an engine crank but no-start condition.
Why does my OBD-II scanner show “No Communication” when plugged into the 2008 Jeep Commander?
The OBD-II Data Link Connector (DLC) located under the driver-side dash receives its 12V B+ power directly from Fuse 26 (15-amp mini fuse) located inside the engine compartment Integrated Power Module. If Fuse 26 is blown, or if its socket contacts are corroded, diagnostic scan tools will fail to power up or will display “No Communication” errors across all control modules.
What causes the Auto Shut Down (ASD) fuse to blow continuously on the 5.7L HEMI or 4.7L V8?
The ASD circuit (protected by Fuse 12) energizes the ignition coils, fuel injectors, and oxygen sensor heater elements. Continuous blowing of Fuse 12 is typically caused by oxygen sensor harness wiring melting against hot exhaust manifolds, an internally shorted ignition coil, or a shorted variable valve timing control solenoid near the timing chain cover assembly. Diagnostic isolation requires unplugging these sub-components sequentially until the short-to-ground condition clears.
How do I test if an IPM micro-relay is bad on my Jeep Commander?
To test an IPM micro-relay, remove the relay from its socket and use a digital multimeter set to Ohms. Measure resistance across the coil control terminals (typically pins 85 and 86); standard resistance should be between 70 and 110 Ohms. Next, apply 12V battery power across the coil pins while measuring resistance across the switched load terminals (pins 30 and 87). The closed contact resistance must read lower than 0.2 Ohms. If resistance is high or variable, the relay contacts are pitted and the relay must be replaced.
Step-by-Step Guide to Understanding the 2008 Jeep Commander Fuse Box Diagram
Identify – Identify the non-functioning electrical circuit or active check engine light trigger using an OBD-II diagnostic tool.
Locate – Locate the engine compartment Integrated Power Module (IPM) near the battery or the interior panel beneath the driver-side dash.
Reference – Reference the 2008 Jeep Commander fuse box diagram on the panel cover to pin out the target fuse or relay position.
Connect/Route – Remove the blown mini-fuse using a puller tool and seat a replacement fuse with the exact matching amperage rating.
Verify – Verify circuit continuity and terminal pin voltage using a digital multimeter across the open contacts.
Troubleshoot – Clear any diagnostic code memory with an OBD-II scanner and restart the vehicle to verify stable circuit operation.
