Under-Sink Water Treatment Process Flow Diagram: 2026 Setup

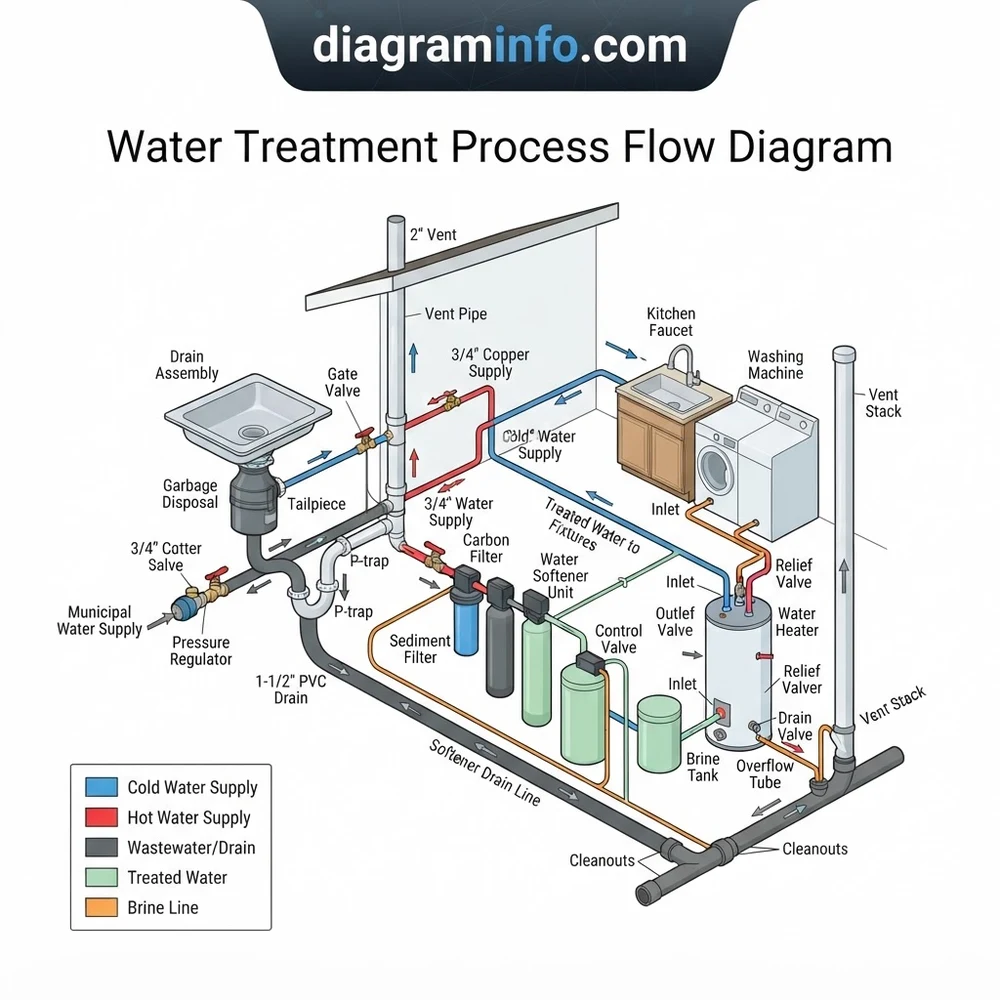

A water treatment process flow diagram illustrates wastewater movement from the sink drain assembly through the garbage disposal and continuous waste tailpiece into the water-sealed P-trap. Wastewater then flows into the main drain pipe, while sewer gases vent upward through the attached air vent pipe to prevent siphonage and pressure imbalances.
📌 Key Takeaways
- Maintain a standard 1/4-inch per foot downward slope on all horizontal waste drainage lines.
- Ensure the P-trap water seal depth remains between 2 to 4 inches to block sewer gas backflow.
- Hand-tighten slip-joint nuts first, followed by a 1/4 turn with pliers; do not overtorque plastic threads.
- Misaligned tailpieces and missing bevel washers represent the primary cause of under-sink leaks.
- Consult a licensed plumber if main stack venting faults cause continuous trap siphoning or drain gurgling.
Modern residential and commercial plumbing systems rely on integrated point-of-use wastewater management schematics to direct effluent safely into municipal sewers or localized greywater treatment systems. Understanding a water treatment process flow diagram requires a firm grasp of fluid dynamics, atmospheric venting physics, and standardized mechanical fittings. This technical guide outlines the precise physical layout, material tolerances, and structural arrangement of under-sink drainage, filtration discharge, and venting infrastructure. Whether servicing a high-capacity food service garbage disposal tie-in or retrofitting an Air Admittance Valve (AAV valve), mastering this process flow ensures compliance with Uniform Plumbing Code (UPC) and International Plumbing Code (IPC) standards.
Deconstructing the Water Treatment Process Flow Diagram Plumbing Components
A standardized point-of-use drainage diagram maps the progressive fluid path from fixture intake to regional waste branches. Every component within the flow path serves a specific mechanical purpose to prevent backflow, seal sewer gases, and maintain kinetic fluid velocity. According to IPC Section 702, precise sizing and arrangement of these sub-assemblies prevent hydraulic jump and localized cavitation.
Recommended Best Deal Products
Primary Drain Assembly and Sink Tailpiece Integration
The system begins at the sink basin orifice with the drain assembly. This fitting consists of a stainless steel or chrome-plated brass strainer body, an upper rubber flange gasket, and a lower friction washer secured by a locknut. Threaded directly to the basket strainer housing is the sink tailpiece. Manufactured in standard 1.5-inch outer diameter (OD) sizes for residential applications or 2-inch OD for commercial fixtures, the tailpiece acts as the vertical drop tube. In systems incorporating pre-treatment filtration or water softening discharge, direct-connect tailpieces utilize a branch barbed fitting (typically 3/8-inch or 1/2-inch OD) to receive low-volume condensate or reverse osmosis concentrate before it reaches the primary trap.
Garbage Disposal and Auxiliary Water Treatment Tie-Ins
In high-solids waste streams, a heavy-duty commercial or residential garbage disposal unit functions as a mechanical macerator, breaking down organic particulate before downstream fluid conveyance. As depicted in the water treatment process flow diagram, wastewater enters the disposal housing upper chamber, passes through the grinding ring, and exits via a dedicated side discharge elbow. An integrated secondary inlet port near the top housing collar allows connection from dishwashers or water filtration purge lines. Manufacturers specify that this knock-out plug must be removed prior to tubing installation to allow unobstructed flow from auxiliary water treatment units.
P-Trap Mechanical Seals and Adjustable Slip Joint Connectors
position directly below the tailpiece or disposal elbow is the P-trap. Consisting of a U-bend (trap dip) and a wall bend (trap arm), the P-trap holds a standing liquid column between 2 and 4 inches deep according to ASME A112.18.2 standards. This liquid barrier prevents toxic and flammable volatile organic compounds (VOCs) and hydrogen sulfide gas ($H_2S$) from venting back into the occupied space. Interconnecting the tailpiece, disposal elbow, P-trap, and wall outlet are slip joint assemblies. These joints utilize knurled plastic or die-cast brass nut rings coupled with tapered EPDM or polyethylene bevel washers. When torqued onto male threads, the washer compresses radially against the smooth pipe wall, producing a pressure-tight seal rated for non-pressurized gravity drainage.
Vent Pipe and Air Admittance Valve (AAV Valve) Atmospheric Regulation
Downstream of the P-trap wall arm lies the drainage vent junction. The vertical vent pipe extends upward through the roof envelope to draw atmospheric air into the system, neutralizing negative pressure pulses generated by falling water slugs downstream. In retrofits or island sink configurations where running a dedicated structural vent through the roof is physically impossible, an Air Admittance Valve (AAV valve) is installed at a minimum height of 4 inches above the horizontal trap arm drain line. The AAV valve contains a sensitive silicone diaphragm that opens under a negative pressure differential (-0.02 psi / -0.5 inches W.C.) to admit ambient air, snapping closed by gravity under neutral or positive internal pressure to contain sewer gases.
How to Read a Under-Sink Water Treatment Process Flow Diagram
Interpreting a technical water treatment process flow diagram involves tracking fluid phase changes, directional velocity vector arrows, and physical elevation changes across the system piping topology. Plumbing schematics employ standardized line styles and symbol conventions governed by ANSI/ASME Y32.2 standards to define material boundaries and functional roles.
Tracing Effluent Flow from Sink Basin to Wastewater Outlet
The primary liquid path is represented by solid, heavy-weight directional lines indicating raw greywater flow. Flow initiates at the basin inlet, accelerating under gravity through the vertical tailpiece at speeds dictated by Torricelli’s Law ($v = \sqrt{2gh}$). When the stream hits the internal standing water column of the P-trap, flow transitions from laminar drop to turbulent mixing, sweeping non-buoyant debris up and out through the curved trap arm. In process flow diagrams, dashed secondary lines indicate intermittent chemical dosing, water treatment regenerant waste, or auxiliary bypass loops entering upstream of the trap hydraulic seal.
Recommended Best Deal Products
Calculating Hydraulic Slope and Gravity Drainage Velocity
To prevent sediment drop-out and pipe wall fouling, horizontal runs downstream of the P-trap wall elbow must maintain a continuous downward pitch. Standard plumbing codes dictate a minimum slope of 1/4 inch per linear foot (2% pitch) for piping diameters of 2 inches or less. In the process schematic, slope vectors are annotated with percentage gradients or pitch arrows. Maintaining this 2% gradient ensures the effluent velocity remains between 2.0 feet per second (the minimum self-scouring velocity required to keep particulate suspended) and 4.0 feet per second (the maximum velocity to prevent liquid from outrunning solids, leaving dry stranding behind).
Per IPC Chapter 7, horizontal gravity drain lines measuring 1.5 to 2.0 inches ID must maintain a strict 2% downward grade (1/4″ fall per 12″ run) yielding a target fluid velocity of 2.2 ft/sec. Maximum allowable horizontal distance from P-trap crown weir to vent fitting centerline is 3 feet 6 inches for 1.5-inch pipe, and 5 feet 0 inches for 2.0-inch pipe.
Mapping Air Pressure Equalization Across Venting Nodes
Venting circuits are typically designated on process schematics by fine dashed lines or distinct pneumatic line codes. As liquid discharges down the vertical stack, it acts as a fluid piston, compressing air ahead of it (creating positive back-pressure) and leaving a partial vacuum behind it (creating negative pressure). The water treatment process flow diagram identifies critical pressure-equalization nodes where the vent pipe or AAV valve interfaces with the waste line. Correct mapping ensures that at no point during peak discharge does the suction pressure inside the pipe exceed the 1-inch water column depth threshold, which would siphon the liquid trap seal dry.
PVC Piping, Slip Joint, and Vent Pipe Technical Specifications
Material selection for under-sink water treatment and discharge systems directly impacts structural durability, chemical resistance, and thermal operating limits. Standard residential and light commercial systems employ rigid Polyvinyl Chloride (PVC) Schedule 40 or Acrylonitrile Butadiene Styrene (ABS) piping systems joined by solvent cement or mechanical compression fittings.
| Component / Fitting Type | Standard Dimension Specs | Material Specification | Torque / Pressure Tolerance |
|---|---|---|---|
| Sink Strainer & Tailpiece | 1.5″ Nominal Pipe Size (NPS) | ASTM F409 PVC / 20 Ga. Brass | Hand tight + 1/2 turn max (15-20 ft-lbs) |
| Garbage Disposal Elbow | 1.5″ Flanged Outlet | High-Impact Polypropylene | Single-bolt flange (25-35 in-lbs) |
| P-Trap Unit Assembly | 1.5″ ID / 2.0″ Trap Seal | ASTM D2665 Schedule 40 PVC | Slip Joint Nut (3-5 ft-lbs) |
| Air Admittance Valve (AAV) | 1.5″ to 2″ MPT Connection | ABS Housing w/ Silicone Seal | -0.02 psi opening; 30 DFU capacity |
| Primary Vent Pipe Stack | 1.5″ to 3.0″ Schedule 40 | ASTM D1785 Rigid PVC | Solvent Weld (ASTM D2564 Cement) |
Do not run continuous water temperatures exceeding 140°F (60°C) through Schedule 40 PVC drainage systems. High-temperature discharge from commercial dishwashers or water softening backwash can soften PVC wall matrices, leading to slip joint dislodgement or P-trap deformation. For high-temperature water treatment applications, Chlorinated Polyvinyl Chloride (CPVC) or Polypropylene (PP) piping must be substituted.
Always verify washer profile orientation during slip joint assembly. The tapered bevel face of the washer MUST point downstream toward the threaded female receiving hub. Installing bevel washers backwards reduces the contact patch by 70%, leading to slow capillary leaks under thermal cycle stress.
Troubleshooting Common Water Treatment Process Flow Diagram Failures
Diagnosing operational faults in under-sink wastewater loops requires systematic isolation of hydraulic, mechanical, and pneumatic failure modes. When physical fluid performance deviates from the parameters established in the water treatment process flow diagram, technicians must evaluate pipe geometry, pressure integrity, and chemical fouling factors.
Diagnosing P-Trap Siphonage and Sewer Gas Odor Breakthrough
If persistent sewer gas smells ($H_2S$) enter the room, the mechanical liquid seal inside the P-trap has failed. Trap siphonage occurs through two distinct fluid dynamics mechanisms:
- Self-Siphonage: Occurs when a full fixture discharge fills the entire cross-sectional area of the tailpiece, creating a solid water slug. As this slug descends into the drain arm, momentum creates a trailing vacuum that pulls the remaining water out of the trap dip. Remedy: Ensure the tailpiece diameter matches code specs and verify the drop distance does not exceed 24 inches vertically before the trap entrance.
- Induced Siphonage: Occurs when high-volume fluid discharge down an adjacent main line generates a negative pressure wave inside the branch drain, sucking the trap seal downstream. Remedy: Inspect the branch vent line for bird nests or ice blockage, or retrofit an AAV valve downstream of the P-trap wall turn.
Resolving Slow Drainage Caused by Vent Pipe Restrictions or AAV Sticking
Slow drainage in a structurally clean pipe often stems from air displacement resistance rather than physical solid obstructions. When water drops down the tailpiece, it must displace an equal volume of air in the pipe ahead. If the vertical vent pipe is blocked or an internal spring/membrane inside the AAV valve has seized shut due to mineral scaling or kitchen grease vapor deposits, trapped air forms a atmospheric cushion, slowing fluid velocity. To test an AAV valve, unscrew the unit from its female adapter hub; if sink drainage speed instantly returns to maximum velocity, the internal mechanical seal of the AAV valve is stuck closed and the entire valve assembly must be replaced.
Locating and Sealing Water Leaks at PVC Slip Joint Interface Points
Intermittent leaks beneath the sink usually originate at compression union nodes. Vibration from a 3/4 HP garbage disposal motor can loosen threaded slip joint retaining rings over time. Follow this three-step isolation and repair procedure:
- Dry all pipe surfaces completely using a heat gun or clean shop towels. Wipe joints down with isopropyl alcohol to remove oil film.
- Dust powdered plumber’s chalk or baby powder over every slip joint, disposal flange connection, and tailpiece seam. Run the sink tap at full flow while operating the garbage disposal unit. The chalk will visibly stain dark at the precise micro-fracture or failed washer interface.
- Loosen the leaking slip joint nut, back out the washer, inspect the PVC mating surface for mold flash or burs, apply a thin coat of non-hardening PTFE thread/gasket sealant to the washer bevel face, hand-tighten the nut fully, and apply an additional 1/4-turn using smooth-jaw channel locks. Do not over-torque, as this warps the plastic threads.
Residential Water Treatment Process Flow Diagram Frequently Asked Questions
What is the maximum allowed distance between the P-trap and the vent pipe in a process flow diagram?
According to the International Plumbing Code (IPC Table 909.1), the maximum horizontal distance (developed length) from the P-trap crown weir to the vent pipe connection depends directly on pipe diameter. For a standard 1.5-inch waste line, the maximum developed length is 3 feet 6 inches (42 inches). For a 2.0-inch waste line, the maximum distance increases to 5 feet (60 inches). Exceeding these linear limits creates a hydraulic jump that can cap the pipe, causing self-siphonage of the trap water seal without atmospheric relief.
Can an Air Admittance Valve (AAV valve) completely replace a traditional vent pipe through the roof?
While an AAV valve can successfully vent individual branch fixtures, island sinks, and localized water treatment lines, it cannot completely replace the primary structural vent stack of a building. Both the IPC and UPC require at least one primary stack vent to extend open to the outdoor atmosphere through the roof envelope to relieve positive pressures inside the building drain network. AAV valves are one-way devices that only open under negative pressure; they cannot dump positive back-pressure spikes caused by large-volume municipal surges.
Why is Schedule 40 PVC preferred over ABS in high-temperature water treatment drainage flow loops?
Schedule 40 PVC (ASTM D1785/D2665) exhibits higher tensile strength, superior structural rigidity, and lower thermal expansion rates compared to Acrylonitrile Butadiene Styrene (ABS). Under repeated cycles of hot water discharge (e.g., commercial water heater pressure relief purges or water treatment backwashing cycles up to 135°F), ABS experiences significant axial elongation, causing sagging in horizontal runs between support hangers. PVC holds a tighter structural tolerance across varying thermal gradients, maintaining the required 2% slope without snaking.
How does a reverse osmosis (RO) system discharge tie into the drain assembly and P-trap flow path?
A reverse osmosis (RO) water purification unit continuously generates a brine waste stream that must discharge to the sewer. To prevent cross-contamination between raw sewage and pure drinking water, the RO brine line must discharge into the sink tailpiece via a specialized air gap fitting or a dedicated drain saddle clamp installed upstream of the P-trap crown weir. The air gap provides an uninterrupted physical space of at least two pipe diameters (or 1 inch) open to the atmosphere, ensuring back-siphonage of waste fluid into the drinking water membrane is physically impossible.
What causes recurring leaks at the garbage disposal slip joint connection?
Recurring leaks at the disposal discharge elbow typically result from mechanical vibration fatigue coupled with lack of pipe support. The high rotational torque produced when a motor starts up creates radial deflection forces across the short tailpiece connecting to the P-trap. If the horizontal wall arm downstream of the trap is not anchored to the wall framing with rigid pipe straps, these repeated micro-movements unseat the slip joint bevel washer. Installing an adjustable rubber vibration isolation boot or adding a rigid pipe support bracket beneath the P-trap assembly resolves the dynamic stress.
Step-by-Step Guide to Understanding the Water Treatment Process Flow Diagram
Identify – Identify the drainage inlet and components including the sink drain assembly, garbage disposal, tailpiece, P-trap, and vent pipe outlet.
Locate – Locate the main drain stack entry point and measure drop distances to establish a precise 1/4-inch per foot downward slope.
Reference – Reference the process flow diagram to verify the correct sequence from the garbage disposal discharge tube into the waste tailpiece.
Connect/Route – Connect the tailpiece to the P-trap using rubber bevel washers, hand-tightening slip nuts before securing with a 1/4 turn wrench rotation.
Verify – Verify the air vent pipe is unblocked and test all slip-joint connections under high-volume water flow for leaks.
Troubleshoot – Troubleshoot standing water or slow drainage by releveling horizontal runs, resetting washers, or clearing blockage inside the P-trap bend.
