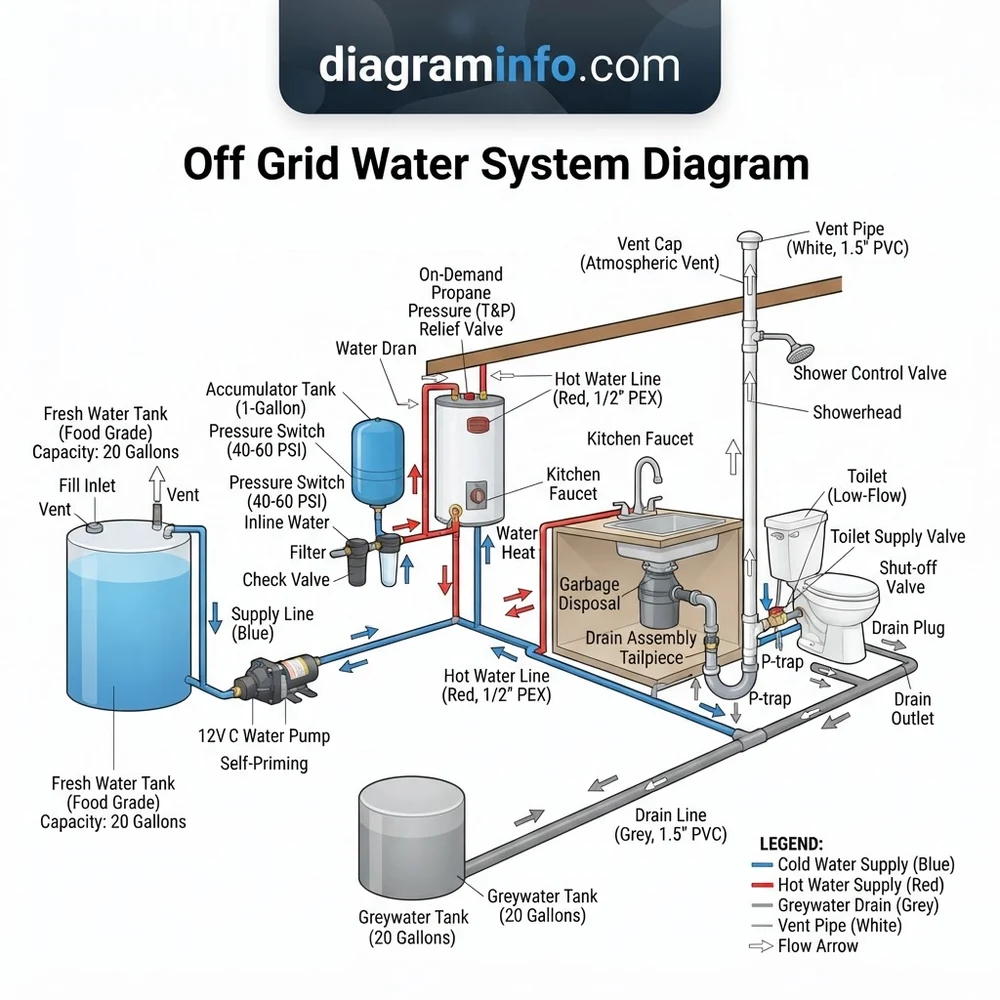

12V Homestead Off-Grid Water System Diagram: 2026 Setup
An off-grid water system diagram details greywater and fresh plumbing flow from storage tanks through a 12V 45 PSI pump to fixtures. Wastewater travels from the sink strainer through a 1.5-inch tailpiece, drain assembly, and P-trap before venting through an AAV vent pipe, ensuring sewer gases remain sealed off.
📌 Key Takeaways
- 12V DC water pumps should be fused at 10–15 amps and regulated to 45–55 PSI maximum pressure.
- Drain tailpieces connect directly to the sink drain assembly above the liquid-sealed P-trap.
- Always maintain a 1/4-inch per foot slope on horizontal drainage runs to prevent sewer gas backup.
- Improper venting at the vent pipe causes slow drainage and siphonage of the P-trap water seal.
- DIY installation is manageable for low-pressure systems; hire a plumber for deep-well integration.
Designing and installing a reliable plumbing layout for off-grid cabins, overland vehicles, or tiny homes demands precise adherence to hydraulic and pneumatic principles. An off-grid water system diagram serves as your master blueprint, detailing the critical balance between gravity-fed supply lines, mechanical pumping, and waste discharge routing. Unlike grid-tied residential setups, off-grid plumbing requires tight integration of compact waste fixtures, air admittance controls, and freeze-resistant materials to handle variable environmental stress. This technical guide breaks down the structural mechanics, component tolerances, venting requirements, and system assembly steps represented in standard off-grid plumbing schematics.
Off-Grid Water System Diagram Component Breakdown
An off-grid waste and supply schematic integrates distinct mechanical assemblies designed to prevent sewer gas backflow while managing waste discharge under zero-pressure or low-pressure conditions. Referencing the schematic, each component from the basin down to the holding tank or greywater discharge line must meet specific mechanical standards to ensure system integrity.
Recommended Best Deal Products
The primary assembly begins at the sink basin orifice. The drain assembly secures to the sink using a mechanical locknut, sealed with plumbers putty or an EPDM gasket. Threaded directly to the strain body is the tailpiece, a straight tube section (typically 1-1/2 inch outer diameter) that channels fluid toward downstream trapping components. When incorporating a food waste processor, an off-grid garbage disposal installs directly between the sink strainer flange and the tailpiece. Because standard residential disposals draw excessive AC surge current, off-grid systems utilize compact 120V AC batch-feed or continuous-feed units rated under 500 Watts, powered via a dedicated inverter circuit. For additional power configuration details, consult our guide on the off-grid solar inverter sizing calculator.
Below the tailpiece or disposal discharge elbow lies the P-trap. This curved pipe section holds a standing water seal (2 to 4 inches deep) that acts as a physical barrier against methane gas migration from greywater holding tanks. Dynamic connections in this assembly rely on slip joint fittings consisting of a threaded nut and a tapered nylon or rubber washer. The downstream waste discharge transitions into rigid PVC (polyvinyl chloride) or ABS pipe, typically Schedule 40 DWV (Drain, Waste, and Vent) standard.
Because fluid displacement creates negative pressure that can siphon the liquid seal out of the P-trap, off-grid systems require pressure equalization. Where running a vertical vent pipe through the roof structure is undesirable or mechanically restricted, an AAV valve (Air Admittance Valve) is installed above the flood rim level of the sink. The AAV valve uses a sensitive internal diaphragm that opens under negative pressure to draw in ambient air and closes tightly under neutral or positive pressure.
Off-grid structures subject to thermal cycling or vehicle movement should utilize flexible EPDM slip joint washers instead of hard nylon washers to prevent joint binding and micro-fractures along PVC threads.
| Component | Standard Material Spec | Dimensional Spec | Primary Function |
|---|---|---|---|
| Drain Assembly | 304 Stainless Steel / Brass | 1-1/2″ NPSM Thread | Basin fluid intake and mechanical seal |
| Sink Tailpiece | Brass / Heavy-Duty Polypropylene | 1-1/2″ OD x 6″-12″ Length | Vertical conduit from basin to trap line |
| Garbage Disposal | Stainless Chamber / ABS Housing | 1/3 to 1/2 HP (350-500W max) | Organic solid waste comminution |
| P-Trap Assembly | Schedule 40 PVC / Polypropylene | 1-1/2″ Union Connection | Sewer gas seal via liquid trap retention |
| AAV Valve | ABS/PVC with Silicone Diaphragm | 1-1/2″ to 2″ NPT / Solvent Socket | One-way air intake for pressure balancing |
How to Construct Plumbing Lines from an Off-Grid Water System Diagram
Executing an off-grid plumbing installation from a system diagram requires strict adherence to sequential assembly procedures, slope mechanics, and fitting connection protocols. Follow these detailed steps to establish a leak-free supply and waste layout.
Recommended Best Deal Products
Step 1: Mount the Sink Drain Assembly and Tailpiece
Clean the sink mounting surface thoroughly with isopropyl alcohol. Apply a 3/8-inch bead of non-sagging plumbers putty or a continuous EPDM ring seal beneath the upper flange of the drain assembly. Insert the strainer body down through the basin opening. From underneath, slip the rubber friction gasket and cardboard washer over the threads, then thread the metal locknut up against the basin bottom. Torque the locknut using a spud wrench to approximately 25-30 ft-lbs, removing excess squeezing sealant. Thread the 1-1/2 inch tailpiece onto the base of the strainer housing using a flanged washer and slip joint nut. Hand-tighten plus one-quarter turn with slip-joint pliers.
Step 2: Install Low-Draw Garbage Disposal Unit (Optional)
If integrating a low-power waste processor into the off-grid water system diagram layout, attach the mounting assembly ring to the sink strainer. Snap the mounting flange spring ring into place. Mount the garbage disposal housing onto the mounting ring, rotating the mounting tabs until locked securely into the mechanical stops. Connect the 1-1/2 inch rubber-booted discharge elbow to the disposal outlet port. Torque the clamping screws to 15 in-lbs to prevent vibration looseness. Wire the electrical feed using a 14/2 AWG marine-grade stranded copper cable to a dedicated switch and GFCI receptacle connected to your inverter branch circuit.
Step 3: Align and Fit the P-Trap and Drainage Piping
Position the inlet arm of the P-trap beneath the tailpiece or disposal discharge elbow. Slide a slip joint nut and tapered bevel washer onto the tailpiece with the narrow edge of the washer pointing down toward the trap inlet. Align the trap dip arm with the horizontal waste branch pipe. The horizontal branch line must maintain a strict minimum pitch of 1/4-inch drop per linear foot toward the holding tank to preserve proper fluid flow dynamics without leaving heavy solids behind. Dry-fit all PVC connections first, making registration marks with a permanent marker across pipe joints to ensure perfect alignment during final bonding.
Horizontal waste line slope must be maintained at precisely 1/4″ per foot (2% grade) for 1.5-inch to 2-inch PVC lines. Slopes exceeding 1/2″ per foot cause liquids to outrun solids, resulting in line blockages, while slopes under 1/8″ per foot fail to maintain scouring velocity.
Step 4: Integrate the Vent Pipe or AAV Valve Assembly
In accordance with pneumatic balance principles in the schematic, install a vertical riser T-fitting downstream of the P-trap outlet arm. Extend a vertical Schedule 40 PVC pipe segment upwards from the tee branch. If using a traditional roof penetration, extend the continuous vent pipe through the roof collar, terminating at least 6 inches above the roof surface. If utilizing mechanical venting, terminate the vertical riser line at least 4 inches above the top overflow level of the sink fixture. Apply Purple Primer and Medium Gray PVC Solvent Cement to the 1-1/2 inch adapter fitting, press firmly, and thread the internal AAV valve into place using PTFE thread sealing tape. Hand-tighten only to avoid cracking the valve body housing.
Step 5: Solvent Weld Rigid PVC Connections
Deburr all cut pipe ends using a chamfering tool. Apply ASTM F656 purple primer to the outer pipe mating surface and the inner socket of each PVC fitting. While the primer is wet, apply a uniform layer of ASTM D2564 PVC solvent cement to both surfaces. Immediately push the pipe completely into the fitting socket, giving it a 1/4-turn rotation to eliminate air voids. Hold the joint firmly under pressure for 30 seconds until initial set occurs. Allow 2 hours cure time before performing static pressure testing.
Diagnosing Off-Grid Plumbing Drainage and Venting Failures
Troubleshooting waste and venting malfunctions in off-grid setups requires systematic tracing of pneumatic and hydraulic pathways shown on your system diagram. Mechanical vibration, thermal contraction, off-level vehicle parking, and biological build-up can compromise liquid trap seals or cause unexpected leaks.
Never attempt to clear blocked off-grid PVC lines using chemical drain openers containing sodium hydroxide or sulfuric acid. High-heat exothermic reactions can warp thin-wall schedule 40 PVC fittings and ruin dynamic rubber seals in holding tank valves.
When sewer gas smells penetrate the cabin space, the issue usually stems from liquid seal loss inside the P-trap or a jammed internal diaphragm inside the AAV valve. Negative atmospheric spikes caused by rapid fluid discharge down the main branch can pull the water barrier out of the trap if the air admittance pathway fails to respond. Inspect the AAV valve for dust contamination, insect intrusion, or mechanical stiction. If water drops drip from slip joint locations, the cause is typically thermal deformation, overtightening of polypropylene nuts, or pinched rubber seals.
Refer to our greywater holding tank installation guide for downstream tank connection details and backpressure relief specs. The diagnostic matrix below lists common operational failures, root causes, and corrective service procedures.
| Symptom | Root Cause (Schematic Tracing) | Inspection Point | Corrective Action |
|---|---|---|---|
| Gurgling noise in P-trap during drainage | Inadequate venting atmospheric equilibrium | AAV valve / Vent pipe clearance | Clean/replace AAV valve; clear debris from vertical roof vent line. |
| Methane / Sewer gas odour near sink basin | Dry P-trap or stuck-open air valve diaphragm | P-trap liquid level & AAV seal | Refill trap with water; test AAV seal with low vacuum; replace valve unit. |
| Fluid leakage around slip joint nut | Distorted bevel washer or loose fitting threads | Tailpiece to trap slip joint union | Loosen nut, replace distorted nylon washer with EPDM washer, hand-tighten plus 1/4 turn. |
| Slow sink drainage with solid buildup | Insufficient slope angle or disposal discharge obstruction | Horizontal PVC waste run pitch | Adjust line hangers to ensure 1/4″ per foot drop; flush line with mechanical snake. |
| Garbage disposal motor hums but fails to spin | Mechanical jam or voltage drop under load | Flywheel plate & DC-to-AC inverter supply | Insert Allen wrench in bottom rotor socket to manually break jam; verify 120V AC under load. |
Off-Grid Water System Diagram Technical FAQ
Can an Air Admittance Valve (AAV Valve) Replace a Traditional Vent Pipe in Off-Grid Systems?
Yes, an Air Admittance Valve (AAV valve) can fully replace a continuous roof-penetrating vent pipe for localized sink fixtures in off-grid setups. AAV valves open automatically under negative pressure (as small as -0.01 PSI / -0.27 inches of water column) to break the vacuum created by draining water, preventing P-trap siphoning. However, standard plumbing codes (including IPC and UPC) require at least one primary open-air atmospheric vent pipe connected to the main waste building drain or holding tank line to relieve positive pressures caused by incoming fluids or fermentation gas accumulation inside greywater/blackwater storage tanks.
What Schedule PVC Pipe and Slip Joint Connections Are Best for Off-Grid Drainage?
Solid-core Schedule 40 PVC or Schedule 40 ABS pipe (ASTM D1785 / D2661) is recommended for all rigid waste run sections shown in the off-grid water system diagram. Avoid thin-wall Schedule 20 or flex-drain accordion tubing, which collects solid organic waste inside internal corrugated folds. For adjustable connections between the sink tailpiece, disposal outlet, and trap inlet, use 1-1/2 inch polypropylene or heavy-duty PVC slip joint assemblies equipped with high-grade EPDM rubber bevel washers rather than brittle hard nylon washers to handle mechanical movement and temperature fluctuations without weeping.
How Do You Install a Low-Power Garbage Disposal on an Off-Grid Solar Setup?
To safely run a small garbage disposal off-grid, select a compact 1/3 HP or 1/2 HP continuous-feed motor rated for 120V AC drawing under 500 Watts running power (surge capacity under 1200 Watts for 2 seconds). Mount the unit directly to the sink drain assembly lock ring, run the discharge elbow directly into a 1-1/2 inch slip joint fitting on the P-trap inlet, and power the unit through a dedicated 15-Amp breaker circuit powered by a pure sine wave inverter (minimum 2000W continuous rating). For complete electrical integration specs, see our 12V DC water pump wiring diagram and power distribution guide.
Why Is Water Siphoning Out of the P-trap in an Off-Grid System?
Water siphons out of the P-trap when a negative pressure differential develops downstream in the waste line. As a volume of water rushes down the horizontal PVC branch, it acts like a hydraulic piston, creating a partial vacuum behind it. If the vent pipe is obstructed, or if the installed AAV valve is clogged, stuck shut, or undersized (insufficient DFU rating), the vacuum pulls air through the easiest remaining path—straight through the standing water seal in the P-trap. Replacing a faulty AAV valve or raising its mounting height at least 4 inches above the horizontal drain branch solves this issue.
What Slope Is Required for Sink Tailpiece and Drain Assembly Run Lines?
Vertical sections, such as the sink tailpiece and disposal drop line, descend plumb (90 degrees). However, all horizontal PVC greywater drain lines flowing away from the P-trap outlet arm must maintain a continuous pitch of 1/4 inch per linear foot (a 2% downward grade). If the slope is less than 1/8 inch per foot, fluid velocity drops below 2 feet per second, allowing grease and suspended debris to settle out and clog the line. Conversely, if the horizontal slope exceeds 1/2 inch per foot, liquids travel too fast and flow around heavy organic solids, leaving stranded debris behind in the pipe.
Step-by-Step Guide to Understanding the Off-Grid Water System Diagram
Identify – Map all freshwater tanks, 12V supply lines, and fixture locations across the schematic.
Locate – Find the sink drain assembly, tailpiece connection, P-trap bend, and main vent pipe routing.
Reference – Match pipe sizing specifications, ensuring 1.5-inch PVC for sink drains and 12V electrical polarity.
Connect/Route – Assemble slip-joint tailpieces to the drain assembly, fitting the P-trap to the vertical vent pipe.
Verify – Run pressurized water through fixtures, inspecting all slip nuts and glued joints for active leaks.
Troubleshoot – Check pump pressure switches if supply fails, or clear P-trap debris if drainage slows down.
