Fluvial Parts of a River Diagram: 2026 Component Guide

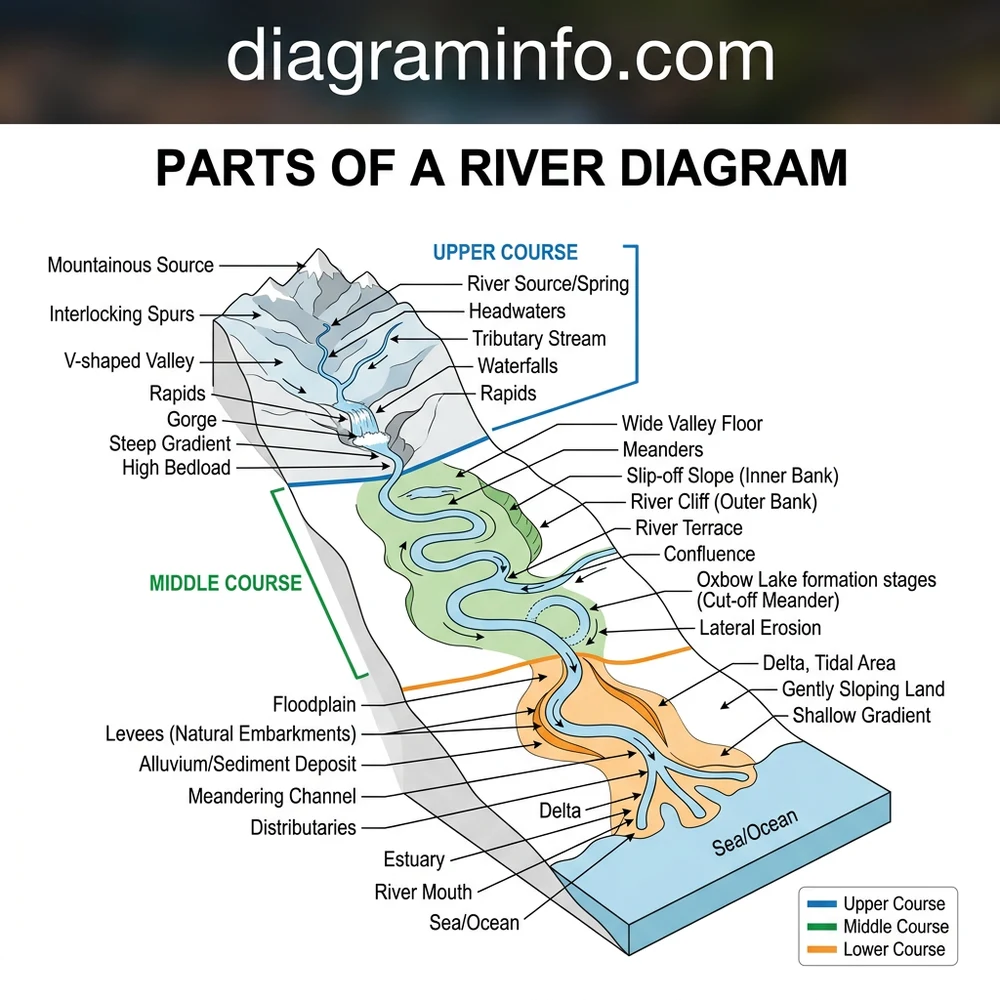

A river diagram categorizes a fluvial system into three main zones: the upper course (source, steep gradient, V-shaped valleys), middle course (meanders, wider channels, transportation), and lower course (mouth, delta, floodplain deposition). Key components include tributaries, confluence points, levees, and channel beds across the drainage basin configuration.
📌 Key Takeaways
- Upper course features steep gradients (>10 m/km) with high-velocity erosion forming V-shaped valleys.
- Tributaries and confluence points dictate channel width expansion and discharge volume in the middle course.
- Lower course channel gradient flattens (<1 m/km), shifting system dynamics from erosion to sediment deposition.
- Bank instability and channel siltation represent primary structural disruption points in hydraulic modeling.
- Field ground-truthing should accompany elevation profile diagrams when mapping complex watershed systems.
Civil site engineers, heavy excavation contractors, and hydro-geological technicians rely on precise fluid transport schematics to evaluate watershed mechanics, channel capacity, and soil mechanics. Interpreting a parts of a river diagram allows project managers to correctly position earthmoving machinery, model scour rates around bridge piers, and design erosion control infrastructure according to engineered specifications. This technical guide delivers an engineering-grade overview of the complete fluvial system configuration, mapping out physical river channel components from headwaters to delta outlets, detailing hydro-schematic reading methodologies, and troubleshooting structural hydraulic anomalies in field blueprints.
Fluvial System Layout: Complete Parts Of A River Diagram Component Breakdown
A comprehensive parts of a river diagram divides a watershed into three distinct hydraulic sectors: the upper reach (erosion zone), middle reach (transportation zone), and lower reach (deposition zone). Each zone exhibits distinct cross-sectional geometries, sediment transport capacities, and flow dynamics. According to USACE (U.S. Army Corps of Engineers) hydro-modeling standards, identifying these structural elements within a schematic blueprint is critical for predicting channel bed degradation and bank stability during excavation operations.
Recommended Best Deal Products
In hydraulic schematics, channel slope ($S_0$) is represented as unit drop over horizontal run ($m/m$ or $ft/ft$). Upper reach gradients typically exceed $0.02$ ($2\%$), driving supercritical flow conditions ($Fr > 1.0$), whereas lower reach zones drop below $0.001$ ($0.1\%$), establishing subcritical flow ($Fr < 1.0$).
| System Component | Schematic Symbol / Identifier | Hydraulic & Grain-Size Specs | Civil & Equipment Operations Impact |
|---|---|---|---|
| Source / Headwaters | H-1 (Upper Basin origin) | High head pressure, $D_{50} > 256\text{ mm}$ (bouldery bed) | Requires high-torque rock trenchers and heavy rip-rap stabilization. |
| Thalweg Line | Dotted Red Vector ($T_L$) | Maximum velocity vector ($V_{max}$), peak shear stress ($\tau_0$) | Indicates maximum scour depth; primary trenching hazard zone. |
| Cut Bank (Concave Wall) | CB (Outer Meander Arc) | High velocity, active lateral erosion ($\tau_0 > \tau_{crit}$) | Requires sheet piling, sheet-drain installation, or geogrid reinforcement. |
| Point Bar (Convex Shelf) | PB (Inner Arc Deposition) | Low velocity, aggradation zone, $D_{50} = 0.062–2\text{ mm}$ (sand) | Primary borrow site for aggregate extraction; low bearing capacity substrate. |
| Oxbow Lake / Cutoff | OL (Isolated Loop) | Stagnant storage, cohesive clay/silt plug ($D_{50} < 0.002\text{ mm}$) | Presents severe soil liquefaction risk; requires specialized dewatering systems. |
| Natural Levee & Floodplain | NL / FP (Terrace margins) | Variable stage height ($H_s$), alluvial deposition belt | Mandates containment berm construction and high-capacity dewatering pump deployment. |
Upper Reach Components: The Erosion Mechanics Zone
In the upper reach configuration of a blueprint, steep gradients dominate the profile. Key elements include narrow, V-shaped bedrock channels, knickpoints (abrupt gradient breaks such as waterfalls or fault lines), and plunge pools. Bed material consists of large, non-cohesive clasts ($D_{50} > 256\text{ mm}$). Flow mechanics are governed by high shear stress, causing intense vertical channel downcutting. Equipment operators working in these zones must account for rapid hydrograph spikes and unweathered bedrock formations requiring hydraulic breaker attachments.
Middle Reach Components: The Equilibrium and Meander Transport Zone
The middle reach system transitions from vertical incision to lateral migration. The channel blueprint displays a widening U-shaped profile characterized by alternating meander loops, outer cut banks subject to hydraulic scouring, and inner point bars where sediment drops out of suspension. The thalweg—the continuous line connecting the deepest points of the channel bed—undulates between meanders, cross-cutting the channel centerline. Civil design blueprints for bridge abutments or utility line crossings must map the thalweg path precisely using bathymetric hydro-schematic overlays to prevent sub-structural undermining.
Lower Reach Components: Aggradation and Deltaic Architecture
As the hydraulic slope flattens ($S_0 < 0.001$), the system enters the lower reach. Key features on the schematic include broad floodplains, natural levees formed by overbank flooding, oxbow lakes (abandoned meander cutoffs filled with fine cohesive sediments), and distributary channels forming an alluvial fan or marine delta system. The primary mechanical challenge in this zone is low shear stress ($\tau_0$), leading to heavy sediment deposition (aggradation). Heavy equipment operations in this sector require long-reach excavators mounted on marsh buggies or low-ground-pressure (LGP) tracked vehicles.
To determine whether stream bed materials will shift on a site blueprint, civil engineers calculate mean boundary shear stress ($\tau_0$) using:
$$\tau_0 = \gamma \cdot R_h \cdot S_0$$
Where $\gamma$ is the unit weight of water ($9.81\text{ kN/m}^3$), $R_h$ is hydraulic radius ($A/P$), and $S_0$ is the friction slope. If $\tau_0$ exceeds the critical Shields parameter ($\tau_{cr}$), bed instability occurs, requiring structural rip-rap armor sizing (e.g., Class II to Class VIII stone specs).
How to Read the Parts Of A River Diagram Schematic Step-by-Step
Interpreting a complex hydrological blueprint or hydrographic river survey schematic requires a systematic approach. Field engineers must read spatial orientation, contour intervals, cross-sectional geometry, and fluid dynamic vectors simultaneously. Follow this four-step engineering methodology to extract actionable hydraulic data from any standard river system layout.
Step 1: Orient the Geomorphic Axis and Establish Baseline Datum
Locate the planform view’s orientation compass and baseline elevation profile (typically NAD83 / NAVD88 datum). Identify the mainstem river channel vector, denoted by thick blue contour outlines or centerline stationing (e.g., Sta 10+00 to Sta 150+00). Determine flow direction by observing tributary junction angles; tributaries consistently join the main channel at acute angles pointing downstream ($< 90^\circ$). Verify the topographic contour interval—typically $1\text{ ft}$ or $0.5\text{ m}$ for hydraulic design layouts—to compute the regional longitudinal channel slope ($S_0$).
Step 2: Trace the Thalweg Line and High-Velocity Vector Paths
Locate the red or dashed thalweg vector ($T_L$) on the planform diagram. Trace its path through the meander belt configuration. Note where the thalweg shifts from the channel centerline toward the outer bank of meander bends. The region where the thalweg approaches within $10\%$ of the bank channel boundary represents the primary erosional vector. Highlight these points on your field layout sheet as priority zones for bank armoring, revetment mattress installation, or cofferdam bracing.
Step 3: Calculate Cross-Sectional Geometry and Hydraulic Radius
Extract the cross-sectional view diagram corresponding to your target work station (e.g., Cross-Section B-B’). Measure the wet cross-sectional flow area ($A$) in square meters or square feet, along with the wetted perimeter ($P$), which represents the length of the channel bed and banks in direct contact with water. Compute the hydraulic radius ($R_h$):
$$R_h = \frac{A}{P}$$
Combine $R_h$ with the channel roughness coefficient (Manning’s $n$, typically ranging from $0.025$ for smooth earth channels to $0.075$ for timbered floodplains) to calculate mean channel velocity ($V$) using Manning’s Equation:
$$V = \frac{k}{n} \cdot R_h^{2/3} \cdot S_0^{1/2}$$
(Where $k = 1.00$ for SI units and $k = 1.486$ for Imperial units).
Step 4: Overlay Worksite Infrastructure and Heavy Equipment Limits
Superimpose construction staging boundaries, crane pad locations, and temporary haul roads onto the diagram. Ensure that equipment access tracks are positioned above the 100-year flood stage elevation ($Q_{100}$) line marked on the schematic profile. Establish minimum setback distances—typically $50\text{ feet}$ ($15.2\text{ meters}$) from the active cut bank crest—for all heavy machinery exceeding 30 tons operating weight, mitigating the risk of slope failure under dynamic surcharge loads.
Placing heavy earthmoving machinery (e.g., CAT 349 excavators or Komatsu D85 dozers) within the active shear wedge of an outer cut bank drastically increases the failure plane probability. Always verify bank stability angles using geotechnical slope stability analyses prior to positioning equipment near meander boundaries indicated on the parts of a river diagram blueprint.
Diagnosing Fluvial Instability: Parts Of A River Diagram Structural Troubleshooting
When field conditions deviate from historical parts of a river diagram blueprints, hydraulic structures, bridge piers, and pipeline crossings face high failure risks. Hydro-technical personnel must troubleshoot structural anomalies observed in the field against baseline schematic parameters. The table below outlines structural failure symptoms, underlying geomorphic causes, hydro-schematic indicators, and engineered remedial actions.
| Observed Field Defect | Root Cause Geomorphic Mechanism | Diagram / Schematic Indicator | Field Remediation & Equipment Specs |
|---|---|---|---|
| Headcut Migration (Bed Erosion) | Upstream Nickpoint propagation due to base level drop or channel straightening. | Steep gradient spike on longitudinal bed profile diagram. | Construct grade-control structures (check dams, rock sills) using 500-lb rip-rap. |
| Outer Bank Shear Collapse | Thalweg migration undercutting cohesive bank toe layer; excessive pore pressure. | Thalweg vector line intersecting bank perimeter contour. | Install soil nails, bio-engineering fascines, or driven sheet pile walls (AZ-18 specs). |
| Channel Aggradation & Capacity Loss | Sediment load ($Q_s$) exceeds transport capacity ($Q_w$); flow velocity drops below settling velocity ($V < V_s$). | Rapid widening of channel cross-section with reduced depth ($d$). | Deploy mechanical clam-shell bucket dredgers to restore target hydraulic cross-section. |
| Meander Avulsion / Neck Cutoff | High flood stage breaching narrow meander neck, creating new direct channel path. | High sinuosity index ($K > 2.1$) on planform overview. | Construct high-water overflow dykes and armor potential chute cutoff locations. |
Executing Field Diagnostics on Unstable River Systems
When troubleshooting an unstable river sector on-site, begin by re-surveying cross-sections at $50\text{-foot}$ ($15\text{-meter}$) intervals. Compare current bathymetric soundings with the original baseline blueprint. A uniform rise in channel bed elevation across multiple stations confirms bed aggradation, signaling reduced conveyance capacity and increased overbank flooding hazards. Conversely, localized bed elevation drops indicate active hydraulic scour or degradation.
If bridge piers or culvert footings show signs of structural undermining, cross-reference the site plan with the blueprint’s thalweg track. Thalweg realignments frequently occur following 10-year or 50-year storm events. If the thalweg vector has shifted toward structural footings, immediate rip-rap armoring (minimum stone size $D_{50} = 18\text{ inches} / 450\text{ mm}$) must be placed using hydraulic excavators fitted with thumb attachments to re-establish bed stability.
Parts Of A River Diagram Technical FAQ
What is the significance of the thalweg in a parts of a river diagram blueprint?
The thalweg represents the line of continuous maximum depth and maximum fluid velocity along the river channel bed. In hydro-schematics and civil engineering blueprints, mapping the thalweg is essential because it dictates the location of maximum bed shear stress and potential hydraulic scour. Structural elements like bridge piers, underwater pipeline crossings, and retaining walls must be anchored well below the thalweg elevation to prevent structural failure due to bed degradation during peak discharge events.
How does hydraulic radius affect river channel velocity specs?
The hydraulic radius ($R_h = A/P$) measures the structural efficiency of a channel cross-section. A higher hydraulic radius indicates that a smaller proportion of fluid is in direct contact with the channel bed and banks, resulting in lower frictional resistance. Consequently, channels with higher $R_h$ values maintain higher mean flow velocities ($V$) for a given slope, which increases sediment transport capacity and influences whether the reach acts as an erosion or transportation zone on the system blueprint.
Why do meander cutoffs form in upper vs. lower reach river system layouts?
Meander cutoffs form almost exclusively in middle and lower reach zones where channel sinuosity ($K = \text{channel length} / \text{valley length}$) exceeds $1.5$ and gradients are low ($S_0 < 0.005$). In these lower energy settings, fine cohesive sediments allow high lateral migration rates until flood stage hydraulic gradients force water across narrow meander necks, cutting off the loop to create an oxbow lake. Upper reaches lack meanders because high channel slopes and bed shear forces drive vertical bedrock incision rather than lateral meander belt expansion.
What shear stress thresholds trigger stream bed erosion in structural schematics?
Stream bed erosion initiates when the boundary shear stress ($\tau_0$) generated by flowing water exceeds the critical shear stress ($\tau_{crit}$) of the channel bed material, defined by the non-dimensional Shields parameter. For fine sand bed channels ($D_{50} = 0.2\text{ mm}$), critical shear stress is approximately $0.15\text{ N/m}^2$. In contrast, coarse gravel channels ($D_{50} = 32\text{ mm}$) require a critical shear stress exceeding $26\text{ N/m}^2$ before particle entrainment and bed degradation occur.
How do civil engineers calculate the discharge capacity from a river diagram overview?
Civil engineers calculate total channel discharge capacity ($Q$, measured in $\text{m}^3/\text{s}$ or $\text{ft}^3/\text{s}$) by multiplying the cross-sectional area ($A$) obtained from the diagram’s cross-section profile by the mean velocity ($V$) derived from Manning’s equation: $Q = A \cdot V$. For complex channel configurations with active floodplains, engineers divide the cross-section into composite subsections (main channel, left floodplain, right floodplain) with individual Manning’s $n$ roughness values, summing the discharge capacity of each segment ($Q_{total} = Q_{main} + Q_{left} + Q_{right}$).
