John Deere D110 Parts Diagram: Repair Guide 2026
The John Deere D110 parts diagram details the assembly layout for the 19.5 HP engine, 42-inch Edge cutting deck, transmission system, and frame structure. It provides exact schematics for part identification, OEM number cross-referencing, primary drive belt (GX20072) routing, blade spindle configuration, and wiring harness connections.
📌 Key Takeaways
- The 42-inch Edge deck layout uses primary drive belt part #GX20072 routed around three main pulleys.
- Engine schematics cover the single-cylinder 19.5 HP Briggs & Stratton power system configuration.
- Torque blade retaining bolts to 46 lb-ft during spindle maintenance to prevent vibration.
- Steering linkage sector gear wear is the primary structural cause of sloppy front-wheel play.
- Cross-reference OEM part numbers from exploded diagrams before purchasing DIY replacements.
Navigating the service and overhaul procedures for the John Deere D110 lawn tractor requires an accurate technical blueprint to isolate components, verify sub-assembly relationships, and source exact OEM replacements. Produced between 2011 and 2017 as part of the 100-Series lawn tractor line, the D110 relies on a single-cylinder 19.5 HP Briggs & Stratton 31N707 engine, a hydrostatic transaxle, and a 42-inch Edge dual-blade mower deck. Utilizing an authoritative schematic ensures that maintenance operations—from deck belt replacement to complete electrical harness diagnosis—are executed to factory specifications.
Recommended Best Deal Products
When referencing the John Deere D110 parts diagram, always confirm your machine’s 13-digit Product Identification Number (PIN) located on the right-side frame rail beneath the rear fender. Minor production modifications occurred between model years 2011 and 2015, particularly regarding brake linkage configurations, steering sector gear pitch, and electrical interlock wire routing.

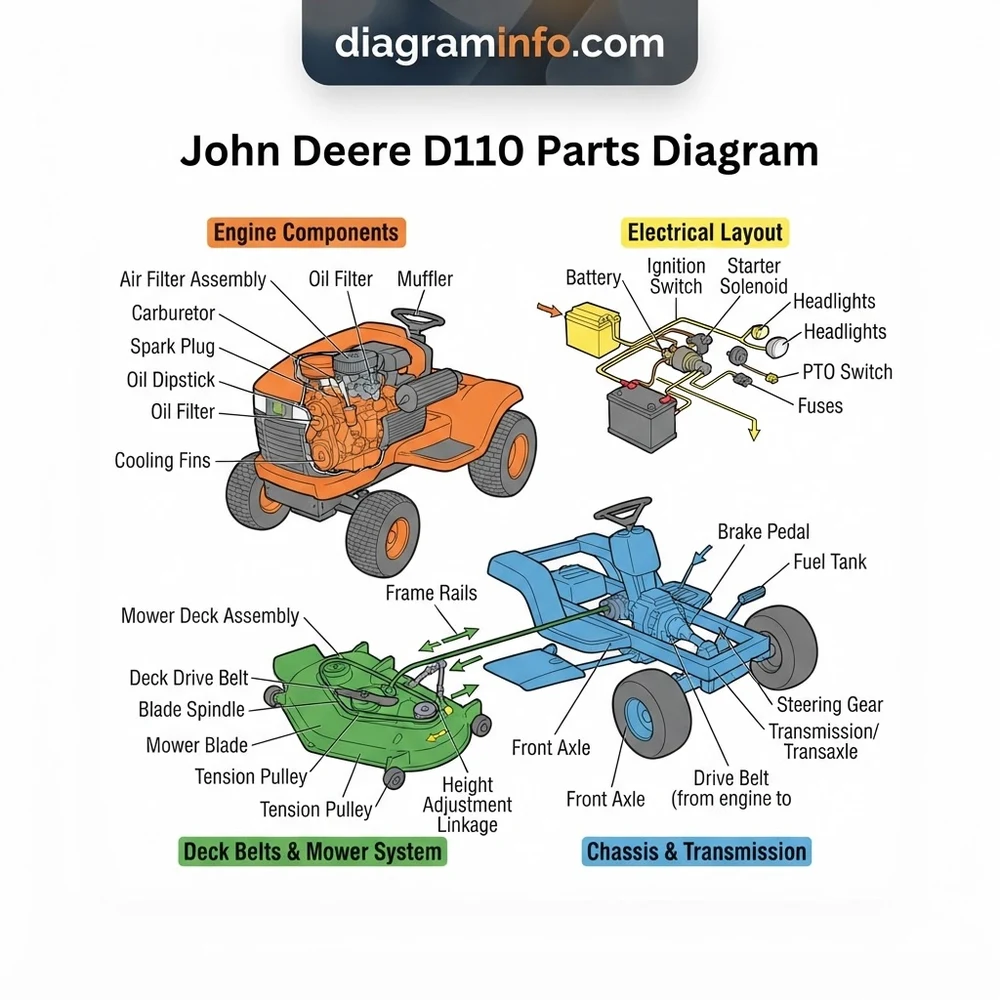

John Deere D110 Parts Diagram: System and Component Layout
The structural layout of the John Deere D110 relies on a robotically welded 12-gauge steel frame that serves as the mounting foundation for five primary mechanical sub-systems. Understanding how these systems interact within the overall tractor architecture allows technicians to efficiently perform teardowns and target component repairs without disturbing unaffected assemblies.
Engine and Fuel Management System Configuration
The powertrain schematic isolates the vertical-shaft Briggs & Stratton Model 31N707 (344cc) engine. Critical components depicted in this section include the top-mounted flywheel assembly, ring gear, starter motor, and the lower crankshaft extension. The fuel delivery blueprint details the gravity-fed system originating at the 2.4-gallon translucent fuel tank situated beneath the seat pane. Fuel travels through 1/4-inch ID fuel lines through an inline 75-micron fuel filter (OEM part AM116304) to the anti-cavitation mechanical carburetor bowl assembly. The governor linkage schematic demonstrates the dual-spring mechanical feedback setup connecting the throttle control plate to the governor arm, maintaining governed engine speeds between 1,750 RPM low idle and 3,150 RPM high idle.
42-Inch Mower Deck Assembly and Belt Structure
The 42-inch Edge mower deck schematic illustrates a symmetrical twin-spindle configuration housed within a stamped 13-gauge steel deck shell. The drive system utilizes a continuous-loop V-belt (OEM part GX20072 / GY20570) routed from the lower engine drive pulley through a spring-tensioned idler arm assembly, an adjustable secondary idler, and two spindle drive pulleys. Each blade spindle assembly (OEM part GY20785 / UC21320) consists of a cast-aluminum housing, upper and lower sealed deep-groove ball bearings, an internal spacer, and a star-shaped blade drive shaft. The deck lift linkage structure uses four adjustable draft arms connected to the chassis-mounted height-of-cut adjustment rocker shaft, offering cutting heights from 1.0 to 4.0 inches in 0.25-inch increments.
Transmission, Steering, and Chassis Blueprint Layout
The drive system diagram highlights the rear-mounted hydrostatic transaxle—typically a Tuff Torq TL200 or General Transmissions RT400 unit—driven by a top-mounted input pulley and cooling fan via a secondary traction drive belt. The control linkage extends from the right-hand foot pedal assembly to the transaxle swashplate arm, controlling variable displacement forward and reverse motion. The front axle blueprint depicts a heavy-duty cast-iron front beam pivot axle supported by greaseable drag links, tie rods, and a sector-and-pinion steering gear configuration. The steering sector plate features a 14:1 gear ratio, engaging the lower steering shaft pinion gear to actuate the front wheel spindles via adjustable steering drag links.
Engine Model: Briggs & Stratton 31N707 PowerBuilt | Deck Width: 42-inch Edge Dual-Blade | Blade Bolt Torque: 46 lb-ft (62 Nm) | Spindle Mounting Bolt Torque: 18 lb-ft (24 Nm) | Engine Oil Capacity: 1.5 qts (1.4 L) 10W-30 API SN | Spark Plug Gap: 0.030 in (0.76 mm)
How to Read and Interpret the John Deere D110 Parts Schematic
Reading an exploded view diagram effectively requires a systematic approach to identifying component callouts, line styles, hardware hardware relationships, and hardware sizing. Parts schematics separate complex mechanical assemblies into individual piece parts spaced along projection lines to demonstrate true assembly order.
Identifying Primary Structural Callouts and Key Numbers
In the John Deere D110 technical schematics, individual parts are labeled with numeric callout balloons (or key numbers) rather than direct OEM part numbers. These callout numbers correlate directly to the index table below the illustration. A solid straight line pointing to a part indicates a primary component, whereas a dashed box surrounding multiple components indicates a pre-assembled module—such as a complete mandrel assembly or complete transaxle service kit. When reading these projections, follow the central axis lines (centerlines) to establish the sequence in which washers, spacers, bearings, and retainers fit onto shafts or bolts.
Locating Fasteners, Hardware Specs, and Torque Callouts
Standard hardware items—such as hex flange bolts, carriage bolts, lock nuts, and snap rings—are identified in the diagram key by standard imperial dimensions and bolt grades. Fasteners marked with an asterisk or listed in parenthetical notes indicate self-tapping threads or thread-locking requirements. Pay close attention to hardware sequences on dynamic assemblies like the mower deck spindles and engine drive pulley stack:
- Spindle Hardware Sequence: Hex bolt → Belleville cupped washer (concave side facing blade) → 3-in-1 cutting blade → spindle shaft spline → housing → pulley → washer → top lock nut.
- Engine Pulley Sequence: Lower crankshaft → key stock → traction drive pulley → PTO drive pulley → thick flat washer → locking washer → center crankshaft retaining bolt (3/8-24 x 2.5 inch, Grade 8).
Tracing Electrical System Wiring and Interlock Schematics
The electrical schematic uses standardized wiring colors and schematic symbols to trace the 12-volt direct current (DC) system. The circuit layout branches from the 12V 300-CCA battery through a 20-amp blade fuse to the main key ignition switch. To correctly trace an electrical fault using the diagram, follow the color-coded pathways through the safety interlock network:
- Purple/White Wire Circuit: Delivers current from the start position on the ignition switch through the depressed clutch/brake pedal interlock switch to the starter solenoid switch coil.
- Yellow/Red Wire Circuit: Directs current through the PTO lever engagement switch, preventing starter engagement if the mower blades are energized.
- Black Wire Circuit: Marks system-wide chassis ground points, terminating at the engine block frame stud and lower battery ground terminal.
- Blue Wire Circuit: Feeds the headlight circuit directly from the engine flywheel lighting coil or key-on switch terminal.
Troubleshooting Common Equipment Issues Using the Diagram Blueprint
Using a system schematic during diagnostic routines reduces guesswork and prevents unnecessary component replacement. By cross-referencing mechanical symptoms with exact component locations on the John Deere D110 blueprint, technicians can systematically isolate root causes.
Diagnosing Mower Deck Belt Derailment and Uneven Cut Patterns
When experiencing chronic deck drive belt (GX20072) slippage or premature snapping, consult the mower deck belt routing schematic. Ensure the belt is routed inside every belt keeper pin located adjacent to the spindle pulleys and idler arms. Check callout items representing the deck tensioning spring and arm bushing:
- Idler Arm Pivot Wear: Over time, the internal brass or nylon sleeve bushing on the tensioner arm wears, causing the pulley to tilt out of parallel alignment with the spindle pulleys. This causes the belt to roll over the pulley lip under load.
- Spindle Bearing Play: Unbolt the deck belt and spin each blade spindle by hand. Axial or radial deflection in the spindle shaft indicates bearing failure within the aluminum spindle housing (GY20785), requiring replacement of the entire spindle sub-assembly.
- Deck Leveling Alignment: Refer to the draft link diagram to verify that the front draft rod ball joint nuts and rear height adjustment lift links are adjusted to maintain a 1/8 to 1/4-inch front-to-back nose-down pitch across the deck shell.
Resolving Electrical No-Start Conditions with Wiring Layouts
If the engine fails to crank when turning the ignition key, use the electrical schematic to locate voltage test points with a digital multimeter (DMM). Begin testing at the battery and move downstream along the cranking circuit diagram:
- Battery State of Charge: Verify 12.6V DC across the terminals. Inspect the heavy-gauge red battery cable routed to the frame-mounted starter solenoid (AUC10907).
- Fuse Verification: Inspect the 20-amp yellow blade fuse located in the main wire harness near the ignition switch steering column cowl.
- Interlock Loop Continuity: Set your DMM to continuity mode. Refer to the schematic to probe the brake pedal switch (located behind the left frame rail) and the seat interlock switch. Both switches must close contacts when actuated. If the seat switch fails to close when occupied, the engine ignition circuit grounds out through the white/black stop wire.
- Starter Solenoid Trigger: Probe the small spade terminal on the starter solenoid while holding the key in the “START” position. If 12V is present but the solenoid does not click or pass high-amp current to the starter motor terminal, the solenoid unit has internal contact carbonization and must be replaced.
Never bypass safety interlock switches when diagnosing electrical faults on the John Deere D110. Bypassing interlocks disables critical operator presence controls, creating severe risk of injury from rotating mower blades or unexpected tractor movement. Always restore factory wiring configurations after testing.
Addressing Hydrostatic Drive Loss and Steering Slop
Loss of rear-wheel drive torque when the transaxle gets warm often points to dynamic bypass valve issues or belt drive slip. Consult the transaxle linkage layout to confirm that the rear bypass lever (free-wheel control valve at the back bumper) is fully pushed inward to engage the internal hydrostatic pump. Check the motion control rod linkages for elongated pin holes that reduce pedal stroke travel.
For excessive play in the steering wheel, consult the steering chassis blueprint. Inspect the steering sector gear plate and the lower steering column gear segment. The eccentric mounting bolt on the sector gear plate allows adjustment of the gear mesh back-lash. If the gear teeth are rounded or chipped from impact, replace both the sector plate (OEM part GX21924 / MIA12018) and the pinion gear simultaneously to prevent premature wear on new parts.
John Deere D110 Critical Part Numbers and Fastener Specs
The following technical reference table compiles high-wear replacement part numbers, hardware specifications, and installation torque values directly from the official John Deere D110 parts manual and factory service guidelines.
| Component Description | OEM Part Number | Dimensions / Specifications | Torque Spec / Note |
|---|---|---|---|
| 42-Inch Mower Deck Belt | GX20072 / GY20570 | 1/2″ W x 103.75″ L (A-section V-belt) | Route inside all belt retainers |
| Traction / Engine Drive Belt | GX20006 / GX21833 | 1/2″ W x 88.9″ L | Engine to Transaxle Input Pulley |
| High-Lift Mower Blades (Pair) | GX22151 / AM141033 | 21.38″ L, 7-Point Star Arbor | 46 lb-ft (62 Nm) |
| Deck Spindle Assembly | GY20785 / UC21320 | Cast Aluminum, 4-Bolt Flange | 18 lb-ft (24 Nm) mounting bolts |
| Engine Oil Filter | AM125424 / GY20577 | 3/4″-16 Thread, 28 Micron | Hand tight + 1/2 turn |
| Inline Fuel Filter | AM116304 | 1/4″ Nipple, 75 Micron Screen | Note flow direction arrow |
| Steering Sector Gear Plate | GX21924 / MIA12018 | 14:1 Tooth Ratio, Stamped Steel | Apply multi-purpose lithium grease |
| Starter Motor Solenoid | AUC10907 / AM138068 | 12V DC, 4-Terminal External Switch | Mount ground secure to frame |
Frequently Asked Questions About John Deere D110 Schematics
Where can I locate the exact model and serial number on my John Deere D110?
The 13-digit Product Identification Number (PIN) serial tag is located on the right-hand frame rail directly above the right rear tire or under the rear fender deck near the hitch plate. This serial number is essential when consulting the John Deere D110 parts diagram, as running mid-production changes affect part numbers for the front drag links, deck lift components, and transmission drive pulleys across production years 2011 through 2017.
Are 42-inch deck diagrams identical across all John Deere D-Series tractors?
While the 42-inch Edge deck shell remains dimensionally interchangeable across models such as the D100, D105, D110, D120, and D130, specific internal drive components vary. For example, the D105 utilizes a automatic mechanical drive setup with different belt ratios, while models with electric PTO clutches use a different drive pulley, belt length, and engagement tensioner layout than the manual cable-engaged PTO system found on the standard D110 tractor.
How do I determine the correct belt routing path using the schematic?
Refer to the mower deck overview section of the parts blueprint. The V-belt routes from the engine drive pulley back to the deck assembly, traveling around the stationary backside idler pulleys with the flat side of the belt contacting the flat pulleys. The inner V-shaped profile of the belt seats directly inside the V-grooves of both outer spindle pulleys. Always verify that the belt sits inside every wire belt guide finger attached to the deck shell before tensioning the deck engagement lever.
Why does my hydrostatic transmission lag even though the drive belt is intact?
Consult the hydrostatic transaxle control diagram. Over time, the bypass free-wheel valve linkage situated at the rear tow hitch can rust or bind, preventing the internal bypass pin from fully closing. If the valve remains slightly open, hydraulic oil recirculates internally rather than driving the axle gears. Additionally, check for excessive wear in the dynamic pedal linkage rod bushings or thermal degradation of the internal 20W-50 oil within the sealed transaxle unit.
What wire color conventions are used in the D110 electrical diagram?
John Deere uses standardized wire coloring across its 100-Series equipment blueprints. Red wires represent unswitched 12V positive power directly from the battery to the key switch and solenoid. White wires carry switched positive current from the ignition key to the starter activation loop. Purple wires designate safety switch interlock logic lines (seat switch, brake pedal switch, PTO lever switch). Black wires represent universal chassis ground connections. Yellow wires carry regulated AC/DC charging current from the flywheel alternator to the battery voltage regulator module.
Step-by-Step Guide to Understanding the John Deere D110 Parts Diagram
Identify – Consult the specific system diagram section (deck, engine, or steering layout) for your repair project.
Locate – Find the specific component callout number on the exploded visual schematic map.
Reference – Match the visual index number to the OEM part configuration table to verify exact part numbers.
Connect/Route – Route belts or wiring along the exact physical pathways indicated in the structural layout.
Verify – Check that all fasteners, washers, and spacers are reinstalled in sequence and torqued to specification.
Troubleshoot – Test mechanical operations and cross-reference diagram alignment if binding, noise, or belt slipping occurs.
