Taco Radiant Heat Closed Loop Heating System Diagram: 2026 Guide
The radiant heat closed loop heating system diagram details fluid flow from the heat source water-to-water heat pump condenser through air separators, expansion tanks, and circulator pumps into supply manifolds. Fluid flows at 12–15 PSI through PEX tubing loops, returning to the evaporator heat exchanger without atmospheric fluid loss.
📌 Key Takeaways
- Closed loop hydronic systems require baseline operating pressure between 12 PSI and 15 PSI cold.
- A water-to-water heat pump utilizes a compressor, refrigerant circuit, and condenser heat exchanger to heat hydronic loop fluid.
- Air elimination is critical; install microbubble air separators at the point of highest water temperature before distribution.
- Circulator pump failure or airlock is the primary cause of zero-flow faults across manifold loops.
- Annual fluid glycol concentration checks prevent internal loop corrosion and freezing damage down to -20°F.
Modern high-efficiency thermal management relies heavily on hydronic radiant fluid loops coupled with vapor-compression heat pump technology. A radiant heat closed loop heating system diagram provides technicians, equipment operators, and mechanical engineers with the exact schematic roadmap necessary to install, diagnose, and maintain these dual-stage thermal circuits. By transferring energy from a primary refrigerant loop—comprising a high-efficiency compressor, condenser, thermal expansion valve, and evaporator—into a secondary hydronic fluid loop via a brazed plate heat exchanger, these systems deliver exceptional COP (Coefficient of Performance) ratings across commercial, industrial, and mobile equipment applications. Understanding the fluid coupling, electrical switching, and pressure dynamics illustrated in these technical diagrams ensures correct diagnostic procedures and prevents costly system lockouts.
Anatomy of a Radiant Heat Closed Loop Heating System Diagram
To accurately read a radiant heat closed loop heating system diagram, you must separate the schematic into two primary thermal management zones: the vapor-compression refrigerant circuit and the closed-loop hydronic distribution network. Energy originates within the primary refrigerant circuit, where a hermetic or semi-hermetic compressor elevates low-pressure vapor refrigerant into a superheated high-pressure gas. This gas enters the condenser heat exchanger, where thermal energy is transferred directly into the secondary hydronic loop containing a pre-mixed water and polypropylene glycol solution.
Recommended Best Deal Products

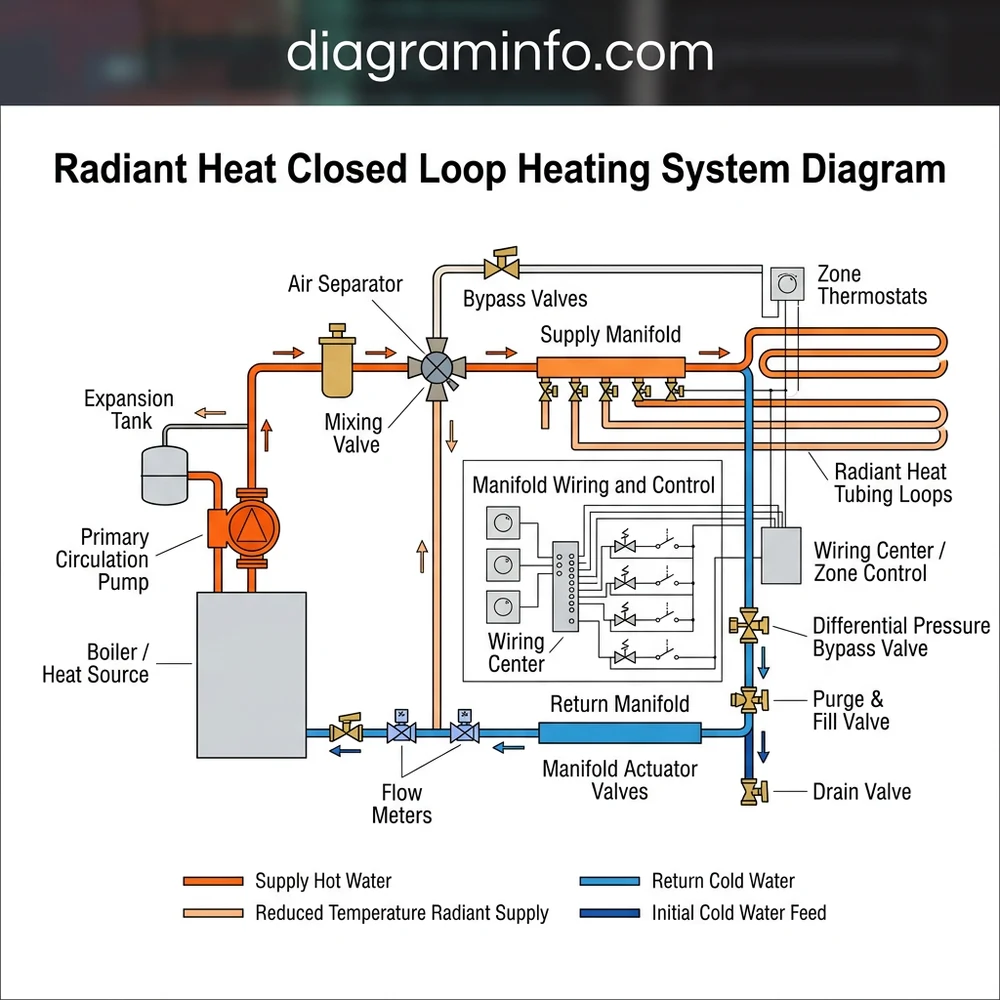

As shown in the schematic above, the secondary hydronic closed loop utilizes a multi-speed or ECM circulator pump to transport heated fluid through a manifold distribution tree. The fluid flows through continuous cross-linked polyethylene (PEX-a) or copper tubing embedded within subfloors or radiant panels, returning to the heat exchanger at a lower energy state. In dual-source setups, an auxiliary air handler equipped with a high-static ECM blower motor and return duct assembly operates in tandem with the hydronic loop to offer rapid forced-air supplemental heating when space temperatures deviate significantly from the setpoint.
In hybrid equipment systems, the brazed plate heat exchanger (BPHE) functions simultaneously as the refrigerant condenser and the hydronic heat source. Always verify counter-flow liquid routing in your schematic to ensure maximum heat transfer effectiveness (NTU) and maintain proper fluid delta-T across the exchanger ports.
The following reference table outlines the critical electrical, mechanical, and pressure specifications designated across standard radiant heat closed loop heating system diagrams:
| Component Reference | Operating Parameter | Wiring & Signal Standard | System Function |
|---|---|---|---|
| Refrigerant Compressor | 208/230V 1-Phase / 460V 3-Phase; 250-380 PSI Discharge | L1, L2, L3 Contactor Driven / 24VAC Control | Compresses low-pressure vapor refrigerant into superheated high-pressure gas. |
| Brazed Plate Heat Exchanger | Max 450 PSI Refrigerant / Max 125 PSI Hydronic | N/A (Mechanical Liquid Interface) | Transfers thermal energy from compressor refrigerant gas into secondary hydronic loop. |
| Hydronic Circulation Pump | 12V DC / 24V AC / 120V AC; 12-15 PSI Loop Static Pressure | Pulse-Width Modulation (PWM) / High-Low Relay | Maintains constant GPM velocity through radiant floor loops and heat exchanger. |
| ECM Blower Motor & Air Handler | 120V/240V AC Input; 0.5″ W.C. External Static Pressure | 0-10V DC Speed Control / Thermostat G-Terminal | Drives forced airflow across secondary hydronic coil fed by return duct air. |
| Thermostatic Expansion Valve (TXV) | Superheat setpoint 8°F – 12°F at Evaporator Exit | Mechanical Sensing Bulb with Internal Equalizer | Meters liquid refrigerant flow into evaporator based on thermal load conditions. |
How to Read the Radiant Heat Closed Loop Heating System Diagram
Interpreting a complex radiant heat closed loop heating system diagram requires a systematic approach, analyzing fluid flow paths, low-voltage control signals, and line-voltage power circuits sequentially. Mechanical line conventions generally distinguish refrigerant lines from hydronic lines using bold dashed or solid color-coded piping paths (red for supply heat, blue for fluid return, green/yellow for low-pressure refrigerant loops).
Tracing Primary Refrigerant Loop Fluid Dynamics
Begin tracing at the outlet port of the rotary or scroll compressor. The line indicates superheated gas traveling directly to the primary side of the liquid heat exchanger operating as the system condenser. High-pressure refrigerant condenses into a subcooled liquid state by releasing latent heat to the circulating fluid. The liquid line then routes through a filter-drier before reaching the Thermostatic Expansion Valve (TXV). The TXV causes a controlled pressure drop, causing liquid refrigerant to flash into a low-pressure, low-temperature mist as it enters the evaporator coil. Air passed over the evaporator transfers ambient heat into the refrigerant, evaporating it back into a low-pressure vapor before it returns through the suction line to the compressor inlet.
Recommended Best Deal Products
Analyzing Secondary Hydronic Radiant Loop Circulation
The secondary side of the radiant heat closed loop heating system diagram details a sealed, pressurized fluid circuit completely isolated from the refrigerant. The circulator pump forces cooled return water/glycol fluid into the counter-flow inlet of the brazed plate exchanger. Thermal conduction rapidly raises the fluid temperature to the target supply setpoint (typically 110°F to 140°F depending on outdoor reset control logic).
Fluid leaves the heat exchanger and enters the primary supply manifold, where balanced flow meters regulate exact Gallons Per Minute (GPM) delivery to individual radiant sub-zones. After circulating through the embedded PEX loops and transferring heat to the mass, low-energy fluid collects at the return manifold and flows back through an expansion tank, air separator, and check valve before re-entering the pump inlet.
Closed hydronic loops must maintain a cold static fill pressure between 12 PSI and 15 PSI at the expansion tank diaphragm. Pressure drops below 10 PSI risk cavitation within the circulator pump impeller, while pressures exceeding 30 PSI will trigger the mechanical pressure relief valve.
Decoding Air Handler Integration and Forced-Air Auxiliary Circuitry
When studying the forced-air section of the diagram, locate the air handler unit controls. Modern dual-mode installations couple radiant loops with an inline hydro-air coil installed in the supply ductwork. When ambient space heating demand exceeds the thermal output of the floor loops, the master thermostat energizes the air handler relay. The ECM blower motor pulls cold air through the return duct assembly, forcing it across the hot water hydronic coil. To review broader HVAC wiring principles, reference our detailed HVAC system control circuit diagram guide for specific relay pinout arrangements.
Troubleshooting Heat Exchanger, Condenser, and Evaporator Flow Issues
Diagnosing failures in a hydronic-refrigerant dual loop requires isolation of mechanical, fluidic, and electrical subsystems. Technicians should utilize the schematic to locate test ports, pressure transducer taps, and sensor wire colors before taking physical measurements.
Never operate the heat pump compressor if hydronic fluid flow is interrupted. Failure of the circulation pump during heating mode can cause liquid refrigerant to freeze in the heat exchanger, bursting internal plates and destroying both refrigerant and hydronic circuits.
Identifying Hydronic Flow Restrictions and Cavitation
If the hydronic supply manifold fails to reach operating temperature despite continuous compressor operation, consult your radiant heat closed loop heating system diagram to locate the differential pressure sensors or flow switches. High compressor head pressure coupled with low water temperature delta indicates low hydronic flow rate (low GPM). Common causes include air lock inside the brazed plate heat exchanger, a clogged inline Y-strainer upstream of the circulator pump, or closed zone valve actuators.
Resolving Refrigerant Side Thermal Imbalances
Refrigerant side anomalies directly impact hydronic output. Connect a manifold gauge set to the high- and low-side Schrader valves designated on the schematic. Low suction pressure accompanied by low superheat indicates restricted air flow across the evaporator coil, often caused by a failed evaporator fan relay, dirty media filters, or incorrect duct sizing in the return duct. High head pressure typically points to scale accumulation on the hydronic side of the condenser heat exchanger, preventing efficient energy transfer into the circulating glycol solution. For additional diagnostic procedures on refrigeration loops, refer to our comprehensive refrigerant pressure testing manual.
| Symptom observed | Probable Schematic Source | Diagnostic Test Step | Corrective Action |
|---|---|---|---|
| High Compressor HP Lockout | Closed-loop Circulator Pump / Flow Switch | Verify 24VAC across flow switch contacts; measure pump amperage draw | Bleed air lock via air vent valve; replace stuck flow switch or pump capacitor |
| Evaporator Coil Frost Accumulation | Evaporator Blower Motor / TXV Sensing Bulb | Check 0-10V signal from ECM control module; verify TXV bulb contact and insulation | Clean blower motor wheel, replace clogged air filter, or re-clamp TXV bulb to suction line |
| Low Delta-T Across Radiant Loops | Zone Valves / Radiant Manifold Meters | Check GPM flow indicators on supply manifold; verify 24V at zone valve motors | Manually open air-bound manifold loops; replace burnt-out 24V zone valve actuator motors |
| Noisy Forced-Air Heat Operation | Air Handler Blower / Return Duct Sizing | Measure external static pressure across air handler using a digital manometer | Increase return duct surface area or adjust ECM blower motor speed dip switches |
Radiant Heat Closed Loop Heating System Diagram Technical FAQ
How does a brazed plate heat exchanger integrate with a radiant heat closed loop diagram?
The brazed plate heat exchanger acts as the physical bridge between the high-pressure refrigerant loop and the sealed hydronic radiant loop. In the circuit diagram, refrigerant flows through alternating stainless-steel plates in a counter-current direction to the water/glycol mixture. Thermal energy passes through the thin metal walls via conduction, allowing the heat pump compressor to raise closed-loop water temperatures without mixing the toxic refrigerant oil into the radiant piping array.
What static pressure parameters should be noted on a closed-loop hydronic diagram?
Diagram specifications typically call for a cold static fill pressure of 12 PSI to 15 PSI for standard residential and light commercial equipment setups. When the system operates at maximum design temperature (typically 120°F to 140°F supply temperature), the closed loop expansion tank absorbs fluid expansion, allowing dynamic operating pressures to rise to approximately 20 PSI to 25 PSI. If the diagram indicates a multi-story layout, adjust static pressure by adding 0.433 PSI per foot of elevation rise.
How is the ECM blower motor wired within an integrated air handler radiant system?
An ECM blower motor in a hydro-air supplemental circuit utilizes dual electrical connections outlined in the electrical schematic: a line-voltage power supply (120V or 240V AC constant power) and a low-voltage control harness. The control harness connects directly to the air handler interface board. It accepts either discrete 24VAC thermostat inputs (Y1, Y2, G, W) or a modulating 0-10V DC signal from an automated energy management system to dynamically match fan speed with duct static pressure requirements.
Why is an air separator located upstream of the circulation pump on the diagram?
Air separators are strategically placed on the suction side of the circulator pump—where fluid temperature is highest and system pressure is lowest—to maximize micro-bubble removal. Dissolved gases released from heated hydronic fluid enter the air separator body, where internal coalescing media coalesces small air pockets, venting them out through an automatic top-mounted air vent. Eliminating air prevents air-locking in narrow PEX radiant coils and protects pump impellers from erosive cavitation.
What role does the return duct temperature play in total hydronic system efficiency?
In systems utilizing an auxiliary air handler, the temperature of air entering through the return duct dictates the rate of heat exchange across the hydro-air hydronic coil. Lower return air temperatures create a wider delta-T across the coil, increasing heat extraction from the circulating fluid. This rapid cooling of the return water lowers the inlet temperature entering the brazed plate heat exchanger, directly improving condensing efficiency at the refrigerant compressor circuit and raising overall system COP.
Step-by-Step Guide to Understanding the Radiant Heat Closed Loop Heating System Diagram
Identify – Trace the primary supply line exiting the heat source condenser heat exchanger on the system diagram.
Locate – Position the air separator, expansion tank, and main circulator pump on the return line prior to manifold entry.
Reference – Cross-check electrical control terminals between zone thermostats, relay panels, blower motor coils, and zone valve actuators.
Connect/Route – Connect PEX radiant loops from supply manifold ports to individual floor zones, maintaining minimum bend radii.
Verify – Purge all loop air, pressurize the closed system to 12–15 PSI cold, and verify flow meter readings across each manifold branch.
Troubleshoot – Test 24V signal at zone actuators and check compressor and pump current draw if supply fluid fails to heat.
