2-wire smoke detector wiring diagrams show a multiplexed Initiating Device Circuit (IDC) where two conductors carry power and signals. The positive hot wire (red) connects to Zone + (terminal 1), while the negative neutral wire (black) connects to Zone – (terminal 2). An End-of-Line resistor is installed on the last unit for supervision.
📌 Key Takeaways
- 2-wire smoke detector loops operate on multiplexed 12V or 24V DC initiating device circuits.
- Standard wire color code utilizes red for the positive hot wire and black for the negative neutral wire.
- An End-of-Line (EOL) resistor (typically 2.2kΩ to 4.7kΩ) must be installed across terminals on the final detector.
- Reversing circuit polarity triggers trouble signals on the panel and prevents proper detector activation.
- Always power down the main alarm panel and disconnect backup batteries before performing electrical maintenance.
Conventional 2-wire smoke detector circuits utilize a single pair of conductors to deliver direct current (DC) operating voltage from the Fire Alarm Control Panel (FACP) while simultaneously monitoring for alarm and fault conditions. Correctly interpreting a 2 wire smoke detector wiring diagram is critical for technicians, systems integrators, and electricians tasked with installing, retrofitting, or diagnosing conventional Initiating Device Circuits (IDC). Unlike 4-wire configurations that separate system power from alarm relay contacts, a 2-wire circuit modulates loop current draw to convey status. This technical reference breaks down schematic representations, terminal block pin assignments, wire color codes, cable gauge selection criteria, and proper loop termination procedures.

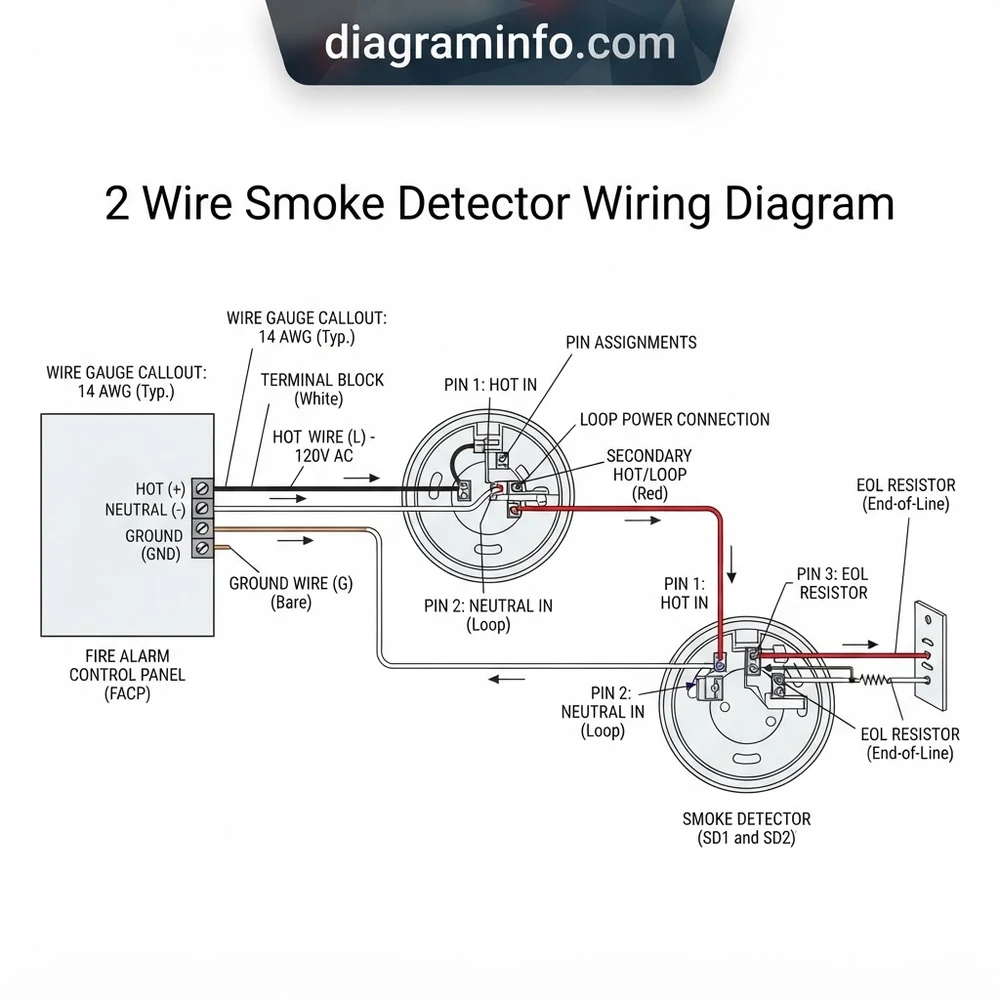

Understanding the 2 Wire Smoke Detector Wiring Diagram and Loop Circuit
A 2 wire smoke detector wiring diagram details a supervised Class B (Style B) or Class A (Style D) Initiating Device Circuit (IDC). In a standard Class B configuration, the Fire Alarm Control Panel applies a continuous nominal voltage—typically 24V DC (operating within an 18V DC to 28V DC window)—across the circuit conductors. Under normal supervisory conditions, a tiny standby current (generally 40 to 120 microamps per detector) flows through the loop and passes through an End-Of-Line Resistor (EOLR) installed across the final detector terminals.
Recommended Best Deal Products
When smoke particles enter the optical sensing chamber of a detector, internal circuitry decreases the device’s electrical impedance. This action causes a sharp surge in circuit current (typically rising to 30 to 100 milliamps), which the panel senses as an alarm state. Because power transmission and signaling share the same hot wire and neutral wire path, precise continuity, loop resistance management, and polarity integrity are essential to prevent phantom trouble signals or complete circuit blind spots. For additional context on panel terminal allocations, refer to our guide on commercial panel initiating circuit layouts.
2 Wire Smoke Detector Terminal Block Pin Assignment and Wire Color Code
Commercial fire alarm installations rely on standardized fire-resistive cables (such as FPL, FPLR, or FPLP) containing solid copper conductors. While residential 120V AC interconnect smoke detectors utilize white, black, and red signaling wires, low-voltage 2-wire commercial detectors use dedicated color coding tied directly to panel IDC terminals. The table below outlines standard conductor designations, terminal block pin assignments, and functional roles for conventional 2-wire bases (such as the System Sensor B401 or Edwards 1250 series).
| Wire Color Code | Circuit Function | Terminal Block Pin Assignment | Technical Notes & NFPA Requirements |
|---|---|---|---|
| Red Wire | Hot Wire / Positive (+ IDC) | Terminal 1 (In) / Terminal 2 (Out) | Carries positive loop voltage. Must be cut at terminal to allow panel electrical supervision. |
| Black Wire | Neutral Wire / Return (- IDC) | Terminal 3 (In / Out Common) | Serves as common DC negative return. Incoming and outgoing conductors land under separate screws or pressure plates. |
| Bare / Bare Copper | Ground Wire / Drain Shield | Base Ground Lug / Chassis Tie | Continuously insulated throughout wire runs; landed on metal FACP cabinet ground lug at one point only. |
| Violet or Orange (Optional) | Remote Annunciator (+ Output) | Terminal 4 (RA+ Switched Output) | Provides switched negative/positive path to drive an external remote LED indicator during alarm condition. |
National Fire Alarm and Signal Code (NFPA 72) mandates that incoming and outgoing loop conductors must never be wrapped continuously around a single terminal screw without severing the wire. Cutting the conductor forces the supervisory signal to travel through the terminal block assembly itself. If a detector base is removed or a wire becomes disconnected, the FACP immediately detects an open circuit trouble state across the IDC loop.
Electrical Specifications, Voltage Thresholds, and Cable Gauge Requirements
Selecting the correct wire gauge (AWG) is critical to maintaining proper operating voltage at the most distant smoke detector on the loop. Excessive conductor resistance causes voltage drop, which can lower operating power below the detector’s minimum reset or sensing threshold during an alarm condition.
• Operating Loop Voltage Range: 15.0 V DC to 28.0 V DC (24 V DC Nominal)
• Maximum Allowable Circuit Loop Resistance: 50 Ohms to 100 Ohms (FACP dependent)
• End-Of-Line Resistor (EOLR) Value: 2.2k Ohms, 3.9k Ohms, or 4.7k Ohms (Match FACP rating)
• Recommended Cable Type: 18 AWG, 16 AWG, or 14 AWG Solid Copper (FPLR Riser / FPLP Plenum)
• Terminal Block Screw Torque Rating: 8.0 to 12.0 in-lbs (0.9 to 1.4 Nm)
• Standby Supervisory Loop Current: 0.05 mA to 0.12 mA
When engineering extended runs, calculate total loop resistance using the formula: R_total = 2 × (Resistance per 1000 ft) × (Distance in feet / 1000). Standard 18 AWG solid copper wire exhibits approximately 6.38 Ohms per 1000 feet at 20°C. If total loop resistance exceeds manufacturer specifications, step up to 16 AWG (4.02 Ohms/1000 ft) or 14 AWG (2.52 Ohms/1000 ft) cable to preserve signal voltage stability. For deeper details on circuit voltage drop formulas, review our technical breakdown of initiating circuit distance calculations.
How to Wire a 2 Wire Smoke Detector Loop Step by Step
Executing a compliant installation requires strict adherence to wire color code assignments, terminal pinouts, and physical circuit continuity rules. Follow this sequence when connecting conventional 2-wire smoke detectors to an FACP initiating circuit terminal block.
Step 1: De-Energize and Isolate the Control Panel
Before making terminal connections, disconnect primary 120V AC power and unhook the secondary 24V DC standby batteries at the FACP. Working on energized initiating circuits risks shorting the positive hot wire to the grounded metal conduit backbox, which can damage sensitive solid-state panel components.
Step 2: Cable Preparation and Junction Box Routing
Strip the outer red FPL cable jacket back approximately 2 inches (50 mm) inside the junction box. Strip the individual insulation off the red hot wire and black neutral wire conductors to exactly 3/8 inch (9.5 mm). Do not nick or score the solid copper core, as this creates stress risers that lead to broken conductors under terminal compression.
Step 3: Connect the Primary Incoming IDC Conductors
Locate the terminal block on the detector mounting base. Secure the incoming red positive hot wire into Terminal 1 (+ IDC In). Attach the incoming black negative neutral wire to Terminal 3 (- IDC Common). Tighten the terminal screws to 10 in-lbs using a calibrated precision screwdriver.
Step 4: Daisy-Chain Outgoing Circuit to Downstream Devices
Connect the outgoing red wire to Terminal 2 (+ IDC Out). Connect the outgoing black wire to Terminal 3 (- IDC Common, landing under the adjacent wire clamp). Route this outgoing pair to the next smoke detector in the loop sequence. This series-in/parallel-out topology guarantees electrical supervision across every terminal connection point.
Never “T-Tap” or branch a conventional Class B 2-wire smoke detector circuit. Branching creates unmonitored dead-end runs where a broken conductor or removed detector will not trigger a trouble state on the panel, violating NFPA 72 regulations.
Step 5: Install the End-Of-Line Resistor (EOLR) on the Last Detector
On the final smoke detector base in the Class B loop, install the OEM-specified End-Of-Line Resistor directly across Terminal 2 (+ IDC Out) and Terminal 3 (- IDC Common). Bend the resistor leads cleanly, trim excess metal, and torque the terminal clamps securely over the leads.
Step 6: Shield Ground Wire Continuation
If utilizing shielded fire alarm wire, twist incoming and outgoing bare drain ground wire leads together using an insulated wire nut, ensuring the metal shield wire does not touch the detector terminal block or metal junction box interior. Land the ground wire on the metal panel chassis lug at the FACP end only to prevent ground loops.
Step 7: Circuit Verification with Digital Multimeter (DMM)
Before locking the detector head into its base, verify loop integrity using a digital multimeter:
- DC Voltage Check: Re-energize panel power. Measure voltage across Terminal 1 (+ In) and Terminal 3 (- Return). Voltage should read between 18V DC and 28V DC under standby conditions.
- Supervisory Resistance Check: De-energize panel power and lift the positive wire at the panel terminal block. Measure resistance across the disconnected circuit loop leads. The DMM should display the exact resistance rating of your EOLR (e.g., 4.7k Ohms ± 5%). A reading of 0 Ohms indicates a short circuit; an infinite reading (OL) indicates an open circuit.
Common 2 Wire Smoke Detector Wiring Diagram Errors and Diagnostics
Fault conditions on 2-wire initiating loops stem from specific installer oversights, reversed polarity, or mechanical strain on wire terminations. The diagnostic matrix below highlights common field errors and their systematic troubleshooting steps.
If the panel indicates a “Ground Fault” trouble code, switch your DMM to Mega-Ohms (MΩ) mode. Measure resistance between the positive hot wire and earth ground, then the neutral wire and earth ground. Any reading under 10 MΩ points to pinched conductor insulation against a backbox or metallic conduit fitting.
Reversed Polarity Installation
While some modern conventional 2-wire heads incorporate non-polarized internal bridge rectifiers, many legacy and high-sensitivity optical heads are polarity-sensitive. Swapping the red hot wire and black neutral wire at the terminal block prevents the detector’s internal sensing circuit from charging. The device will remain unpowered, causing the FACP to throw an open loop trouble or local LED failure indication.
Incorrect EOLR Placement or Value
Placing the End-Of-Line Resistor at the mid-point of a circuit or inside the FACP cabinet bypasses supervisory protection for all downstream detectors. Always verify that the EOLR matches the control panel manufacturer’s specific impedance spec (e.g., 2.2kΩ for Potter, 4.7kΩ for System Sensor, 3.9kΩ for Edwards). Installing an incorrect resistance value causes the panel sense resistor network to register either a persistent “Short Circuit Alarm” or “Open Circuit Trouble.”
Uncut Conductor Loops Under Terminal Screws
Wrapping an un-stripped, continuous loop of red hot wire around Terminal 1 and Terminal 2 without severing the wire violates fire code supervision standards. If the detector base is dislodged or mechanically destroyed, the physical wire loop remains intact, preventing the FACP from reporting the missing device. For further diagnostic procedures, explore our guide on troubleshooting commercial fire alarm ground faults.
Technical FAQ on 2 Wire Smoke Detector Wiring Diagrams
What is the primary operational difference between a 2-wire and 4-wire smoke detector wiring diagram?
A 2-wire smoke detector wiring diagram illustrates a single loop pair that carries power from the panel while simultaneously delivering alarm signaling via current modulation. In contrast, a 4-wire smoke detector diagram details two distinct conductor pairs: one 24V DC or 12V DC auxiliary power pair to operate the detector, and a separate dry contact relay pair (Form C or Form A) connected to an initiating zone or security panel zone input.
Why is an End-Of-Line Resistor (EOLR) required in a 2 wire smoke detector loop?
The End-Of-Line Resistor completes the DC current path across the hot wire and neutral wire at the furthest point of a Class B circuit. It allows a small, continuous supervisory current (0.05–0.12 mA) to pass through the line. The control panel monitors this baseline current. If a conductor breaks or a terminal wire disconnects, current flow drops to zero, triggering an immediate “Trouble” condition at the FACP display panel.
Can you mix 2-wire smoke detectors and 4-wire smoke detectors on the same panel zone?
No, you cannot combine 2-wire and 4-wire detectors on the same conventional Initiating Device Circuit (IDC). A 2-wire zone relies on panel-regulated current sensing across the power loop, whereas 4-wire detectors route alarm signals through isolated relay contacts. Mixing these technologies distorts the circuit impedance profile, causing false alarms or supervisory failures.
What happens if you reverse the hot wire and neutral wire connections on a 2-wire base?
Reversing polarity on a polarized 2-wire base prevents the internal sensing electronics from powering up. The detector’s status LED will fail to flash during standby, and the device will not report smoke conditions. On certain panels, reversed polarity may also cause a continuous line short trouble code or damage internal reverse-bias protection diodes within the detector head.
How do you wire a remote annunciator LED to a 2 wire smoke detector terminal block?
To wire a remote annunciator, connect the positive lead of the remote LED to Terminal 4 (switched RA+ output) on the detector base, and land the negative lead on Terminal 3 (- IDC return). When the detector transitions from standby to alarm state, internal solid-state switches complete the circuit to Terminal 4, energizing the remote annunciator to pinpoint concealed detectors located above drop ceilings or inside locked mechanical rooms.
Step-by-Step Guide to Understanding the 2 Wire Smoke Detector Wiring Diagram
Identify – Identify the panel zone loop output terminals and confirm power is completely shut down.
Locate – Locate terminal pins 1 (Zone +) and 2 (Zone -) on the smoke detector mounting base.
Reference – Reference the 2 wire smoke detector wiring diagram to match incoming and outgoing wire polarity.
Connect – Connect the positive hot wire (red) and neutral wire (black) to their respective base terminals.
Verify – Connect the specified End-of-Line (EOL) resistor across the active terminals of the final detector base.
Troubleshoot – Restore power and verify the panel shows normal zone status without ground wire or trouble faults.
