Super Duty Ford F250 Front Axle Parts Diagram: 2026 Guide
The Super Duty Ford F-250 front axle parts diagram details the solid Dana 60 layout system, including the differential housing, inner axle shafts, vacuum-operated locking hubs, and knuckle dust seals. It illustrates component configuration for steering knuckles, ball joints (torqued to 85 lb-ft upper / 150 lb-ft lower), and track bar attachments.
📌 Key Takeaways
- Dana 60 front axle uses lower ball joints torqued to 150 lb-ft and upper ball joints to 85 lb-ft.
- Yellow vacuum hub O-rings and knuckle vacuum seals are critical for proper 4WD engagement.
- Track bar bracket bolt torque requires up to 406 lb-ft on modern Super Duty F-250 models to prevent death wobble.
- Vacuum hub line seal degradation and inner axle dust seal failure are the most common front axle system issues.
- Complex ring and pinion gear mesh setups require professional alignment tools, whereas hub and seal swaps are DIY-friendly.
The Ford F-250 Super Duty 4×4 drivetrain architecture relies heavily on the solid Monobeam front axle assembly, most notably the high-pinion Dana 60 (and early Dana 50) platform. Correctly navigating a super duty ford f250 front axle parts diagram is crucial for performing accurate service routines, differential overhauls, and vacuum wheel-end repairs. Whether you are replacing worn outer stub shafts, diagnosing an Electronic Shift-On-The-Fly (ESOF) vacuum hub failure, or executing a complete ball joint refresh, understanding the component layout and structural system of your Super Duty front axle ensures OEM-spec repairs and eliminates severe drivetrain binding.
Anatomy and Component Breakdown of the Super Duty Ford F250 Front Axle Parts Diagram
The Monobeam front axle layout utilized in Ford F-250 Super Duty trucks consists of three primary mechanical subsystems: the center differential housing, the outer steering knuckle assemblies, and the axle shaft/hub engagement system. According to OEM technical specifications, post-1999 F-250 4×4 models predominantly use a Dana 60 axle housing featuring a 9.75-inch ring gear, 35-spline inner axle shafts, and heavy-duty Spicer 1480-series universal joints (or 1350/1410 series depending on the exact model year and engine configuration).
Recommended Best Deal Products

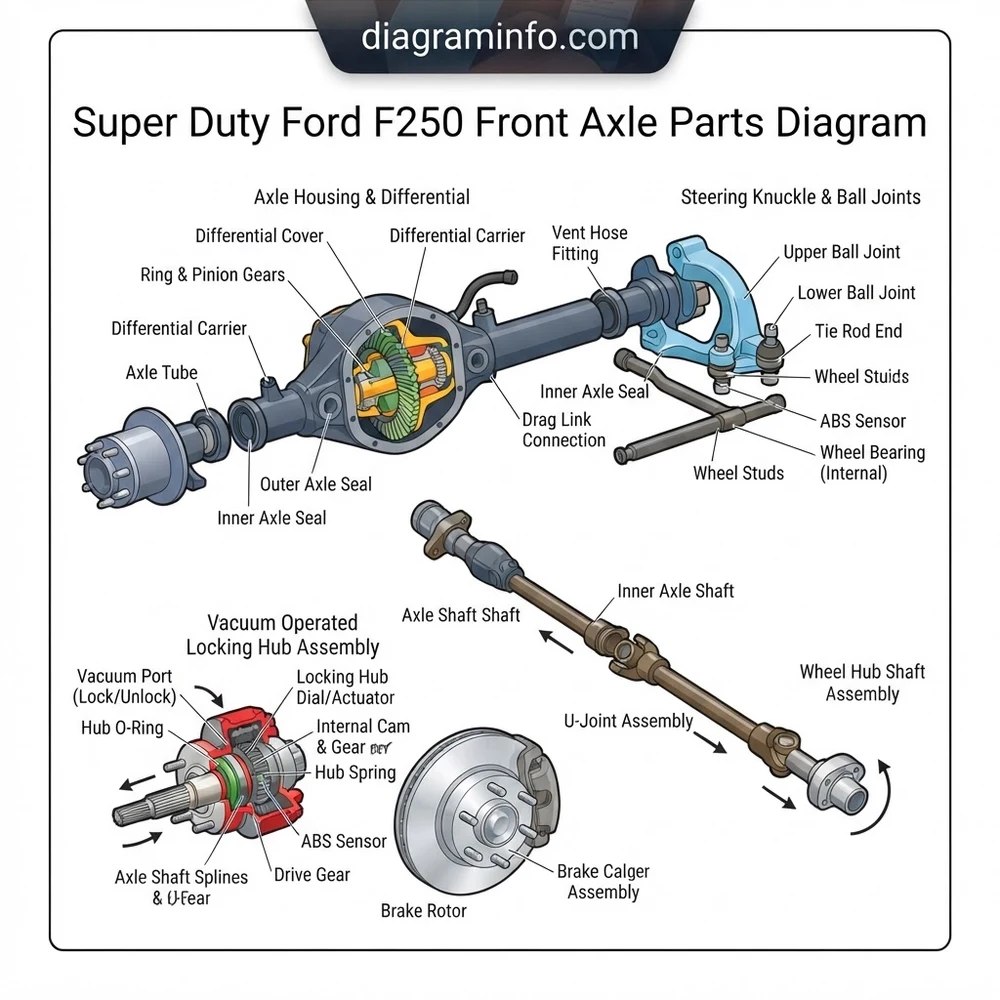

When reviewing the overall system schematic, components are indexed from the center differential outward toward the wheel ends. Below is an essential reference table mapping the primary components illustrated in standard technical blueprints for Super Duty front axles.
| Diagram Reference | Component Name | OEM / Technical Specification | Functional Role |
|---|---|---|---|
| Section A-1 | Differential Center Housing | Cast Iron Nodular Housing (Dana 60) | Houses ring gear, pinion, carrier bearings, and differential spider gears. |
| Section A-2 | Inner Axle Shaft Seals | Pressed-in Oil Seal (OEM # F81Z-3254-CB) | Prevents gear oil from escaping into the axle tubes; located adjacent to carrier. |
| Section B-1 | Inner & Outer Axle Shafts | 35-Spline Inner / 30-Spline Outer (Spicer) | Transfers torque from the differential carrier to the wheel hub unit bearing. |
| Section B-2 | Axle Universal Joints (U-Joints) | Spicer SPL55-1X or 5-760X Series | Allows rotational torque transfer while the steering knuckle articulates. |
| Section C-1 | Knuckle Vacuum Oil Seal | Press-fit Seal (OEM # HC3Z-3B477-A / F81Z-3B477-AA) | Forms a dynamic vacuum seal against the outer axle shaft to hold ESOF 4WD vacuum pressure. |
| Section C-2 | Wheel Hub & Bearing Unit Assembly | Sealed Unit Bearing (8x170mm Bolt Pattern) | Supports vehicle load, houses wheel speed sensor, and connects rim to front drivetrain. |
| Section D-1 | Auto/Manual Locking Hub Dial | ESOF Vacuum / Mechanical Lockout | Locks outer stub shaft splines directly to the wheel bearing hub hub cap assembly. |
Model year updates significantly alter specific part numbers. For instance, 1999–2004 Ford F-250 Super Duty trucks utilize leaf-sprung front Dana 50 or Dana 60 axles, while 2005 and newer models transitioned to coil-sprung Monobeam axles with larger outer knuckles and revised radius arm mounting locations. Always verify your axle housing tag code before ordering replacement parts.
Interpreting the Ford F-250 Front Axle System Schematic and Assembly Layout
To systematically utilize a super duty ford f250 front axle parts diagram during a service overhaul, technicians must understand the mechanical layered assembly from the outer wheel end down to the internal ring and pinion gearset. Following proper disassembly and reading order prevents damage to expensive machined surfaces and internal press-fit seals.
When studying the blueprint sequence, work through the three core system layers:
- Layer 1: The Outer Wheel End Assembly — This section of the layout features the locking hub assembly, dual retaining rings, dynamic main axle spindle vacuum seal, and the 4-bolt flange wheel hub unit bearing. Notice that the vacuum nipple on the back of the steering knuckle routes directly into a chamber between the main seal and hub assembly. If you are experiencing engagement issues, you can cross-reference our guide on the Ford F-250 4WD vacuum line routing diagram.
- Layer 2: Steering Knuckle and Suspension Mounting Hardware — Moving inboard on the schematic reveals upper and lower ball joints pressed directly into the forged steering knuckle. Upper ball joints utilize a pinch-bolt or slotted camber adjustment sleeve, while lower ball joints feature a high-torque castle nut and cotter pin configuration. The steering knuckle is tied directly to the steering linkage via the drag link and tie rod ends.
- Layer 3: Inner Axle and Differential Housing Configuration — The innermost section shows the solid axle tubes pressed into the nodular iron center carrier housing. Notice that the inner axle oil seals are located inside the differential housing, directly adjacent to the carrier bearings, rather than at the outer ends of the axle tubes. Replacing these seals requires complete removal of the ring gear carrier assembly. For complete differential overhaul specifications, consult our technical resource on Ford rear and front differential rebuild torque values.
Recommended Best Deal Products
Essential Torque Specifications for Super Duty Front Axle Reassembly:
• Wheel Hub Unit Bearing Flange Bolts: 133 lb-ft (180 Nm)
• Lower Ball Joint Nut: 150 lb-ft (203 Nm)
• Upper Ball Joint Nut: 69 lb-ft (94 Nm) final pass after setting sleeve
• Differential Cover Bolts: 30 lb-ft (41 Nm)
• Caliper Anchor Bracket Bolts: 166 lb-ft (225 Nm)
When installing the massive outer knuckle vacuum seal (often referred to as the “dust seal” or “main seal”), standard workshop hammers will ruin the seal casing. According to OEM service guidelines, a specialized seal installation tool (OTC 6695 or Essential Tool 205-429) must be used to drive the seal onto the outer axle shaft to its exact depth specification of 0.250 inches past the shaft shoulder.
Troubleshooting Common Super Duty Ford F250 Front Axle Component Failures
The heavy-duty design of the Super Duty front drivetrain offers high payload and towing limits, but severe duty cycles lead to specific, repeatable mechanical failures. By mapping symptoms back to the structural schematic, you can rapidly pinpoint problematic parts.
1. ESOF Vacuum Leaks and Failure to Engage 4WD
If the dashboard switch is rotated to 4×4 HIGH but the front hubs fail to lock automatically, the issue almost universally stems from the outer knuckle seal or the yellow O-ring seated on the unit bearing. In the standard assembly configuration, the transfercase control module applies a pulse vacuum (15–22 inches Hg) through the knuckle port. If the dynamic rubber seal degrades, vacuum pressure drops below the threshold needed to actuate the hub diaphragm. If the front end engages manually by turning the outer dial but fails electronically, inspect the front axle vacuum solenoid or refer to our detailed Ford F-250 transfer case shift motor schematics for electrical diagnostic procedures.
2. Axle Tube Fluid Leaks
Seeing differential fluid dripping from the outer ends of the front axle tubes indicates a failed inner axle oil seal. Because these seals reside next to the differential carrier, dirt or debris pushed down the axle tube during shaft re-insertion will easily slice the rubber seal lips. Always use axle shaft guides during installation to maintain center alignment.
3. Severe Front-End Vibration (“Death Wobble”)
Vibrations transmitted through the steering wheel after hitting a bump at highway speeds stem from looseness in the front suspension layout. Cross-reference the diagram locations for the front track bar bushing, lower drag link ball joint, and upper/lower knuckle ball joints. Any axial play exceeding 0.020 inches in the ball joints requires immediate replacement.
Never attempt to pull outer axle shafts through the steering knuckle without completely releasing the internal needle bearing lock ring and vacuum hub dial. Forcing outer stub shafts out off-angle will gouge the internal machined spindle surface, causing permanent vacuum leaks that require complete steering knuckle replacement.
Super Duty Ford F250 Front Axle Parts Diagram Questions Answered
What is the structural difference between Dana 50 and Dana 60 front axles on Ford F-250 Super Duty trucks?
From 1999 to early 2002, many Ford F-250 Super Duty trucks came equipped with a Dana 50 front axle, while late 2002 and newer models feature the larger Dana 60 as standard equipment. Externally, both axles share identical steering knuckles, outer hub bearing assemblies, brakes, and locking hub dials. Internally, however, the blueprints differ substantially: the Dana 50 uses a smaller 8.5-inch ring gear, a 1.31-inch pinion stem, and smaller differential carrier bearings compared to the Dana 60’s larger 9.75-inch ring gear and 1.375-inch pinion stem. Carrier and ring gear parts are not interchangeable between these two layouts.
How do I determine if my Super Duty front axle uses ESOF or manual locking hubs from a schematic perspective?
In a detailed super duty ford f250 front axle parts diagram, Electronic Shift-On-The-Fly (ESOF) configurations include a rubber vacuum hose connection leading into a threaded nipple on the back of the cast steering knuckle, paired with a auto/manual selector switch dial on the wheel hub cap. Manual locking hub configurations omit the vacuum port on the knuckle completely (or plug it) and feature a basic manual engagement knob on the outer hub without internal vacuum diaphragms or dynamic knuckle oil seals.
What specific special tools are required to reassemble an F-250 front axle to factory tolerances?
Servicing a Super Duty front axle correctly requires three primary specialized tools:
1. Ford Tool 205-429 (or OTC 6695) axle seal installer to seat the massive outer shaft vacuum seal onto the stub shaft without distortion.
2. Ford Tool 205-430 to drive the complete shaft and seal assembly into the inner steering knuckle bore to establish a vacuum-tight seal.
3. A heavy-duty ball joint press C-frame with specific angled adapters contoured to fit the Dana 60 forged steering knuckle ears during ball joint replacement.
Why does gear oil leak from the end of the front axle tube after replacing the U-joints?
When you pull the long inner axle shaft out of the axle housing to perform a U-joint replacement, fluid accumulated inside the tube will drain out. However, if persistent gear oil leaks occur after complete reassembly, the inner axle seal situated next to the center differential carrier has been cut or dislodged. This typically happens when the heavy 35-spline axle shaft is allowed to drag along the inside bottom of the dirty axle tube during insertion, driving road grit directly through the inner seal lip. Clean the inner tubes thoroughly and use shaft guide cones during installation.
How can I identify the exact gear ratio of my Ford F-250 Super Duty front differential?
You can identify your front differential gear ratio using three methods:
First, inspect the metal manufacturing tag bolted to the differential cover (e.g., a tag stamped “3 73” indicates a 3.73:1 axle ratio).
Second, check the Door Latch Safety Compliance Certification Label on the driver-side door jamb for the 2-digit AXLE code (e.g., Code “31” for 3.73 non-limited slip, Code “C1” for 3.73 limited slip).
Third, if tags are missing, count the ring gear teeth and divide by the pinion gear teeth count found stamped directly on the outer rim of the ring gear inside the differential housing.
Step-by-Step Guide to Understanding the Super Duty Ford F250 Front Axle Parts Diagram
Identify – Locate your vehicle’s trim, model year, and front axle configuration (Dana 60 Monobeam) on the schematic.
Locate – Find the target hub, differential, or steering component callout on the front axle system diagram.
Reference – Cross-check part numbers, seal orientations, and fastener torque specifications provided in the diagram layout.
Connect/Route – Install vacuum engagement lines and align inner axle shafts through the knuckle seal structure carefully.
Verify – Torque lower ball joints to 150 lb-ft, upper joints to 85 lb-ft, and verify track bar bolt tightness.
Troubleshoot – Test 4WD vacuum engagement and inspect for gear oil leaks around inner axle seals if hub engagement fails.
