Troy-Bilt Horse Tiller Parts Diagram: 2026 Repair Guide
The Troy-Bilt Horse tiller parts diagram details the cast-iron transmission layout, bronze worm gear assemblies, dual-belt drive system, and tine shaft configuration. Primary service points include the reverse disc assembly, clutch linkage adjustment, and heavy-duty tine shaft seals (part #921-04030). Understanding this layout simplifies seal replacement and gear mesh alignment.
📌 Key Takeaways
- Transmission requires 85W-140 gear oil filled to the side check-plug level (approx. 3 quarts).
- Critical component identification includes the bronze worm gear (Part #1904250) and steel shaft drive.
- Torque tine bolts to 35-40 ft-lbs to prevent shear pin slippage and shaft keyway damage.
- Most common failure point is oil seal leakage at the lower tine shaft due to debris wrapped around tines.
- DIY seal and belt replacements are straightforward, but full transmission rebuilds require bearing pullers.
The Troy-Bilt Horse rear-tine tiller remains a benchmark of heavy-duty garden equipment engineering, utilizing a heavy cast-iron transmission housing and worm-gear drive system. To properly service, overhaul, or replace wear items on these units, mastering the troy-bilt horse tiller parts diagram is essential for professional mechanics and technical DIY operators. Whether working on a vintage two-lever cast-iron model or a modern PTO variant, referencing the official schematic layout ensures precise component alignment, torque verification, and accurate OEM part identification during complete transmission teardowns or routine servicing.

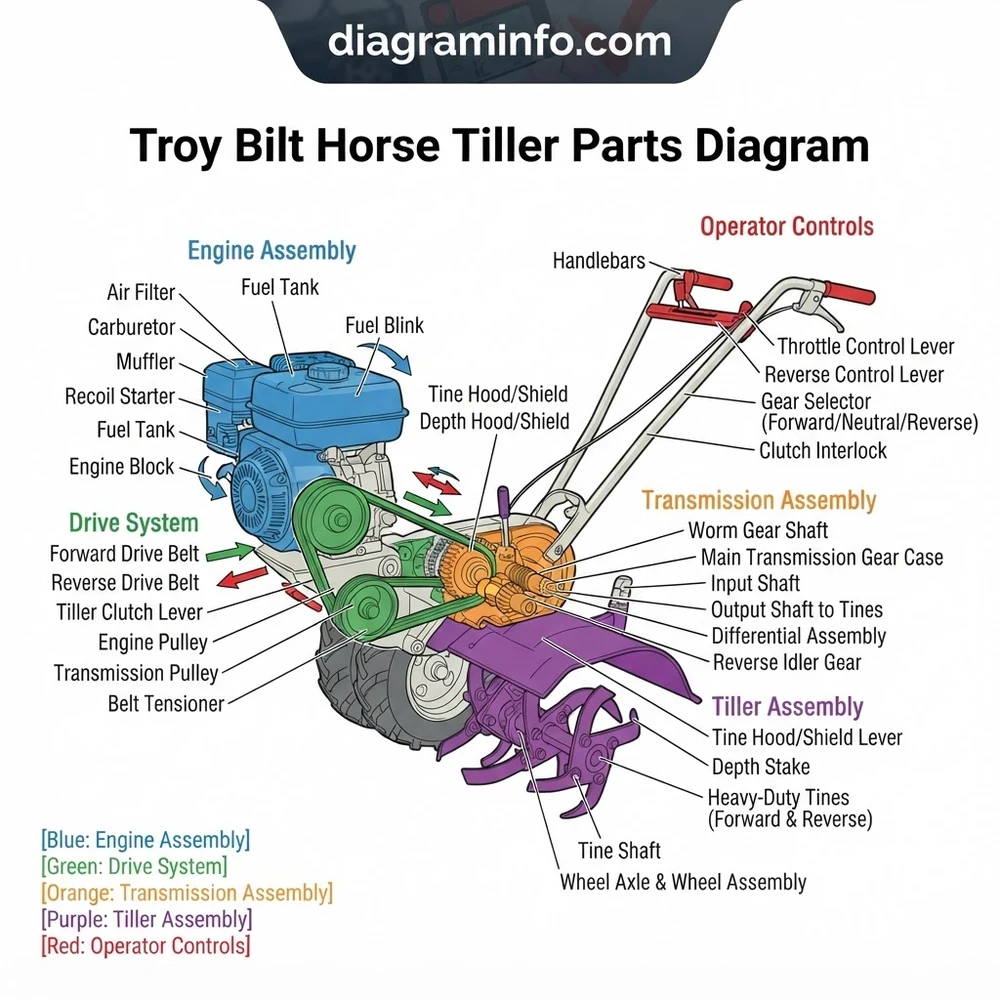

Troy-Bilt Horse Tiller Parts Diagram Component Breakdown and Assembly Layout
Understanding the core mechanical architecture of this equipment requires analyzing the main sub-assemblies outlined in the troy-bilt horse tiller parts diagram. The powertrain system originates at the engine crank, transmitting rotational energy via the belt drive system down to the cast-iron transmission housing structure.
Key mechanical subsystems depicted in the blueprint include:
- Transmission Housing and Worm Gear Assembly: Uses a hardened steel main shaft driving a high-lead bronze worm gear (OEM GW-1115 or 917-0438A). This gear reduces high-RPM engine input into high-torque rotation for the heavy-duty tine shaft.
- Drive Shaft and Clutch Assembly: Features forward and reverse belt-tensioning pulleys, eccentric actuation levers, and replaceable bronze bushings.
- Tine Assembly and Shaft System: Incorporates left and right tine holders, hardened steel bolo tines, dual lip seals (OEM GW-9621 / 921-04030), and outer cast dust caps.
- Depth Regulator and Drag Bar Configuration: Mounts to the rear transmission flange, providing depth adjustment and leverage control during heavy tilling operations.
| Subsystem Component | OEM Part Number | Technical Specification / Notes |
|---|---|---|
| Bronze Worm Gear (Tine Gear) | GW-1115 / 917-0438A | 30-Tooth bronze alloy; match keyway to main shaft |
| Tine Shaft Oil Seal Kit | GW-9621 / 921-04030 | Dual lip nitrile seal; 1.250″ inner diameter x 2.000″ OD |
| Forward Drive Belt | GW-1911 / 954-0434 | 4L section kevlar cord belt; 22.25″ pitch length |
| Drive Shaft Needle Bearing | GW-1158 / 941-0411 | Heavy-duty roller bearing; press-fit into transmission case |
Fastener Torque Specs: Transmission rear cover bolts: 18-22 ft-lbs; Tine shaft cap screws: 35-40 ft-lbs; Engine mounting bolts: 28-32 ft-lbs. Transmission oil capacity: 85W-140 Gear Oil (5.0 PINTS on standard cast-iron models).
How to Interpret the Troy-Bilt Horse Tiller Schematic and Structural Blueprint
Reading a technical structural blueprint for a heavy equipment transmission demands a systematic approach. The exploded diagram layout breaks complex gear stacks and shaft assemblies into sequential indexed reference numbers corresponding to the OEM manufacturing bill-of-materials (BOM).
First, identify the primary longitudinal reference axis running horizontally through the lower transmission housing. The main drive shaft (GW-1036 series) carries keyways, snap rings, and needle bearings (GW-1158) that dictate axial play. When reviewing the schematic overview, notice how thrust washers are stack-sequenced on either side of the bronze worm gear to maintain gear backlash specs strictly between 0.005 and 0.012 inches.
Second, trace the reverse drive disc system. On older two-lever configurations, shifting into reverse mechanically forces a rubberized reverse disc against the motor pulley rim. The schematic details how the reverse shaft pivot arm coordinates spring tension to prevent binding. Modern single-lever units route this system through an internal cam track configuration.
Third, locate critical seal and bearing boundaries. High-wear locations, such as the outer tine shaft output points, utilize double-lip oil seals driven flush against internal snap rings. Mechanics planning complete rebuilds should consult our comprehensive drive belt replacement guide, detailed tiller transmission rebuild manual, and technical tine shaft seal service articles to map out exact teardown pathways alongside this diagram.
Always check shaft end-play before sealing the cast-iron split cases. Shim gaskets (available in 0.010″, 0.015″, and 0.030″ thicknesses) adjust the taper roller bearing preload on main input shafts.
Diagnosing Mechanical Failures with the Troy-Bilt Horse Tiller Parts Diagram
When technical failures occur under heavy field loading, combining diagnostic observations with the troy-bilt horse tiller parts diagram accelerates precise fault isolation.
Symptom 1: Tines Fail to Rotate Under Load
Locate the worm gear drive schematic. Check keyway #12 on the main tine shaft (GW-1020). If the engine runs smoothly and the main drive shaft spins but the tine holder remains stationary, the soft bronze alloy worm gear (GW-1115) has likely stripped due to foreign object impact or extreme oil starvation. The bronze gear is deliberately engineered as a mechanical sacrifice point to protect the steel main shaft.
Symptom 2: Transmission Oil Leaking from Tine Shaft Ends
Examine the outer tine shaft exploded layout. Failure is typically caused by debris, roots, or wire wrapping around the shaft, scoring the dual lip oil seals (OEM 921-04030). Inspect the output shaft surface (diameter 1.250 inches) for pitting; if deeply gouged, install a hardened stainless steel repair sleeve alongside new OEM seals.
Symptom 3: Forward/Reverse Engagement Slippage
Refer to the drive lever linkage configuration in the schematic. Check spring tension on the clutch wire assembly and verify pulley alignment. Belt stretch or worn bronze pivot shaft bushings (GW-1030) prevent full pulley engagement against the drive belt profile.
Never substitute standard automotive EP GL-5 gear oil in vintage cast-iron tiller transmissions. GL-5 contains active sulfur additives that chemically corrode internal bronze worm gears at elevated operating temperatures. Use GL-4 rated gear lubricants only.
Frequently Asked Questions Regarding Troy-Bilt Horse Tiller Schematics
Where is the serial number located on a Troy-Bilt Horse tiller?
On classic cast-iron Troy-Bilt Horse tillers, the serial number is stamped directly into the top machined flange of the transmission housing, situated right behind the engine mounting bracket or near the dipstick filler hole. On newer MTD-manufactured models, a silver specification foil label is located on the right side of the main tine shield surface.
What gear oil is required for the Troy-Bilt Horse tiller transmission system?
Cast-iron Horse tiller transmission housings require high-viscosity SAE 85W-140 or SAE 90 GL-4 rated gear lubricant. It is critical to avoid modern GL-5 synthetic gear oils, as their extreme-pressure chemical additives degrade internal bronze worm gears over time.
How do single-lever and two-lever Troy-Bilt Horse tiller configurations differ?
Two-lever Horse models (manufactured prior to 1990) feature separate mechanical controls for engine speed/clutch engagement and forward/reverse gear shifting, operating an external rubberized reverse wheel system. Single-lever configurations consolidate drive engagement and directional control into one integrated cable assembly linked to an internal shift yoke mechanism.
What is the correct procedure for replacing leaking tine shaft oil seals?
Remove the left and right tine holders, clear off dust caps, and extract damaged outer lip seals using a puller tool. Clean the 1.25-inch shaft, polish out minor burs, wrap the keyway with tape to protect new seal lips during installation, apply a thin bead of sealant to the outer casing, and press the OEM seal flush into the housing bore using a 1-7/16 inch socket driver.
Step-by-Step Guide to Understanding the Troy-Bilt Horse Tiller Parts Diagram
Identify – Locate your model series on the troy-bilt horse tiller parts diagram to confirm correct transmission and belt layout.
Locate – Find the specific sub-assembly requiring service, such as the tine shaft, drive belt, or reverse disc mechanism.
Reference – Match the key callout numbers from the diagram to the factory part numbers and hardware specs.
Connect/Route – Install belts or assemble internal gears following the exact sequence and orientation shown in the schematic.
Verify – Check gear clearances, belt tension play (approx. 1/4 inch), and torque all housing bolts to OEM specifications.
Troubleshoot – If slipping or fluid leaks persist, cross-reference seal direction and belt pulley alignment against the structural layout.
