The 2003 Lincoln Town Car trailer tow fuses reside in the engine compartment Power Distribution Box. Key positions include Fuse 106 (30A) for trailer brake controller, Fuse 108 (30A) for RV blade auxiliary power, Fuse 22 (20A) for trailer running lights, and Fuses 24 and 26 for left and right turn signal circuits.
📌 Key Takeaways
- Trailer towing fuses are located in the underhood Power Distribution Box, not the interior fuse panel.
- Auxiliary power (30A) and brake controller (30A) require dedicated high-amp maxi-fuses.
- Standard 7-way RV blade pinouts use distinct color codes for turn signals, tail lights, and ground.
- A missing ground or blown 20A running light fuse causes over 80% of trailer lighting failures.
- Always disconnect the battery positive terminal before working inside high-current engine distribution boxes.
The 2003 Lincoln Town Car relies on a dual-junction box architecture—comprising an under-dash Central Junction Box (CJB) and an under-hood Battery Junction Box (BJB)—to manage primary chassis power distribution and exterior lighting circuits. Integrating trailer wiring into this Panther-platform vehicle requires tapping into specific factory-fused circuits to protect the sensitive Lighting Control Module (LCM). Whether wiring a standard 4-pin flat connector for light utility trailers or a full 7-way RV blade plug with dedicated electric brake actuation and auxiliary power output, understanding the exact layout of the vehicle electrical center is required to maintain voltage stability and circuit integrity.

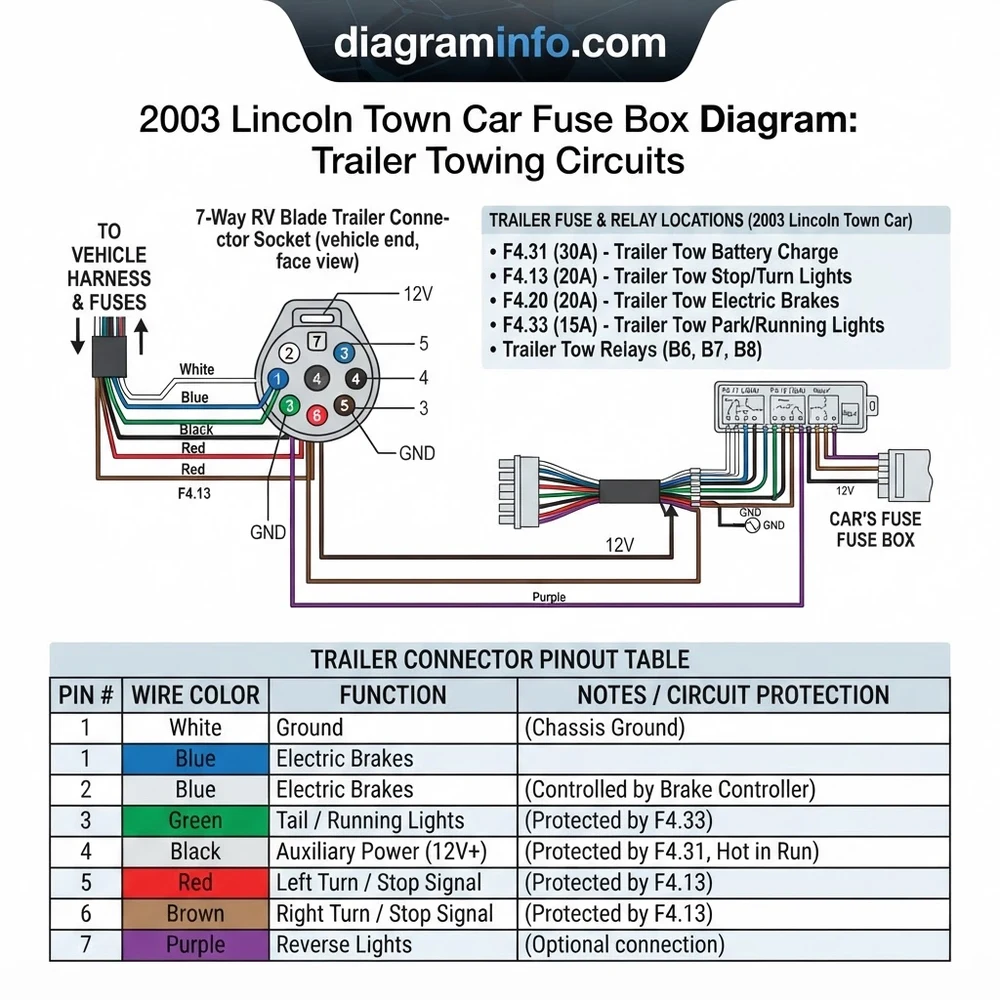

2003 Lincoln Town Car Fuse Box Diagram and Trailer Wiring Pinout Layout
The total electrical load for trailer lighting must be routed through protected relays fed directly from the under-hood Battery Junction Box. Direct taps into the vehicle’s taillamp harness without relay isolation will overload the internal solid-state switches of the Lighting Control Module. The table below correlates the 2003 Lincoln Town Car fuse box positions with standard 7-way RV blade and 4-pin flat connector wiring configurations.
Recommended Best Deal Products
| Pin / Terminal | Wire Color | Circuit Function | Fuse / Relay Location | Rating & Specifications |
|---|---|---|---|---|
| Pin 1 / Ground | White | System Ground Pin | Chassis Ground Stud G102 | 10 AWG to bare frame metal |
| Pin 2 / Brake Output | Blue | Electric Brake Controller | BJB Fuse 105 (30A) | 12 AWG, 30A MAXI fuse power |
| Pin 3 / Tail & Park | Brown | Running Lights / Park Lamps | BJB Fuse 15 (20A) / Relay 201 | 14 AWG, relay isolated circuit |
| Pin 4 / Charge Line | Black / Orange | Auxiliary Power (+12V DC) | BJB Fuse 101 (30A) / Relay 204 | 10 AWG, switched via ignition |
| Pin 5 / Left Turn/Stop | Yellow | Left Turn Signal & Stop Lamp | BJB Fuse 21 (15A) / Relay 202 | 14 AWG, isolated from LCM output |
| Pin 6 / Right Turn/Stop | Green | Right Turn Signal & Stop Lamp | BJB Fuse 23 (15A) / Relay 203 | 14 AWG, isolated from LCM output |
| Pin 7 / Reverse | Purple | Backup / Reverse Lights | CJB Fuse 2.12 (15A) | 16 AWG, reverse solenoid trigger |
For vehicles lacking the factory optioned heavy-duty tow package, external relays must be added to trigger running lights and turn signals. Refer to our detailed documentation on Panther platform lighting module diagnostics to prevent thermal shutdown of the primary Lighting Control Module when adding external lamp resistance.
Circuit Analysis of the 2003 Lincoln Town Car Fuse Box Diagram for Towing Systems
The 2003 model year marked a significant electrical redesign for the Lincoln Town Car. The introduction of an upgraded CAN-bus architecture alongside a centralized Lighting Control Module altered how secondary light circuits draw current. In the 2003 Lincoln Town Car fuse box diagram, high-current supply lines are separated into distinct branches inside the under-hood Battery Junction Box (BJB) located near the brake booster assembly.
Power for high-draw trailer accessories—such as an internal trailer battery charger powered by the auxiliary power circuit or heavy-duty electric brake magnets—originates exclusively at the BJB. High-capacity MAXI fuses protect these continuous-duty runs:
- BJB Fuse 101 (30A MAXI): Feeds the switched auxiliary power circuit via Relay 204. This circuit delivers direct battery power to Pin 4 of the 7-way RV blade connector only when the ignition switch is in the RUN position. This prevents the trailer load from depleting the primary starting battery when the engine is off.
- BJB Fuse 105 (30A MAXI): Supplies constant unswitched power directly to the under-dash brake controller harness connection. When an aftermarket electric brake controller is installed, this line passes regulated current down the blue wire to the trailer axle magnets.
- BJB Fuse 15 (20A Mini): Protects the trailer park lamp relay contact circuit. The relay coil itself is triggered by a low-current signal from the vehicle’s running lights path output from the LCM, ensuring zero thermal overload on the internal module drivers.
- BJB Fuse 21 & Fuse 23 (15A Mini each): Provide dedicated power feeds for the left turn signal/stop relay and right turn signal/stop relay respectively. Using independent fuses for each side prevents a total trailer lighting failure if a short circuit occurs in one of the trailer’s tail assemblies.
Auxiliary Power Relay Continuous Rating: 30A DC at 13.8V. Maximum allowable voltage drop across the length of the 10 AWG main charge feed line from BJB Fuse 101 to the rear bumper junction is 0.4V DC under a 20A load test.
Recommended Best Deal Products
Step-by-Step Integration Guide for RV Blade and Flat Connector Assemblies
Properly installing a 7-way RV blade plug or a 4-pin flat connector on a 2003 Lincoln Town Car requires precise terminal mapping and strict load isolation. Follow these technical steps to complete the installation without compromising vehicle safety modules.
Step 1: Isolate Vehicle Electrical System
Disconnect the negative battery terminal using an 8mm socket. Allow the onboard energy storage capacitors in the airbag and restraint modules to discharge for a minimum of two minutes before accessing the under-dash electrical channels or probing the Central Junction Box.
Step 2: Route Main Power Lines from Under-Hood Battery Junction Box
Locate the main pass-through grommet on the driver-side firewall near the steering column. Run a 10 AWG red wire (for the auxiliary power circuit) and a 12 AWG blue wire (for the electric brake controller line) from the engine bay into the cabin interior. Secure both lines along the factory harness channel beneath the driver-side door sill trim plates using nylon cable ties spaced every 12 inches.
Step 3: Integrate Brake Controller Under Dash
Access the pedal assembly area. Locate the vehicle stoplamp switch near the brake pedal arm. Tap the cold side of the brake switch (wire color Light Green) to provide the turn-on signal for the electric brake controller unit. Wire the controller’s main power lead to the BJB Fuse 105 feed line and route the controller output wire down the blue 12 AWG line running to the rear trunk area.
Step 4: Establish the Master Chassis Ground Pin
Clean a 1-inch area of structural steel inside the trunk compartment near the rear driver-side wheel well using a wire wheel down to bright bare metal. Secure a 10 AWG white ground pin wire using a ring terminal and self-tapping lock screw. Coat the finished connection with dielectric grease or zinc-rich primer to prevent oxidation. Measure resistance between this ground point and the battery negative post; total resistance must not exceed 0.2 ohms.
Step 5: Connect Relay Controls and Output Socket
If installing a simple 4-pin flat connector, connect the brown (running lights), yellow (left turn signal), and green (right turn signal) outputs directly from the isolated trailer tow relays powered by BJB Fuses 15, 21, and 23. If installing a 7-way RV blade assembly, join all seven conductors into the rear terminal housing according to standard physical layout pinout specs:
- Connect White wire to Pin 1 (Ground Pin terminal).
- Connect Blue wire to Pin 2 (Electric Brake terminal).
- Connect Brown wire to Pin 3 (Running Lights / Tail Lamp terminal).
- Connect Black/Orange wire to Pin 4 (Auxiliary Power 12V terminal).
- Connect Yellow wire to Pin 5 (Left Turn Signal / Stop terminal).
- Connect Green wire to Pin 6 (Right Turn Signal / Stop terminal).
- Connect Purple wire to Pin 7 (Reverse/Auxiliary backup terminal, if equipped).
Do not attempt to splice the high-current electric brake wire directly into the vehicle’s factory stoplamp switch. Excess current draw will melt the switch housing and permanently damage the lighting input bus on the Central Junction Box.
Common 2003 Lincoln Town Car Fuse Box Wiring Mistakes and Circuit Faults
Troubleshooting trailer lighting failures on Panther platform sedans often reveals installation errors stemming from a misunderstanding of the vehicle’s electrical design. Mechanical vibration, corrosion, and improper taps cause the majority of field failures.
- Direct Non-Relay Splicing into Taillamp Harnesses: Mechanics often attempt to splice trailer running lights directly to the rear taillamp positive wires. The 2003 Lincoln Town Car LCM monitors circuit current. Additional lamp resistance forces the module into thermal protection mode, shutting off rear vehicle lamps unexpectedly.
- Inadequate Chassis Grounding: Utilizing thin wire gauge (e.g., 18 AWG) or securing the master ground pin wire to thin sheet metal trunk linings leads to floating ground faults. When the brake pedal is depressed while a turn signal is active, the lights cross-feed through the running light filament, causing erratic flickering.
- Unprotected Auxiliary Power Runs: Running a continuous 12V battery charge line without an inline relay or MAXI fuse causes thermal damage to the harness if the trailer battery suffers an internal cell short. Always route through BJB Fuse 101 and an ignition-triggered relay.
- Reversed Left and Right Signal Outputs: Panther platform rear lighting utilizes distinct output channels for turn signals and brake lights on non-towing option models. Utilizing a basic 3-to-2 wire converter without checking fuse box relay alignment leads to swapped signal functions at the trailer flat connector. Refer to our guide on Ford heavy-duty trailer tow relay harness retrofits for exact relay conversion schematics.
Diagnosing Brake Controller, Electric Brake, and Auxiliary Power Voltage Drops
When high-current systems fail to operate correctly on a loaded trailer, systematic diagnostic testing with a digital multimeter (DMM) under load conditions is mandatory. Simple static voltage tests often fail to reveal high-resistance connections inside oxidized fuse sockets or corroded relay contacts.
To diagnose an electric brake controller circuit that exhibits weak braking force, perform a total loop voltage drop test:
- Set the brake controller output to maximum power (100% gain).
- Connect a 10-ohm, 50-watt load resistor or actual trailer brake magnets across Pin 2 (Electric Brake) and Pin 1 (Ground Pin) at the bumper socket.
- Measure voltage directly across BJB Fuse 105 terminal test ports using DMM sharp probes. Note the reading (e.g., 12.6V DC).
- Measure voltage across Pin 2 and Pin 1 at the rear bumper connector.
- Calculate the differential voltage. A drop greater than 0.8V DC indicates high resistance within the supply wire, degraded relay contacts, or poor termination at the chassis ground point.
For additional details on high-load wiring setups, consult our complete library of electric brake controller installation guides for luxury full-size sedans.
2003 Lincoln Town Car Fuse Box Diagram FAQs and Electrical Troubleshooting
Where are the two main fuse boxes located on a 2003 Lincoln Town Car?
The Central Junction Box (CJB) is located inside the passenger cabin under the driver’s side dashboard to the left of the steering column, behind an access cover plate. The Battery Junction Box (BJB) is located under the hood on the driver’s side engine bay apron, housed inside a rectangular black plastic enclosure directly adjacent to the master cylinder.
Which fuse controls the trailer running lights on a 2003 Lincoln Town Car?
Trailer running lights are protected by Fuse 15 (20-amp mini fuse) located inside the under-hood Battery Junction Box (BJB). This fuse supplies high-current power through Trailer Tow Park Lamp Relay 201, which is triggered when the vehicle headlamps or parking lights are switched on.
Why do my trailer turn signals flash rapidly after connecting to the fuse box circuits?
Rapid flashing (hyper-flashing) occurs when the vehicle lighting control system detects an impedance mismatch. If LED trailer lamps are installed, the current draw is too low for traditional thermal flashers or module sense circuits to register. Installing load resistors or utilizing an electronic flasher relay integrated into the isolated relay harness solves this issue.
How do I wire an electric brake controller if my Town Car lacks a factory plug under the dash?
If there is no factory pigtail connector under the dashboard, you must manually run four connections: a 12V power supply wire from BJB Fuse 105 (30A MAXI line), a dedicated chassis ground pin lead, a stoplamp trigger signal tapped directly from the cold side of the brake pedal switch, and an output wire (12 AWG blue) routed through the firewall to Pin 2 of the rear 7-way RV blade socket.
What gauge wire should be used for the trailer auxiliary power feed?
The auxiliary power feed (Pin 4 on an RV blade socket) requires a minimum wire gauge of 10 AWG stranded copper conductor. This wire size handles the continuous 20 to 30-amp draw necessary to charge trailer auxiliary batteries without causing dangerous heat generation or significant line voltage drop across the length of the vehicle frame.
