Rule Livewell Plumbing How a Livewell Works Diagram: 2026 Guide
A livewell system uses a high-speed transom pickup feeding a 12V aerator pump through 3/4-inch marine hose into the bottom fill line. Continuous circulation pushes old water out through a top 1-1/2-inch drain assembly, while an anti-siphon vent pipe prevents vacuum backflow, keeping bait alive.
📌 Key Takeaways
- Primary intake uses 3/4-inch marine hose with an inline 5-amp fused 12V aerator pump rated at 500-800 GPH.
- Overflow drain assembly requires a smooth-bore 1-1/2-inch tailpiece routed continuously downward to the thru-hull.
- Unlike residential sinks with a P-trap, livewells rely on high-mounted loop vents to break siphon vacuums.
- Faulty check valves and clogged intake strainers account for over 70% of livewell circulation failures.
- Perform DIY hose replacement with dual stainless steel hose clamps per fitting; consult a marine tech for thru-hull drilling.
Understanding marine livewell systems requires analyzing the balance between fluid dynamics, aeration efficiency, and structural hull integrity. A properly configured livewell plumbing system draws raw ambient water from outside the vessel, circulates oxygenated water through a pressurized tank, and evacuates metabolic waste and deoxygenated water via overflow and gravity-drain paths. Whether installing a new offshore baitwell or diagnosing flow degradation in an tournament bass boat, analyzing a livewell plumbing how a livewell works diagram provides the baseline schematic needed to evaluate pump flow rates (GPH), head pressure, line routing, and backflow prevention components.
Livewell Plumbing How A Livewell Works Diagram: Component Breakdown
Every operational livewell system relies on a closed-loop or open-flow hydraulic circuit designed according to American Boat and Yacht Council (ABYC) H-27 standards. Tracing a livewell schematic requires identifying every critical component from the high-speed pickup to the discharge thru-hull.
Recommended Best Deal Products
High-Pressure Aerator Pumps and Intake Thru-Hull Valves
The system begins at the raw water intake below the waterline. A bronze or stainless steel high-speed pickup thru-hull fitting forces sea water into the system while the vessel is underway. Directly attached to this fitting is an inline ball valve (seacock), providing absolute emergency shutoff capability. Connected to the seacock is the primary livewell pump—typically a 12V DC centrifugal pump rated between 500 GPH and 1100 GPH depending on tank volume. Tournament configurations often incorporate dual-port pumps, allowing one port to feed the livewell while the second port supplies a washdown pump system.
To ensure adequate dissolved oxygen levels for gamefish, livewell plumbing systems should exchange 100% of the tank volume every 6 to 10 minutes. For a 30-gallon tank: (30 gallons / 6 minutes) × 60 minutes = 300 GPH minimum required flow at operating head pressure.
Livewell Drain Assembly, Tailpiece, and Standpipe Configurations
Water evacuation relies on a specialized livewell drain assembly installed at the lowest point of the bait tank floor. The assembly features a threaded tailpiece that penetrates the tank bottom and secures to the marine hose via a reinforced barb or compression connection. To maintain tank water height while enabling continuous overflow evacuation, systems utilize either an internal removable standpipe inserted directly into the drain assembly or a dual-drain wall fitting. The tailpiece bridges the gap between the tank shell and the discharge hose, functioning similarly to a sink tailpiece in residential plumbing, but engineered from non-corrosive nylon, Marelon, or 316 stainless steel to withstand saltwater immersion.
Overflow Systems, Vent Pipe Loops, and Anti-Siphon Air Valves
Upper overflow ports prevent tank over-pressurization and spillover into the bilge. Gravity-driven overflow lines utilize a smooth-wall flex hose routed directly to an above-waterline discharge thru-hull. When routing drain lines below the static waterline or through stepped hulls, a vent pipe loop or an Air Admittance Valve (AAV valve) variant—specifically a marine anti-siphon loop with a atmospheric vent valve—is installed at the highest point of the run. This prevents siphoning effects from drawing water back into the livewell or pulling bilge water inward when the pump shuts off.
Heavy-Duty PVC Hose Lines, Slip Joint Connections, and Macerators
Connections between the aerator head, pump, and drain assembly utilize heavy-duty corrugated or smooth-bore marine PVC tubing. While standard residential installations rely on rigid Schedule 40 PVC with glued slip joint fittings, marine livewell plumbing requires flexible vinyl or reinforced PVC hose secured with double stainless steel hose clamps. Where rigid PVC transitions occur—such as bulkheads or manifold splitters—slip joint unions with EPDM O-rings facilitate rapid pump replacement without cutting structural pipe. In specialized fish box systems where scale, bait debris, and organic waste accumulate, an inline macerator pump replaces simple gravity discharge, grinding solids prior to evacuation, functioning similarly to a heavy-duty industrial garbage disposal.
Recommended Best Deal Products

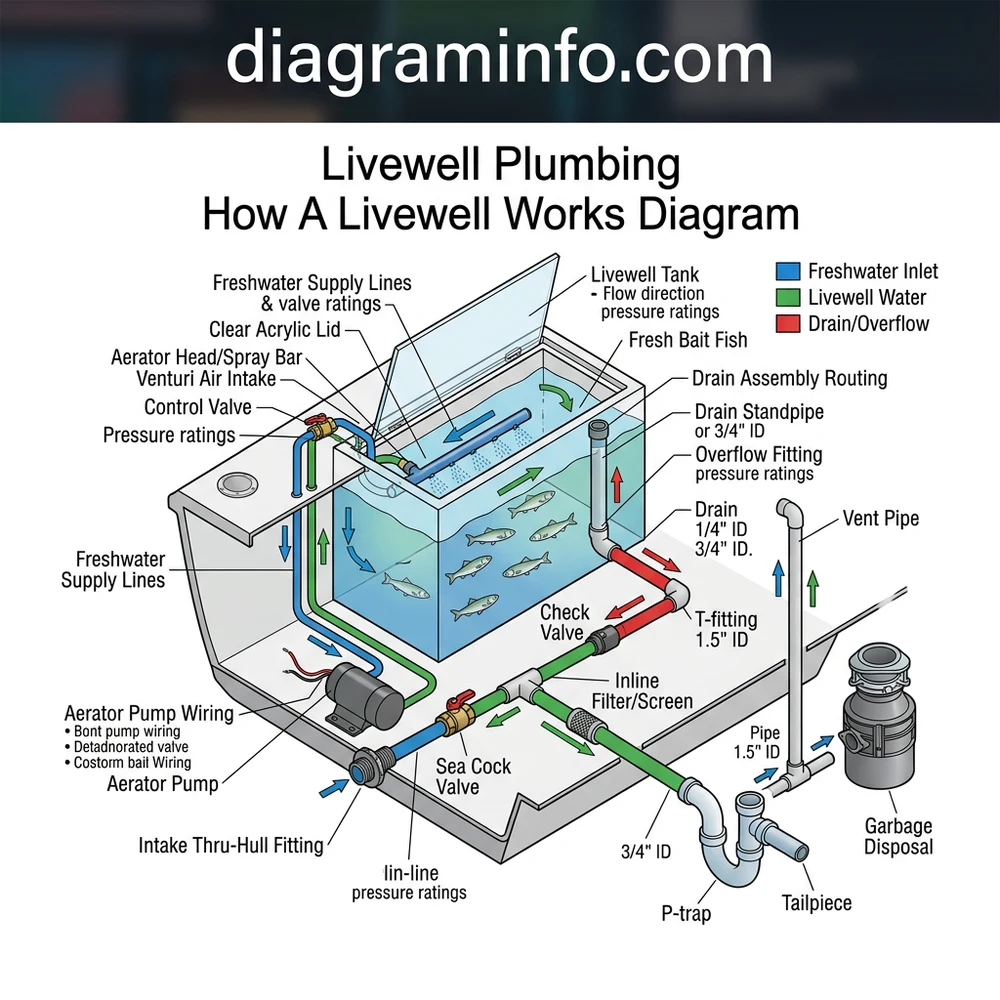

How to Read a Livewell Plumbing How A Livewell Works Diagram
Deciphering a livewell plumbing diagram requires following fluid motion across three distinct operational modes: Fill/Open-Flow, Recirculation, and Pump-Out/Drainage. Each mode alters the hydraulic pathway via directional control valves or dual-pump switching circuits.
Primary Intake Cycle: Seacock Thru-Hull to Livewell Tub
As illustrated in standard system schematics, raw ambient water enters through the transom or bottom-mounted thru-hull scoop. Opening the seacock allows water to reach the impeller chamber of the intake aerator pump. When energized via a 12V DC control switch (protected by an inline 5A to 10A fuse), the impeller pushes water vertically through a 3/4-inch smooth-bore marine PVC hose. The pressurized stream passes through a directional control valve and terminates at the aerator spray head mounted near the top of the livewell tank. The spray head injects air into the water stream using a Venturi valve, dispersing micro-bubbles to maximize oxygen absorption before the water collects in the tub.
Venturi-style aerator heads draw atmospheric air into the incoming water pipe through a small air intake tube. As water passes through the restricted nozzle inside the head, velocity increases while static pressure drops, pulling outside air directly into the stream without requiring an external air pump air compressor.
Aeration and Recirculation Loop Mechanics
When operating in muddy water, harbors, or while transporting bait away from raw water sources, the system shifts from open-flow mode to closed recirculation mode. A secondary 12V DC recirculation pump draws water from a recessed suction strainer located near the bottom of the livewell. This water is pulled through an inline canister filter and pumped back through a secondary aerator head or oxygen diffuser. In closed-loop mode, the primary intake valve remains closed, preventing raw water influx while maintaining maximum dissolved oxygen levels and controlled water temperatures via inline livewell chillers or chemical conditioners.
| Plumbing Component | Standard Dimension / Spec | Material Construction | Operational Function |
|---|---|---|---|
| Intake Thru-Hull Scoop | 3/4″ NPT to 1-1/8″ NPT | Bronze / Marelon | Raw water intake while stationary or on plane |
| Livewell Drain Assembly | 1-1/2″ Straight / 90° Flange | High-Impact Nylon / Stainless Steel | Evacuates water and heavy waste via gravity |
| Overflow Hose Line | 1-1/2″ ID Helical Smooth-Bore | Reinforced Marine PVC Tubing | Prevents tank overflow during full continuous fill |
| Anti-Siphon Vent Loop / AAV Valve | 3/4″ to 1-1/2″ Barbed Assembly | Polypropylene with Nitrile Valve | Breaks hydraulic siphoning on discharge lines |
| Waste Macerator Pump | 12V DC / 12-16 Amps | Epoxy-Coated Body / SS Cutter | Grinds fish waste prior to pump-out evacuation |
Gravity Drain Assembly and Overflow Discharge Pathways
As the livewell continuously receives fresh sea water, displaced water climbs to the level of the internal overflow port or top of the removable standpipe. Water enters the 1-1/2 inch drain assembly and flows by gravity through flexible reinforced PVC lines down to the thru-hull fitting above the waterline. Unlike residential plumbing systems that utilize a trap configuration such as a P-trap to retain water seals and block sewer gas, marine livewell plumbing systems maintain direct downward pitch toward the discharge point. Eliminating horizontal low spots prevents stagnant water retention, scale build-up, and airlocks that restrict high-volume water dump rates during tank draining.
Troubleshooting Livewell Plumbing Systems and Hydraulic Failures
When a livewell system fails to fill, hold water, or evacuate properly, systematic troubleshooting following the system diagram isolates electrical, mechanical, and hydraulic faults.
Always double-clamp all marine PVC hose connections below the maximum heel waterline using 316-grade stainless steel worm-drive clamps. A ruptured intake hose or failing slip joint on an open seacock can flood the bilge at rates exceeding 1,000 GPH, risking vessel swamping.
Low Flow Rate and Air Locks in the Intake Line
If the aerator pump motor runs but delivers little or no water to the spray head, the primary cause is an air lock inside the pump housing or dynamic resistance from improper hose routing. Centrifugal pumps used in marine livewells are non-self-priming; they require static head pressure from raw water to push trapped air out of the impeller housing.
- Check Hose Pitch: Ensure the 3/4-inch PVC hose ascends continuously from the seacock pump outlet to the livewell spray head without sags or dips. Dips trap air pockets that stop pump priming.
- Inspect Intake Strainer: Clear weeds, marine growth, or plastic debris from the transom scoop fitting and internal pump housing.
- Verify Voltage Specs: Check terminal voltage at the pump using a digital multimeter. A pump receiving 10.5V DC instead of its rated 12.6V DC experiences a 35% reduction in flow capacity. Refer to marine bilge pump wiring diagrams for proper wire gauge sizing standards over long wire runs.
Airlock Prevention with Vent Pipe Lines and AAV Valve Setup
When discharge lines submerge below the external waterline—common on heavily laden vessels or stern-heavy tournament boats—backpressure builds within the overflow line. Trapped air inside the upper overflow pipe creates an air lock that blocks water flow, causing the livewell to overflow into the boat interior. Installing a dedicated vent pipe line or an inline marine AAV valve at the highest point of the overflow arc breaks the atmospheric vacuum, allowing gravity evacuation to resume immediately.
Backflow, Leaks at Slip Joint Assemblies, and Drain Blockages
Water leaking into the bilge around the livewell base indicates a compromised drain assembly, cracked tailpiece, or degraded PVC hose joint. Inspect all connections according to these diagnostic criteria:
- Tailpiece Stress Cracks: Over-tightening threaded locknuts on plastic drain fittings fractures the tailpiece flanges. Inspect for hairline cracks using a high-intensity inspection light.
- Slip Joint Seal Compression: Check compression nuts on adjustable drain connections. Ensure rubber compression seals have not hardened due to chemical cleaners or salt crystallization.
- Macerator/Disposal Impeller Jamming: For specialized fish box drains utilizing heavy maceration pumps, mechanical jams occur when scales or hard fish bones lodge in the stainless steel cutter head. De-energize the breaker, disconnect power, and manually rotate the rear motor shaft hex screw to free the obstruction—a process identical to servicing an obstructed household garbage disposal unit. Additional details on macerator system mechanics can be found in our comprehensive guide to boat macerator pump troubleshooting.
Livewell Plumbing How A Livewell Works Diagram Technical FAQ
How Does a Livewell Dual-Pump Plumbing System Prevent Air Locks?
Dual-pump livewell configurations separate fresh raw water intake from internal recirculation. The primary intake pump mounts directly below the waterline on a high-speed thru-hull pickup, ensuring positive flooded-suction pressure that forces air out of the pump chamber while the boat is in motion. The secondary recirculation pump operates inside an isolated loop below tank water level, drawing from a submerged drain assembly screen so air cannot enter the suction line during rough water operation.
What Is the Difference Between a Livewell Drain Assembly and Standard P-Trap Plumbing?
A standard residential drain utilizes a curved P-trap filled with water to seal sewer gases out of living spaces. In contrast, a marine livewell drain assembly eliminates traps entirely, using a direct downward-sloped pitch terminating at an above-waterline discharge thru-hull. Traps are avoided in marine livewells because trapped water would stagnate, collect fish scales and organic material, restrict flow volume, and freeze during winter storage, causing cracked PVC lines.
Can Flexible Marine PVC Tubing Be Used with Slip Joint Compression Fittings?
Flexible marine PVC tubing can be integrated with rigid Schedule 40 PVC slip joint fittings, provided hard barbed adapters or schedule-matched PVC insert bushings are used. Straight clamping of flexible tubing directly over smooth PVC slip joints is prone to slipping under pump pressure cycles. Secure every flex-to-rigid junction using high-torque 316 stainless steel hose clamps over ribbed barbed tailpieces to meet ABYC marine safety guidelines, or reference our thru-hull seacock installation guide for below-waterline bonding techniques.
Why Is an Anti-Siphon Vent Pipe or AAV Valve Needed on Livewell Overflows?
When a boat rests low in the water or sways in heavy seas, the exterior overflow thru-hull fitting may drop below the water level outside the hull. Without an anti-siphon vent pipe or marine air admittance valve (AAV valve) at the peak of the plumbing loop, water can reverse flow through the drain pipe via siphoning action, flooding the livewell or preventing proper gravity overflow evacuation. The vent valve opens under negative pressure to break the vacuum seal and maintain smooth gravity flow.
How Do Macerator Pumps Differ From Household Garbage Disposal Units in Marine Plumbing?
While both systems use rotary blades to shred solid debris, a marine macerator pump integrates a flexible rubber impeller working in tandem with a stainless steel cutter plate inside a sealed 12V DC housing. Household garbage disposal units rely on heavy induction motors and centrifugal slinger blades inside large 120V AC chambers designed for high-volume solid waste. Marine macerator pumps are compact, ignition-protected against gas fumes, and engineered specifically to grind fish waste, scales, and soft bait before pumping the slurry through 1-1/2 inch PVC drain lines.
Step-by-Step Guide to Understanding the Livewell Plumbing How A Livewell Works Diagram
Identify – Locate the raw water intake seacock valve, aerator pump housing, fill nozzle, and overflow drain assembly using the plumbing layout.
Locate – Find the electrical supply wires running to the 12V aerator pump switch and inspect the 5-amp inline fuse block for continuity.
Reference – Consult the diagram to verify continuous upward slope on the intake line to prevent air-locking the centrifugal pump impeller.
Connect/Route – Secure 3/4-inch supply line to the pump outlet using double stainless steel hose clamps, avoiding tight bends that kink.
Verify – Run raw water through the system while stationary and under way to ensure proper siphon-break action and leak-free drain assembly connections.
Troubleshoot – Clear blockages in the spray head nozzle or clean marine debris from the transom intake screen if flow drops below normal.
