TaoTao 110cc ATV Parts Diagram: Component Breakdown (2026)
The TaoTao 110cc ATV parts diagram details a 107cc horizontal single-cylinder 4-stroke engine system paired with a 5-pin AC-CDI ignition, standard PZ19 carburetor, and 12V electrical layout. Key structural components include a tubular steel frame, dual A-arm front suspension, and a hydraulic rear disc brake assembly.
📌 Key Takeaways
- Engine layout utilizes a 107cc 4-stroke single-cylinder with a 0.002-inch valve clearance specification for intake and exhaust.
- Electrical system features a standard 5-pin AC-CDI with color-coded stator wiring: blue/white (pickup), black/red (power), and green (ground).
- Torque cylinder head bolts to 10-12 ft-lbs and wheel lug nuts to 25-30 ft-lbs to prevent chassis and engine damage.
- PZ19 carburetor clogging from stale fuel represents over 70% of non-starting issues in this configuration.
- Perform carburetor cleanings and CDI replacements yourself, but seek professional service for internal gearbox or crankcase rebuilds.
Maintaining a small-displacement utility or sport quad requires an exact understanding of its mechanical and electrical architecture. Navigating a taotao 110cc atv parts diagram allows mechanics and service technicians to isolate failing sub-assemblies, identify precise OEM part numbers, and verify correct component orientation. Models such as the Taotao ATA-110D, Boulder B1, and 110-B rely on a standardized horizontal 107cc engine platform derived from classic horizontal single-cylinder layouts. Using an explicit structural layout eliminates assembly errors, ensures proper bolt torque sequences, and streamlines electrical wire routing during major overhauls or routine maintenance.

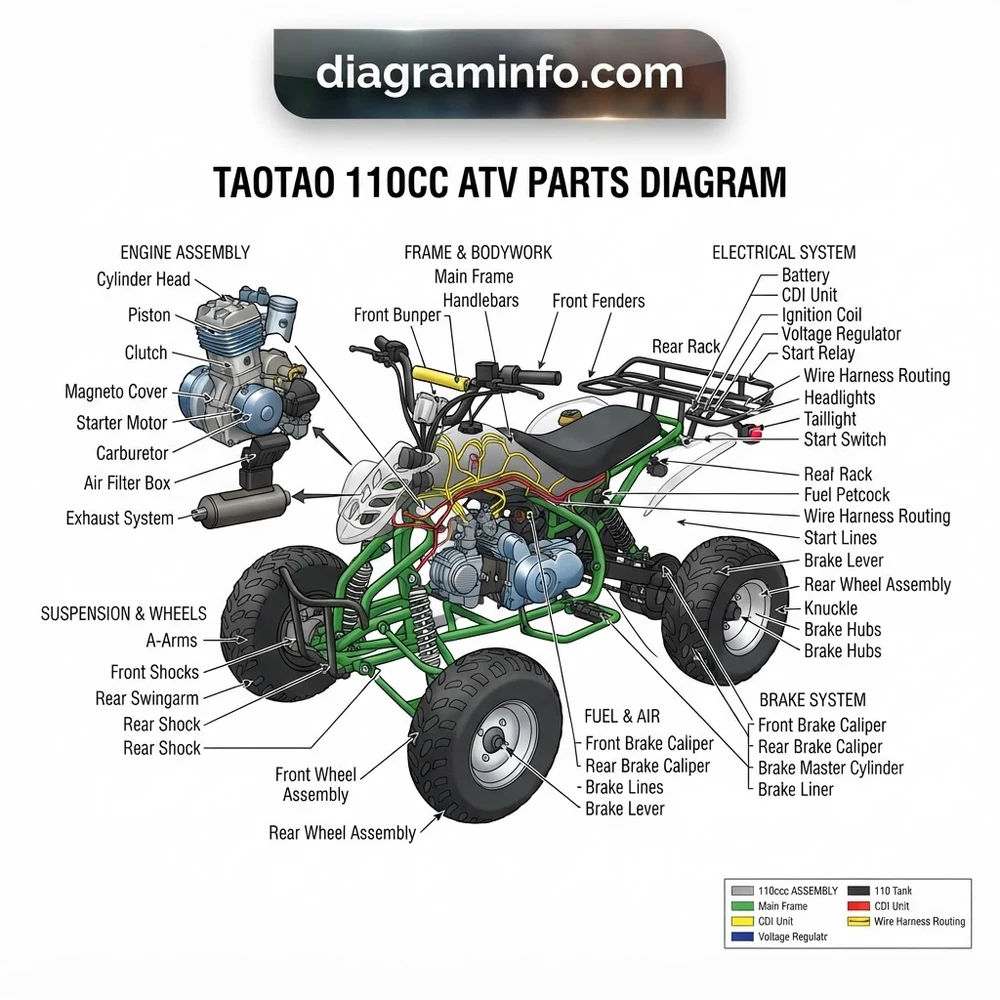

Taotao 110cc ATV Parts Diagram: Complete Engine and Chassis Breakdown
Deconstructing the general layout of a 110cc Taotao ATV requires dividing the machine into three primary systems: the powertrain assembly, the electrical infrastructure, and the structural chassis with braking equipment. Across most production years, the underlying architecture remains consistent, though minor variations exist between automatic single-speed models and units equipped with reverse gears.
Recommended Best Deal Products
Powertrain System and 107cc Cylinder Assembly
The core power production system consists of a air-cooled, four-stroke, single-cylinder engine with a bore of 52.4 mm and a stroke of 49.5 mm (yielding a total displacement of 107cc). The cylinder layout positions the top end horizontally forward. When referencing the internal parts layout, the valve train utilizes an overhead camshaft (OHC) driven by a lower timing chain off the crankshaft sprocket.
• Cylinder Bore: 52.4 mm | Stroke: 49.5 mm
• Valve Lash Clearance (Cold): Intake 0.05 mm (0.002 in) / Exhaust 0.07 mm (0.003 in)
• Cylinder Head Nut Torque: 9–12 lb-ft (12–16 Nm) in a cross-pattern
• Crankcase Oil Capacity: 0.8 Quarts (15W-40 4-Stroke Motorcycle Oil, JASO MA certified)
The engine bottom-end houses an automatic centrifugal clutch linked to a reduction gear system. For precise valve timing procedures, cross-reference the timing marks on the flywheel schematic with the cam gear index mark. For step-by-step top-end maintenance, refer to our comprehensive horizontal engine valve adjustment guide.
Electrical System Layout and Control Components
The electrical schematic centers around a 12-volt direct-current (DC) system powered by a stator generator and regulated by a full-wave or half-wave rectifier unit. Ignition timing is governed by an alternating-current (AC) or direct-current (DC) Capacitor Discharge Ignition (CDI) module that receives a pulse signal from the magneto pick-up coil.
| Component | Function | Key Technical Identifier |
|---|---|---|
| Stator / Magneto Assembly | Generates AC voltage for ignition and battery charging | 2-Coil or 6-Coil configuration with pickup trigger |
| CDI Unit Module | Controls spark firing timing relative to crank position | 5-Pin Male Plug (AC) or 6-Pin Dual-Plug (DC) |
| Starter Solenoid Relay | Switches high amperage from battery to starter motor | Dual-post 12V 30A relay with inline blade fuse |
| Regulator / Rectifier | Converts AC stator output to stable 13.8–14.5V DC | 4-Pin aluminum heat-sink housing |
Suspension Structure and Braking Configuration
The frame layout utilizes a steel tube welded construction configured to support dual A-arm front suspension systems on sport variants, or single A-arm setups on budget utility builds. The rear suspension features a solid steel swingarm supported by a single monoshock linked to an axle carrier housing. The braking infrastructure relies on front mechanical drum or dual hydraulic disc assemblies paired with a master-cylinder-driven rear hydraulic disc setup clamped onto the main drive axle rotor.
Recommended Best Deal Products
How to Read the Taotao 110cc ATV Electrical Schematic and Blueprint
Interpreting a technical schematic or blueprint requires translating two-dimensional symbols into physical wire harnesses and mechanical hardware. When reading a taotao 110cc atv parts diagram, begin at the power source (the 12V battery) and trace circuits outward through switching mechanisms to ground termination points.
Tracing High-Tension Ignition and CDI Circuit Layouts
The ignition subsystem on standard Taotao 110cc quads relies on an independent AC ignition source winding within the stator magneto assembly. The schematic maps these connections through dedicated color-coded wires. Understanding wire harness pinouts prevents miswiring that could damage replacement solid-state electronics.
• Green: Frame / Battery Negative Ground
• Black / Yellow: CDI Output to High-Tension Ignition Coil
• Black / Red: Stator AC Ignition Power to CDI
• Blue / Yellow: Crankshaft Trigger / Pulse Sensor Signal to CDI
• Black / White: Ignition Key Switch Kill Circuit Line
To accurately diagnose no-spark conditions across different engine build generations, inspect pin configurations using our detailed guide on 5-pin vs 6-pin AC CDI ignition modules.
Identifying Fuel System Blueprint References and Carburetor Assembly
The fuel configuration consists of a gravity-fed plastic or steel tank routed through a 3/16-inch (5mm) fuel line, an inline screen filter, and a PZ19 cable-operated slide carburetor. Below is the structural layout sequence of the intake assembly from the cylinder head outward:
- Cylinder Intake Port: 19mm intake passage with O-ring sealing groove.
- Thermal Insulator Spacer: Phenolic plastic spacer plate preventing engine heat transfer to the body.
- Intake Manifold Pipe: Curved aluminum runner mounting the carburetor offset from the head.
- PZ19 Carburetor Body: Houses the main jet (#65–#75 stock), pilot jet (#32 stock), float valve, and manual or remote cable choke mechanism.
- Air Filter Housing: Clamp-on 35mm high-flow foam or paper element filter.
Decoding Frame Structural Diagrams and Fastener Specifications
Frame and suspension blueprints utilize callout numbers cross-referenced with a master bill of materials (BOM). Structural fasteners use metric thread pitches. Critical structural hardware includes M8 x 1.25 pivot bolts for A-arms and swingarms, M10 x 1.25 shock mounting bolts, and M12 x 1.5 castle nuts securing front wheel hubs and rear axle hubs. Always check safety cotter pin alignment on castellated nuts along wheel hubs and steering tie-rod end joints.
Diagnosing Failures Using the Taotao 110cc ATV Parts Layout
When executing field repairs, pairing symptom analysis with an official parts layout speeds up failure isolation. Below are diagnostic workflows for electrical, mechanical fuel, and chassis system failures.
Electrical No-Spark Diagnostics and Ignition System Voltage Drops
If the engine cranks but refuses to ignite, isolate components using systematic multimeter testing along the primary ignition blueprint:
- Verify Ground Integrity: Measure resistance between the engine case and the green ground harness line. Values must read below 0.5 Ohms.
- Test Stator AC Output: Unplug the stator harness. Crank the engine while reading AC voltage across the Black/Red wire and ground. Expect 40V AC to 70V AC during cranking.
- Measure Trigger Pulse signal: Set the meter to low AC voltage or peak voltage. Crank the engine and read output from the Blue/Yellow wire. Expect 1.5V AC to 3.0V AC pulses.
- Inspect CDI Output: Connect probes across the Black/Yellow ignition coil signal wire and ground. Crank engine; if AC voltage is under 20V AC despite good input signals, the CDI module has suffered internal breakdown.
The ignition coil steps up circuit voltage to over 15,000 Volts DC to jump the spark plug gap. Do not hold bare ignition wires or spark plug caps directly during cranking diagnostic tests to avoid severe electrical shock.
Fuel Delivery Blockages and Carburetor Jetting Verification
Engine stalling, lean hesitation, or refusal to run without full choke indicates fuel metering restrictions within the carburetor sub-assembly. Follow this breakdown sequence:
- Confirm fuel flow from the tank outlet nipple through the inline filter (minimum flow rate: 100 ml per minute under gravity).
- Remove the PZ19 float bowl and inspect for varnish or sediment contamination.
- Unscrew the main jet and pilot jet. Clean internal metering orifices using copper wire and carb cleaner. Verify light passes through the tiny 0.014-inch pilot jet orifice.
- Set the float height to 13mm measured from the bowl gasket surface to the bottom edge of the float float seam with the float needle lightly seated.
Hydraulic Brake System Bleeding and Pressure Loss Recovery
A spongy brake lever on models with rear hydraulic disc systems indicates air entrainment inside the fluid lines or failing internal piston seals within the master cylinder assembly. If pressure cannot be restored after replacing pads or lines, execute standardized ATV hydraulic disc brake bleeding procedures to purge trapped air bubbles from the line high points.
Frequently Asked Questions Regarding Taotao 110cc ATV Parts Diagrams
Where can I locate the VIN number on a Taotao 110cc frame diagram?
On most Taotao 110cc chassis configurations, the 17-digit Vehicle Identification Number (VIN) is stamped directly into the front vertical frame cross-tube located behind the front bumper, or onto an aluminum plate riveted to the lower frame rail near the footrests. This VIN identifies the exact manufacturing year and model series required to source matching structural parts diagrams.
Are Taotao 110cc engine components interchangeable with horizontal Honda clone parts?
Yes, the Taotao 107cc power plant is an exact structural derivative of the horizontal Honda CRF70/TrX70 engine architecture. Major components such as top-end cylinder kits, piston rings (52.4mm diameter), intake manifolds, stator covers, and oil pump assemblies interchange directly with standard Chinese 110cc horizontal engine platforms (152FMH engine code designation).
What ignition stator wire configuration is standard on Taotao 110cc models?
Standard electric-start Taotao 110cc quads feature either a 2-coil or 6-coil magneto stator. The harness output plug typically incorporates 5 wires: Green (Ground), Blue/Yellow (Timing Pickup Sensor), Black/Red (CDI AC Power), and Yellow plus White wires connected directly to the voltage regulator for 12V battery charging and lighting circuit output.
How do I determine if a Taotao 110cc ATV uses a 5-pin or 6-pin CDI unit?
Check the physical wire connector leading to the stock module. A 5-pin CDI utilizes a single round plastic plug housing five spade terminals arranged in a 3-and-2 layout; this configuration runs on AC voltage from the stator. A 6-pin CDI typically uses a dual-plug arrangement (4-pin + 2-pin) and operates on regulated 12V DC power supplied directly from the ignition key switch.
What are the OEM bolt torque specs for the cylinder head and engine case?
M6 engine side cover bolts require 7–9 lb-ft (10–12 Nm). The four M8 cylinder head cap nuts must be torqued in a diagonal criss-cross pattern to 9–12 lb-ft (12–16 Nm) to avoid warping the head gasket seat. The flywheel rotor retaining nut requires 30–35 lb-ft (41–47 Nm) applied to a clean, non-lubricated crankshaft taper.
Step-by-Step Guide to Understanding the Taotao 110Cc Atv Parts Diagram
Identify – Locate the specific system layout section on the TaoTao 110cc ATV parts diagram.
Locate – Find the corresponding physical component on the vehicle frame, engine block, or wiring harness.
Reference – Cross-check component numbers and color codes against OEM factory specifications.
Connect/Route – Assemble or route wires and mechanical linkages according to the layout diagram pathways.
Verify – Inspect hardware torque and test electrical continuity using a digital multimeter before starting.
Troubleshoot – Trace isolated power drops or fuel flow restrictions back through the diagram paths if operation fails.
