John Deere Snowblower Parts Diagram: 2026 Repair
A John Deere snowblower parts diagram details the mechanical layout of the auger assembly, impeller, drive belt system, and chute control mechanism. It highlights critical wear items like Grade 5 shear bolts (part #19M7834), drive belts, and friction discs, illustrating exact component relationships and fastener torque specifications for efficient maintenance.
📌 Key Takeaways
- Identifies essential wear items including Grade 5 shear bolts (1/4-20 x 1-1/2 inch) and auger drive belts.
- Shows exact drive belt routing and friction disc alignment within the lower frame structure.
- Specifies fastener torque standards, such as 15-18 ft-lbs for auger shaft bearing retaining hardware.
- Highlights common failure points like broken shear pins, worn friction rubber rings, and stretched cables.
- Guides DIY servicing for routine belt and pin replacements while signaling engine or gearbox rebuild limits.
Navigating a john deere snowblower parts diagram is essential when servicing, rebuilding, or troubleshooting high-capacity snow-removal equipment. Whether you are maintaining a two-stage walk-behind unit like the TRS or D-series, or servicing a heavy-duty tractor-mounted 44-inch or 47-inch snow blower attachment, understanding the mechanical structure and spatial assembly layout ensures accurate teardowns and precise replacement of worn components. OEM schematics reveal the exact order of internal drive belts, gearcase shims, hex shafts, shear pins, and tensioner linkages. This technical guide breaks down every primary mechanical system, providing exact torque specifications, part identification rules, diagnostic workflows, and structural reference data for professional equipment technicians and advanced DIY mechanics.

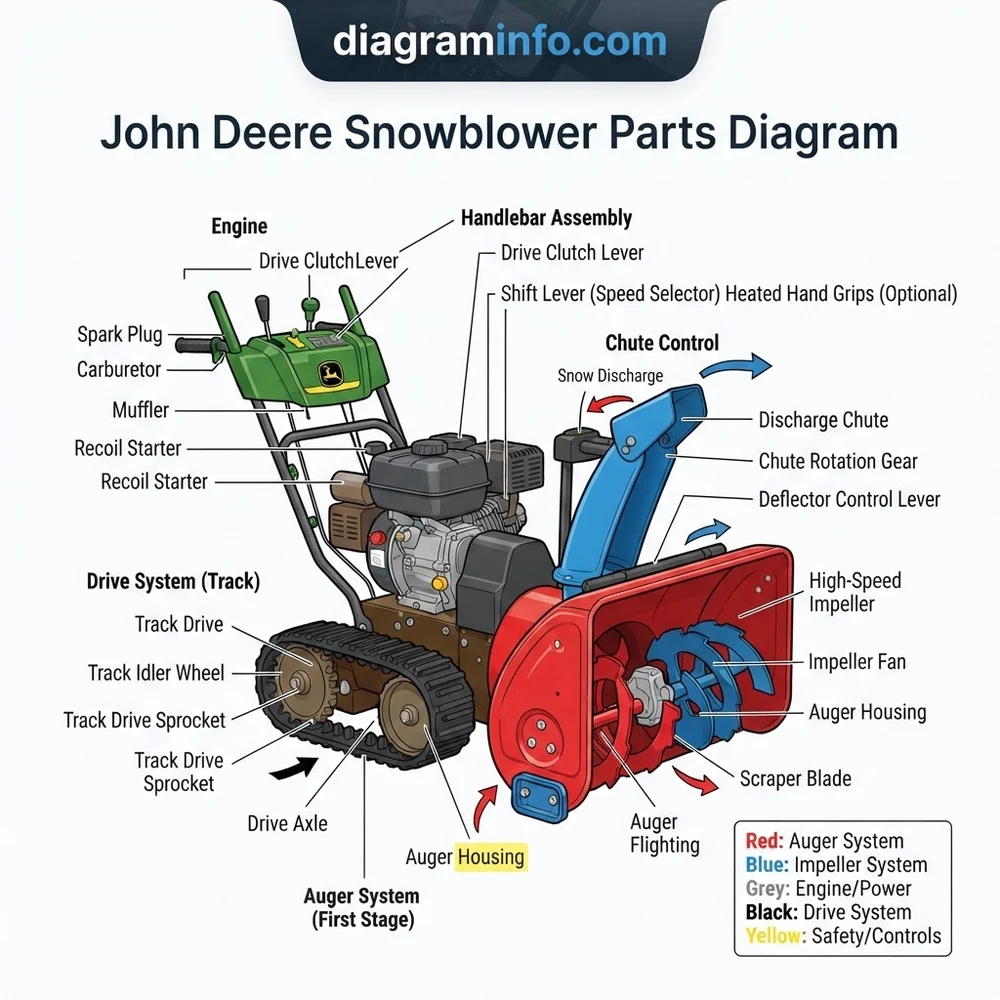

John Deere Snowblower Parts Diagram: Core System Layout
The mechanical architecture of a John Deere snow thrower relies on interconnected mechanical systems engineered to operate under high torque and sub-freezing conditions. Analyzing the structural overview of these assemblies prevents installation errors during field overhauls and complete gearcase teardowns.
Recommended Best Deal Products
Auger Housing and Impeller Assembly
The front housing configuration encloses the primary gathering augers and the secondary high-speed discharge impeller. Heavy-gauge serrated steel flighting gathers packed snow and ice, feeding it directly into the 4-blade directional fan assembly. The central brass or bronze worm gear reduction drive transfers rotational kinetic energy from the tractor PTO or engine crankshaft to the dual auger shafts. Primary mechanical breakdown points on this schematic section include heavy-duty flange bearings, replaceable steel skid shoes, adjustable scraper blades, and specialized Grade 2 soft shear bolts designed to snap under sudden obstruction torque to protect the internal brass worm wheel from stripping.
Drive Train and Friction Disc Configuration
In walk-behind self-propelled models, traction drive control uses a variable-speed friction wheel mechanism. The engine crank pulley drives a secondary drive shaft that rotates a flat cast-iron drive plate. A shift-fork linkage translates a rubber-rimmed friction disc radially across the face of the rotating drive plate to vary ground speed and reverse direction. This rotational motion transfers down a hexagonal drive shaft to a reduction chain sprocket, engaging the dual-wheel axle differential setup. On tractor-mounted attachments, this system is replaced by a shaft-driven or belt-driven PTO tensioner assembly connected to the tractor’s mid- or front-mount hitch.
Discharge Chute Control and Rotator Schematic
The directional chute system utilizes either a mechanical worm gear with a flex-shaft hand crank or an electric spout actuator driven by a 12V DC motor circuit. The chute base sits on a low-friction nylon liner ring secured with retaining flanges to allow 180 to 200 degrees of horizontal rotation without binding.
Auger Shaft Endplay: 0.005 in. to 0.015 in. (0.127 mm to 0.381 mm). Shear Pin Torque Limit: 8 to 10 lb-ft (10.8 to 13.5 Nm). Friction Disc Rubber Thickness Minimum: 0.125 in. (3.17 mm) lip height over steel carrier ring.
| System Component | OEM Reference Part No. | Material / Design Standard | Service Tolerance / Spec |
|---|---|---|---|
| Auger Shear Bolt | 19M7834 / AM122156 | Grade 2 Zinc-Plated Steel | 1/4-20 x 1-3/4 in. Break Yield |
| Bronze Worm Gear | M143286 / AM132808 | Cast SAE 660 Bronze | 20-Tooth Pitch, 0.008 in. Backlash |
| Friction Drive Ring | M110594 / AM123355 | High-Friction Vulcanized Rubber | Replace when flat spots exceed 1/16 in. |
| Impeller Bearing | JD8535 / AM124239 | Sealed Radial Ball Bearing | 30mm ID x 62mm OD x 16mm Width |
| Auger Drive Belt | M127523 / M154897 | Kevlar Aramid Cord Wrap | 1/2 in. Width x 38.5 in. Effective Length |
How to Interpret Your John Deere Snowblower Parts Schematic
Reading an OEM blueprint correctly requires understanding exploded-view conventions, indexing systems, callout symbols, and spatial relationships between sub-assemblies.
Recommended Best Deal Products
Decoding Callout Numbers and Fastener Dash Codes
Each exploded view on a john deere snowblower parts diagram indexes individual hardware and cast assemblies using numerical callouts matched to a master bill of materials (BOM). Hardware callouts provide strict thread pitch, diameter, length, and grade classification—for example, “M8x1.25×20 Grade 8.8” or “1/4-20 x 1-1/2 Grade 2”. Pay close attention to indexed sub-assemblies enclosed in dashed rectangular lines; these indicate factory-assembled components such as pre-shimmed gearboxes or complete chute cable control harnesses that are ordered as a single assembly number rather than piecemeal hardware.
Tracing Belt Routing and Tensioner Pulley Layouts
Belt routing schematics illustrate the dual-pulley engine drive system found on most tractor attachments and two-stage walk-behind blowers. The engine crankshaft pulley features two distinct grooves: the inner groove drives the wheel traction transmission, while the outer groove drives the high-tension auger engagement system. When tracing belt routing, verify that idler pulleys sit on the outside un-grooved back of the belt, and ensure belt guide brackets maintain a precise 0.060-inch to 0.090-inch air gap from the pulley flange when the control bail is disengaged. For detailed PTO engagement troubleshooting, consult our contextual guide on tractor PTO clutch diagnostics and belt alignment.
Verifying Serial Number Breaks and Model Year Revisions
John Deere regularly updates internal gear ratios, belt lengths, and bearing carrier plates within the same model series. Always locate the 13-digit product identification number (PIN) or serial number plate attached to the main frame housing before referencing a blueprint. Serial numbers beginning with `1M0` or `GX` indicate specific assembly plant modifications that dictate whether your unit utilizes press-fit pillow block bearings or bolt-on 3-bolt flange housings.
When ordering parts from a John Deere schematic, check the model prefix. For example, a 44-inch snowblower attachment with serial prefix “MO044X” uses a totally different drive belt length and quick-hitch assembly than prefix “MOA44X”. Always verify serial breaks listed in the schematic margin notes.
John Deere Snowblower Parts Diagram Diagnostics and Fixes
Field mechanics and equipment operators can isolate mechanical failures rapidly by cross-referencing symptom behaviors directly against the parts blueprint system layout.
Auger Gearcase Locking or Stripped Worm Gear
Symptom: The center impeller fan spins at high speed when engaged, but the primary serrated auger flighting does not rotate under snow load.
Diagnostic Procedure: Consult the front gearcase layout diagram. Disconnect the spark plug or PTO shaft. Manually rotate the front augers. If the auger turns freely by hand without moving the impeller shaft, check the shear bolts. If the shear bolts are intact, the internal bronze worm wheel (Part # M143286) has stripped its internal gear teeth due to lubrication breakdown or hitting a solid object with hard non-OEM bolts.
Fix Procedure: Unbolt the outer housing side flanges, slide off the support bearings, and extract the complete auger shaft assembly. Unbolt the split gearcase halves shown on the blueprint. Press out the damaged bronze gear, replace shaft seals (Part # M40676), re-shim endplay to 0.010 inches, and pack the housing with John Deere Low Temperature Synthetic Grease or GL-5 80W-90 oil as designated by the model schematic.
Drive System Slipping or Loss of Self-Propulsion
Symptom: Engine operates normally and the auger throws snow, but the walk-behind unit loses forward motion or slips under load.
Diagnostic Procedure: Refer to the lower belly pan friction disc schematic. Remove the bottom frame shield. Inspect the rubber friction drive ring (Part # M110594) suspended on the hex drive shaft.
Fix Procedure: Measure the rubber friction ring rim thickness. If the outer rubber edge is worn flush with the steel side plates or contaminated with grease, replace the ring assembly. Clean the polished surface of the cast-iron drive plate with electrical contact cleaner or brake cleaner. Adjust the mechanical shift rod trunnion to ensure the friction wheel centers perfectly across the drive plate during gear selection, and adjust cable tension until the engagement clutch spring stretches exactly 0.25 inches when the handlebar bail is fully depressed.
Excessive Shaft Vibration and Impeller Noise
Symptom: High-frequency shaking resonates through the handles or tractor frame when the auger system is engaged.
Diagnostic Procedure: Reference the rear auger housing fan assembly diagram. Check for radial play in the main impeller shaft ball bearing (Part # JD8535) located directly behind the collector fan.
Fix Procedure: Inspect the steel fan blades for deformation caused by gravel or ice ingestion. Replace the rear support bearing, install new locking collars, and re-torque mounting flange hardware to 18 lb-ft. If you are experiencing engine power drops during engagement alongside severe vibration, review our technical guide covering small engine carburetor diagnostics and governor adjustments. Additionally, refer to our comprehensive John Deere belt replacement guide to check drive pulley groove pitch and tensioner arm alignment.
NEVER replace factory John Deere shear bolts with standard Grade 5 or Grade 8 zinc hardware store bolts. Standard hardened bolts will NOT shear during an auger jam, resulting in shattered cast-iron gear housing shells, broken bronze worm gears, or bent tractor engine crankshafts. Always install exact OEM Grade 2 replacement shear bolts with specified necked neck-down grooves.
Critical Drive and Housing Configuration Specifications
Reassembling snowblower sub-assemblies requires strict adherence to OEM fastener torques, lubricant grades, and belt tension parameters. Use the reference matrix below when rebuilding components mapped on the parts diagram.
| Assembly Section | Fastener / Component Item | Torque / Mechanical Spec | Fluid / Lube Capacity |
|---|---|---|---|
| Auger Gearcase Housing | Housing Split-Case Bolts (M6) | 85 to 110 lb-in (9.6 to 12.4 Nm) | 1.75 oz. GL-5 80W-90 or Synthetic Grease |
| Auger Gearcase Housing | Auger Shaft End Plug | 15 to 18 lb-ft (20.3 to 24.4 Nm) | N/A |
| Impeller Shaft Drive | Rear Bearing Lock Collar | 14 to 16 lb-ft (19.0 to 21.7 Nm) | John Deere Multi-Purpose Polyurea Grease |
| Drive Transmission | Hex Shaft Axle Sprocket Screws | 18 to 22 lb-ft (24.4 to 29.8 Nm) | Dry Film Graphite Lubricant on Hex Shaft |
| Tractor Front Hitch | Quick-Hitch Lock Pins & Brackets | 35 to 40 lb-ft (47.4 to 54.2 Nm) | Lithium Grease on Attachment Pins |
John Deere Snowblower Parts Diagram Frequently Asked Questions
How do I locate the exact OEM part numbers using my snowblower’s serial number schematic?
Locate the 13-digit product identification number (PIN) plate on the rear frame or hitch assembly of your John Deere snowblower. Match the PIN model prefix (such as MO044X or TRS27) against the schematic header in the OEM parts catalog. Once verified, locate the specific assembly diagram (e.g., “Auger Drive” or “Traction Control”), find the numbered callout corresponding to your physical component, and look up that index number in the master bill of materials table adjacent to the diagram.
What is the difference between Grade 2 and Grade 5 shear bolts on a John Deere auger shaft blueprint?
Grade 2 shear bolts are manufactured from low-carbon mild steel with specific yield grooves engineered to shear cleanly at predetermined torque limits (typically 8 to 10 lb-ft) when an auger strikes solid debris. Grade 5 bolts are medium-strength hardened carbon steel with much higher tensile yield strength. Installing a Grade 5 bolt where a Grade 2 bolt is specified in the schematic will prevent the bolt from snapping during an impact, causing severe structural failure of the brass worm gear or cast gearcase housing.
How do I identify the correct drive belt routing from the belt drive diagram?
Refer to the specific “Belt Drive and Idler Arm” configuration section of your unit’s schematic. Look for pulley groove indicators: grooved V-pulleys wrap against the inside narrow edge of the V-belt, whereas flat-faced tensioner idler pulleys must contact the flat outer back surface of the belt. Ensure the schematic’s safety belt guide tabs maintain a tight 1/16-inch clearance around pulleys to prevent belt throw when the bail handle is released.
What type of lubricant is required for the auger gearbox configuration on John Deere blowers?
Depending on the year and model identified on the schematic, John Deere auger gearboxes use either John Deere Special Purpose HD Synthetic Grease or SAE 80W-90 GL-5 Gear Lubricant. Gearboxes designed for grease lack a lower oil level sight plug and must be packed 70% full to allow for thermal expansion, whereas oil-filled boxes feature a upper fill plug and lower level check port that must be filled until fluid drips from the lower port level.
Why does my John Deere friction disc wheel fail prematurely according to drive layout diagnostics?
Premature wear on the friction wheel rubber ring (Part # M110594) usually stems from three main mechanical causes mapped on the traction schematic: oil or grease contamination on the friction drive plate, incorrect cable linkage adjustment causing constant slipping contact, or a misaligned shift fork linkage that prevents full contact across the face of the drive plate in forward gears.
Step-by-Step Guide to Understanding the John Deere Snowblower Parts Diagram
Identify – Locate your specific John Deere snowblower model number on the frame tag behind the engine.
Locate – Find the specific sub-assembly diagram, such as the auger housing, chute control, or drive friction system.
Reference – Match part key numbers on the exploded schematic with the manufacturer part numbers listed in the index.
Connect/Route – Route drive belts and control cables according to the path lines and pulley positions shown in the layout.
Verify – Check hardware torque against specifications, ensuring shear bolts are tightened to 12-15 ft-lbs without binding.
Troubleshoot – If components fail to engage properly, re-check belt tension alignments and cable anchor points against diagram callouts.
