Pentair MasterTemp 400 Parts Diagram: Component Guide (2026)

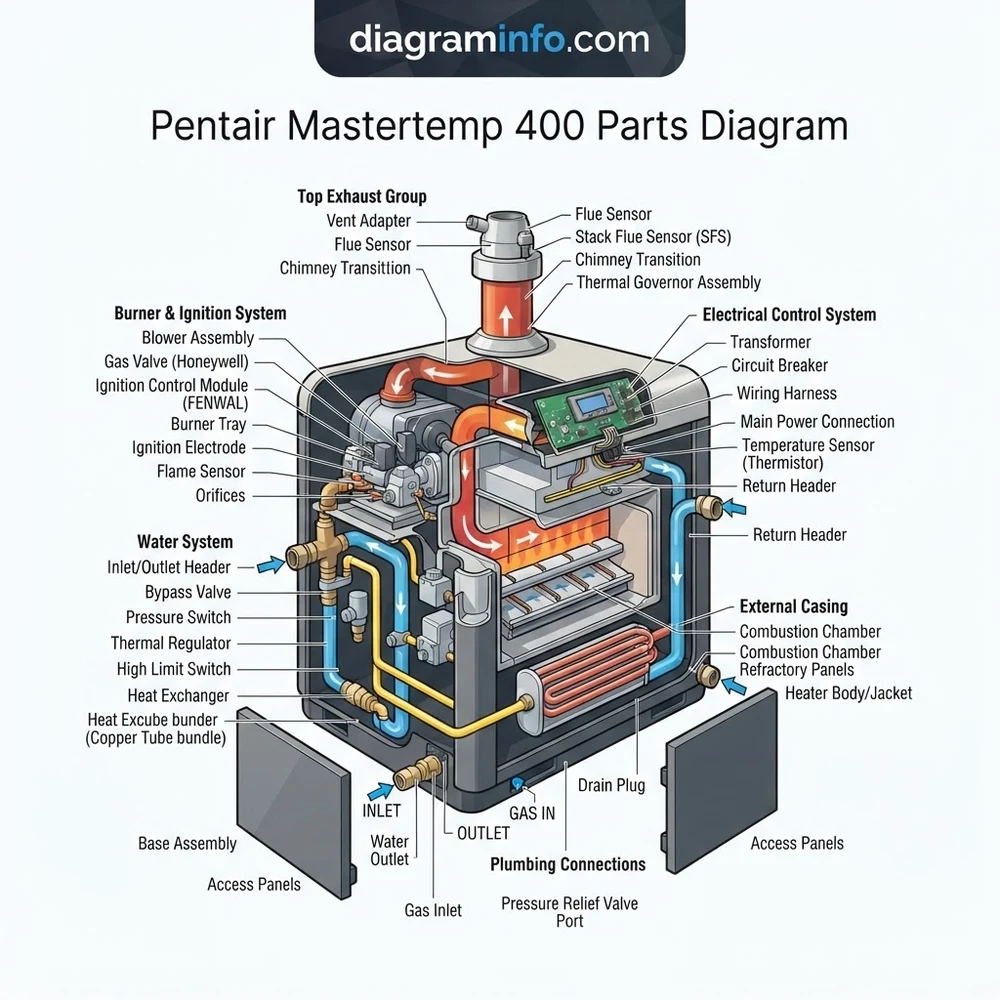

The Pentair MasterTemp 400 parts diagram outlines the internal heating assembly structure, including the combustion chamber, gas valve (460727), manifold assembly, thermistor (42001-0053S), and blower kit. The layout specifies the exact physical configuration of electrical controls, water system headers, and thermal regulators inside the rustproof enclosure.
📌 Key Takeaways
- Thermal regulator (42001-0011S) opens at 120°F (49°C) to prevent thermal shock to the heat exchanger structure.
- Ignition control module (42001-0052S) operates on 24VAC output supplied from the main step-down transformer.
- Never exceed 50 PSI maximum operating water pressure across the manifold header system connections.
- High limit switch trips at 135°F, making it a primary point of diagnosis during overheating lockouts.
- Gas valve pressure adjustments and internal combustion chamber rebuilds require certified technical service.
The Pentair MasterTemp 400 is a high-efficiency, forced-draft pool and spa heater rated at 400,000 BTU/hr. Understanding its internal structural assembly and electrical layout requires a technical breakdown of its primary sub-assemblies. This guide analyzes the pentair mastertemp 400 parts diagram, providing field technicians and experienced service personnel with component identification, schematic wiring paths, hydraulic manifold mechanics, and diagnostic protocols. By reviewing this blueprint, technicians can isolate system failures, replace worn internal modules, and maintain OEM compliance.
Pentair MasterTemp 400 Parts Diagram Component Breakdown
The system configuration of the Pentair MasterTemp 400 is divided into four main operational subsystems: the combustion air blower assembly, the fuel control train, the electrical control box, and the hydraulic heat exchanger module. Reference the primary breakdown below to identify OEM replacement components and structural positions.
| Subsystem / Component | OEM Part Number | Technical Specification |
|---|---|---|
| Control Board Kit (NA/LP) | 42002-0007S / 42002-0025S | Dual voltage 120/240VAC switchable, integrated LED display |
| Hot Surface Igniter (HSI) | 42001-0053S | 120V Nitride/Silicon Carbide, 40-75 Ω cold resistance |
| Combustion Blower Assembly | 460736 | Forced-draft induction, 120V/240V, sealed bearings |
| Thermal Regulator Kit | 42001-0063S | 120°F (49°C) activation threshold, spring-loaded bypass |
| Stack Flue Sensor (SFS) | 42002-0024S | 3.5k Ω at 77°F, trip limit 500°F (260°C) exhaust temp |
| Air Pressure Switch (AFS) | 42001-0060S | SPST contact, closes at 1.25″ w.c. blower pressure |
| High Limit Switch Set | 42001-0061S / 42001-0062S | 135°F (57°C) and 150°F (66°C) automatic reset limits |
When replacing the burner system components on pre-2009 MasterTemp units, cross-reference the control board revision. Units manufactured prior to 2009 require the updated wiring harness adapter included with replacement board kit 42002-0025S to correctly interface with the membrane pad layout.
The hydraulic system features a commercial-grade cupro-nickel or heavy-duty copper heat exchanger encased in an insulated combustion chamber. The water header manifold houses the internal bypass valve, drain plug, thermistor probe, and high-limit switches. For precise hydraulic head-loss values, refer to our detailed pool pump hydraulic head-loss calculators.
Navigating the Pentair MasterTemp 400 System Schematic and Layout
Tracing the electrical schematic and physical wiring layout requires understanding the safety sequence of operation. Power enters through the dual-voltage terminal block (configurable via the 120V/240V selector plug located on the control board PCB).
Never apply 240V line power without verifying that the voltage selector plug is inserted into the 240V socket on the ignition control module. Applying 240V to a board configured for 120V will immediately destroy the step-down transformer and board circuitry.
To read the control schematic logically during field servicing, trace the circuit through the 24VAC safety loop in this specific sequential order:
- Step 1: Power Conversion: The step-down transformer converts line voltage to 24VAC control voltage supplied to the circuit board terminals.
- Step 2: Water Pressure Switch (PS): Requires a minimum of 3 PSI (or 40 GPM flow rate) to close contacts and initiate the heating cycle.
- Step 3: High Limit Safety Loop (HLS/AGS): Circuit flows through the 135°F limit switch, 150°F limit switch, and Automatic Gas Shutoff switch in series.
- Step 4: Air Pressure Switch (AFS): Blower motor energizes; once proving draft, the AFS contacts close, supplying 24VAC back to the ignition control terminal.
- Step 5: Ignition Circuit: The control board energizes the Hot Surface Igniter (HSI) for a 20-second pre-heat window before supplying 24VAC to open the main gas valve combination solenoid.
If installing a new heater in conjunction with automation, verify low-voltage dry contact wiring using our spa control system integration schematics guide to prevent control loop cross-powering.
Diagnosing Failures via the Pentair MasterTemp 400 Parts Diagram Blueprint
When troubleshooting using the pentair mastertemp 400 parts diagram, map diagnostic LED error codes on the back of the control board directly to specific physical components on the schematic blueprint.
Disconnect all high-voltage power mains and turn off gas supply shutoff valves before servicing internal gas valve solenoids, burner plates, or line-voltage electrical connections.
Use the structural workflow below to isolate physical faults from error indications:
- AFS Fault (Air Flow Switch): Check for dynamic pressure drop across the blower housing. Inspect the venturi orifice for debris, verify 24VAC across AFS terminals, and clean the sensing tube linked to the combustion blower.
- SFS Fault (Stack Flue Sensor): Resistance across SFS wires must read approximately 3.5k Ω at room temperature (77°F). An “SFS” error indicates flue gas temperature exceeded 500°F, typically caused by severe scale buildup inside the heat exchanger tubes or a failed internal thermal regulator bypass spring. Ensure gas supply piping matches required pipe size using our gas line sizing charts for high-BTU heaters.
- IGN / HSI Failure: Measure resistance across the cold Igniter terminal plug using a digital multimeter. A reading outside 40-75 Ω indicates a cracked or degraded igniter element requiring replacement (Part # 42001-0053S).
- AGS / HLS Faults: Check water flow parameters. If water flow is nominal (above 40 GPM), test continuity across individual limit switches on the manifold shell; open circuits below their rated temperature threshold indicate a failed switch element.
Pentair MasterTemp 400 Parts Diagram FAQs
How do I identify whether my MasterTemp 400 uses a copper or cupro-nickel heat exchanger from the blueprint?
Check the product identifier tag on the heater casing and the part numbers on the manifold blueprint. Standard copper models carry part number prefix 460736/460737, whereas Heavy-Duty Cupro-Nickel models feature an “HD” suffix in the model number (e.g., MasterTemp 400 HD) and utilize heat exchanger kit part number 42001-0045S.
What is the correct resistance specification for the MasterTemp 400 thermistor component?
The water temperature thermistor probe (Part # 42001-0053S/10k thermistor) should measure approximately 10,000 Ohms (10k Ω) at 77°F (25°C). As water temperature increases, resistance decreases (Negative Temperature Coefficient). An open loop (infinite resistance) or zero resistance indicates a failed probe.
Where is the air pressure switch located in the Pentair MasterTemp 400 structural configuration?
The air pressure switch (AFS) is mounted on the upper inner firewall panel directly adjacent to the combustion blower housing. It connects to the blower tube via a clear silicone pressure tube that senses differential air draft created by the forced-draft fan motor.
How does the dual-voltage configuration plug operate on the main control board schematic?
The dual-voltage selector plug acts as a physical jumper matrix for the primary side of the onboard transformer. Inserting the plug in the 120V orientation wires the transformer primaries in parallel, while inserting it in the 240V position wires them in series. Always confirm plug position matches line voltage before energizing.
What is the procedure for replacing the thermal regulator in the header manifold assembly?
Turn off the pump and isolate the heater. Unscrew the bronze thermal regulator cap located on the water manifold assembly (between the inlet and outlet pipes). Remove the old spring and thermal regulator element (Part # 42001-0063S), insert the new assembly with the spring pointing inward, replace the lubricated O-ring, and hand-tighten the cap to 20 in-lbs maximum torque.
Step-by-Step Guide to Understanding the Pentair Mastertemp 400 Parts Diagram
Identify – Access the full pentair mastertemp 400 parts diagram for your specific fuel system type (natural gas or propane).
Locate – Isolate the cabinet structural layout section corresponding to the faulty component or piping manifold.
Reference – Match part numbers such as the thermistor or igniter to the official system configuration key.
Connect/Route – Route electrical wiring harness connections or align gas manifold fittings according to diagram schematics.
Verify – Inspect gas orifice alignment, sensor seatings, and thermal regulator placement before restoring power.
Troubleshoot – Consult error code mappings and circuit paths on the diagram if the unit fails to ignite.
